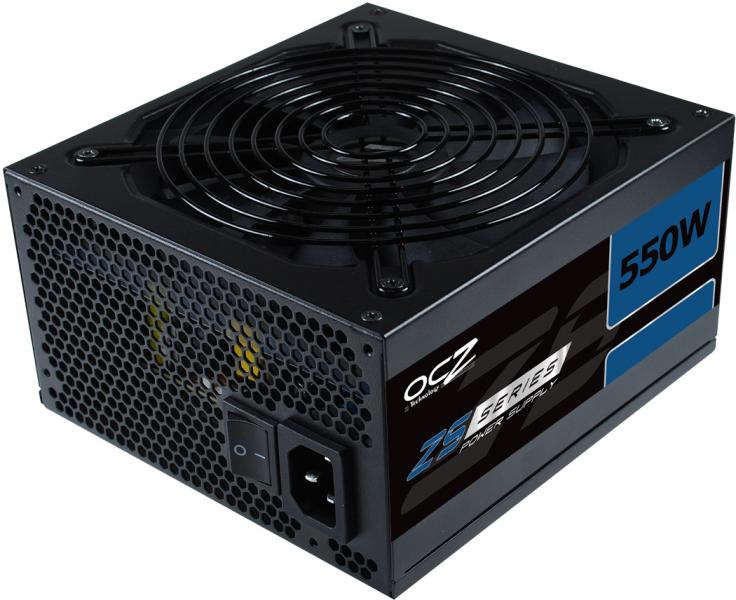

OCZ 550W ZS Series ATX Power Supply
Manufactured by:
This product has been discontinued
Product Information
Part Number: OCZ-ZS550W-UK
Item No: 12353
Shipping Weight: 2.55 kgs (5.61 lbs)
Actual Weight: 2.55 kgs (5.61 lbs)
Specifications
POWER PROVIDED
550W
FORM FACTOR
PC ATX
INPUT VOLTAGE
230VAC
OUTPUT CONNECTORS
1 x 20+4-pin ATX
1 x 4+4-pin 12V ESP/CPU
1 x 6-pin, 1 x 6+2-pin PCIe
3 x 4-pin peripheral
8 x 5-pin SATA
1 x 4+4-pin 12V ESP/CPU
1 x 6-pin, 1 x 6+2-pin PCIe
3 x 4-pin peripheral
8 x 5-pin SATA
VOLTAGE PROVIDED
+3.3V (22A)
+5V (22A)
+12V (38A)
-12V (0.3A)
+5VSB (3A)
+5V (22A)
+12V (38A)
-12V (0.3A)
+5VSB (3A)
FANS
135mm temperature and load controlled double ball-bearing fan
DIMENSIONS
150mm x 160mm x 86mm
WEIGHT
1.7kg
MTBF
100,000 hours
FEATURES
Single +12V Rail
Continuous output rated at 40°C
High Efficiency: 85% at typical load, meets 80+ Bronze standards
Continuous output rated at 40°C
High Efficiency: 85% at typical load, meets 80+ Bronze standards
WARRANTY
3 years OCZ Power Swap Warranty
Product Description
The OCZ ZS Series PSU is an affordable solution for driving today's value-oriented gaming systems, and can power both NVIDIA® SLI™ and ATI CrossFireX™ modes with an array of connectors. With the ideal combination of stability and sleek design, ZS is designed with gamers and modders in mind, sporting a compact form factor for compatibility with a range of case designs.
Available in 550W to 750W configuration and backed with OCZ’s 3-year Power Swap warranty, the ZS Series PSU gives you peace of mind to ensure stability, low noise, and efficiency of your home gaming system.
Features:
- Single +12V Rail
- Continuous output rated at 40°C
- 150 x 160 x 86mm (W x L x H)
- ATX12V v2.2 and EPS12V
- Non-Modular
- High Efficiency: 85% at typical load, meets 80+ Bronze standards
- Overvoltage/Overcurrent/Short-Circuit protection
- Active PFC
- MTBF: 100,000 hours
- 135mm temperature and load controlled double ball-bearing fan
- 3 year warranty backed by OCZ's exclusive PowerSwap Warranty
Available in 550W to 750W configuration and backed with OCZ’s 3-year Power Swap warranty, the ZS Series PSU gives you peace of mind to ensure stability, low noise, and efficiency of your home gaming system.
Features:
- Single +12V Rail
- Continuous output rated at 40°C
- 150 x 160 x 86mm (W x L x H)
- ATX12V v2.2 and EPS12V
- Non-Modular
- High Efficiency: 85% at typical load, meets 80+ Bronze standards
- Overvoltage/Overcurrent/Short-Circuit protection
- Active PFC
- MTBF: 100,000 hours
- 135mm temperature and load controlled double ball-bearing fan
- 3 year warranty backed by OCZ's exclusive PowerSwap Warranty
