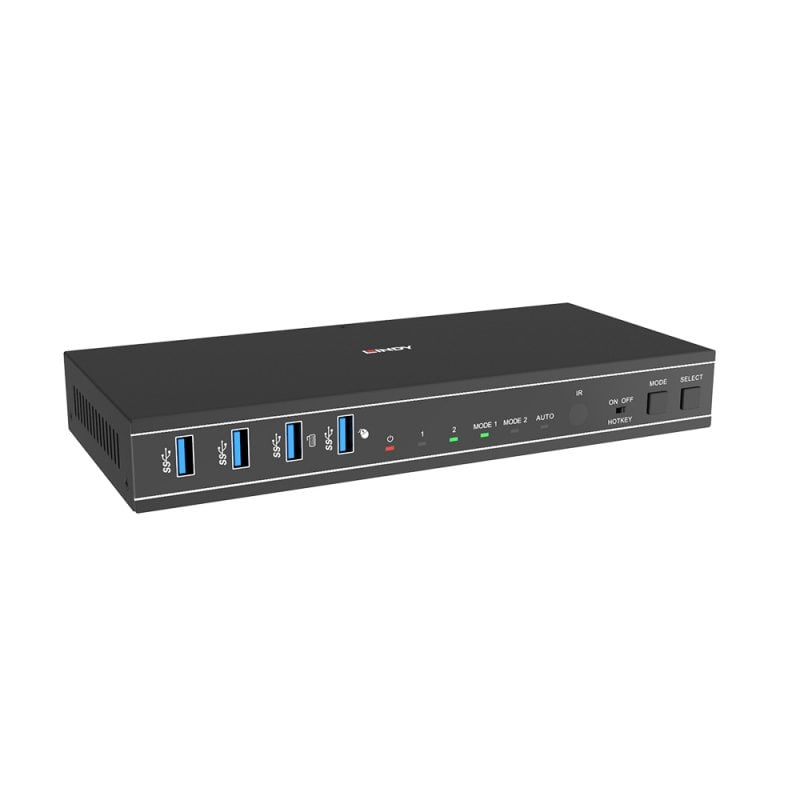

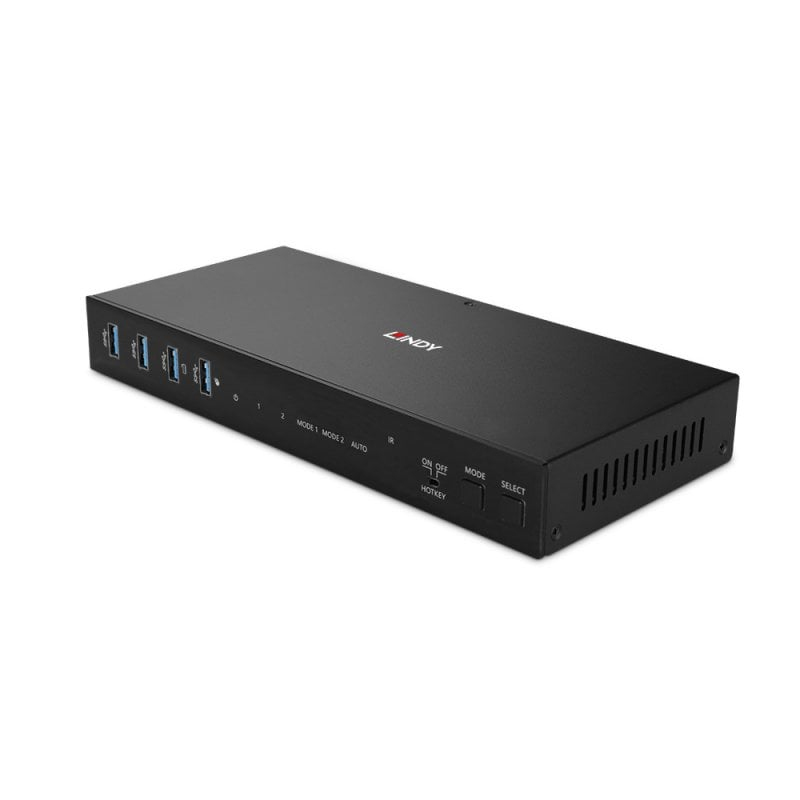

Lindy 2 Port Dual Head HDMI 4K60, USB 3.0 KVM Switch
Manufactured by:
Product Information
Part Number: 39314
Item No: FD3542172
Shipping Weight: 1.61 kgs (3.54 lbs)
Actual Weight: 1.61 kgs (3.54 lbs)
Specifications
VIDEO RESOLUTION
4096 x 2160 pixels
COMPUTER CONNECTIONS
4
MONITOR CONNECTORS
HDMI
KEYBOARD PORT
USB
MOUSE PORT
USB
AUDIO CONNECTIONS
Yes
COLOR
Black
WEIGHT
609 g
Product Description
Specifications
- AV Interface: HDMI®
- Console Interfaces: USB
- Interface Standard: HDMI® 2.0, USB 3.0
- Maximum Resolution: 4096x2160@60Hz 4:4:4 8Bit
- HDCP Support: 2.3
- Supported Audio: HDMI® Pass Through, Analogue Stereo
- Separate Audio Ports: 3.5mm (Female)
- Serial Interface: 3-pin Terminal Block
- Console Number: 1
- Max Number PC/Server: 2
- Cascadable: -
- Switching Method: Push Button, Mouse & Keyboard Hotkeys, IR Remote control, RS-232 commands
- 19'' Rack Mountable: -
- Special Features: USB 3.0 device ports, dual head, active LED indicators

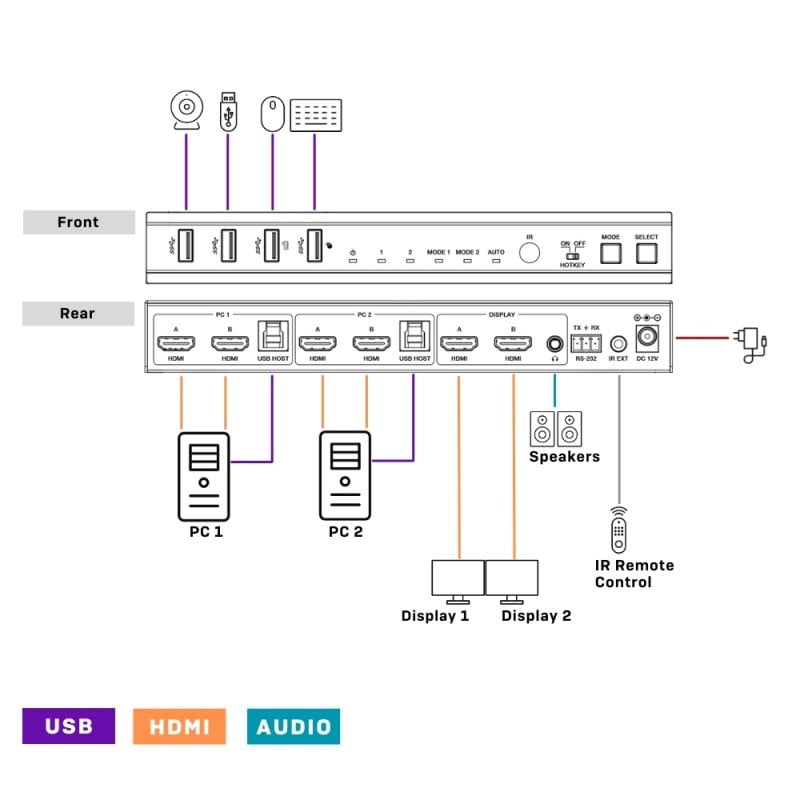

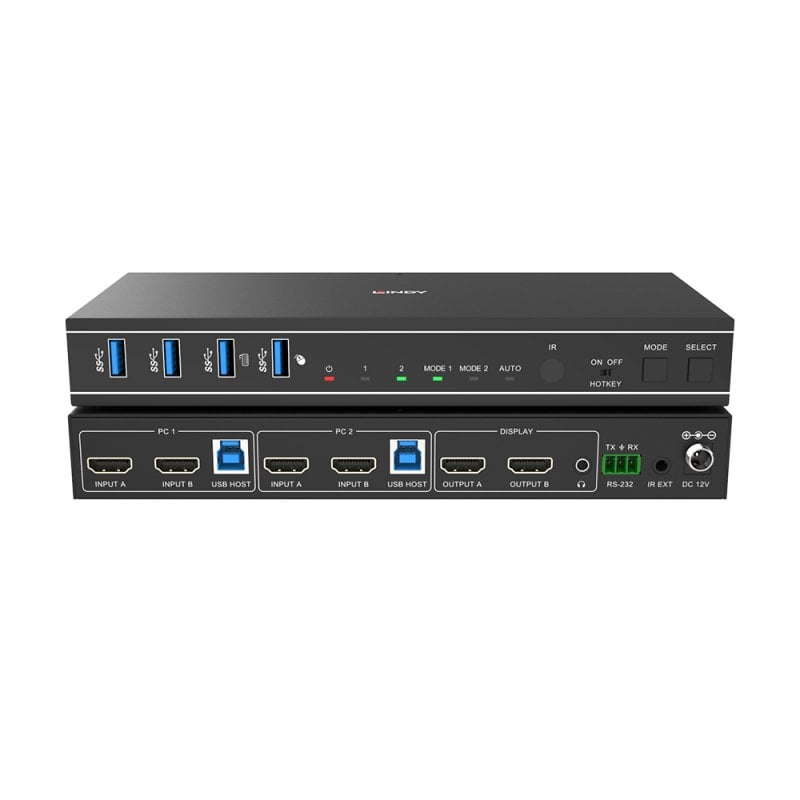

Connectors
- Console Interfaces: 2 x HDMI® Type A (Female), 4 x USB Type A (Female), 3.5mm (Female)

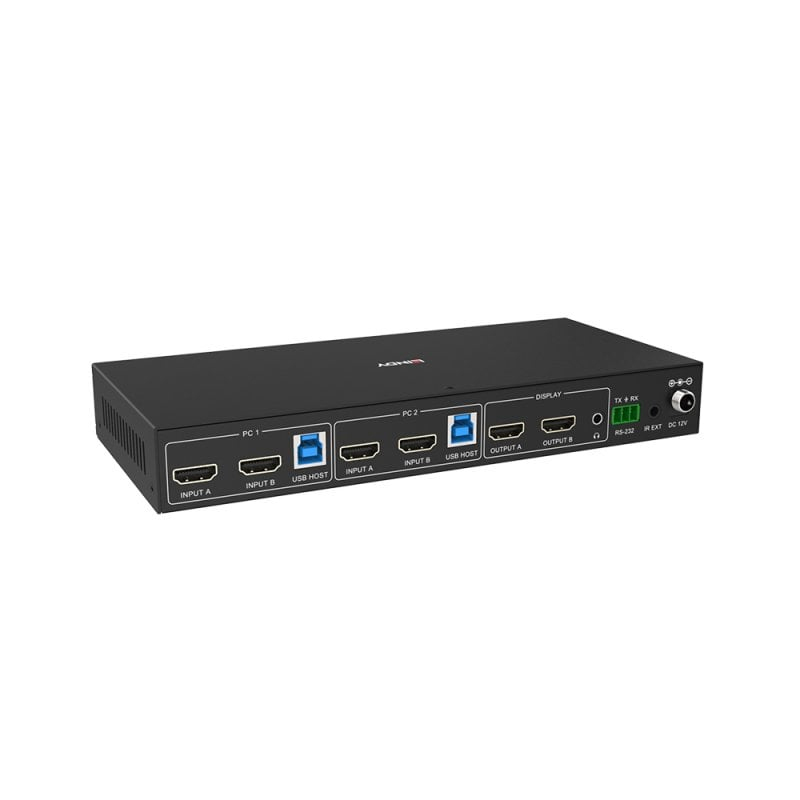

- PC/Server Interfaces: 4 x HDMI® Type A (Female), 2 x USB 3.0 Type B (Female)
- Other Interfaces: 3-Pin Terminal Block, 3.5mm IR (Female)
- Power: 5.5/2.1mm screw type DC socket
Physical Properties
- Dimensions (approx.) WxDxH: 220x100x30mm (8.66x3.94x1.18in)
- Housing Material: Metal
- Net Weight: 0.609kg (1.34lb)
- Operating Temperature: 0°C - 40°C (32°F - 104°F)
- Storage Temperature: -20°C - 60°C (-4°F - 140°F)
- Humidity: 20 - 90% RH (non-condensing)
- Power Requirements: 12V 1A
- Colour: Black
Miscellaneous
- Packaging Type: Carton Box
- Packaging Dimensions: 300x185x115mm (11.81x7.28x4.53in)
- Gross Weight: 1.611.kg (3.55lb)
- Warranty (Years): 2
- Certificated: CE, UKCA, FCC, RoHS, REACH & California Proposition 65
Package Content
- HDMI® Dual Head KVM Switch
- IR Remote Control
- IR Receiver Cable, 1.5m
- 2 x USB 3.0 Cable Type A to Type B, 1.8m
- 4 x HDMI® Cable, 1.5m
- 3-Pin Terminal Block
- 2 x Mounting Ears & 4 x Screws
- Multi-country PSU (UK, EU, US & AUS)
- Lindy Manual
Purchasing Information
- No.: 39314
- EAN: 4002888393140
