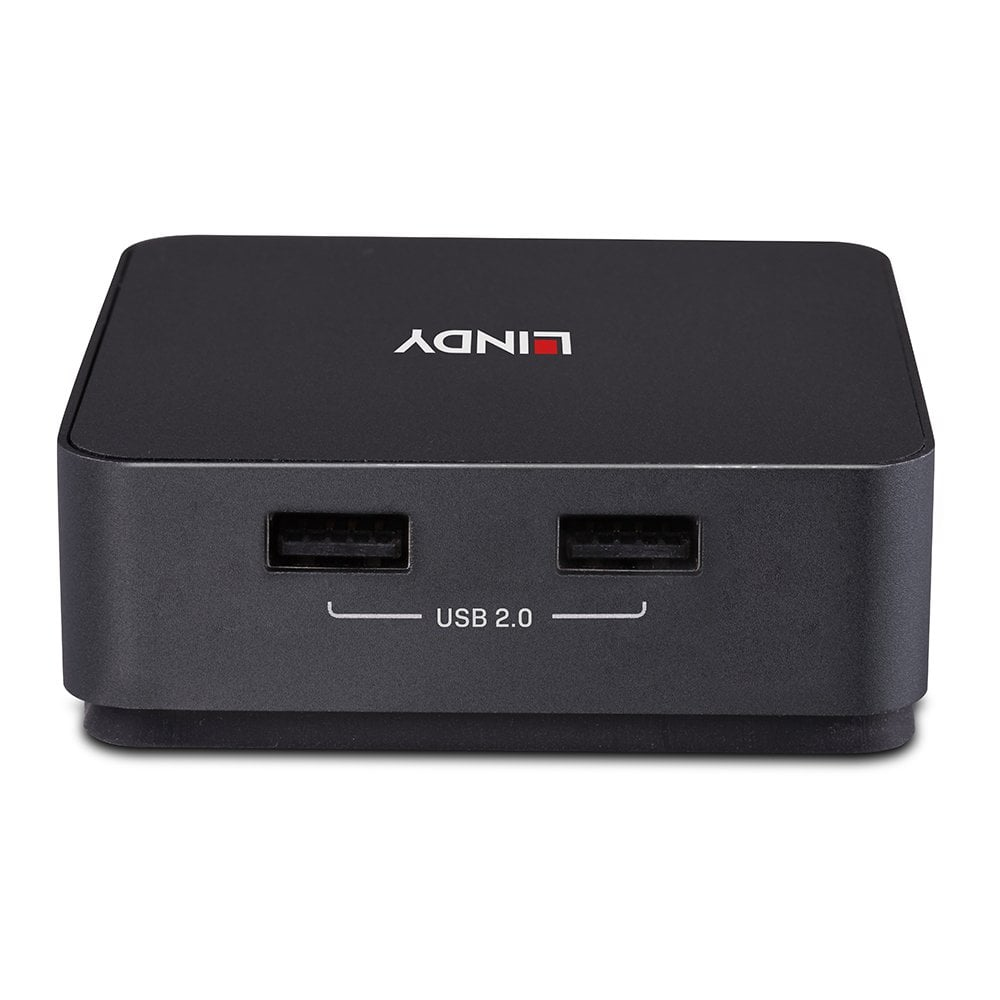

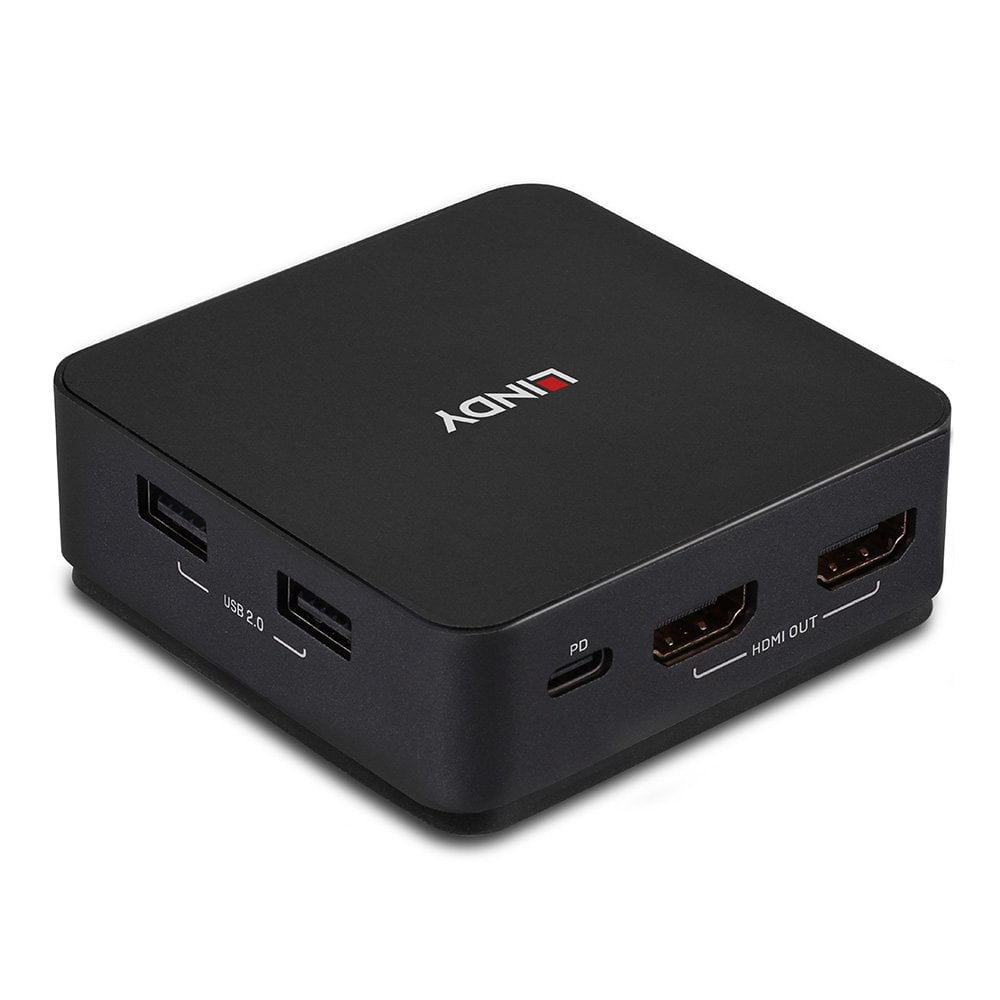

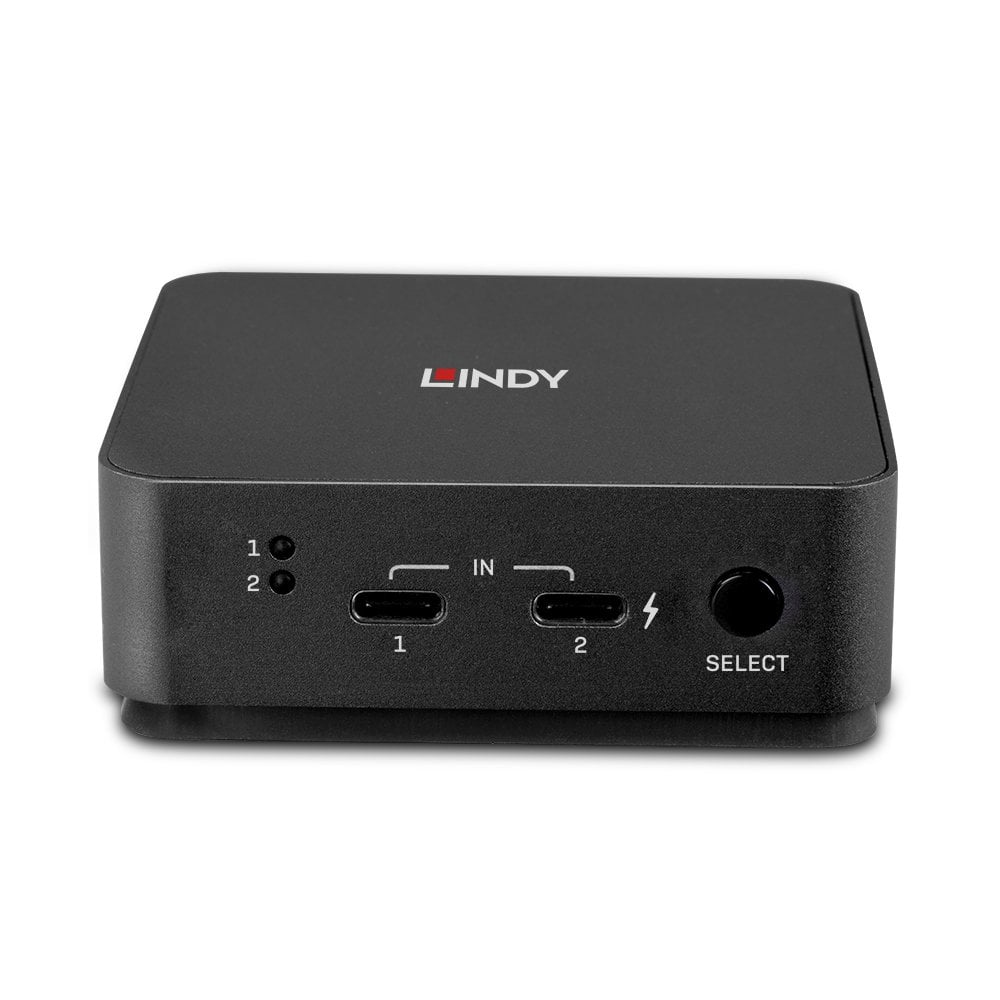

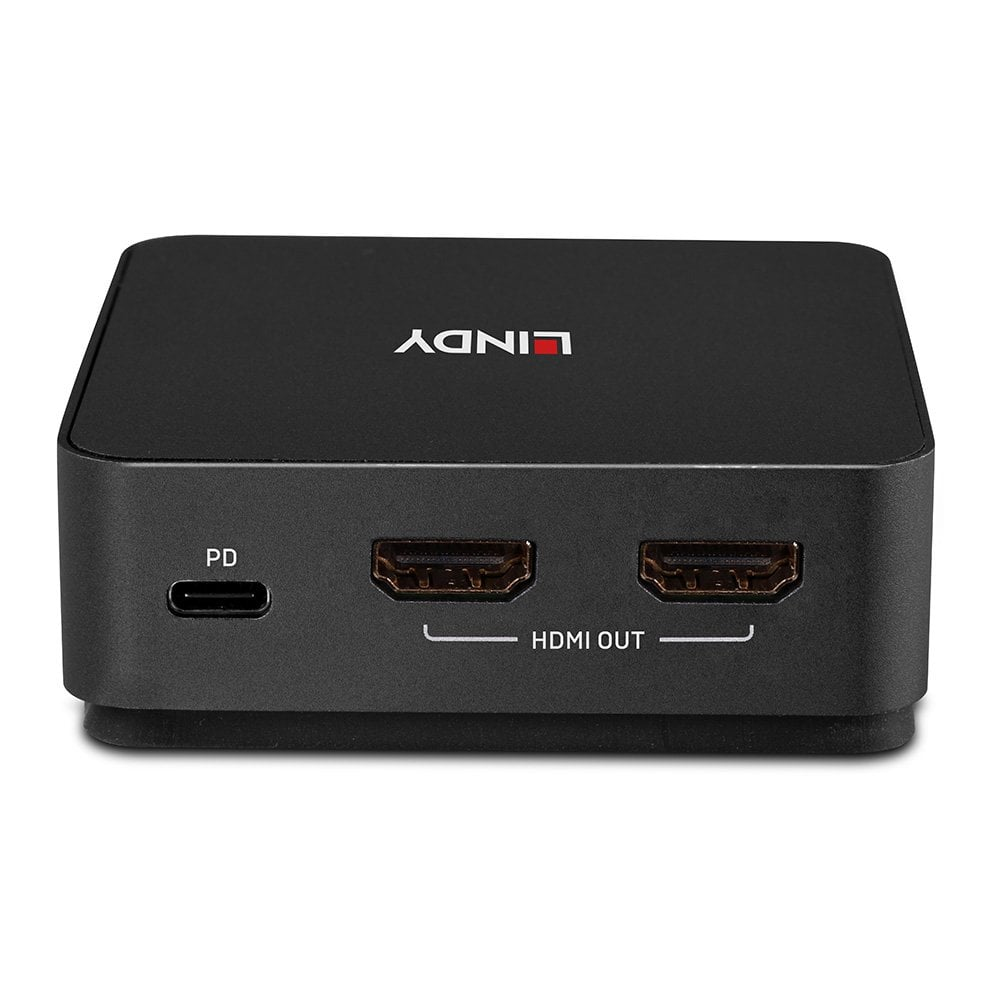

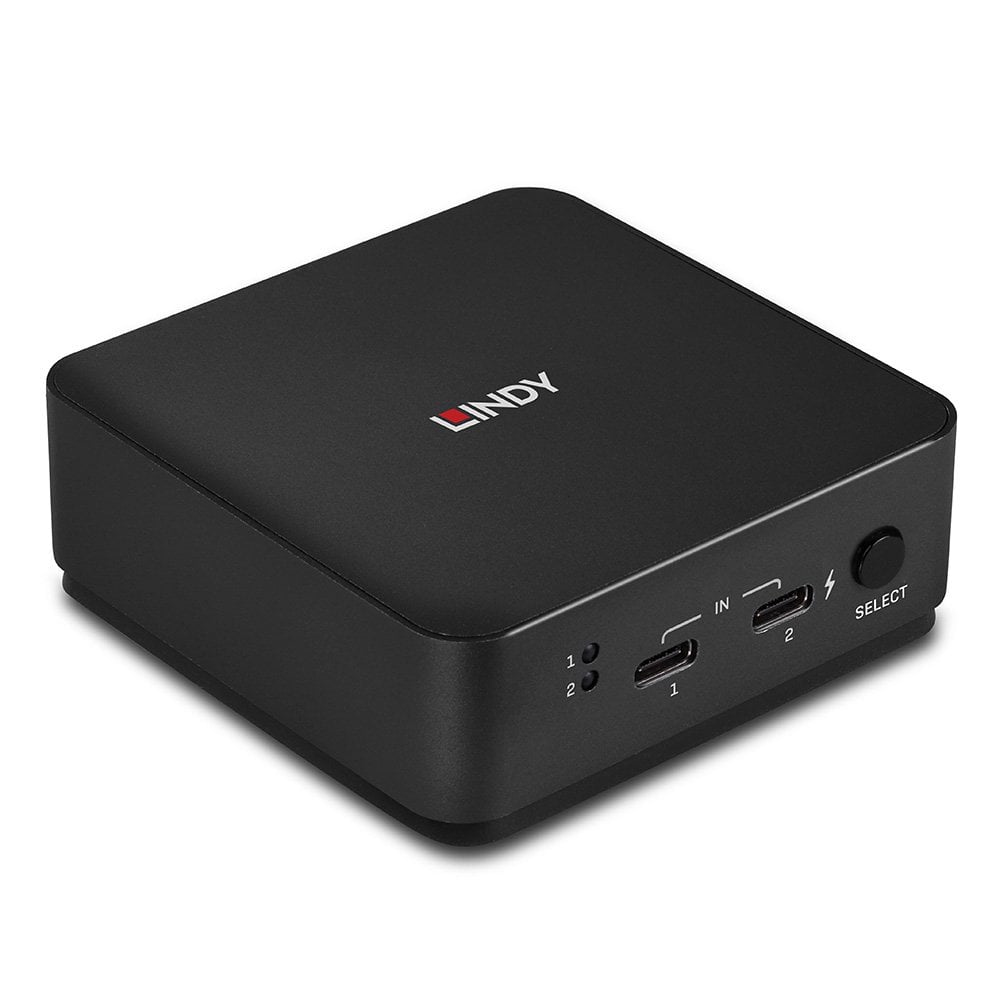

Lindy 2 Port Type C, Dual HDMI 4K60 KVM Switch
Manufactured by:
Product Information
Part Number: 42321
Item No: FD3559614
Shipping Weight: 0.3 kgs (0.66 lbs)
Actual Weight: 0.23 kgs (0.51 lbs)
Specifications
VIDEO RESOLUTION
3840 x 2160 pixels
COMPUTER CONNECTIONS
2
MONITOR CONNECTORS
HDMI
KEYBOARD PORT
USB
MOUSE PORT
USB
COLOR
Grey
WEIGHT
230 g
Product Description
Specifications
- AV Interface: USB Type C, HDMI®
- Console Interfaces: USB
- Interface Standard: HDMI® 2.0, USB 3.2 Gen 2, USB 2.0
- Maximum Resolution: 3840x2160@60Hz 4:4:4 8bit
- HDCP Support: 2.2
- Supported Audio: HDMI pass-through
- Separate Audio Ports: -
- Serial Interface: -
- Console Number: 1
- Max Number PC/Server: 2
- Cascadable: -
- Switching Method: Push Button & Autoswitching
- 19'' Rack Mountable: -
- Special Features: Power Delivery 3.0 up to 100W on port 2, active LED indicators
Connectors
- Console Interfaces: 2 x HDMI® (Female), 2 x USB Type A (Female)
- PC/Server Interfaces: 2 x Type C (Female)
- Other Interfaces: -
- Power: Type C PD (Female) (optional)
Physical Properties
- Dimensions (approx.) WxDxH: 78x78x26.8mm (3.07x3.07x1.06in)
- Housing Material: Metal
- Net Weight: 0.23kg (0.51lb)
- Operating Temperature: 5°C - 40°C (41°F - 104°F)
- Storage Temperature: -15°C - 60°C (5°F - 140°F)
- Humidity: 5 - 85% RH (non-condensing)
- Power Requirements: 7.5V
- Colour: Dark grey
Miscellaneous
- Packaging Type: Carton Box
- Packaging Dimensions: 183x53x138mm (7.2x2.09x5.43in)
- Gross Weight: 0.33kg (0.73lb)
- Warranty (Years): 2
- Certificated: CE, UKCA, FCC, RoHS, REACH & California Proposition 65
Package Content:
- Type C Dual HDMI® 4K60 KVM Switch
- 2 x Type C Cable, 0.5m
- Lindy Manual
Purchasing Information
- No.: 42321
- EAN: 4002888423212
