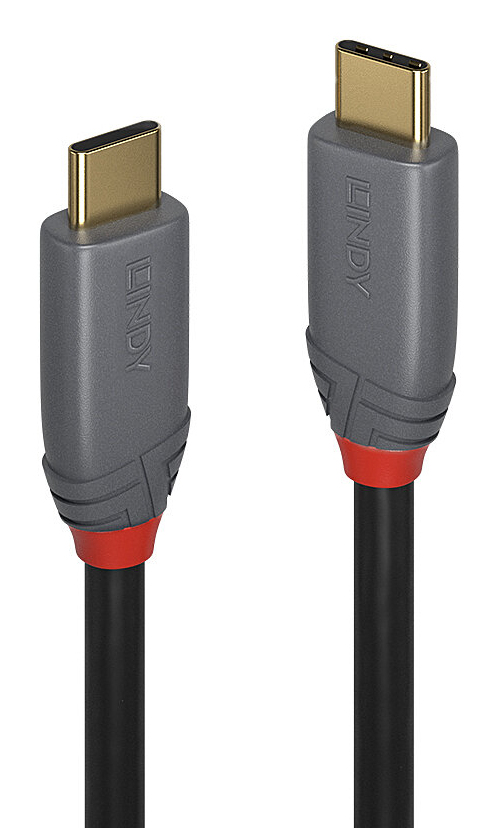

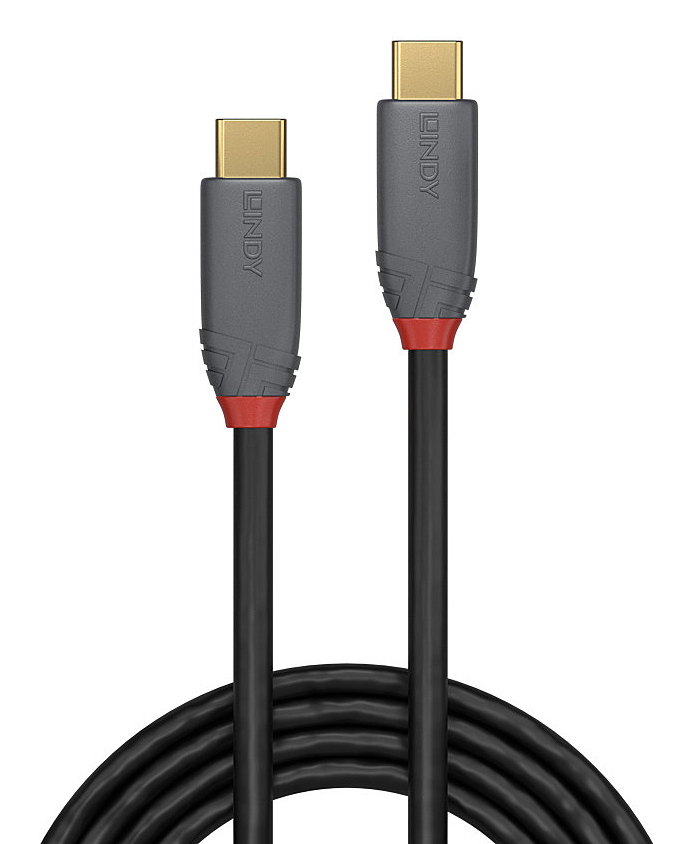

Lindy 36908 USB cable USB 3.2 Gen 2 (3.1 Gen 2) 5 m USB C 10 Gbit/s 100 W Black

Connectors

• Connector A: USB 3.2 Type C Male
• Connector B: USB 3.2 Type C Male
• Housing Material: PVC
• Shielding in head shell: Nickel-plated iron
• Connector Plating: Nickel
• Pin Construction: Copper
• Pin Plating: Gold
• Dimensions (approx.) WxDxH: 12.7x31x7mm (0.5x1.22x0.28in)

Cable Construction

• Jacket Diameter: 5.1mm (0.2in)
• Jacket Material: PVC
• Conductor Material: Tinned Copper
• Conductor Gauge Power: 25AWG
• Conductor Gauge Data: 28/32/34AWG
• Shielding: AL Mylar, tinned copper

Specifications

• Length: 5m (16.4ft)
• Colour: Black
• Type: Round
• Standard: USB 3.2 Gen 2x1
• Supported Bandwidth: 10Gbps
• Power Delivery: PD 3.0 with up to 100W (20V 5A)
• E-Mark: Yes
• Maximum Resolution: 4K 4096x2160@60Hz
• Supported Protocols: USB 3.2, USB 2.0, DisplayPort 1.4
• Nominal Attenuation:
  • 100MHz, -3dB
  • 2500MHz, -7.5dB
  • 5000MHz, -10.5dB
  • 10000MHz, -15dB
  • 12500MHz, -18dB
  • 15000MHz, -21.2dB
• Minimum Bend Radius: 51mm (2.01in)
• Operating Temperature: -20°C - 60°C (-4°F - 140°F)
• Storage Temperature: -20°C - 80°C (-4°F - 176°F)

Miscellaneous

• Packaging Type: Polybag
• Warranty (Years): 10
• Product Compliance: RoHS, REACH, California Proposition 65 & UL (raw cable only)

Purchasing Information

• No.: 36908
• EAN: 4002888369084

This product is also available in other lengths

• 36904 - 3m (9.84ft)
• 36908 - 5m (16.4ft)
• 36909 - 7m (22.97ft)
