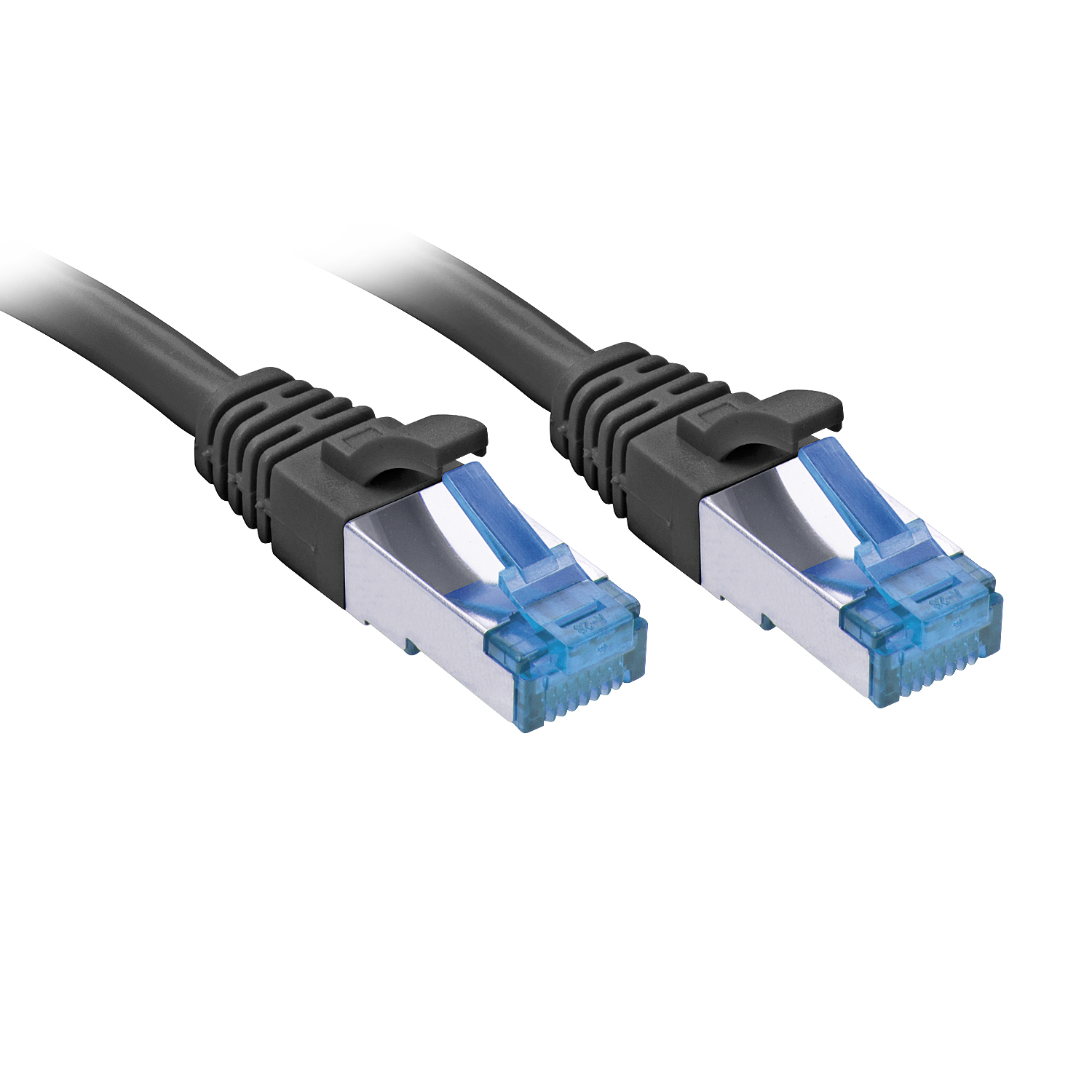

Lindy 47421 networking cable Black 25 m Cat6a S/FTP (S-STP)
Manufactured by:
Product Information
Part Number: 47421
Item No: FD3543650
Shipping Weight: 1.2 kgs (2.64 lbs)
Actual Weight: 1.01 kgs (2.21 lbs)
Specifications
TYPE
Cat6a
LENGTH
25 m
LEFT CONNECTOR
RJ-45
RIGHT CONNECTOR
RJ-45
CABLE SHIELDING
S/FTP (S-STP)
MATERIAL
Thermoplastic elastomer (TPE)
Product Description
Connectors
- Connector A: RJ45 Male
- Connector B: RJ45 Male
- Housing Material: Polycarbonate
- Connector Plating: Nickel
- Pin Construction: Copper Alloy
- Pin Plating: Gold plated
- Dimensions (approx.) WxDxH: 11.6x22.8x8.3mm (0.46x0.90x0.33in)
Cable Construction
- Length: 30m (98.43ft)
- Colour: Black
- Type: Cat.6A
- Jacket Diameter: 6.2mm (0.24in)
- Jacket Material: TPE
- Conductor Material: Copper
- Conductor Gauge: 27AWG
- Shielding: Aluminium Braid
Specifications
- Supported Bandwidth: 500MHz
- Nominal Attenuation: 49.3dB/100m @500MHz
- Minimum Band Radius: 74mm (2.91in)
- Operating Temperature: -10°C - 60°C (14°F - 140°F)
- Storage Temperature: -20°C - 75°C (-4°F - 167°F)
Miscellaneous
- Packaging Type: Polybag
- Warranty (Years): 10
- Product Compliance: RoHS, REACH, UL, California Proposition 65
Purchasing Information
- No.: 47421
- EAN: 4002888474214
This product is also available in other lengths
- 47410 - 0.3m (0.98ft)
- 47411 - 0.5m (1.64ft)
- 47412 - 1m (3.28ft)
- 47413 - 1.5m (4.92ft)
- 47414- 2m (6.56ft)
- 47415 - 3m (9.84ft)
- 47416 - 5m (16.44ft)
- 47417 - 7.5m (24.61ft)
- 47418 - 10m (32.81ft)
- 47419 - 15m (49.21ft)
- 47420 - 20m (65.62ft)
- 47421 - 30m (98.43ft)
