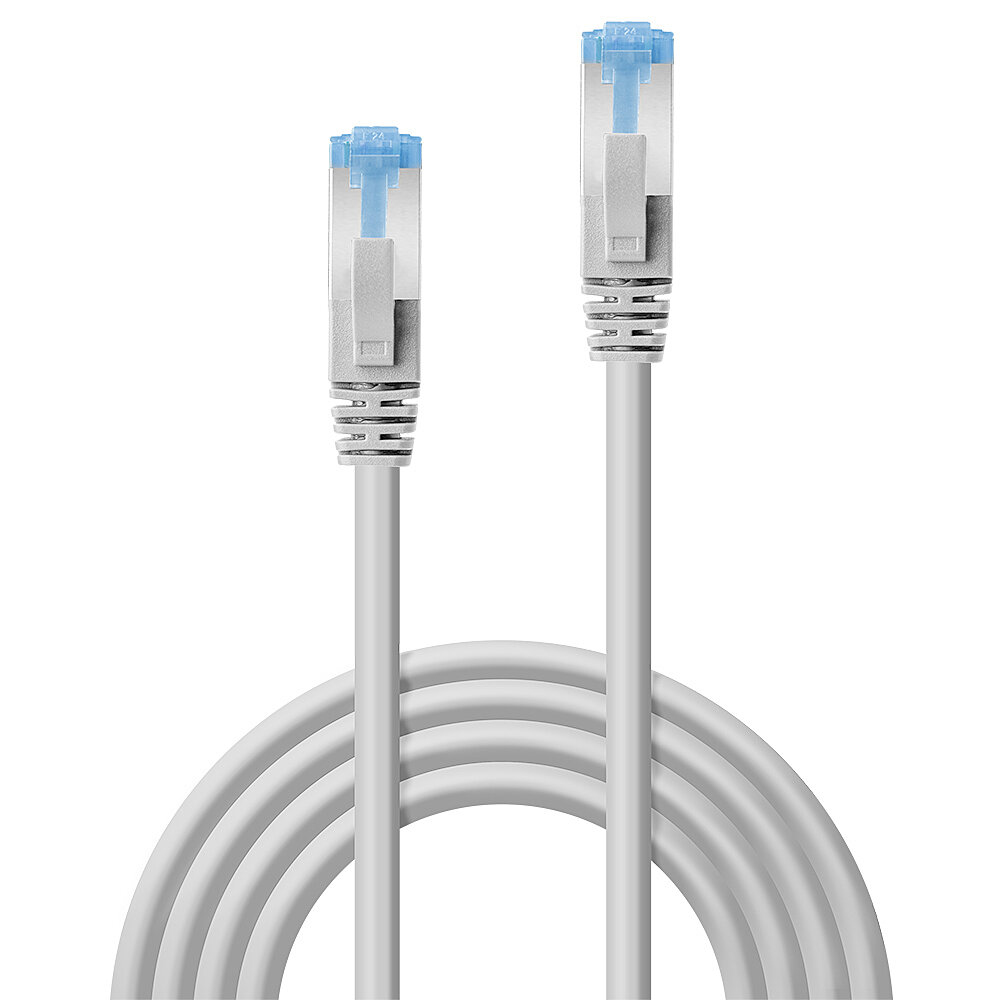

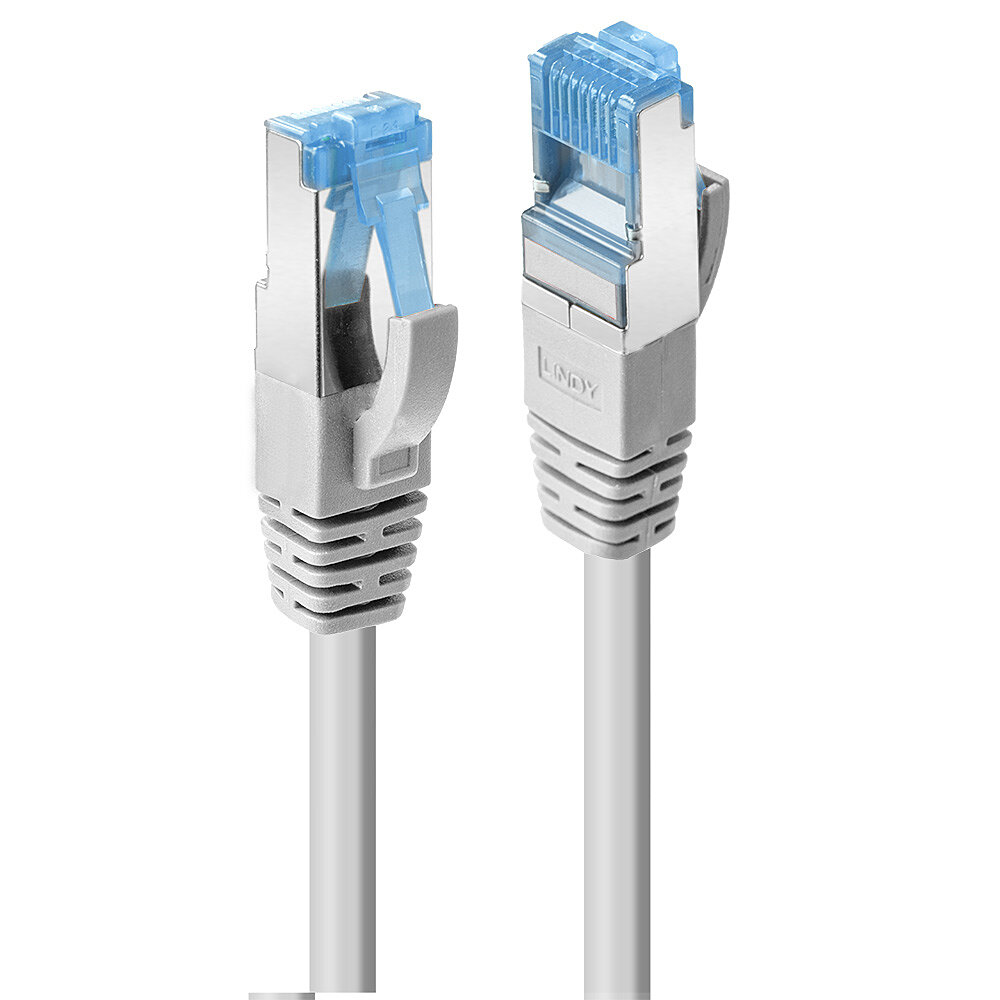

Lindy 47634 networking cable Grey 3 m Cat6a S/FTP (S-STP)
Manufactured by:
Product Information
Part Number: 47634
Item No: FD3543735
Shipping Weight: 0.3 kgs (0.66 lbs)
Actual Weight: 0.11 kgs (0.24 lbs)
Specifications
TYPE
Cat6a
LENGTH
3 m
LEFT CONNECTOR
RJ-45
RIGHT CONNECTOR
RJ-45
CABLE SHIELDING
S/FTP (S-STP)
MATERIAL
Thermoplastic elastomer (TPE)
SNAGLESS
Yes
Product Description
Connectors
- Connector A: RJ45 Male
- Connector B: RJ45 Male
- Housing Material: Polycarbonate
- Connector Plating: Nickel
- Pin Construction: Copper Alloy
- Pin Plating: Gold plated
- Dimensions (approx.) WxDxH: 11.6x22.8x8.3mm (0.46x0.90x0.33in)
Cable Construction
- Length:3m (9.84t)
- Colour: Grey
- Type: Cat.6A
- Jacket Diameter: 6.2mm (0.24in)
- Jacket Material: TPE
- Conductor Material: Copper
- Conductor Gauge: 28 AWG
- Shielding: Aluminium Braid
Specifications
- Supported Bandwidth: 500MHz
- Nominal Attenuation: 49.3dB/100m @500MHz
- Minimum Bend Radius: 74mm (2.91in)
- Operating Temperature: -10°C - 60°C (14°F - 140°F)
- Storage Temperature: -20°C - 75°C (-4°F - 167°F)
Miscellaneous

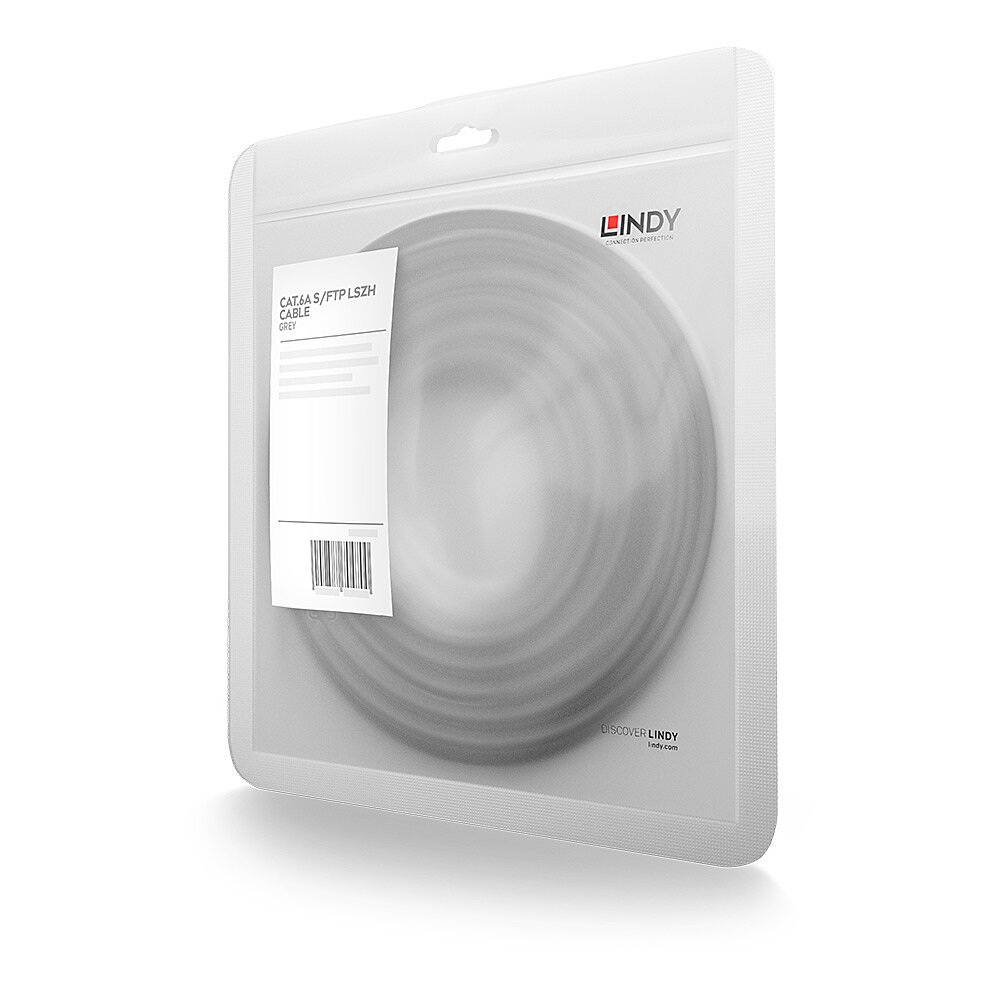

- Packaging Type: Polybag
- Warranty (Years): 10
- Product Compliance: RoHS, REACH, California Proposition 65
Purchasing Information
- No.: 47634
- EAN: 4002888476348
This product is also available in other lengths
- 47630 - 0.3m (0.98ft)
- 47631 - 0.5m (1.64ft)
- 47632 - 1m (3.28ft)
- 47629 - 1.5m (4.92ft)
- 47633- 2m (6.56ft)
- 47634 - 3m (9.84ft)
- 47635 - 5m (16.44ft)
- 47636 - 7.5m (24.61ft)
- 47637 - 10m (32.81ft)
- 47638 - 15m (49.21ft)
- 47639 - 20m (65.62ft)
- 47640 - 30m (98.43ft)
