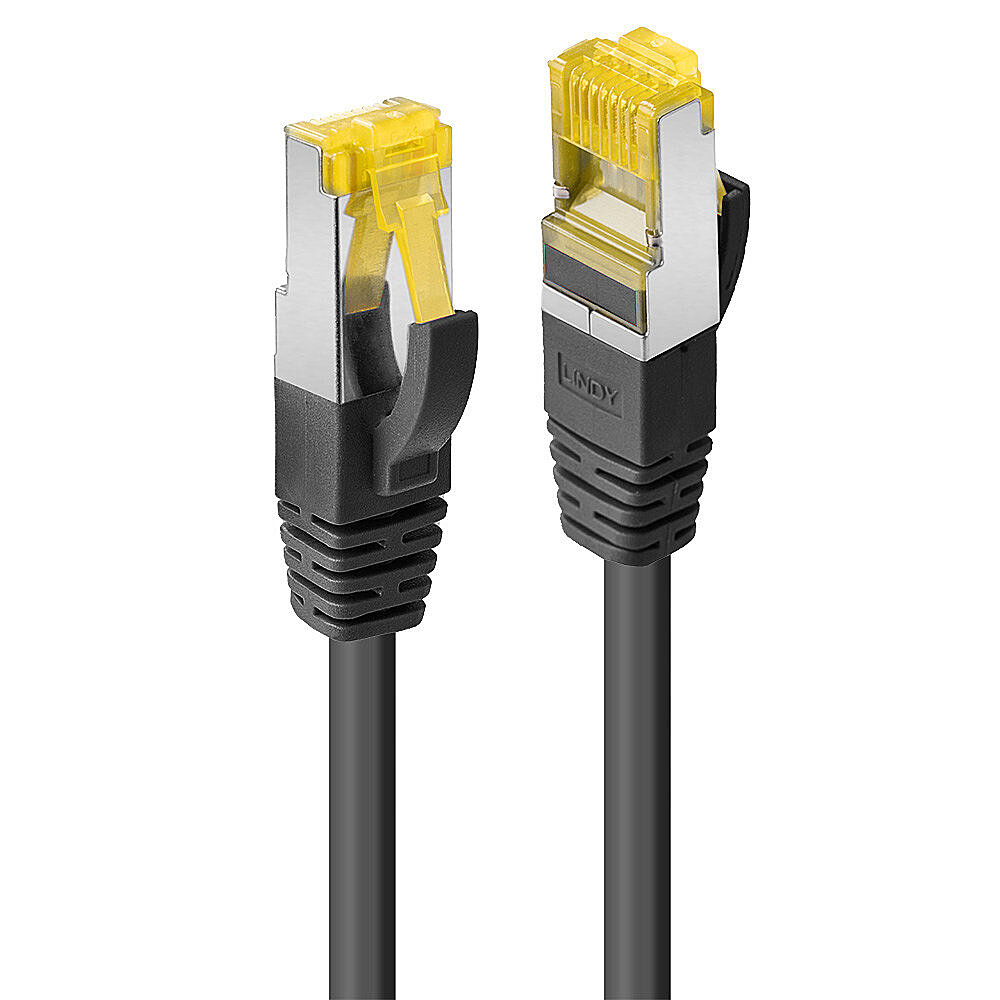

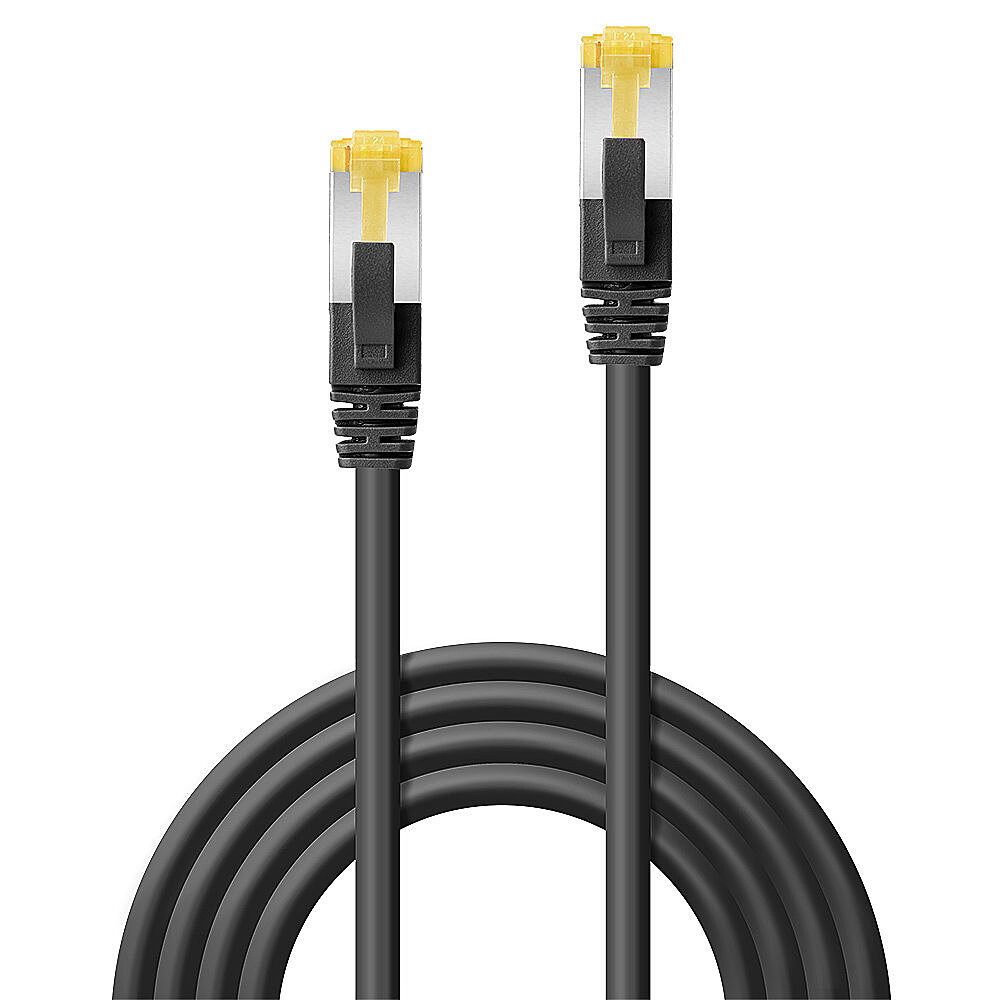

Lindy 47693 networking cable Black 3 m Cat7 S/FTP (S-STP)
Manufactured by:
Product Information
Part Number: 47693
Item No: FD3543771
Shipping Weight: 1.11 kgs (2.43 lbs)
Actual Weight: 1.11 kgs (2.43 lbs)
Specifications
TYPE
Cat7
LENGTH
3 m
LEFT CONNECTOR
RJ-45
RIGHT CONNECTOR
RJ-45
CABLE SHIELDING
S/FTP (S-STP)
MATERIAL
Low smoke zero halogen (LSZH)
Product Description
Connectors
- Connector A: RJ45 Male Cat.6A
- Connector B: RJ45 Male Cat.6A
- Housing Material: Polycarbonate
- Connector Plating: Nickel
- Pin Construction: Copper Alloy
- Pin Plating: Gold plated
- Dimensions (approx.) WxDxH: 11.6x22.8x8.3mm (0.46x0.90x0.33in)
Cable Construction
- Length: 3m (9.84ft)
- Colour: Black
- Type: Cat.7
- Jacket Diameter: 6.5mm (0.26in)
- Jacket Material: LSZH
- Conductor Material: Copper
- Conductor Gauge: 26AWG
- Shielding: Aluminium Braid
Specifications
- Supported Bandwidth: 600MHz
- Nominal Attenuation: 51.4dB/100m @600MHz
- Minimum Bend Radius: 78mm (3.07in)
- Operating Temperature: -10°C - 60°C (14°F - 140°F)
- Storage Temperature: -20°C - 75°C (-4°F - 167°F)
Miscellaneous
- Packaging Type: Polybag
- Warranty (Years): 10
- Product Compliance: RoHS, REACH, UL, California Proposition 65
Purchasing Information
- No.: 47693
- EAN: 4002888476935
This product is also available in other lengths
- 47691 - 1m (3.28ft)
- 47692- 2m (6.56ft)
- 47693 - 3m (9.84ft)
