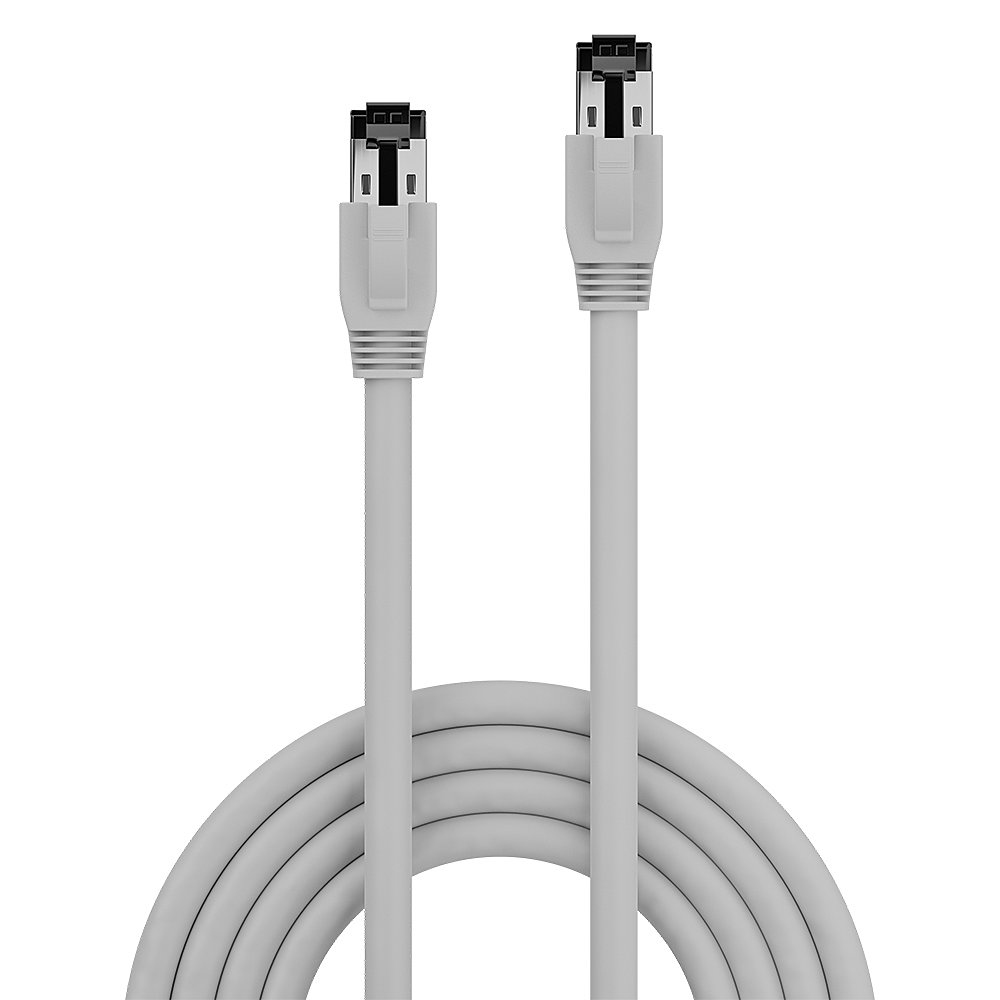

Lindy 5m Cat.8.1 S/FTP LSZH Cable, Grey
Manufactured by:
Product Information
Part Number: 47436
Item No: FD3559655
Shipping Weight: 0.5 kgs (1.1 lbs)
Actual Weight: 0.26 kgs (0.57 lbs)
Specifications
TYPE
Cat8.1
LENGTH
5 m
LEFT CONNECTOR
RJ-45
RIGHT CONNECTOR
RJ-45
CABLE SHIELDING
S/FTP (S-STP)
MATERIAL
Low smoke zero halogen (LSZH)
Product Description

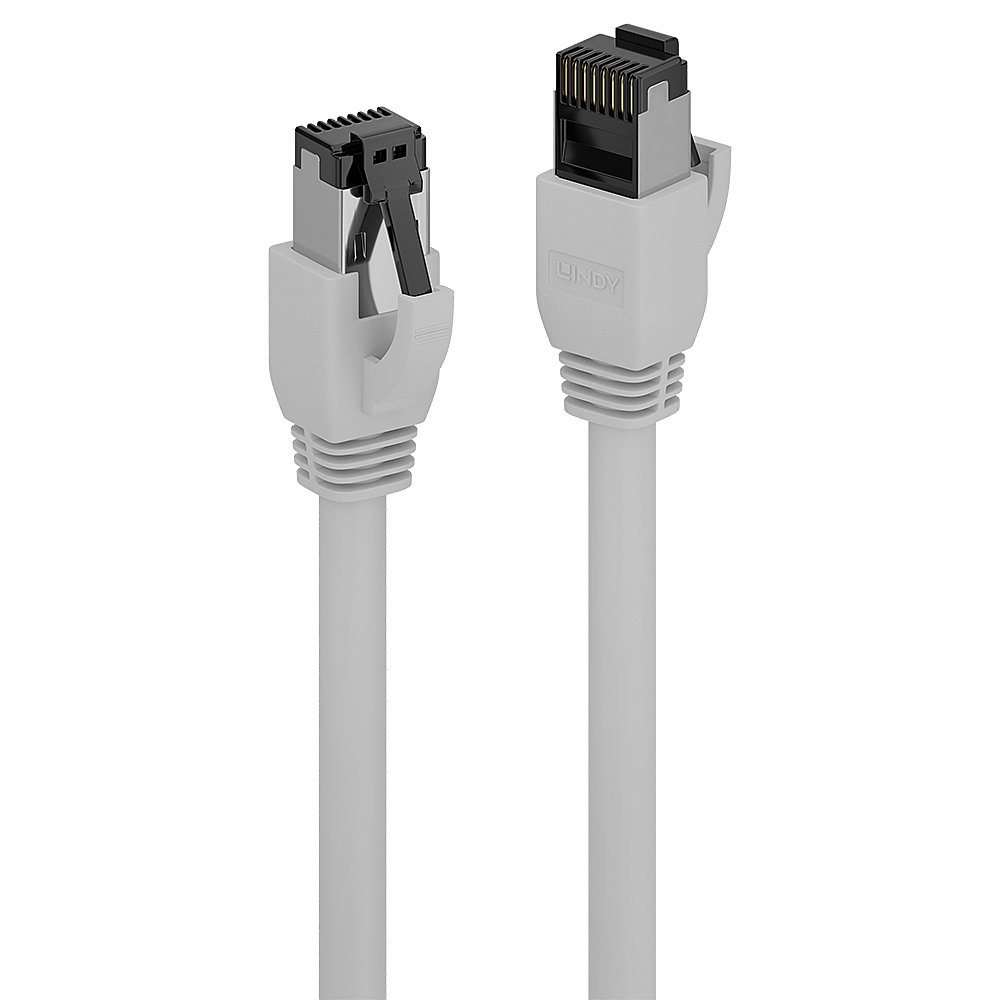

Connectors
- Connector A: RJ45 Male
- Connector B: RJ45 Male
- Housing Material: Polycarbonate
- Connector Plating: Nickel
- Pin Construction: Bare Copper
- Pin Plating: Gold plated
- Dimensions (approx.) WxDxH: 12x38.5x17mm (0.47x1.52x0.67in)
Cable Construction
- Length: 5m (16.44ft)
- Standard: Cat.8.1
- Colour: Grey
- Type: Round
- Jacket Diameter: 7.5mm (0.30in)
- Jacket Material: LSZH
- Conductor Material: Bare Copper
- Conductor Gauge: 24AWG
- Shielding: AL Foil
Specifications
- Supported Bandwidth: 2000MHz
- Nominal Attenuation: 24dB/30m @2000MHz
- Minimum Band Radius: 60mm (2.36in)
- Operating Temperature: -10°C - 60°C (14°F - 140°F)
- Storage Temperature: -20°C - 75°C (-4°F - 167°F)
Miscellaneous

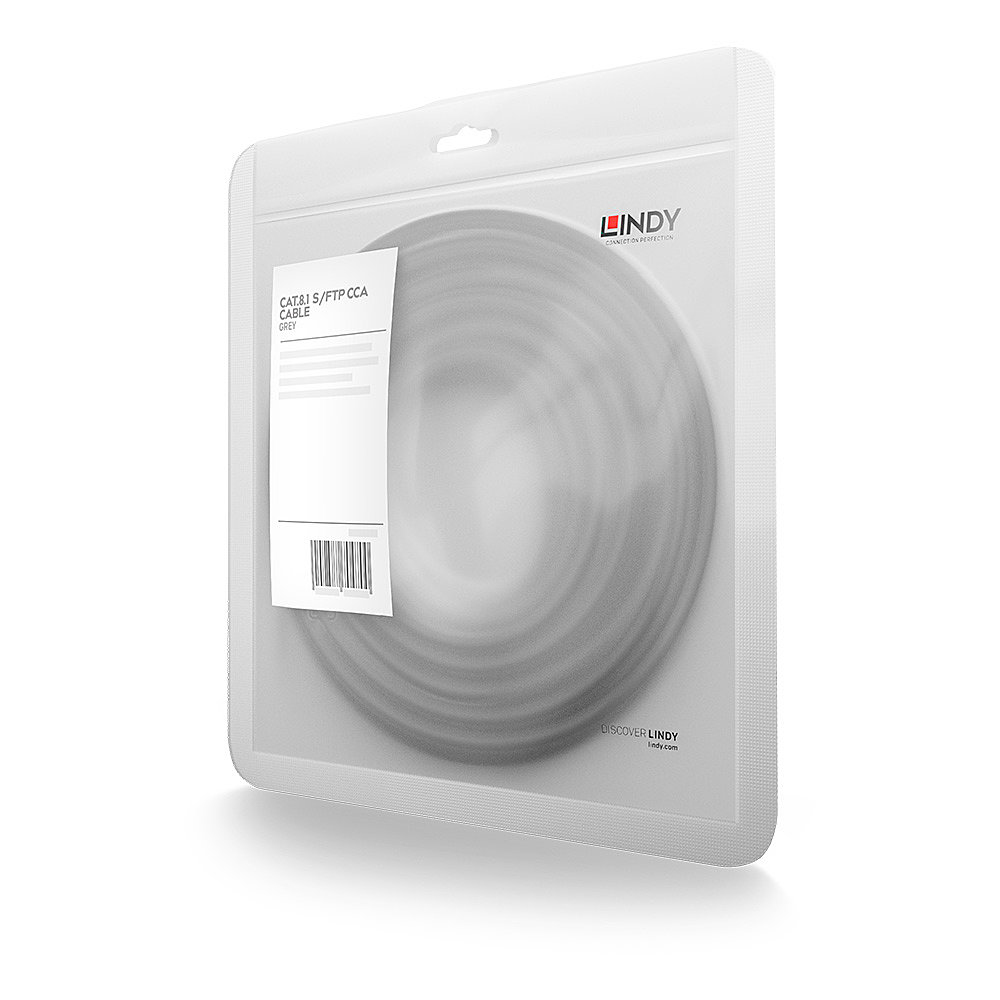

- Packaging Type: Polybag
- Warranty (Years): 10
- Product Compliance: RoHS, REACH, UL
Purchasing Information
- No.: 47436
- EAN: 4002888474368
This product is also available in other lengths
- 47430 - 0.3m (0.98ft)
- 47431 - 0.5m (1.64ft)
- 47432 - 1m (3.28ft)
- 47433 - 1.5m (4.92ft)
- 47434- 2m (6.56ft)
- 47435 - 3m (9.84ft)
- 47436 - 5m (16.44ft)
