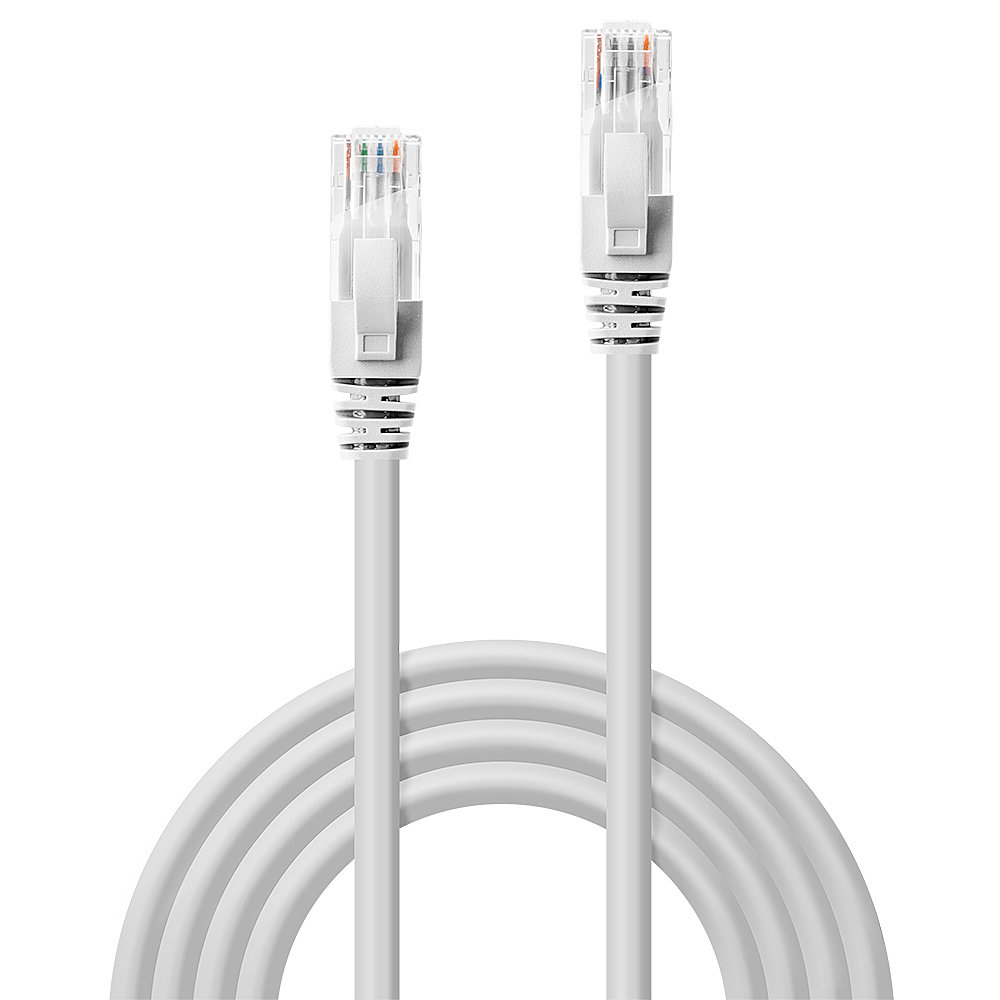

Lindy 7.5m Cat.6 U/UTP Network Cable, White
Manufactured by:
Product Information
Part Number: 48096
Item No: FD3543983
Shipping Weight: 0.3 kgs (0.66 lbs)
Actual Weight: 0.28 kgs (0.61 lbs)
Specifications
TYPE
Cat6
LENGTH
7.5 m
LEFT CONNECTOR
RJ-45
RIGHT CONNECTOR
RJ-45
CABLE SHIELDING
U/UTP (UTP)
MATERIAL
Polyvinyl chloride (PVC)
Product Description

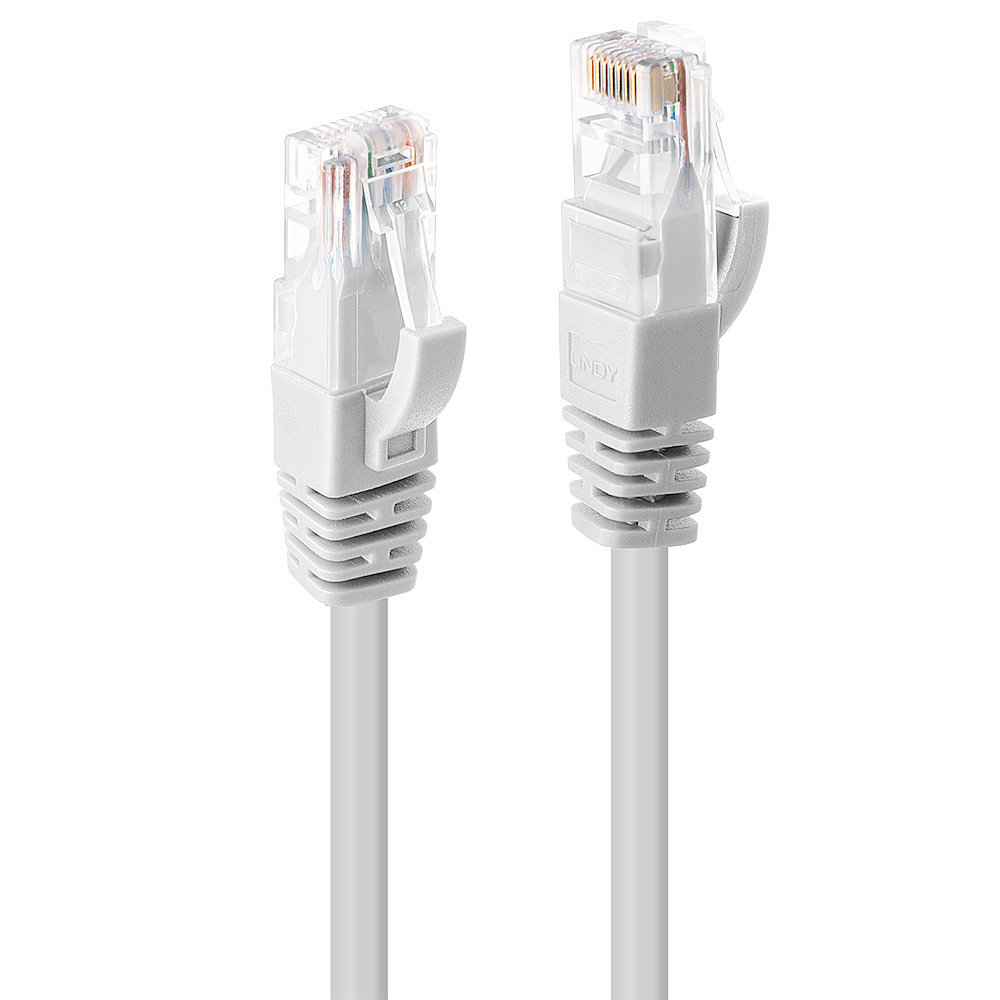

Connectors
- Connector A: RJ45 Male
- Connector B: RJ45 Male
- Housing Material: Polycarbonate
- Connector Plating: -
- Pin Construction: Copper Alloy
- Pin Plating: Gold plated
- Dimensions (approx.) WxDxH: 11.6x22.8x8.3mm (0.46x0.90x0.33in)
Cable Construction
- Length: 7.5m (24.61ft)
- Colour: White
- Type: Cat.6
- Jacket Diameter: 5.8mm (0.23in)
- Jacket Material: PVC
- Conductor Material: Copper
- Conductor Gauge: 24AWG
- Shielding: -
Specifications
- Supported Bandwidth: 250MHz
- Nominal Attenuation: 32.8dB/100m @250MHz
- Minimum Bend Radius: 69mm (2.72in)
- Operating Temperature: -10°C - 60°C (14°F - 140°F)
- Storage Temperature: -20°C - 75°C (-4°F - 167°F)
Miscellaneous

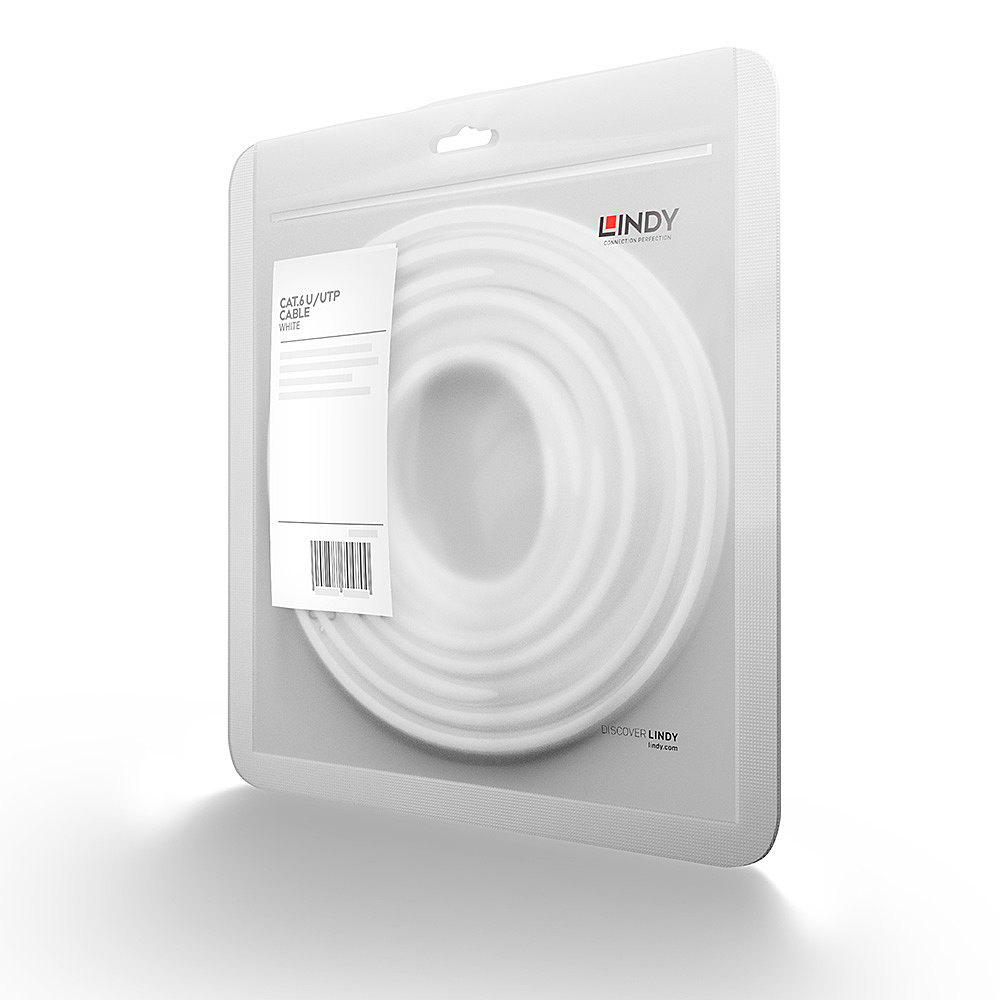

- Packaging Type: Polybag
- Warranty (Years): 10
- Product Compliance: RoHS, REACH, UL, California Proposition 65
Purchasing Information
- No.: 48096
- EAN: 4002888480963
This product is also available in other lengths
- 48090 - 0.3m (0.98ft)
- 48091 - 0.5m (1.64ft)
- 48092 - 1m (3.28ft)
- 48093 - 2m (6.56ft)
- 48094 - 3m (9.84ft)
- 48095 - 5m (16.44ft)
- 48096 - 7.5m (24.61ft)
- 48097 - 10m (32.81ft)
- 48098 - 15m (49.21ft)
- 48099 - 20m (65.62ft)
- 48100 - 30m (98.43ft)
