NGS Bud 240W USB-C + USB-A Power Adapter for Phones, Tablets and Laptops, EU Only
Manufactured by:
Product Information
Part Number: BUD240W
Item No: 17517
Shipping Weight: 0.47 kgs (1.03 lbs)
Actual Weight: 0.47 kgs (1.03 lbs)
Specifications
INPUT
Input: 100-240V, 50/60Hz, 3A
OUTPUT
Output:
USB-C1 (140W): PPS: 3.3V-21V/5A
PD: 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/5A, 28V/5A
USB-C2 (100W): PPS: 3.3V-21V/5A
PD: 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/5A
USB-C3 (65W): PPS: 3.3-11V/5A
PD: 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/3.25A
USB-A (60W): 4.5V/5A, 5V/4.5A, 5V/3A, 9V/3A, 12V/3A, 20V/3A
USB-C1+USB-C2: 140W+100W
USB-C1+USB-C3: 140W+65W
USB-C2+USB-C3: 65W+35W
USB-C1+USB-A: 140W+60W
USB-C2+USB-A: 65W+30W
USB-C3+USB-A: 24W (5V/2.4A+5V/2.4A)
USB-C1+USB-C2+USB-C3: 140W+65W+35W
USB-C1+USB-C2+USB-A: 140W+65W+30W
USB-C1+USB-C3+USB-A:
140W+12W (5V/2.4A)+12W (5V/2.4A)
USB-C2+USB-C3+USB-A:
65W+12W (5V/2.4A)+12W (5V/2.4A)
USB-C1+USB-C2+USB-C3+USB-A:
140W+65W+12W (5V/2.4A)+12 W(5V/2.4A)
Total Output Power: 240W
USB-C1 (140W): PPS: 3.3V-21V/5A
PD: 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/5A, 28V/5A
USB-C2 (100W): PPS: 3.3V-21V/5A
PD: 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/5A
USB-C3 (65W): PPS: 3.3-11V/5A
PD: 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/3.25A
USB-A (60W): 4.5V/5A, 5V/4.5A, 5V/3A, 9V/3A, 12V/3A, 20V/3A
USB-C1+USB-C2: 140W+100W
USB-C1+USB-C3: 140W+65W
USB-C2+USB-C3: 65W+35W
USB-C1+USB-A: 140W+60W
USB-C2+USB-A: 65W+30W
USB-C3+USB-A: 24W (5V/2.4A+5V/2.4A)
USB-C1+USB-C2+USB-C3: 140W+65W+35W
USB-C1+USB-C2+USB-A: 140W+65W+30W
USB-C1+USB-C3+USB-A:
140W+12W (5V/2.4A)+12W (5V/2.4A)
USB-C2+USB-C3+USB-A:
65W+12W (5V/2.4A)+12W (5V/2.4A)
USB-C1+USB-C2+USB-C3+USB-A:
140W+65W+12W (5V/2.4A)+12 W(5V/2.4A)
Total Output Power: 240W

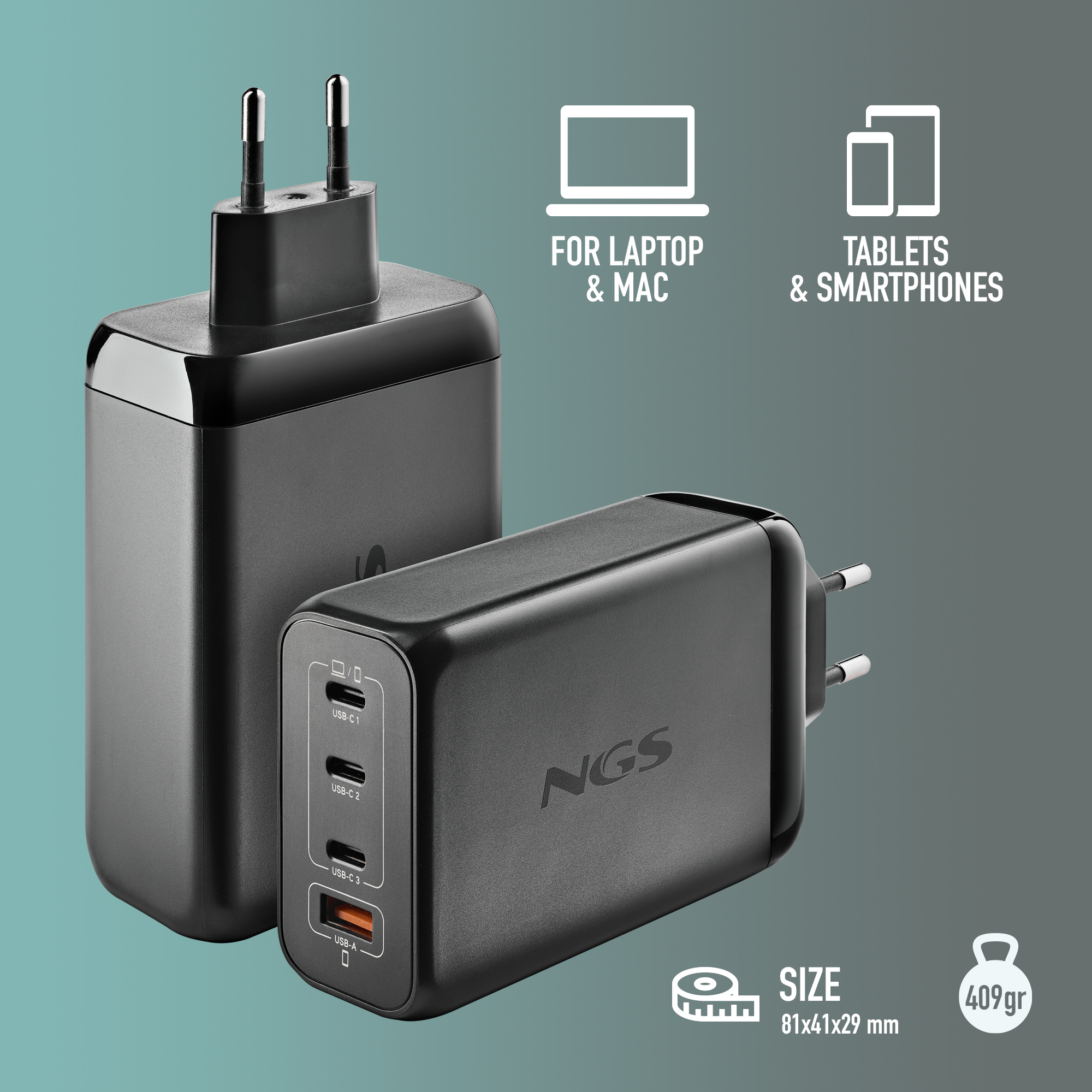

DIMENSIONS
Width: 29mm
Depth: 81mm
Height: 41mm
Depth: 81mm
Height: 41mm
WEIGHT
409g
WARRANTY
2 years manufacturers warranty

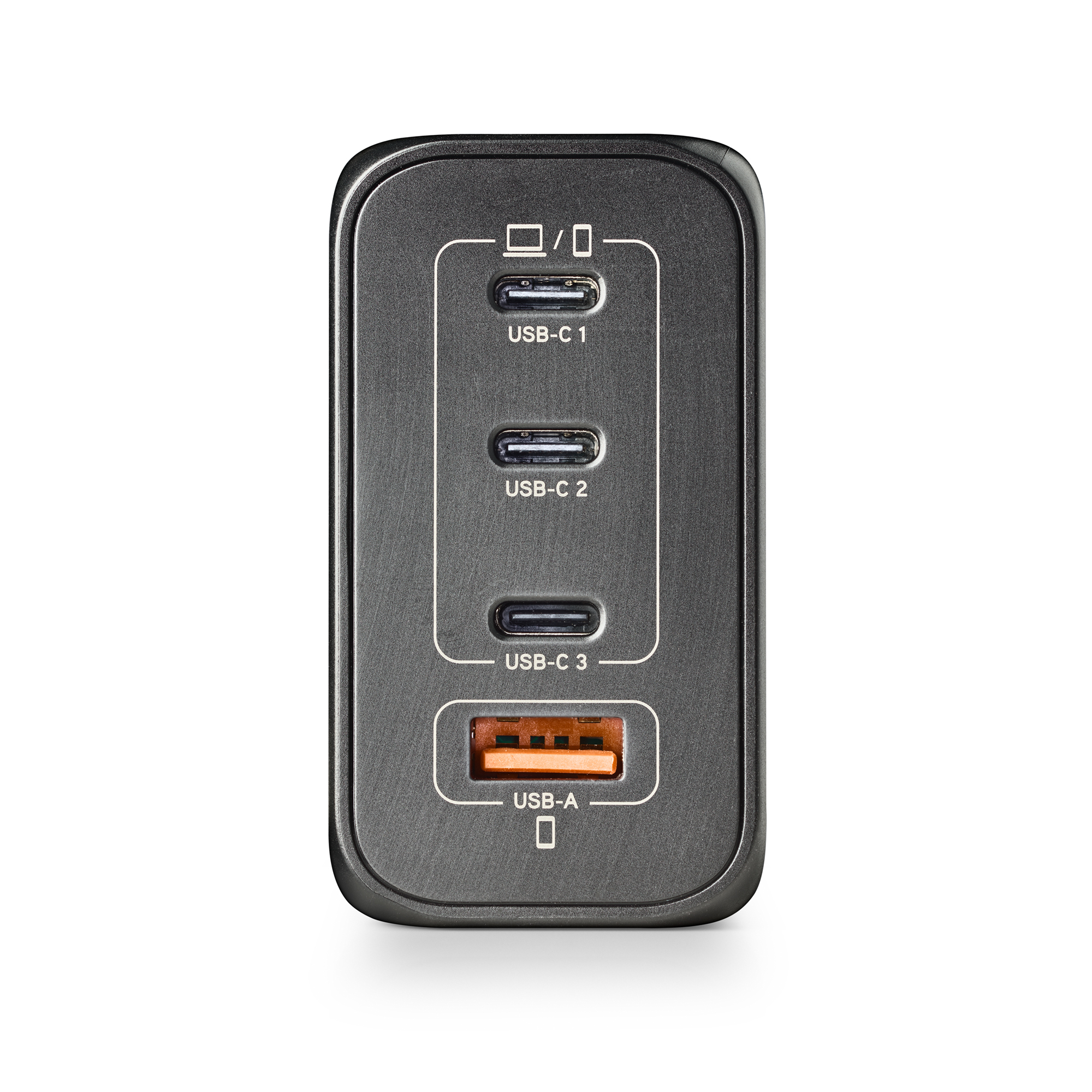

USB PORTS
USB C and USB A
COLOR
Black
Product Description

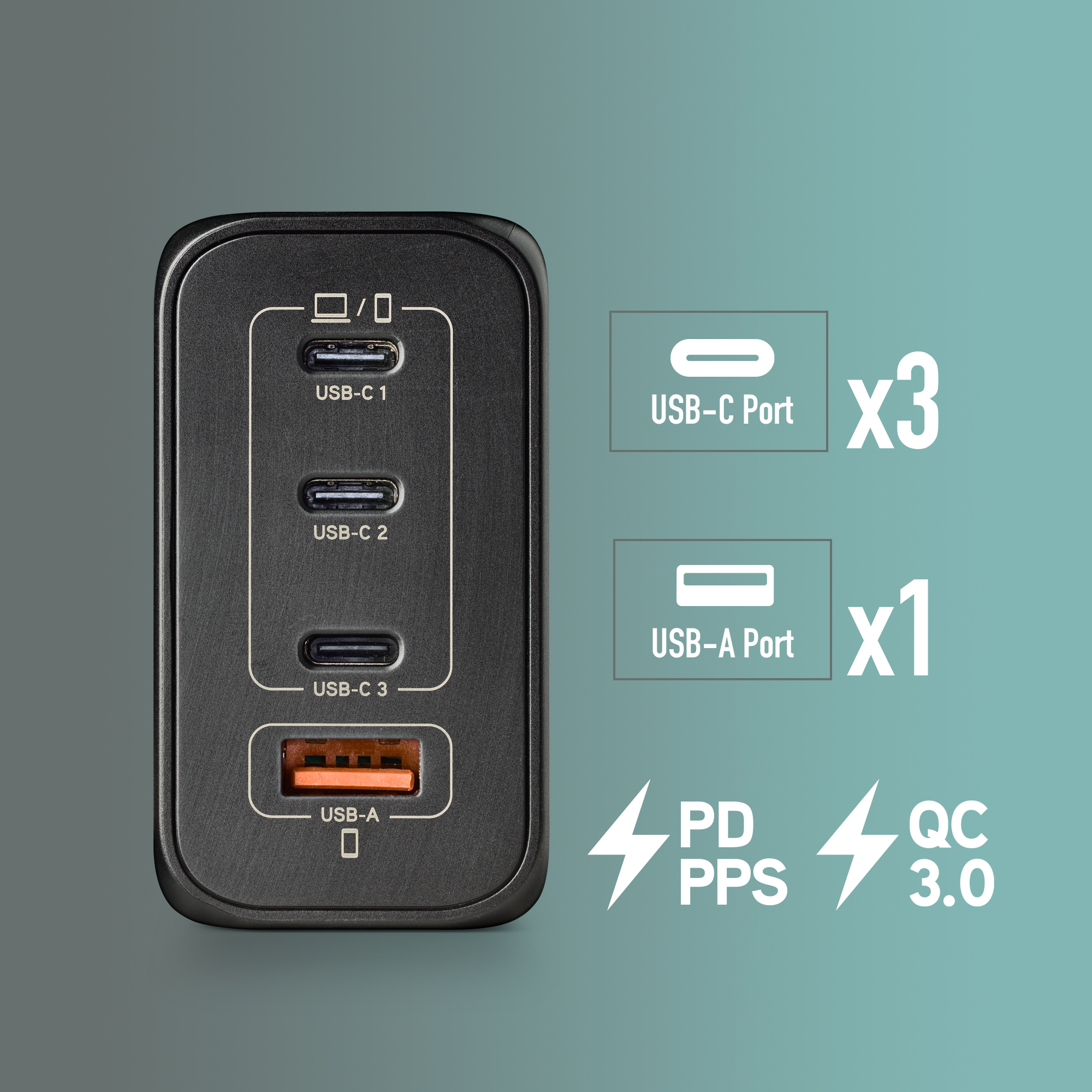

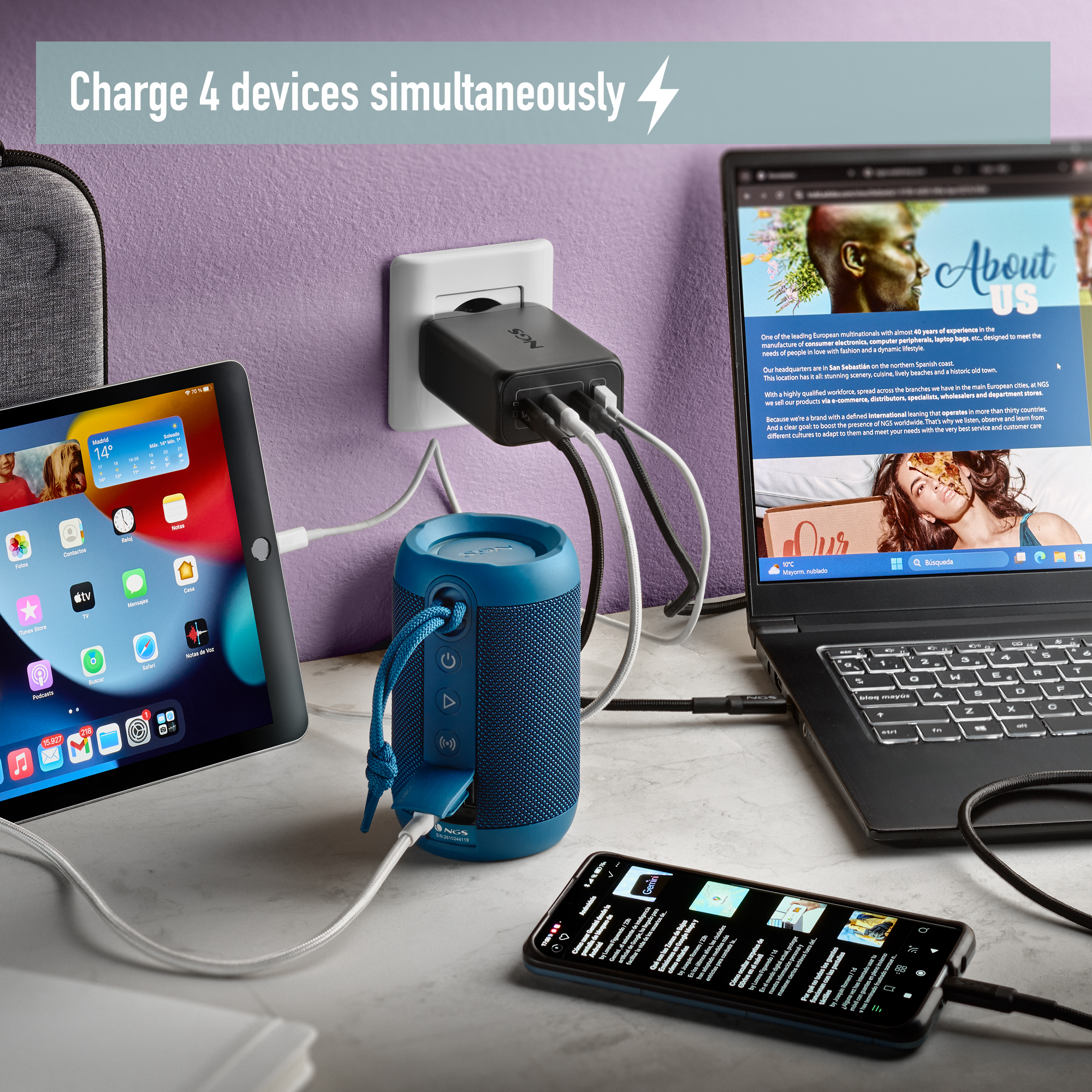

Introducing the NGS BUD 240W - a compact and powerful wall charger designed to efficiently charge multiple devices simultaneously. Equipped with 3x USB-C Power Delivery (PD) and Programmable Power Supply (PPS) output, as well as a USB-A Quick Charge 3.0 (QC 3.0) output, this charger delivers a maximum power output of 240W, making it ideal for smartphones, tablets, laptops, and other compatible devices.

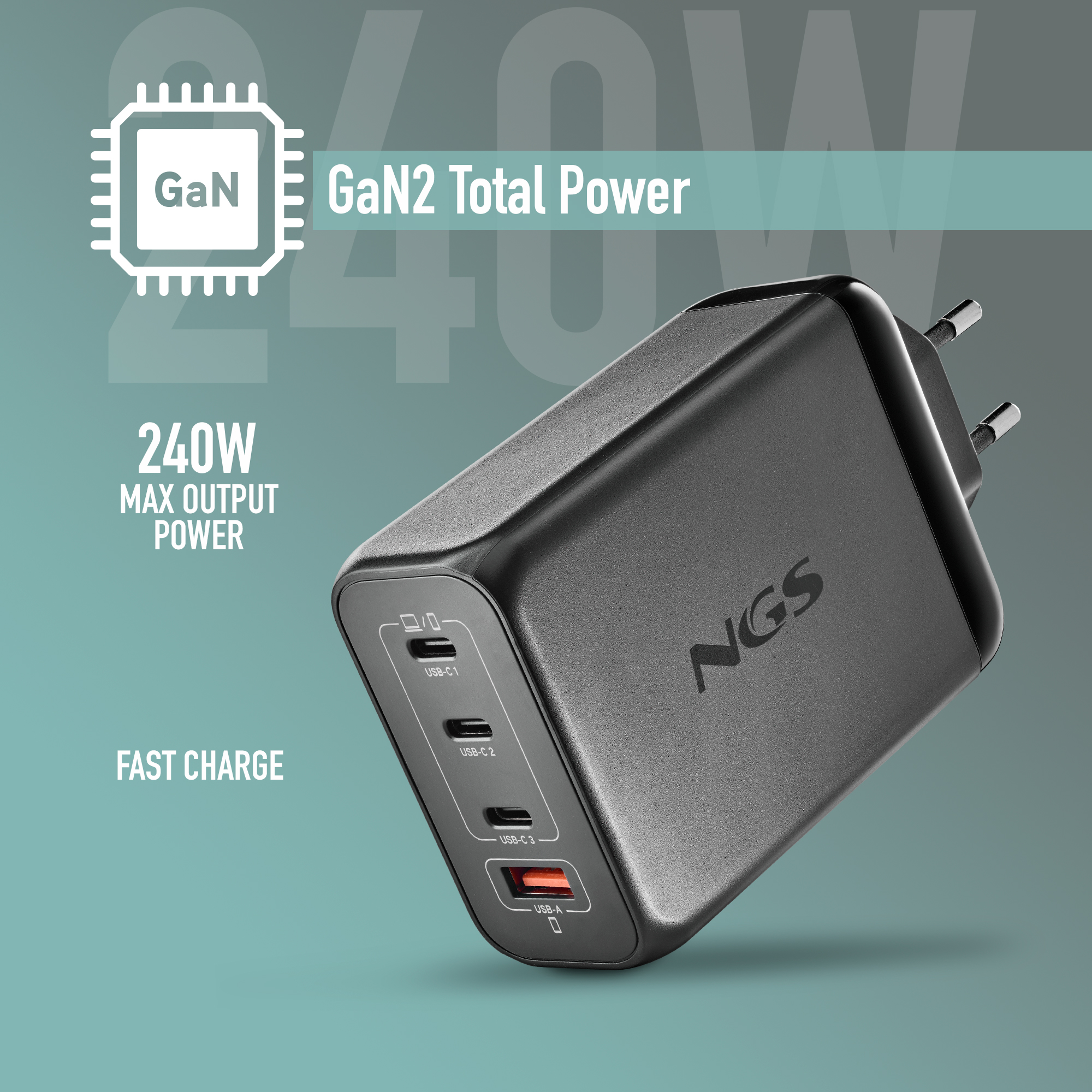

Constructed with Gallium Nitride (GaN) technology and fireproof materials, the BUD 240W ensures efficient power delivery and enhanced safety. Its compact design makes it a convenient travel companion, providing reliable charging capabilities wherever you go.
