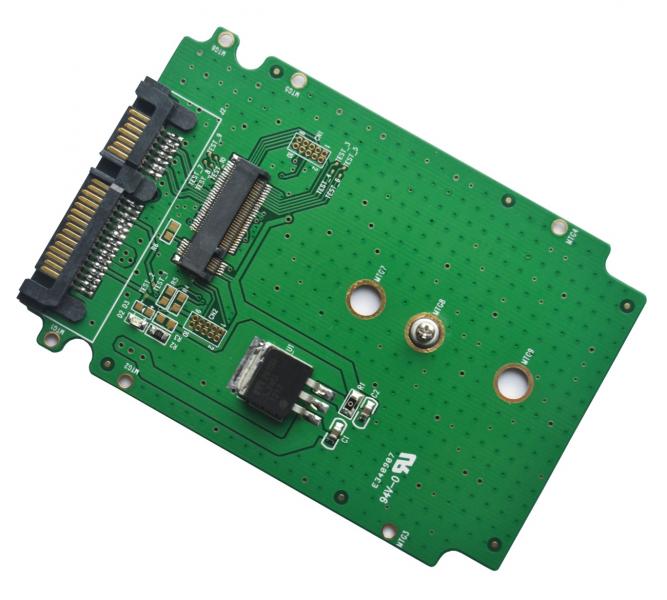

Renice NGFF (M.2) SSD to 2.5-inch SATA III SSD Adapter Board
Manufactured by:
Product Information
Part Number: RN-NGFF-AP
Item No: 13608
Shipping Weight: 0.1 kgs (0.22 lbs)
Actual Weight: 0.02 kgs (0.05 lbs)
Specifications
HARD DRIVE INTERFACE
M.2 NGFF
PC INTERFACE
SATA III
DEVICE TYPE
SSD adapter board
DATA TRANSFER RATES
Read speed up to 520MB/sec
HDD SUPPORT
Supports the 3 types of M.2 NGFF SSDs: 30mm, 42mm, 60mm
SYSTEM REQUIREMENTS
Suitable for PC or Mac systems
DIMENSIONS
108mm x 76mm
WEIGHT
30g
PACKAGING
Bulk packing
WARRANTY
1 years manufacturers warranty
Product Description
Renice Adapter board for the M.2 NGFF SSD type, which converts any M.2 NGFF SSD to a standard 2.5-inch interface. With SATA III 6Gbps output, and supports 30mm, 42mm and 60mm M.2 form factors. Ideal for mounting in a 2.5" drive bay.
<b>Highlights: </b>
- Supports M.2 Socket 2 SSD type 2230, type 2242, type 2260
- Supports M.2 SSD with Key B including Key B+M
- Support SATA3.0/ 6.0Gbps mass storage interface depending on M.2 SSD
- Transparent to the operating system and does not require any software drivers
- Dimensions: LxWxH 95.5 x 65.5 x 6.5 (mm)
- Module: Support Low Profile / Standard Height PCIe Slot
Supports the following form factor M.2 NGFF SSDs:
Type 2230-D2-B-M: 30mm(L) x 22mm(W)
Type 2242-D2-B-M: 42mm(L) x 22mm(W)
Type 2260-D2-B-M: 60mm(L) x 22mm(W)
<b>Highlights: </b>
- Supports M.2 Socket 2 SSD type 2230, type 2242, type 2260
- Supports M.2 SSD with Key B including Key B+M
- Support SATA3.0/ 6.0Gbps mass storage interface depending on M.2 SSD
- Transparent to the operating system and does not require any software drivers
- Dimensions: LxWxH 95.5 x 65.5 x 6.5 (mm)
- Module: Support Low Profile / Standard Height PCIe Slot
Supports the following form factor M.2 NGFF SSDs:
Type 2230-D2-B-M: 30mm(L) x 22mm(W)
Type 2242-D2-B-M: 42mm(L) x 22mm(W)
Type 2260-D2-B-M: 60mm(L) x 22mm(W)
