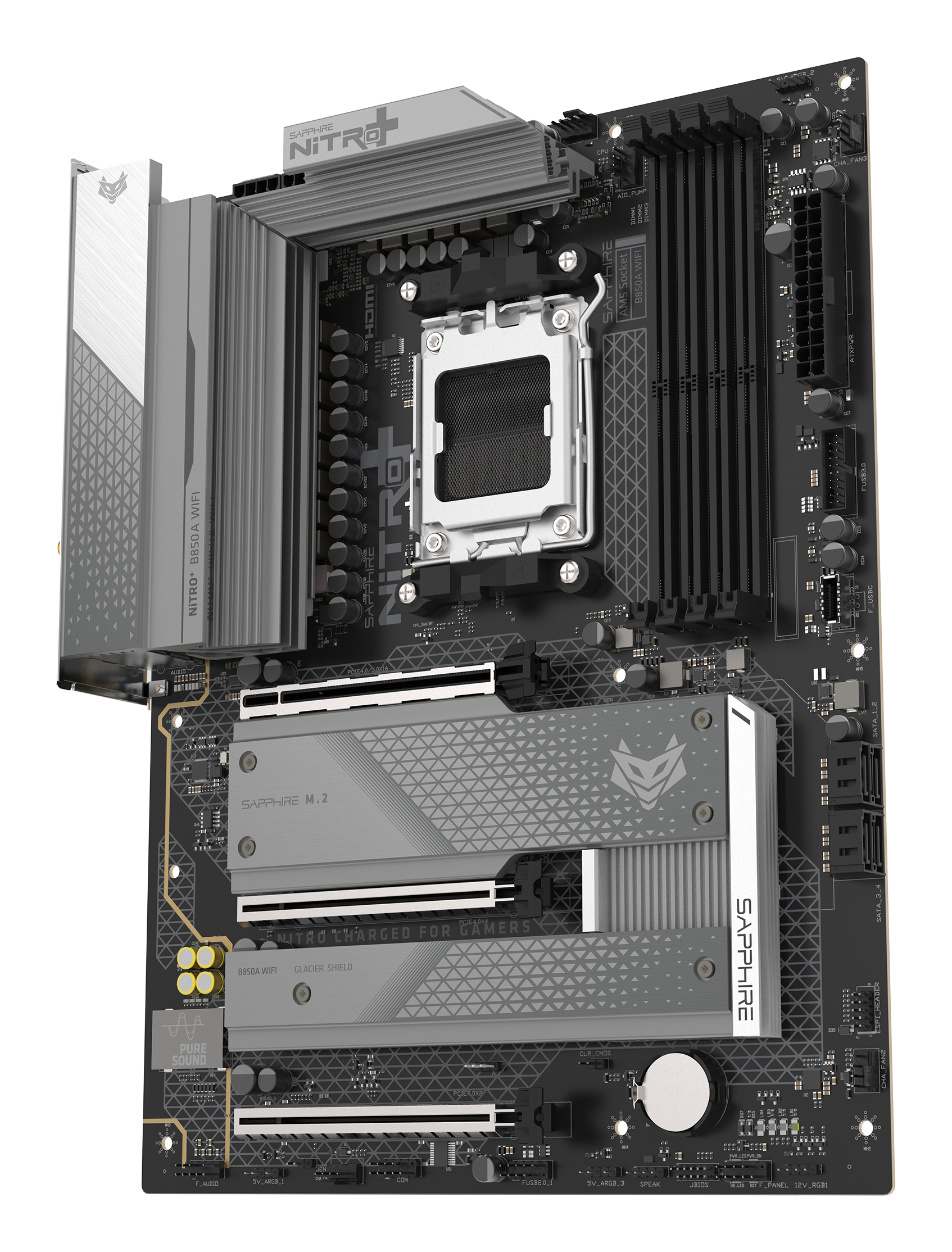

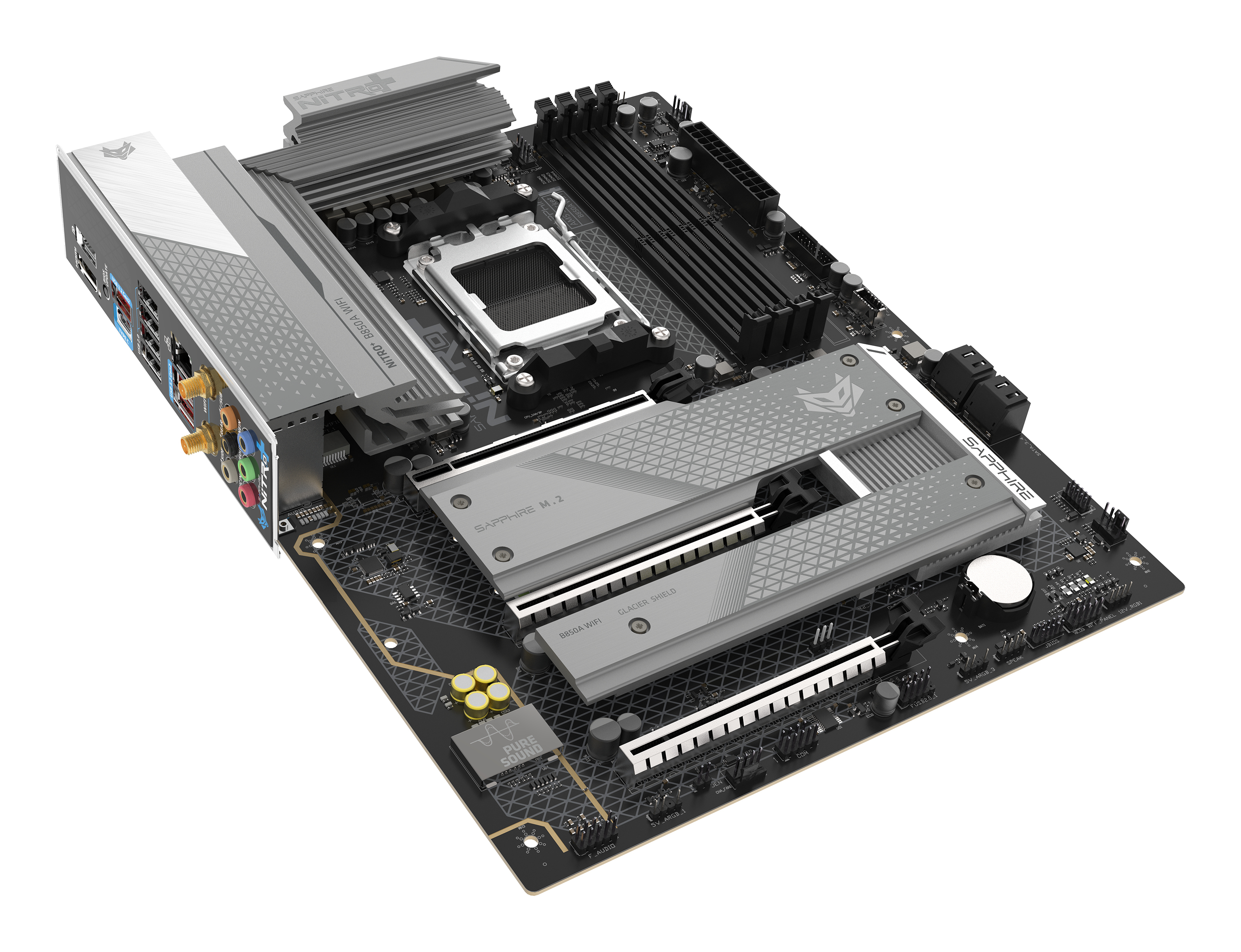

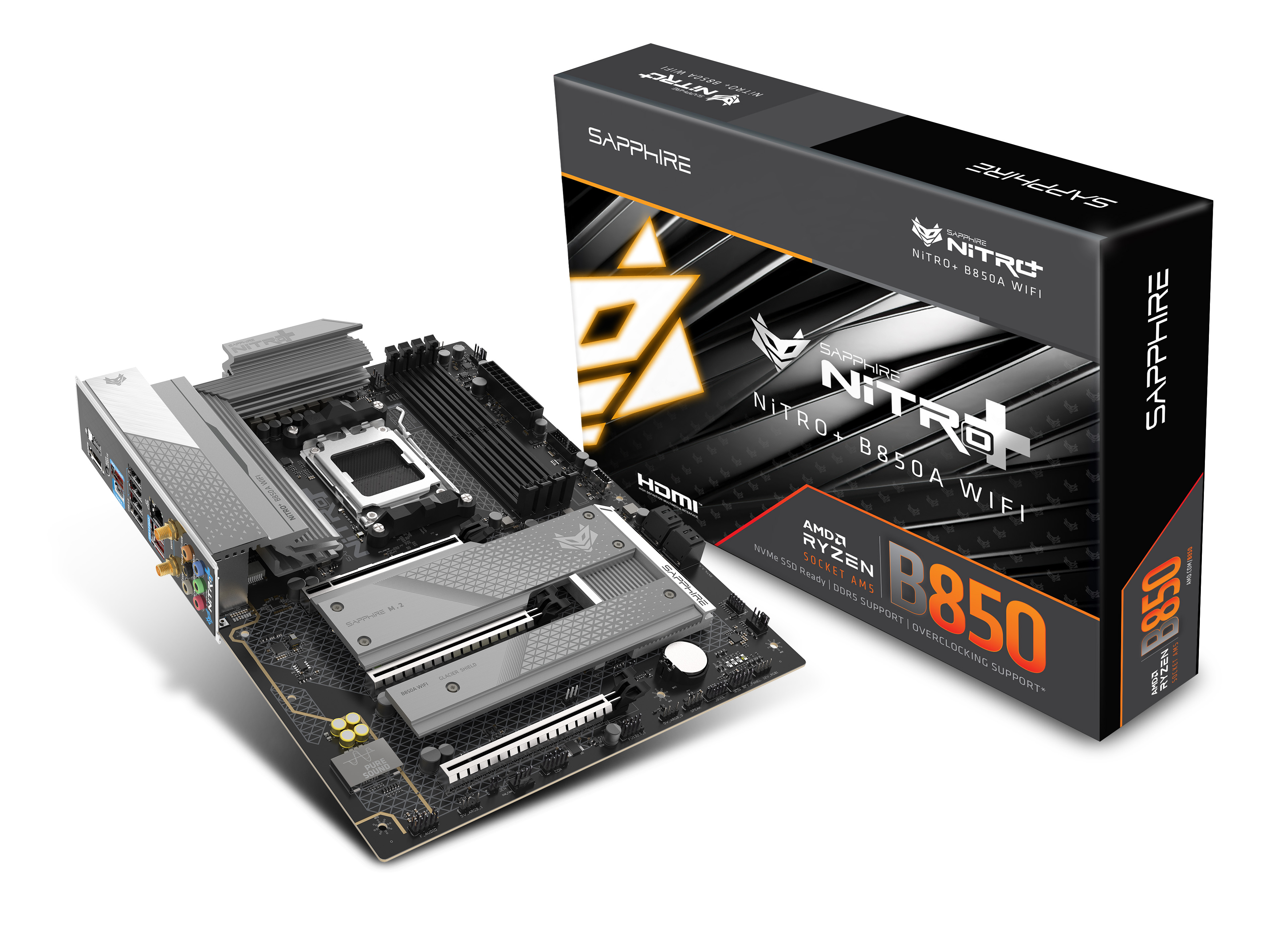

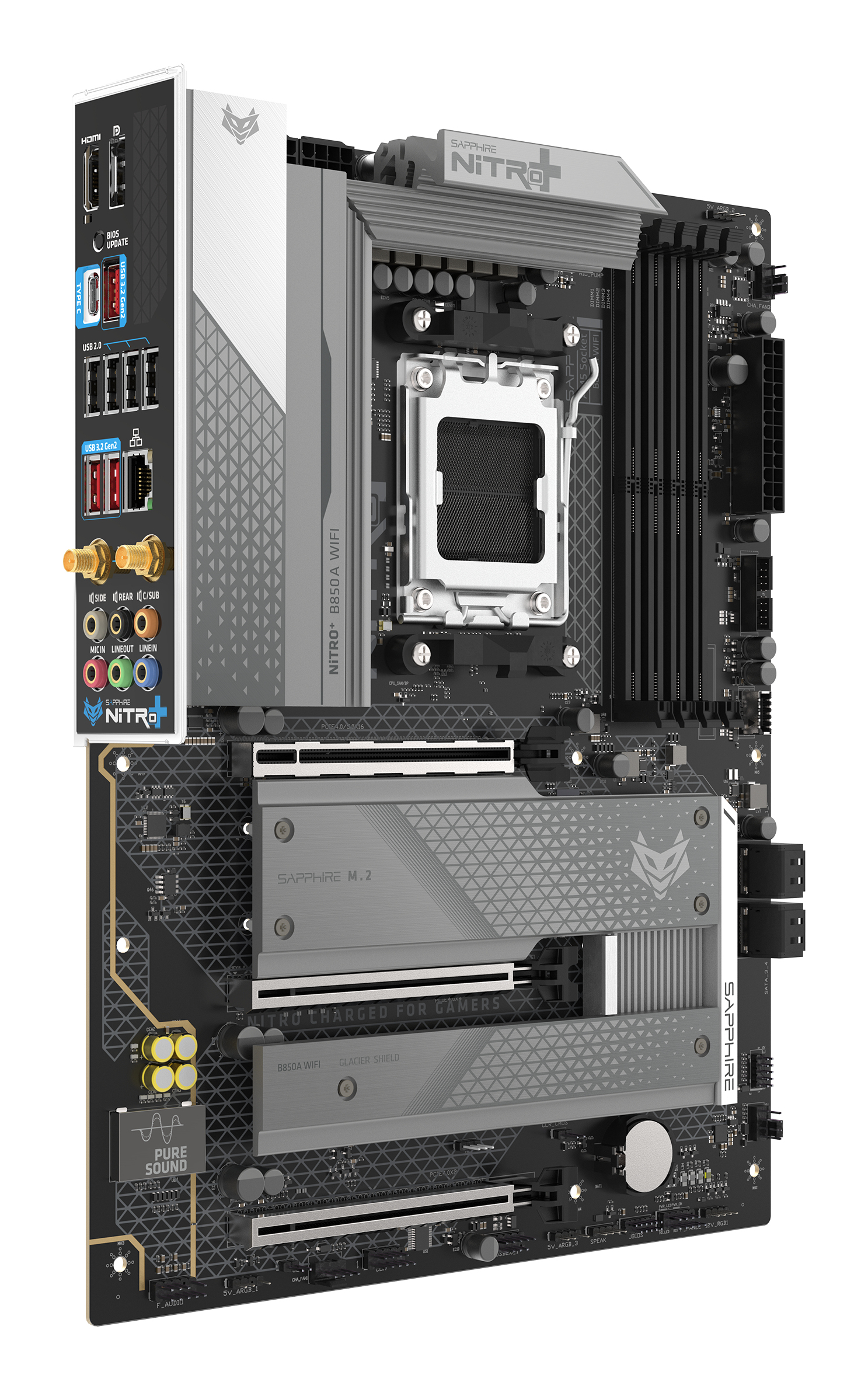

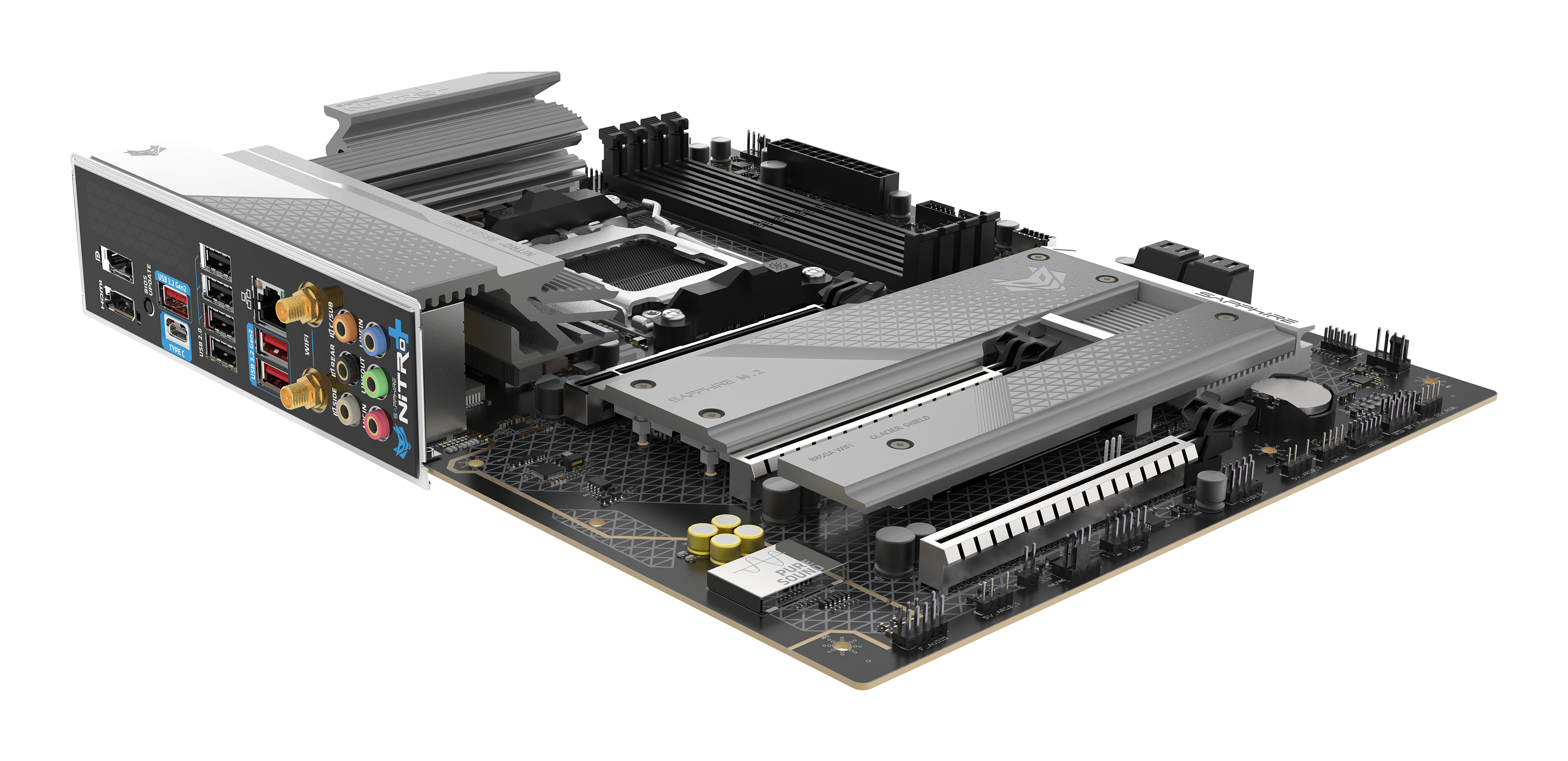

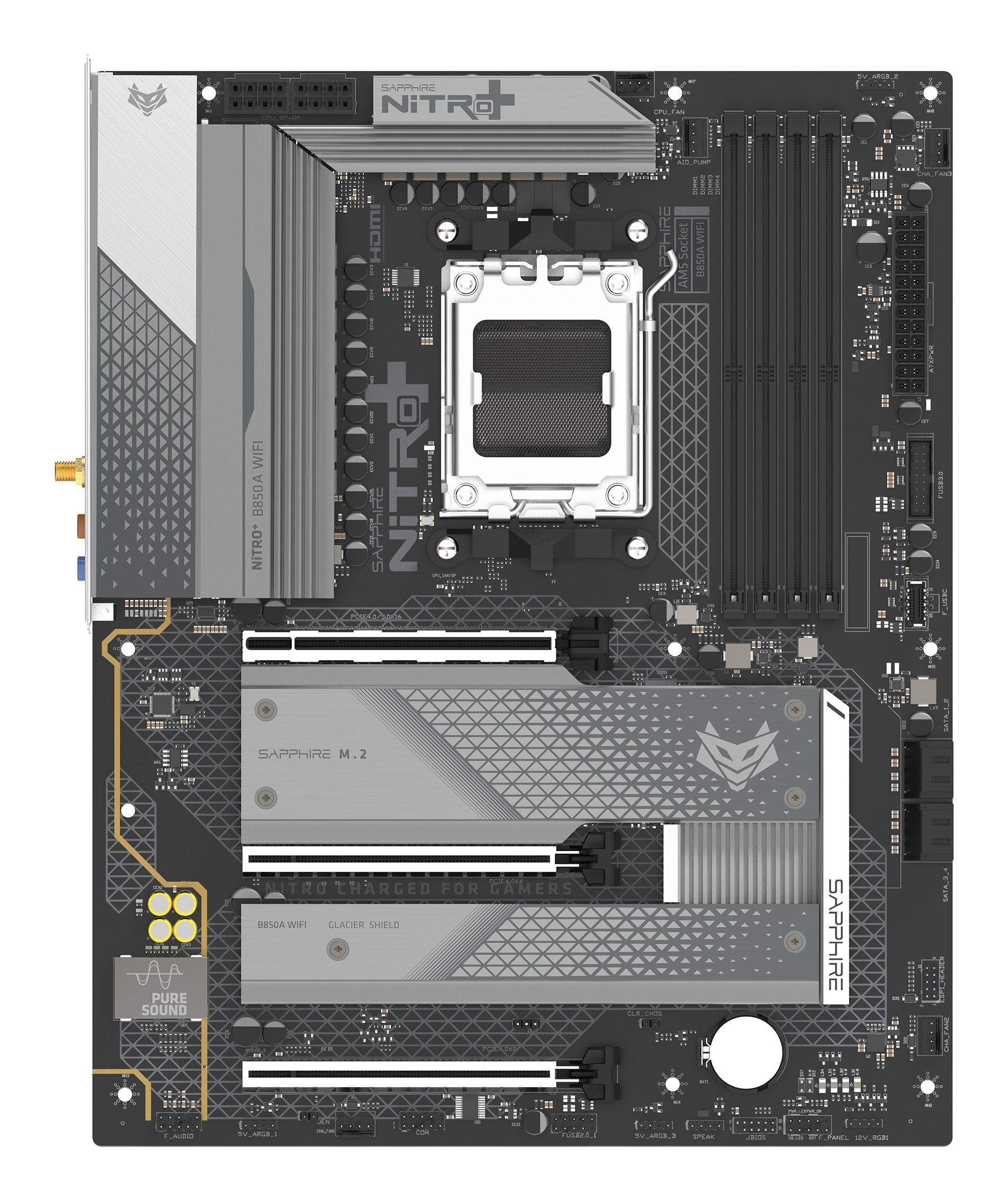

Sapphire NITRO+ B850A WIFI 7 AMD B850 Socket AM5 micro ATX
Manufactured by:
Product Information
Part Number: 52123-03-40G
Item No: FD4901696
Shipping Weight: 2.24 kgs (4.94 lbs)
Actual Weight: 2.24 kgs (4.94 lbs)
Specifications
FORM FACTOR
micro ATX
SOCKET TYPE
Socket AM5
COMPATIBLE PROCESSORS
AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
CHIPSET
AMD
MEMORY STANDARD
DDR5-SDRAM
MEMORY SLOTS
4
MEMORY CHANNELS
Dual-channel
MAXIMUM INTERNAL MEMORY
256 GB
PORTS
4
ETHERNET
Yes
ONBOARD USB 2.0
1
ONBOARD USB 3.1
2
M.2 SLOTS
PCI Express 4.0, PCI Express 5.0, SATA III
SATA III CONNECTORS
4
FRONT PANEL AUDIO
Yes
FRONT PANEL CONNECTOR
Yes
MAIN POWER CONNECTOR
Yes
CPU FAN CONNECTOR
Yes
RGB LED HEADER
Yes
AUDIO CHIPSET
Realtek ALC897
AUDIO CHANNELS
7.1 channels
CROSSFIRE
Not supported
BLUETOOTH
Yes
WIFI
Yes
DIMENSIONS
305 mm
Product Description
AMD AM5 CPU SUPPORT
SAPPHIRE CORE BIOS
12+2+1 Phase CPU Power, 55A Per Phase,
Robust VRM, M.2 and PCH Cooling
Dual Channel, 8000 MHz Memory OC
WIFI 7 Support
PCI Express 5.0 x16
PCIe 5.0 M.2 Support
Debug LED
