| Product Specs |
| POWER PROVIDED |
850W |
| FORM FACTOR |
PC ATX |
| INPUT VOLTAGE |
100 - 240 Vac 11A |
| OUTPUT CONNECTORS |
Direct:
1x 20+4 pin ATX
1x EPS 12V CPU 8 pin
1x EPS 12V CPU 4+4 pin
4x SATA 15 pin
1x iPower Meter 6 pin
Modular:
4x PCI-E 6+2 pin
6x PATA 4 pin
1x floppy 4 pin
8x SATA 15 pin |
| VOLTAGE PROVIDED |
+3.3V (24A)
+5V (24A)
+12V (70.83A)
-12V (0.8A)
+5Vsb (4A) |
| FANS |
135mm Dual Ball Bearing Fan |
| DIMENSIONS |
160mm x 150mm x 86mm |
| MTBF |
120,000 hours |
| FEATURES |

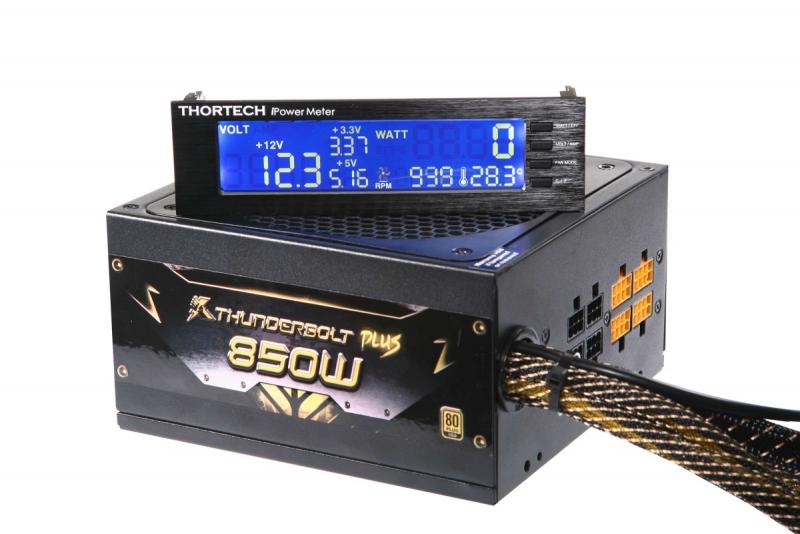

With iPower Meter control panel, for 5.25-inch bay mounting
Efficiency performance of up to > 90% with 80Plus Gold certification
Single +12V rail design providing up to 70A (850W)
Modular Cable Management
Complies with all the latest Intel and AMD CPUs
Designed to sustain 50°C ambient with full wattage output
Interleaved PFC circuit helps to provide perfect PF value > 0.99
135mm Ball Bearing Fan with smart fan control circuit to provide better system airflow
Support NVIDIA SLI & ATI Crossfire multiple graphic cards platform
Low ESR 105°C solid state capacitors
Multi-Protection such as OCP/ OVP/ OPP/ UVP/ SCP/ OTP |
| WARRANTY |
5 years manufacturers warranty |
GeIL
