| Product Specs |
| FORM FACTOR |
Micro ATX |
| SOCKET TYPE |
AM4 |
| COMPATIBLE PROCESSORS |
AMD Ryzen™ 3, AMD Ryzen™ 5, AMD Ryzen™ 7 |
| CHIPSET |
AMD B450 |
| MEMORY STANDARD |
Supported memory types: DDR4-SDRAM
Supported memory clock speeds: 2133,2400,2667,2933,3200 MHz |
| MEMORY SLOTS |
4 |
| MEMORY CHANNELS |
Dual-channel |
| MAXIMUM INTERNAL MEMORY |
128GB |

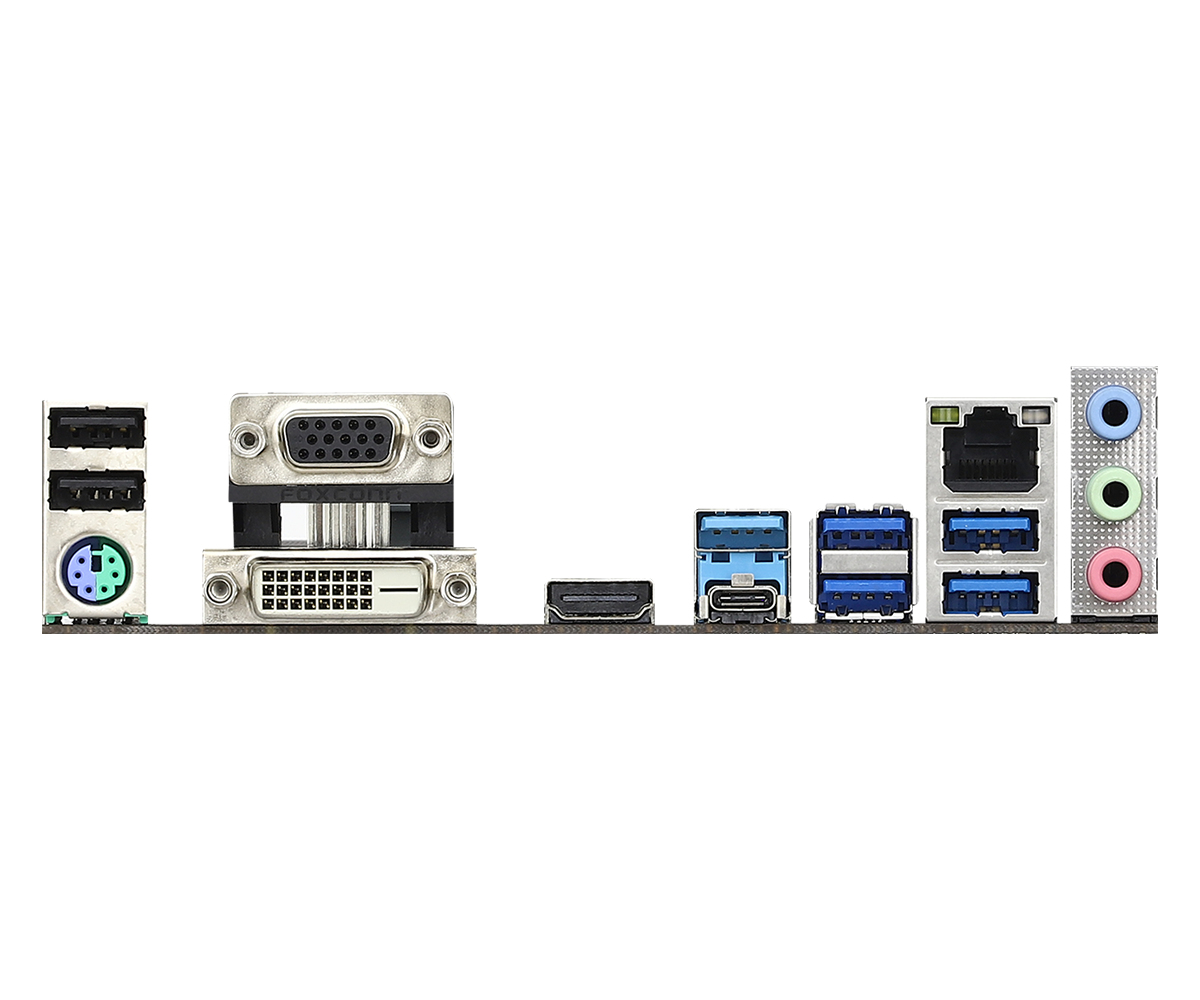

| PORTS |
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
Ethernet LAN (RJ-45) ports: 1
HDMI ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
USB 2.0 ports quantity: 2
DVI-D ports quantity: 1
VGA (D-Sub) ports quantity: 1 |
| ONBOARD USB 2.0 |
2 |
| ONBOARD USB 3.1 |
1 |
| M.2 SLOTS |
1 |
| SATA III CONNECTORS |
4 |
| FRONT PANEL AUDIO |
Yes |
| FRONT PANEL CONNECTOR |
Yes |
| MAIN POWER CONNECTOR |
ATX Power connector (24-pin) |
| CPU FAN CONNECTOR |
Yes |
| CHASSIS FAN CONNECTORS |
Number of chassis fan connectors: 3 |
| TPM |
Yes |
| RGB LED HEADER |
Yes |
| AUDIO CHIPSET |
Realtek ALC892 / Realtek ALC897 |
| AUDIO CHANNELS |
7.1 channels |
| PCI EXPRESS X16 |
1 |
| RAID |
0, 1, 10 |
| CROSSFIRE |
Parallel processing technology support: CrossFireX, Quad-GPU CrossFireX |
| RESOLUTION |
Maximum resolution: 4096 x 2160 pixels |
| WAKE-ON-LAN READY |
Yes |
| CHASSIS INTRUSION CONNECTOR |
Yes |
| DIMENSIONS |
Width: 244
Depth: 244 |
ASRock
