| Product Specs |
| FORM FACTOR |
Mini ITX |
| SOCKET TYPE |
Socket SP3 |
| COMPATIBLE PROCESSORS |
AMD EPYC |
| CHIPSET |
AMD |
| MEMORY STANDARD |
Supported memory types: DDR4-SDRAM
Supported memory clock speeds: 2400,2666,2933,3200 MHz |
| MEMORY SLOTS |
4 |
| MAXIMUM INTERNAL MEMORY |
256GB |

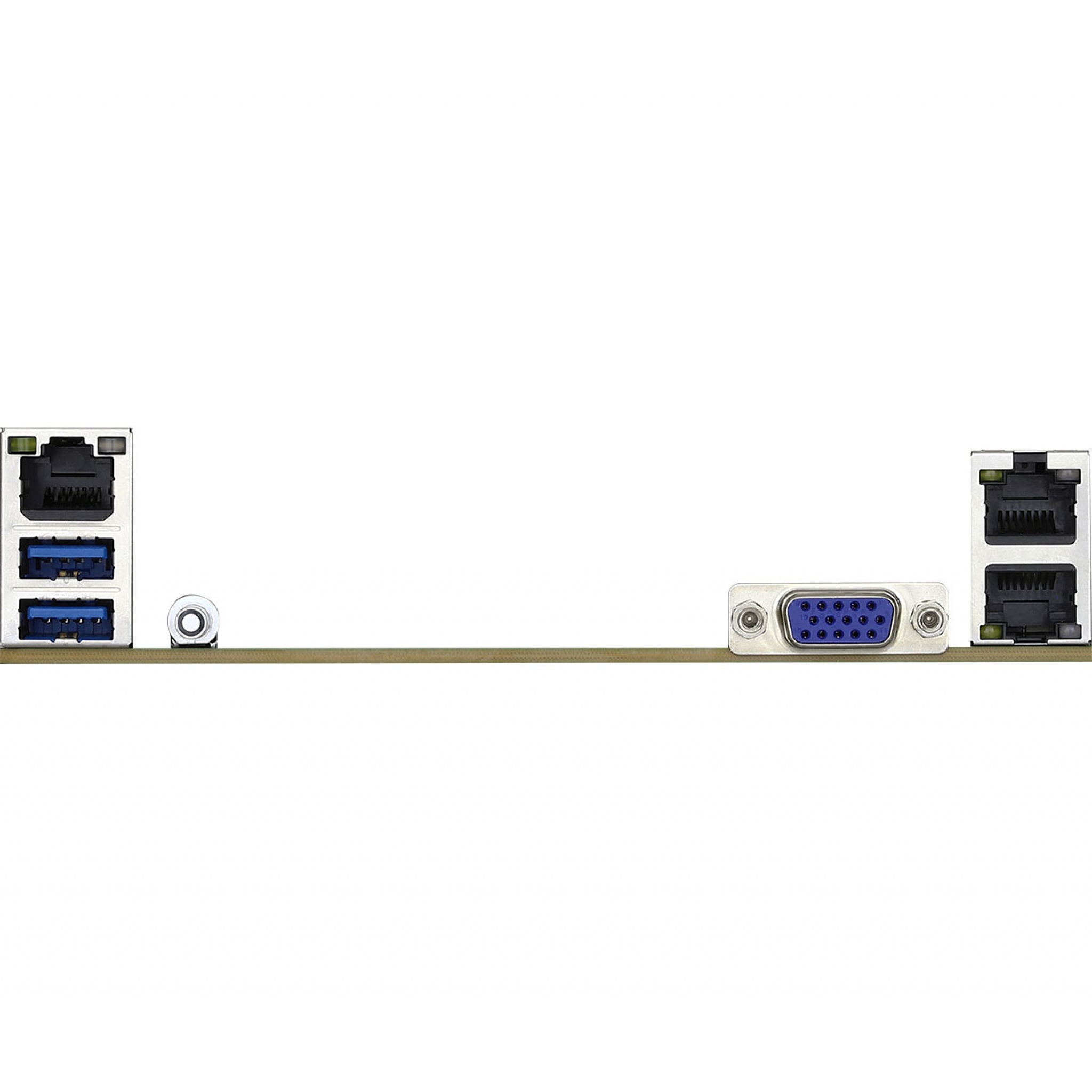

| PORTS |
2 x Ethernet LAN RJ-45
2 x USB3.2 Gen 1 (3.1 Gen 1) Type-A
1 x VGA (D-Sub) |
| ETHERNET |
Ethernet LAN |
| ONBOARD USB 2.0 |
1 x USB2.0 |
| M.2 SLOTS |
PCI Express 4.0,SATA |
| CHASSIS FAN CONNECTORS |
3 |
| TPM |
TPM connector |
| RGB LED HEADER |
RGB LED pin header |
| PCI EXPRESS X16 |
1 x PCI Express x16 (Gen 4.x) |
| WIFI |
Intel X550-AT2, Realtek RTL8211E |
| DIMENSIONS |
Width: 170.2 mm
Depth: 208.3 mm |
|
|
|
