| Product Specs |
| FORM FACTOR |
Micro ATX |
| SOCKET TYPE |
LGA 1700 |
| COMPATIBLE PROCESSORS |
Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold |
| CHIPSET |
Intel B660 |
| MEMORY STANDARD |
DDR4
Supported memory clock speeds: 2133,2400,2666,2800,2933,3000,3200,3333,3400,3466,3600,3733,4000,4266,4400,4600,4800,5000,5333 MHz |
| MEMORY SLOTS |
2 |
| MEMORY CHANNELS |
Dual-channel |
| MAXIMUM INTERNAL MEMORY |
64GB |

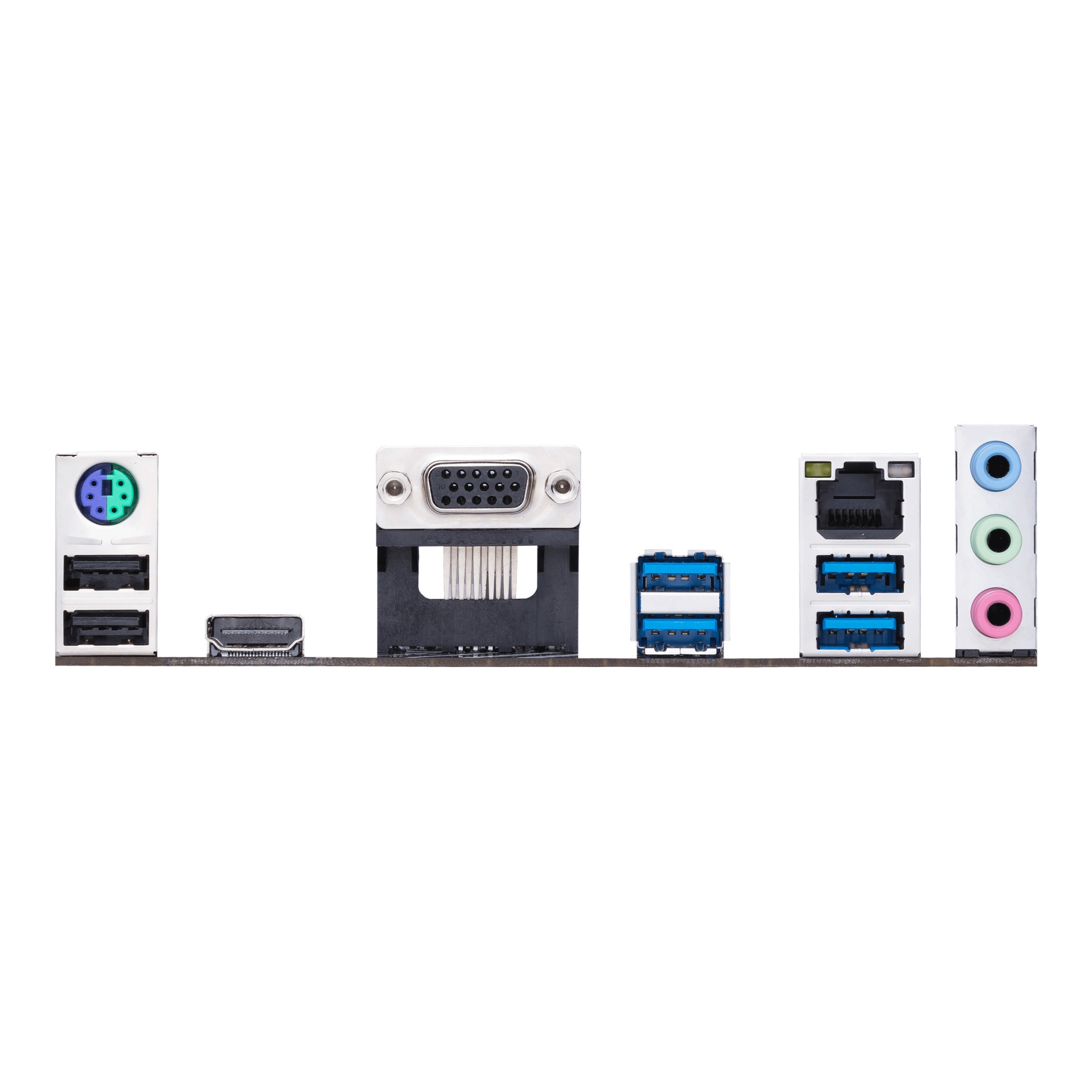

| PORTS |
Ethernet LAN (RJ-45) ports: 1
HDMI ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
USB 2.0 ports quantity: 2
PS/2 ports quantity: 1
VGA (D-Sub) ports quantity: 1 |
| ETHERNET |
Gigabit Ethernet |
| ONBOARD USB 2.0 |
2 |
| ONBOARD USB 3.1 |
1 |
| M.2 SLOTS |
2 |
| SATA III CONNECTORS |
4 |
| MAIN POWER CONNECTOR |
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector |
| CPU FAN CONNECTOR |
1 x 4-pin CPU Fan header |
| 4 PIN FAN CONNECTORS |
1 x 4-pin Chassis Fan header |
| TPM |
1 x SPI TPM header (14-1pin) |
| RGB LED HEADER |
1 |
| AUDIO CHIPSET |
ALC887/897 |
| AUDIO CHANNELS |
7.1 channels |
| PCI EXPRESS X1 |
2 |
| PCI EXPRESS X16 |
1 |
| RAID |
0,1,5,10 |
| SUPPORTED OPERATING SYSTEMS |
Windows 11 Ready |
| DIMENSIONS |
Width: 244 mm
Depth: 211 mm |
|
|
|
ASUS
