Specifications
CHIPSET MANUFACTURER
AMD
GPU
Radeon RX 580
MEMORY SIZE
4GB
MEMORY TECHNOLOGY
GDDR5
MEMORY BUS
256 bit
MEMORY CLOCK SPEED
1750 MHz, 7000 MHz Effective
INTERFACE
PCI Express
MAX RESOLUTION
3840x2160 (120Hz) Pixel DisplayPort Resolution
2560x1600 (60Hz) Pixel Dual Link DVI Resolution
3840×2160p (60 Hz) HDMI Resolution
2560x1600 (60Hz) Pixel Dual Link DVI Resolution
3840×2160p (60 Hz) HDMI Resolution
HDMI PORTS
2
DVI PORTS
1
DVI-I PORTS
2
DIMENSIONS
10in x 5.3in x 1.69in
WARRANTY
2 years manufacturers warranty
Product Description

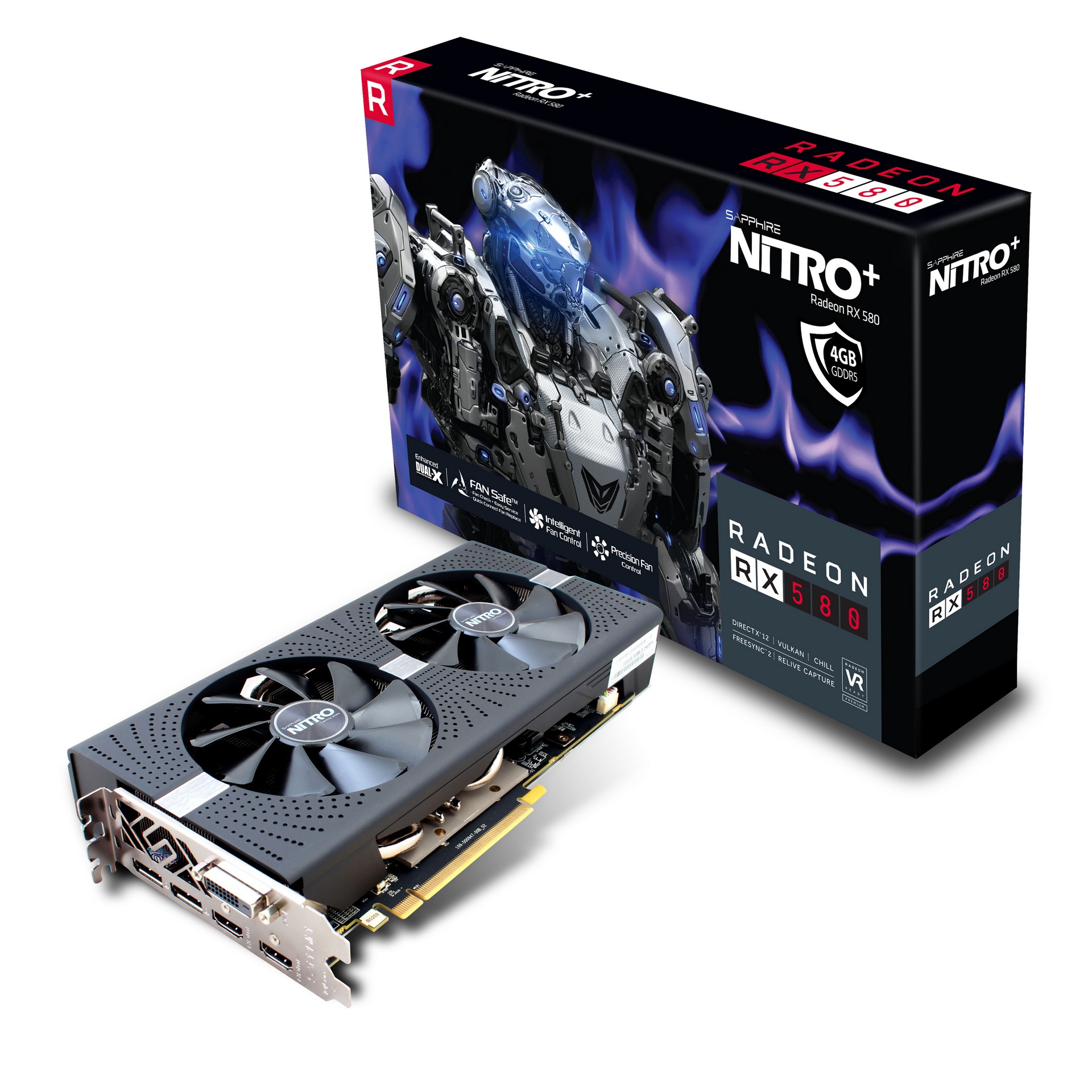

SAPPHIRE NITRO+ Radeon RX 580 cards are even more energy-efficient. This allowed SAPPHIRE to crank up the clocks and reach up to 10% better performance compared to previous series. To add even more headroom for overclocking. Factory overclocked cores of the standard SAPPHIRE NITRO+ RX 580 run with a 1411 MHz boost clock.
4th generation Graphics Core Next GPUs of the Radeon RX 500 Series feature improved geometry engine, new display engine, increased caches and native asynchronous shaders. Equipped with 2304 GCN-based stream processors, the SAPPHIRE NITRO+ Radeon RX 580 is the card to run modern games in 1080p and beyond, as well as deliver premium VR experiences.
