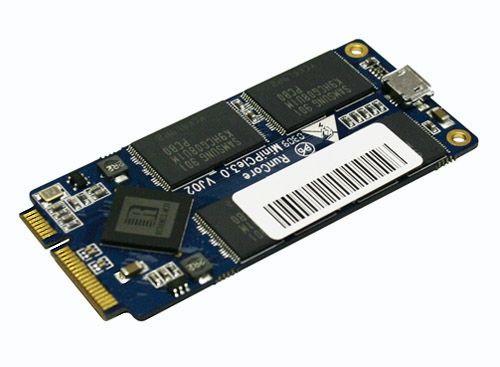

16GB RunCore SATA 70mm Mini PCI-e PCIe SSD for ASUS EEE PC 900, 900A, 901 and S101
Manufactured by:
This product has been discontinued
Product Information
Part Number: RCP-I-S7016-C
Item No: 11341
Shipping Weight: 0.04 kgs (0.09 lbs)
Actual Weight: 0.04 kgs (0.09 lbs)
Specifications
CAPACITY
16GB
INTERFACE TYPE
Mini PCI Express
DEVICE TYPE
SSD Solid State Disk
DATA TRANSFER RATES
Sustain Read Speed up to 125MB/s
Sustain Write Speed up to 55MB/s
Sustain Write Speed up to 55MB/s
FLASH STORAGE DETAILS
SSD Flash memory
OPERATING TEMPERATURE
0C to 70C
SPECIAL FEATURES
Built-in ECC
RoHS Compliant
RoHS Compliant
SYSTEM REQUIREMENTS
Supports Windows9X/Me/NT/XP/CE/Vista, MAC, Linux and Unix.
DIMENSIONS
Length: 25.70 ± 0.10 mm
Width: 70 ± 0.10 mm (2.006 ± 0.004 in)
Height: 3.50 (0.138) max
Width: 70 ± 0.10 mm (2.006 ± 0.004 in)
Height: 3.50 (0.138) max
WEIGHT
10g
PACKAGING
Retail packaging
WARRANTY
2 years replacement warranty
Product Description
Transform your ASUS EEE PC a brand new computer with RunCore Mini PCI-e SSDs!
The RunCore Mini PCI-e SSD will make your computer approximately 4X-6X faster and turns any compatible computer into a viable solution for many personal, business, industrial, or military computing applications.
The PCI Express Mini Card format has become the ideal choice for storage media of the ultra-mobile PC. With its small footprint and industry- standard design, the mPCIe format is an ideal fit for embedded solid state storage because it allows for high capacities and high performance while ensuring compatibility in ultra-mobile applications. The product is compliant with ATA and supports Windows9X/Me/NT/XP/CE/Vista, MAC, Linux and Unix.
<b>The key points:</b>
• Bad block management and wear leveling algorithms dramatically enhance flash memory endurance
• Power-down data protection ensures data integrity in case of power loss
• The rugged industrial design combined with temperature testing and adherence to rigid standards has resulted in the highest reliability and performance, tolerance to shock.
<b>RunCore SSD also features an onboard Slave Micro USB Port and Master capabilities!</b>
Micro USB Slave:
This feature allows owners to use their mini PCI-E SSD as a USB Drive. You can now preload your RunCore drive with your current HDD via any cloning or ghosting program. We highly recommend the free trial of Acronis True Image Software as this will save you a considerable amount of time and trouble instead of installing a new OS and all the applicable drivers.
Micro USB Master:
The RunCore SSD also supports a Master USB Bus. Master USB is not included but RunCore does offer users the ability to solder their own. Soldering the drive will void the current 2 year warranty.
<b>Attention:</b> Only Asus S101 users will be able to take advantage of the USB cloning feature.
Asus 900 and 900A users will not be able to utilize this feature, because the existing OS is set up for PATA not SATA bus, and will need a clean install of the OS. This upgrade is for customers who have previous experience in installing an OS or those who are willing to learn and want to do it for the first time.
Note, users of the ASUS EEE 901 must have the latest firmware version in order to use this product.
The RunCore Mini PCI-e SSD will make your computer approximately 4X-6X faster and turns any compatible computer into a viable solution for many personal, business, industrial, or military computing applications.
The PCI Express Mini Card format has become the ideal choice for storage media of the ultra-mobile PC. With its small footprint and industry- standard design, the mPCIe format is an ideal fit for embedded solid state storage because it allows for high capacities and high performance while ensuring compatibility in ultra-mobile applications. The product is compliant with ATA and supports Windows9X/Me/NT/XP/CE/Vista, MAC, Linux and Unix.
<b>The key points:</b>
• Bad block management and wear leveling algorithms dramatically enhance flash memory endurance
• Power-down data protection ensures data integrity in case of power loss
• The rugged industrial design combined with temperature testing and adherence to rigid standards has resulted in the highest reliability and performance, tolerance to shock.
<b>RunCore SSD also features an onboard Slave Micro USB Port and Master capabilities!</b>
Micro USB Slave:
This feature allows owners to use their mini PCI-E SSD as a USB Drive. You can now preload your RunCore drive with your current HDD via any cloning or ghosting program. We highly recommend the free trial of Acronis True Image Software as this will save you a considerable amount of time and trouble instead of installing a new OS and all the applicable drivers.
Micro USB Master:
The RunCore SSD also supports a Master USB Bus. Master USB is not included but RunCore does offer users the ability to solder their own. Soldering the drive will void the current 2 year warranty.
<b>Attention:</b> Only Asus S101 users will be able to take advantage of the USB cloning feature.
Asus 900 and 900A users will not be able to utilize this feature, because the existing OS is set up for PATA not SATA bus, and will need a clean install of the OS. This upgrade is for customers who have previous experience in installing an OS or those who are willing to learn and want to do it for the first time.
Note, users of the ASUS EEE 901 must have the latest firmware version in order to use this product.
