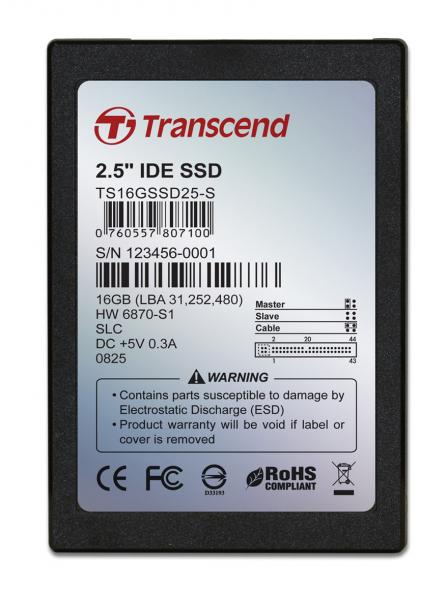

16GB Transcend 2.5" IDE Internal SSD Solid State Disk (SLC Flash)
Manufactured by:
This product has been discontinued
Product Information
Part Number: TS16GSSD25-S
Item No: 11326
Shipping Weight: 0.2 kgs (0.44 lbs)
Actual Weight: 0.2 kgs (0.44 lbs)
Specifications
CAPACITY
16GB
INTERFACE TYPE
IDE 44-pin interface
FORM FACTOR
2.5"
DEVICE TYPE
SSD Solid State Disk (IDE)
DATA TRANSFER RATES
Read up to 74MB/s, Write up to 62MB/s
FLASH STORAGE DETAILS
2.5" IDE SSD (Solid State Disk)
OPERATING TEMPERATURE
0°C(32°F) to 70°C(158°F)
MTBF
1M hours
SHOCK RESISTANCE
1500G, 0.5ms
SPECIAL FEATURES
Low power consumption, ECC (Error Correction Code), Shock resistant
SYSTEM REQUIREMENTS
Compatible with all operating systems that support the IDE standard
DIMENSIONS
100mm x 69.85mm x 7.40mm
WEIGHT
55g
PACKAGING
Retail packaging
WARRANTY
2 years warranty
Product Description
SSD (Solid State Disk) is the future storage option for laptop and desktop computers alike. SSD units have no moving parts and as such the consume much less power, hence improving the battery life of any laptop. They are also more reliable than standard HDDs and for added peace of mind they include an ECC Error-Correction feature.
Transcend’s 2.5-inch IDE SSD is compact in size and its thickness is only 7.4mm, which makes it very easy to install in PCs and notebooks. In addition, the 2.5-inch IDE SSD has built-in ECC (Error Correction Code) functionality that ensures highly reliable data transfer and increases your systems energy efficiency.
<b>Features:
</b>
- RoHS compliant
- Fully IDE compatible
- Non-volatile Flash Memory for outstanding data retention
- Built-in ECC (Error Correction Code) functionality and wear-leveling algorithm ensures highly reliable of data transfer
- Supports up to Ultra DMA Mode 5
- Lower Power Consumption
- Shock resistance
- 2-year warranty
<b>Specifications:</b>
Size : 100 X 69.85 X 7.40 mm
Op. Voltage : 3.3/5.0V
Op. Temperature : 0°C(32°F) to 70°C(158°F)
Weight : 80 g
Performance : SLC - Read up to 74MB/s, Write up to 62MB/s
Shock Resistance : 1500G, 0.5ms
Vibration Resistance : 3.0G, 5 - 800Hz
MTBF : 1M hours
*Note : For OS installations, SLC version is recommended
Transcend’s 2.5-inch IDE SSD is compact in size and its thickness is only 7.4mm, which makes it very easy to install in PCs and notebooks. In addition, the 2.5-inch IDE SSD has built-in ECC (Error Correction Code) functionality that ensures highly reliable data transfer and increases your systems energy efficiency.
<b>Features:
</b>
- RoHS compliant
- Fully IDE compatible
- Non-volatile Flash Memory for outstanding data retention
- Built-in ECC (Error Correction Code) functionality and wear-leveling algorithm ensures highly reliable of data transfer
- Supports up to Ultra DMA Mode 5
- Lower Power Consumption
- Shock resistance
- 2-year warranty
<b>Specifications:</b>
Size : 100 X 69.85 X 7.40 mm
Op. Voltage : 3.3/5.0V
Op. Temperature : 0°C(32°F) to 70°C(158°F)
Weight : 80 g
Performance : SLC - Read up to 74MB/s, Write up to 62MB/s
Shock Resistance : 1500G, 0.5ms
Vibration Resistance : 3.0G, 5 - 800Hz
MTBF : 1M hours
*Note : For OS installations, SLC version is recommended
