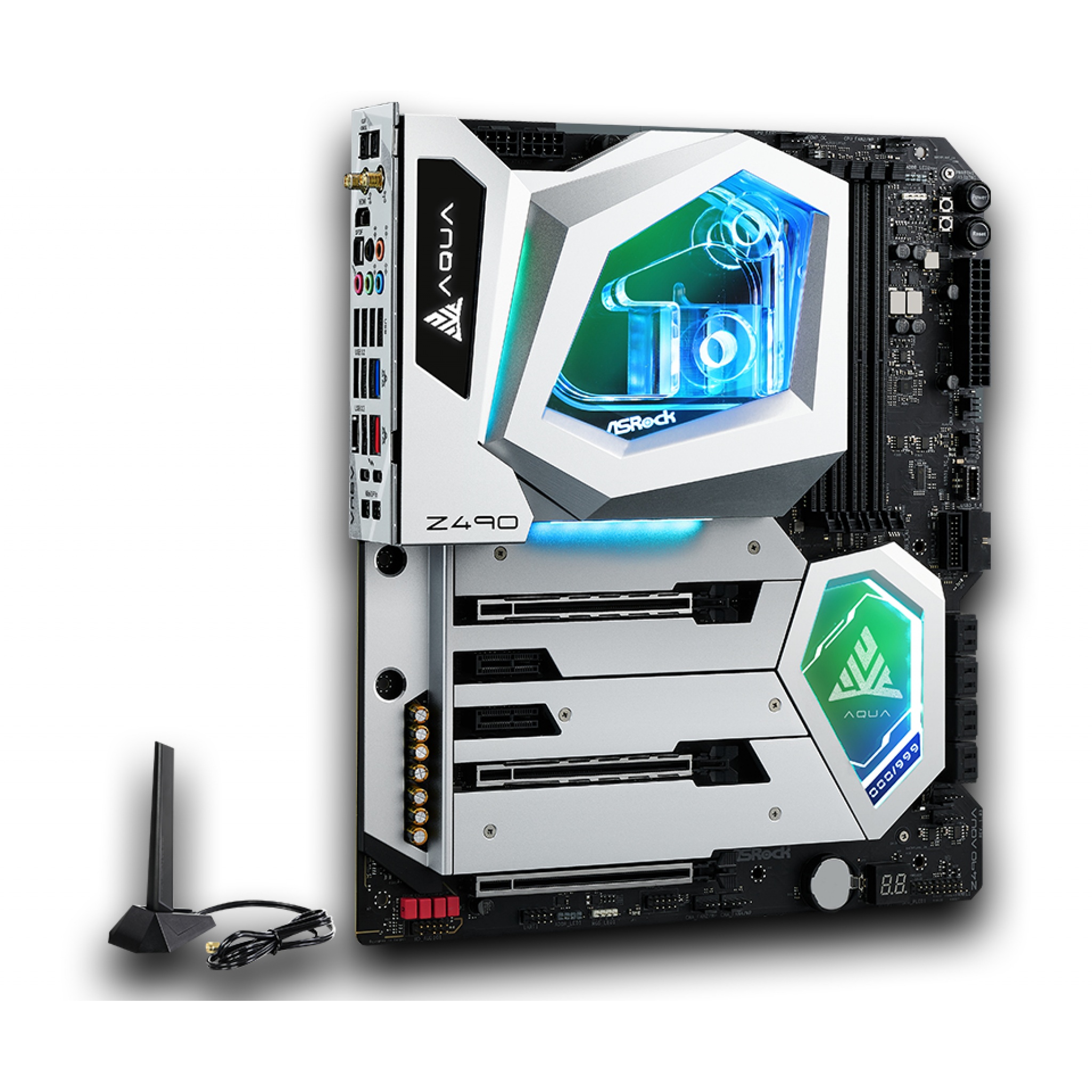

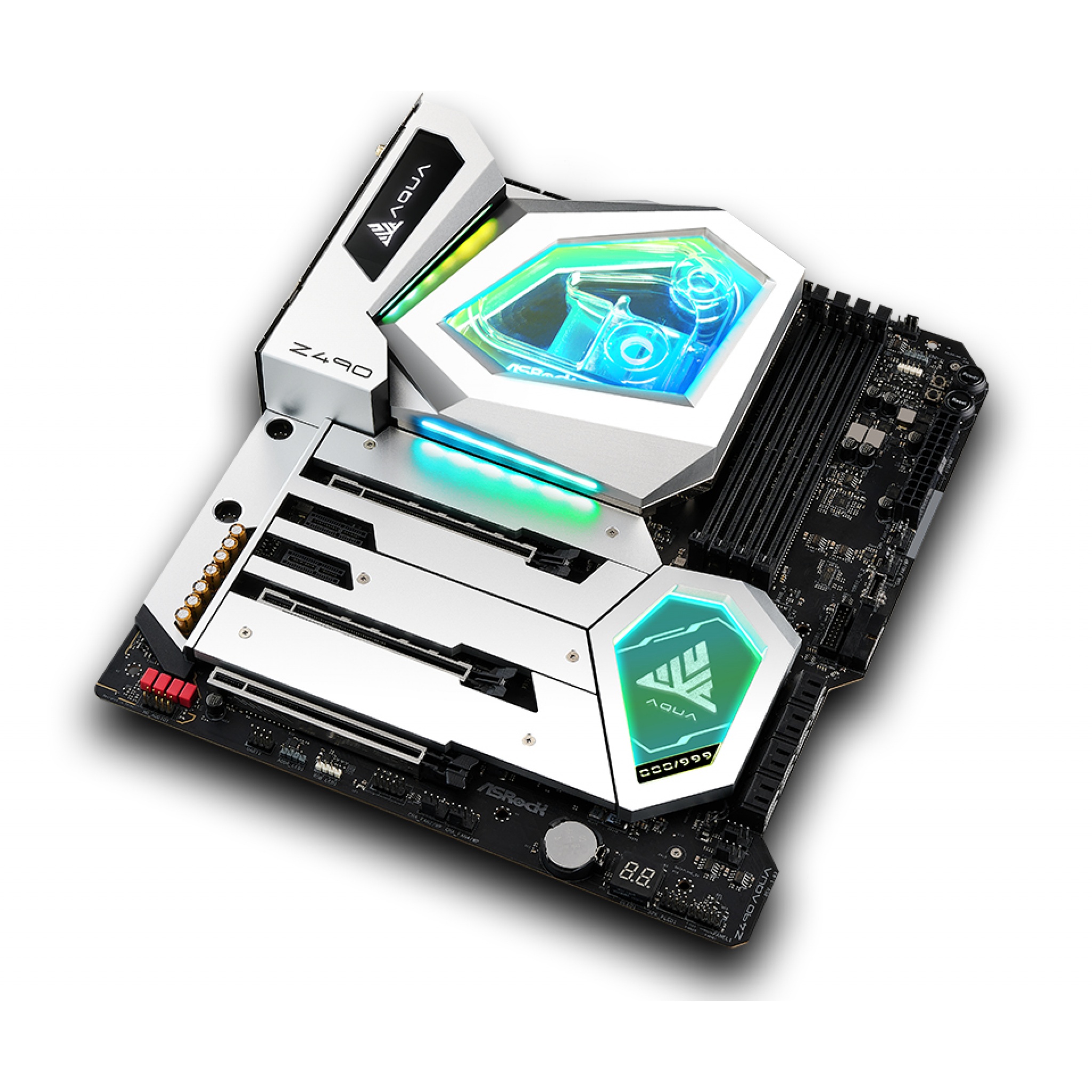

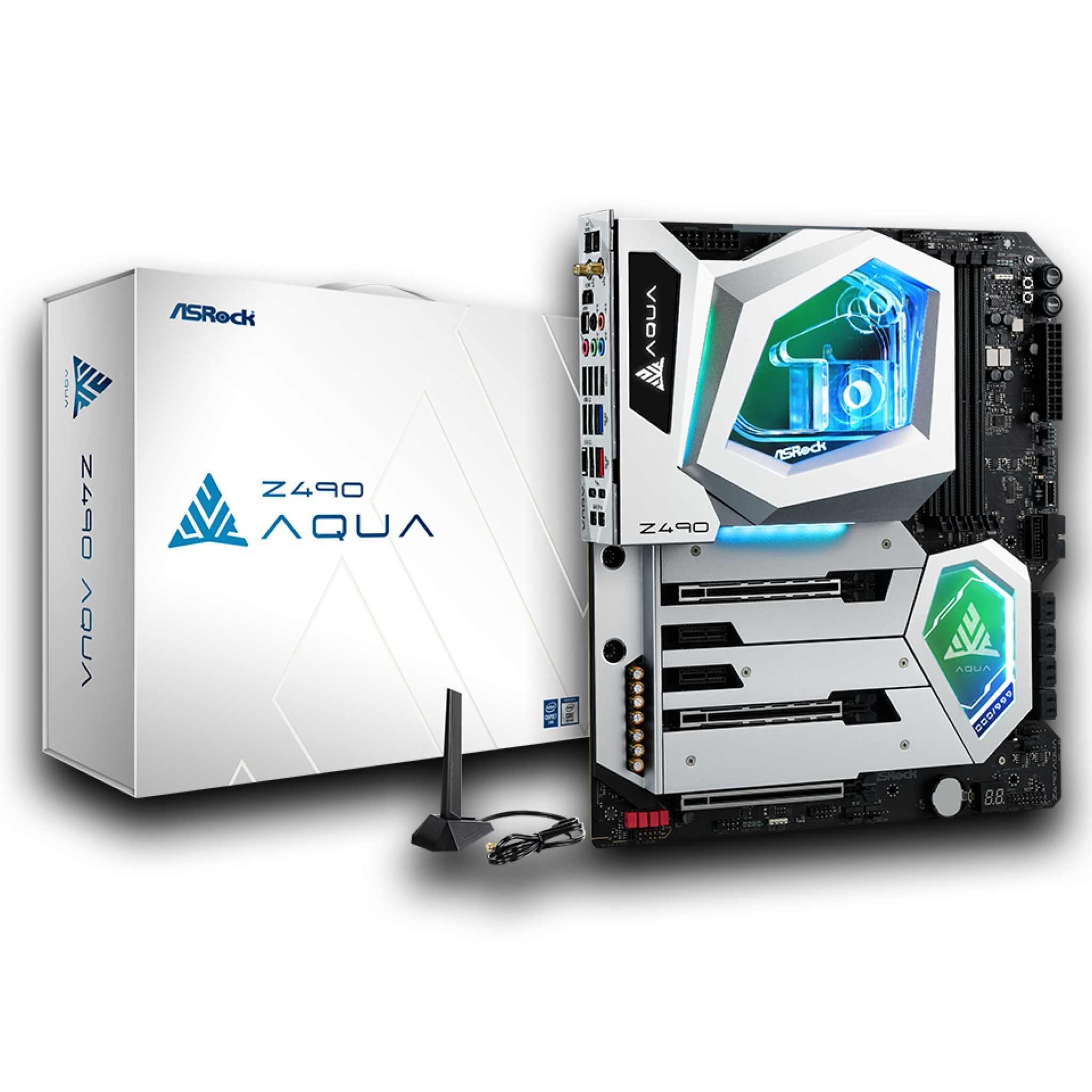

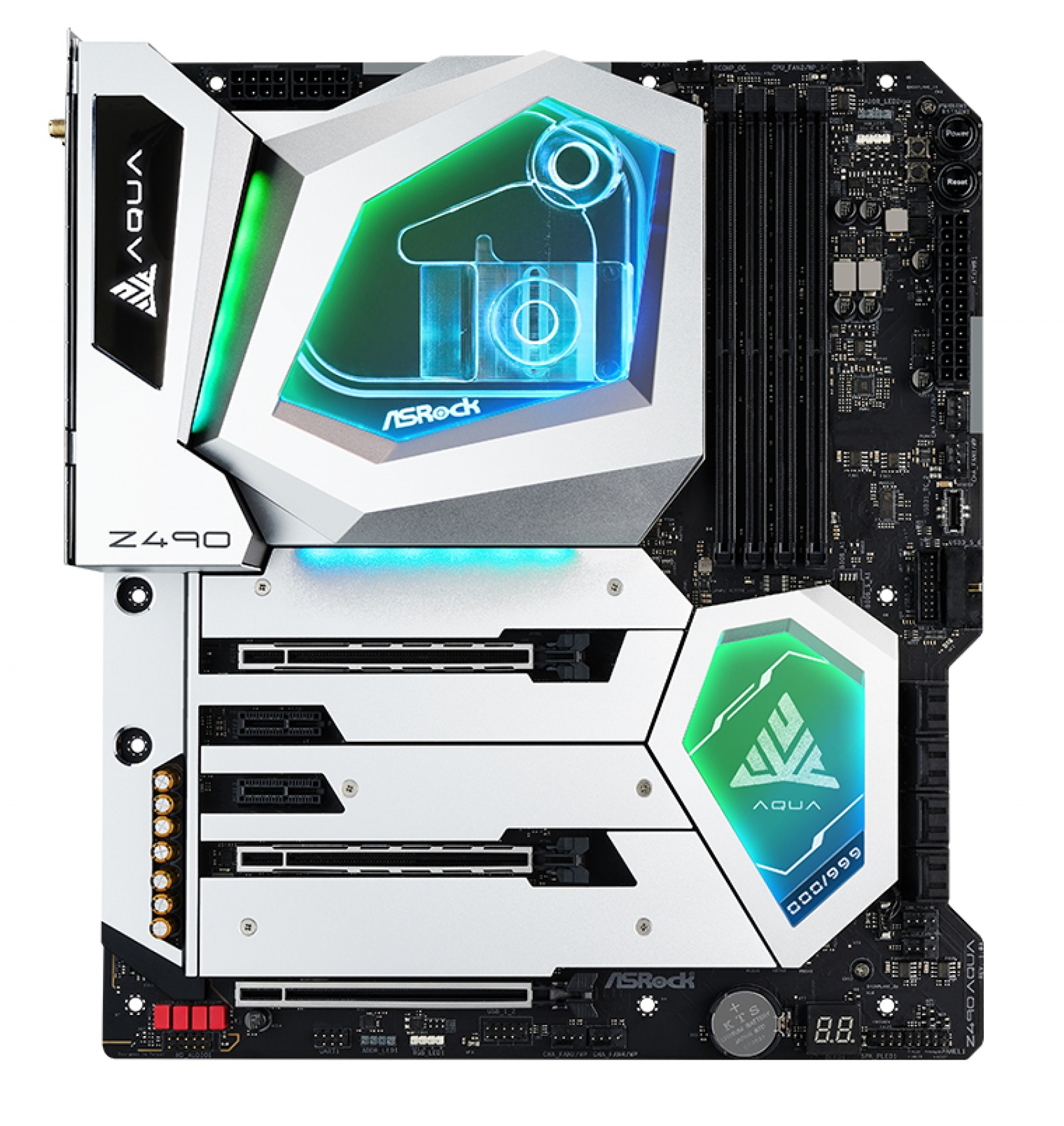

ASRock Z490 Aqua Intel DDR4 Motherboard
Product Information
Specifications
Motherboard chipset family: Intel
Supported memory clock speeds: 2133,2400,2666,2800,2933,3200,3600,3733,3800,3866,4000,4133,4266,4333,4400,4500,4600,4666,4700 MHz

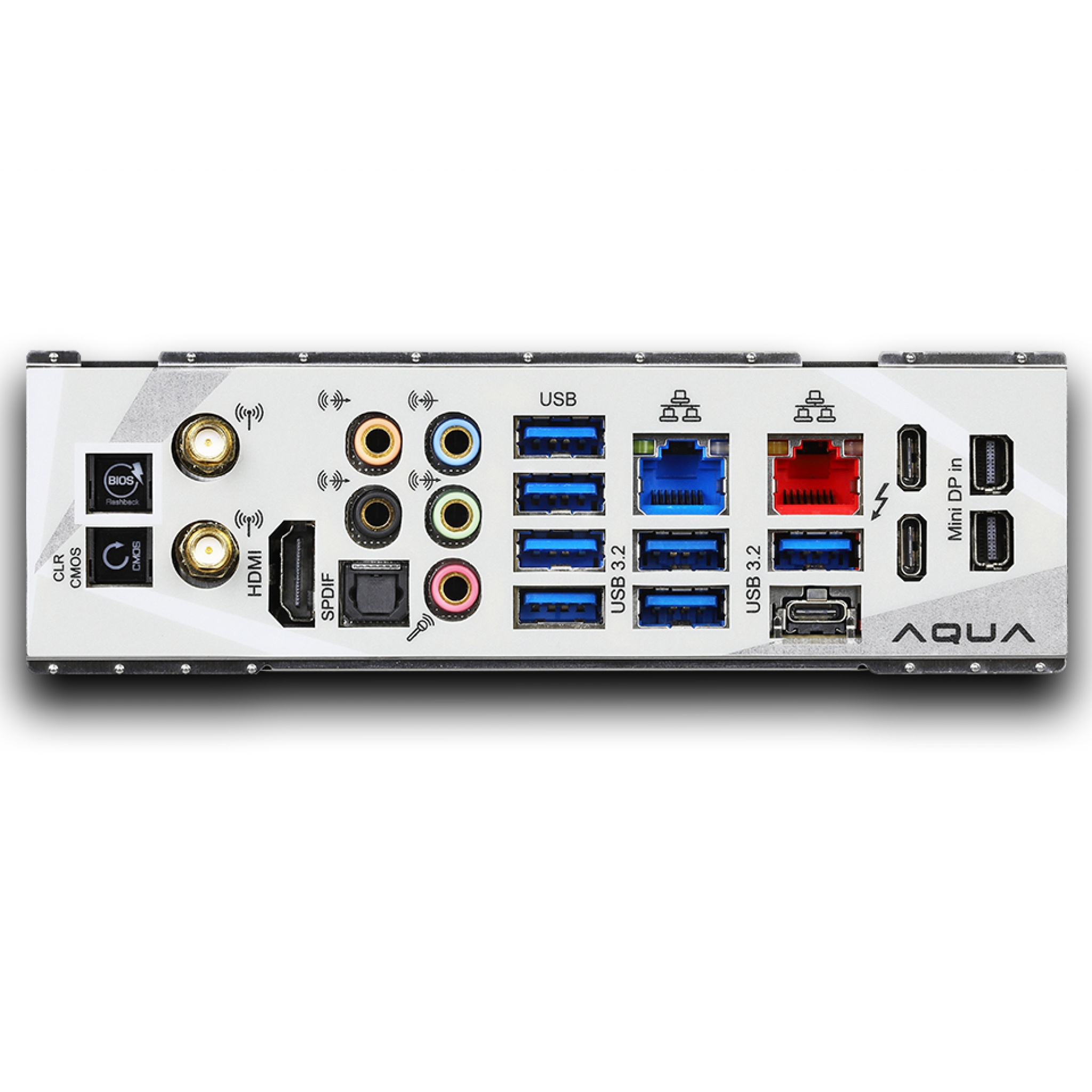

1 x HDMI Port
1 x Optical SPDIF Out Port
2 x USB 3.2 Gen2 Thunderbolt™ 3 Type-C Ports (40Gb/s for Thunderbolt™ protocol; 10 Gb/s for USB3.2 protocol) (Supports ESD Protection)*
2 x Mini DisplayPort Input Ports**
3 x USB 3.2 Gen2 Type-A Ports (10 Gb/s) (ReDriver) (Supports ESD Protection)
1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (Supports ESD Protection)
4 x USB 3.2 Gen1 Ports (Intel® Z490) (Supports ESD Protection)
2 x RJ-45 LAN Ports with LED (ACT/LINK LED and SPEED LED)
1 x Clear CMOS Button
1 x BIOS Flashback Button
HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks)
2 Ultra M.2 (PCIe Gen3 x4 & SATA3)
2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)
1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)
2 x Addressable LED Headers
LAN controller: Dragon RTL8125BG
Depth: 267 mm
Product Description
AQUA, RETURNS!
AQUA is back! Once again the Z490 AQUA is created to be the best without any compromise, with the top luxury specification and gorgeous looking aluminum cover, with limited quantity of only 999 will be made, Z490 AQUA is rare and superior motherboard in the market!
MASTERPIECE MOTHERBOARD
To handle the immense performance of the latest Intel 10 Core CPU, a custom AQUA Cooling Armor heatsink is skillfully designed to dissipate the heat of the CPU, VRM as efficiently as possible, it also dazzles with eye-catching RGB lighting and aluminum cover that covers and protects the entire board.
OLED DISPLAY
An OLED display was added to the Z490 AQUA to give a cleaner and informative way to express the status of the motherboard, the content can also be configured in the BIOS for more user friendly application.

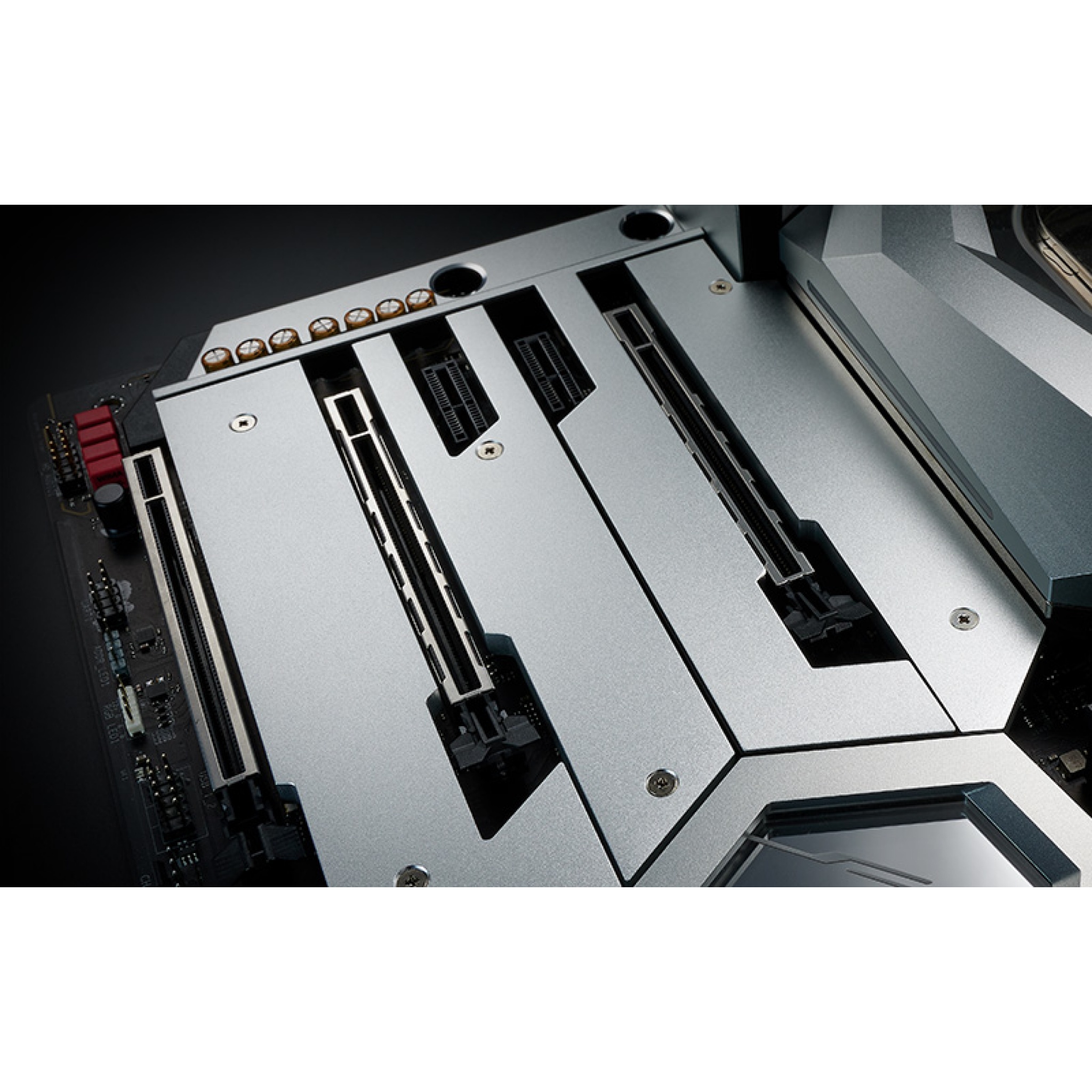

PCI EXPRESS 4.0 HARDWARE READY!
Welcome to the PCI Express 4.0 new era and be a smart buyer with ASRock motherboards! Z490 enthusiast level motherboards equipped with luxury components that allows geeks to be hardware ready for PCI Express 4.0 standard !
AQUA WATER COOLING PACK!
A set of water cooling fittings is uniquely given to the 999 pcs of Z490 AQUA lucky buyers, the cooling pack includes fittings that is suitable for hard tube piping, which is widely used by water cooling fanatics

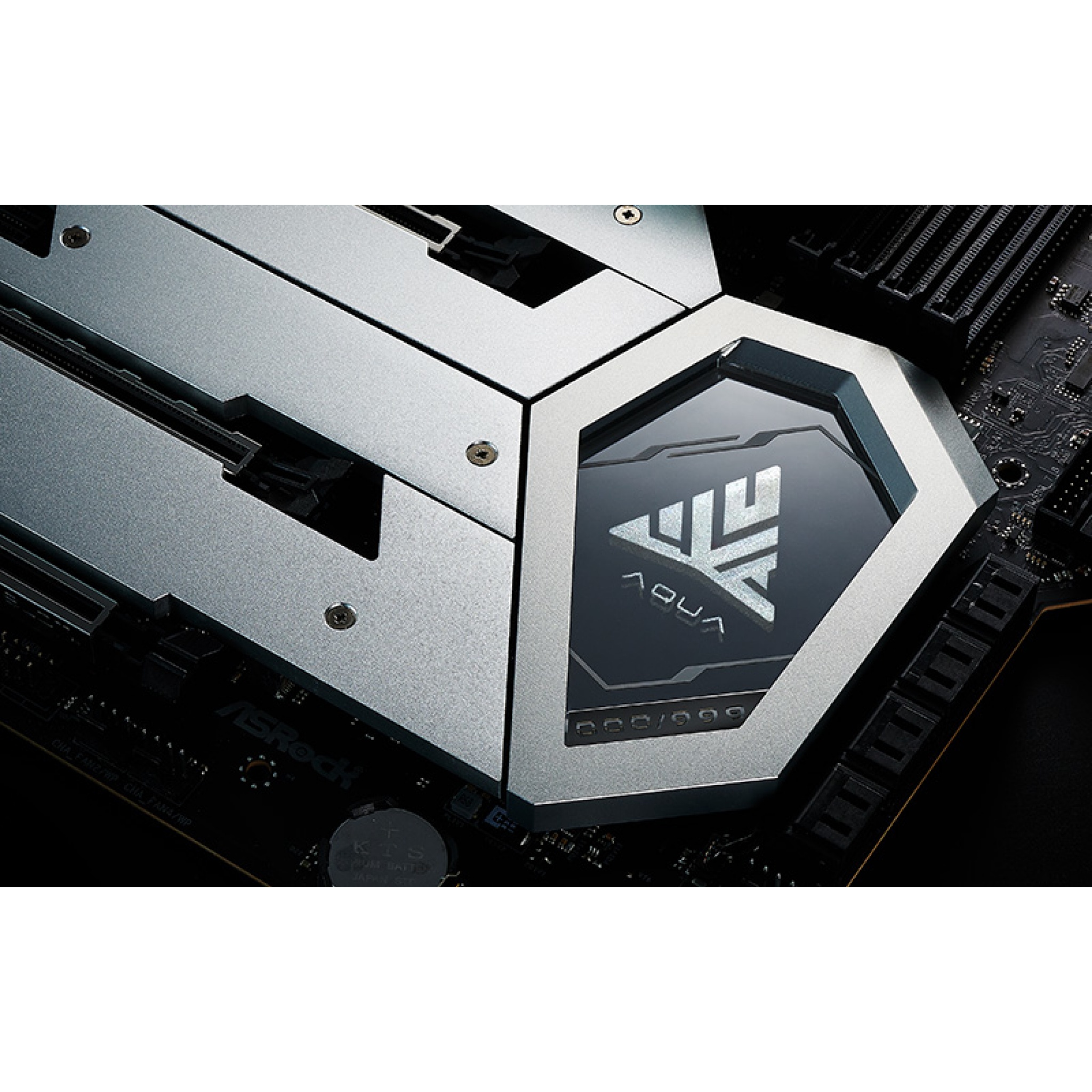

AQUA COOLING ARMOR
Elegant but functional is the main aspect of this unique motherboard, the custom AQUA water cooling block is designed to dissipate the heat of the CPU, VRM as efficiently as possible, it also dazzles with sophisticated but eye-catching RGB LED lighting effects design that brightens the water passage to give a more classy look.
WIMA AUDIO CAPS
Optimized for high end audio applications! Deliver crystal and balanced sound to satisfy even the pickiest audiophile.
16 POWER PHASE DESIGN (IR DIGITAL PWM)
Featuring sturdy components and completely smooth power delivery to the CPU. Plus, it offers unmatched overclocking capabilities and enhanced performance with the lowest temperature for advanced gamers as well.
SERVER-GRADE LOW-LOSS PCB
The server grade PCB prevents PCB bending and improves signal integrity, giving higher PCIe 4.0 and memory performance as well as system stability, giving a reliable and long-lasting system without any compromise.
AQUA WATER COOLING PACK!
A set of water cooling fittings is uniquely given to the 999 pcs of Z490 AQUA lucky buyers, the cooling pack includes fittings that is suitable for hard tube piping, which is widely used by water cooling fanatics
WIMA AUDIO CAPS
Optimized for high end audio applications! Deliver crystal and balanced sound to satisfy even the pickiest audiophile.
WI-FI 6 802.11AX
Welcome to the new Wi-Fi standard! ASRock’s motherboard equipped with next generation Intel Wi-Fi 6 802.11ax adapter. The speed will be working up to 2.4Gbps and it will also natively operate with both 2.4Ghz and 5Ghz simultaneously. Significant improvement in bi-directional MU-MIMO support is another attractive feature as well.
AQUANTIA 10GB/S BASE-T ETHERNET
The new 10Gb/s network standard was specially designed to satisfy the user who is seeking immediate performance improvements. Based on AQUANTIA's AQtion client controller, it offers blazingly fast 10-gigabit/sec transfer speed over Cat6 cable. The 10Gb/s Ethernet not only fully compatible with 5Gb/s, 2.5Gb/s & Gigabit Lan but also delivers lightning fast transfer speed, perfect for media center, workstation and gaming PC.
THUNDERBOLT 3 TECHNOLOGY
Thunderbolt 3 technology brings speed and versatility to the most advanced USB Type-C, offering a fast and simple level of connection for work or home. It enables lightning-fast data transfer up to 40Gbps and connects up to 3 Thunderbolt 3 devices with a single wire, and even provides quick charging with 9V@3A (27W).
Just experience the world's fastest connectivity with Thunderbolt ready motherboards!
PCI EXPRESS 4.0 HARDWARE READY!
Welcome to the PCI Express 4.0 new era and be a smart buyer with ASRock motherboards! Z490 enthusiast level motherboards equipped with luxury components that allows geeks to be hardware ready for PCI Express 4.0 standard!
FLEXIBLE INTEGRATED I/O SHIELD
Unlike most so-called pre-mounted I/O shield that is only decorated with fancy color schemes. We reserve more tolerance space and allow IO shield is adjustable when installing, thus fitting the chassis perfectly without any mechanical issue.
FRONT USB 3.2 GEN2 TYPE-C
Front USB 3.2 Gen2 Type-C header delivers up to 10 Gbps data transfer rate and next generation reversible USB design to the front panel of a computer case.
