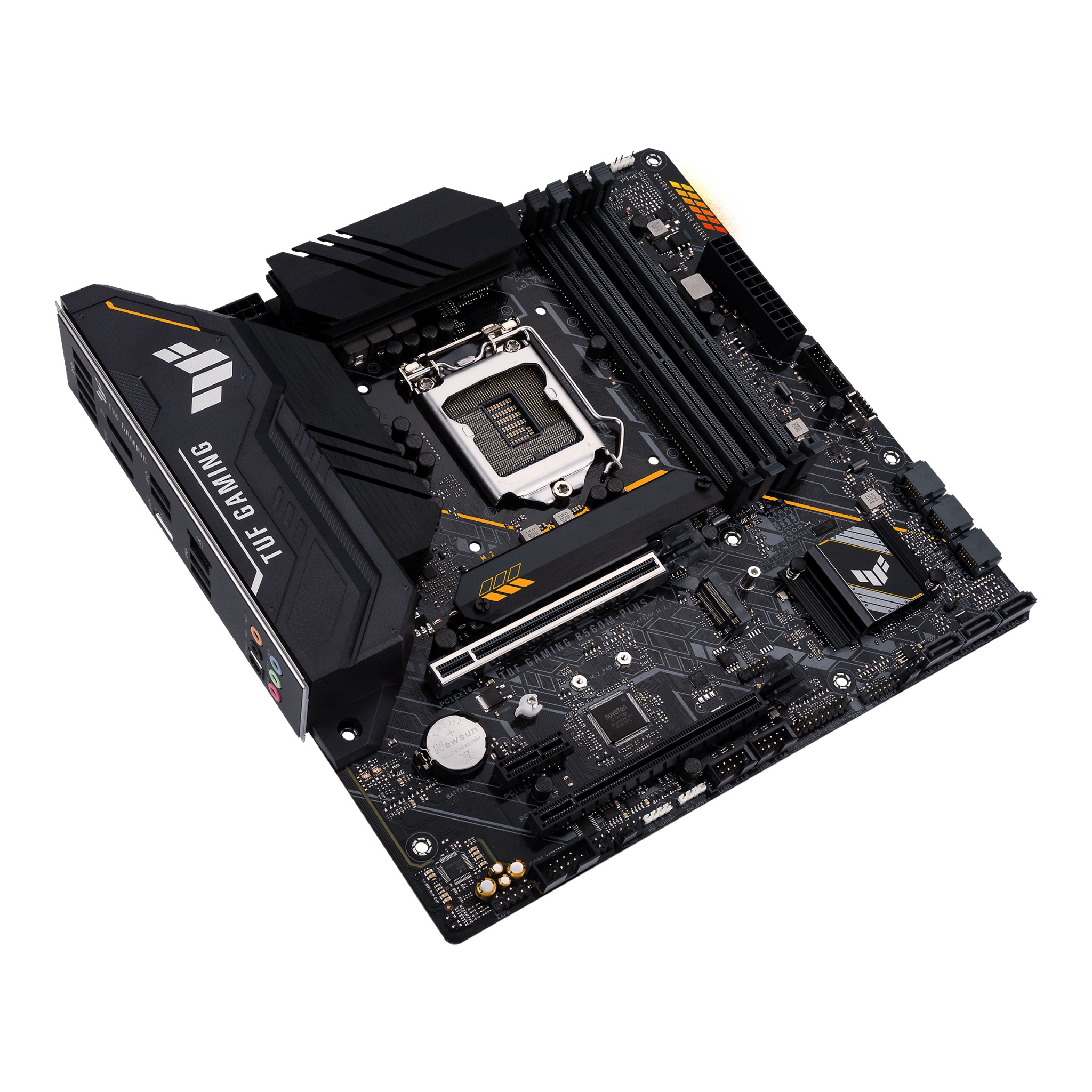

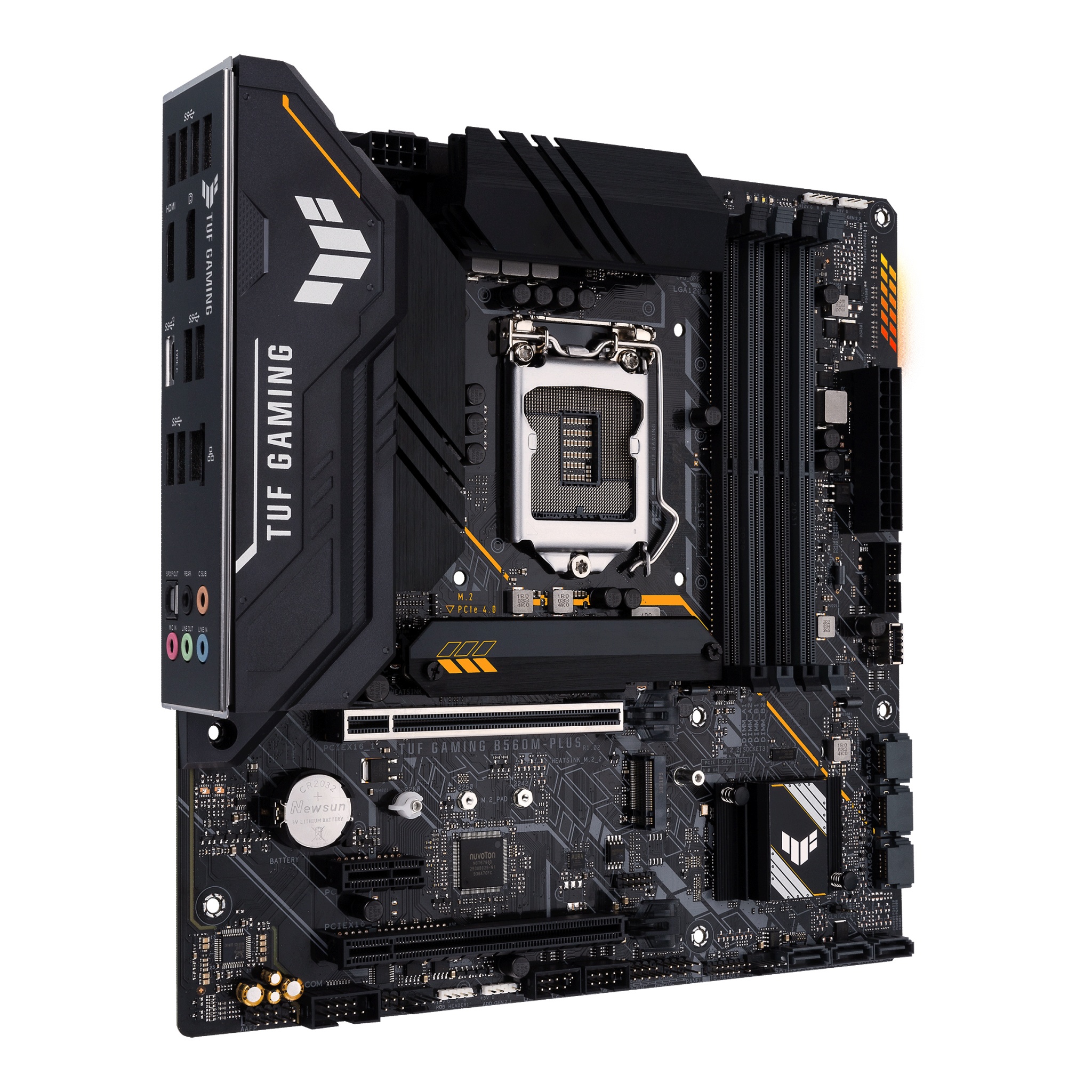

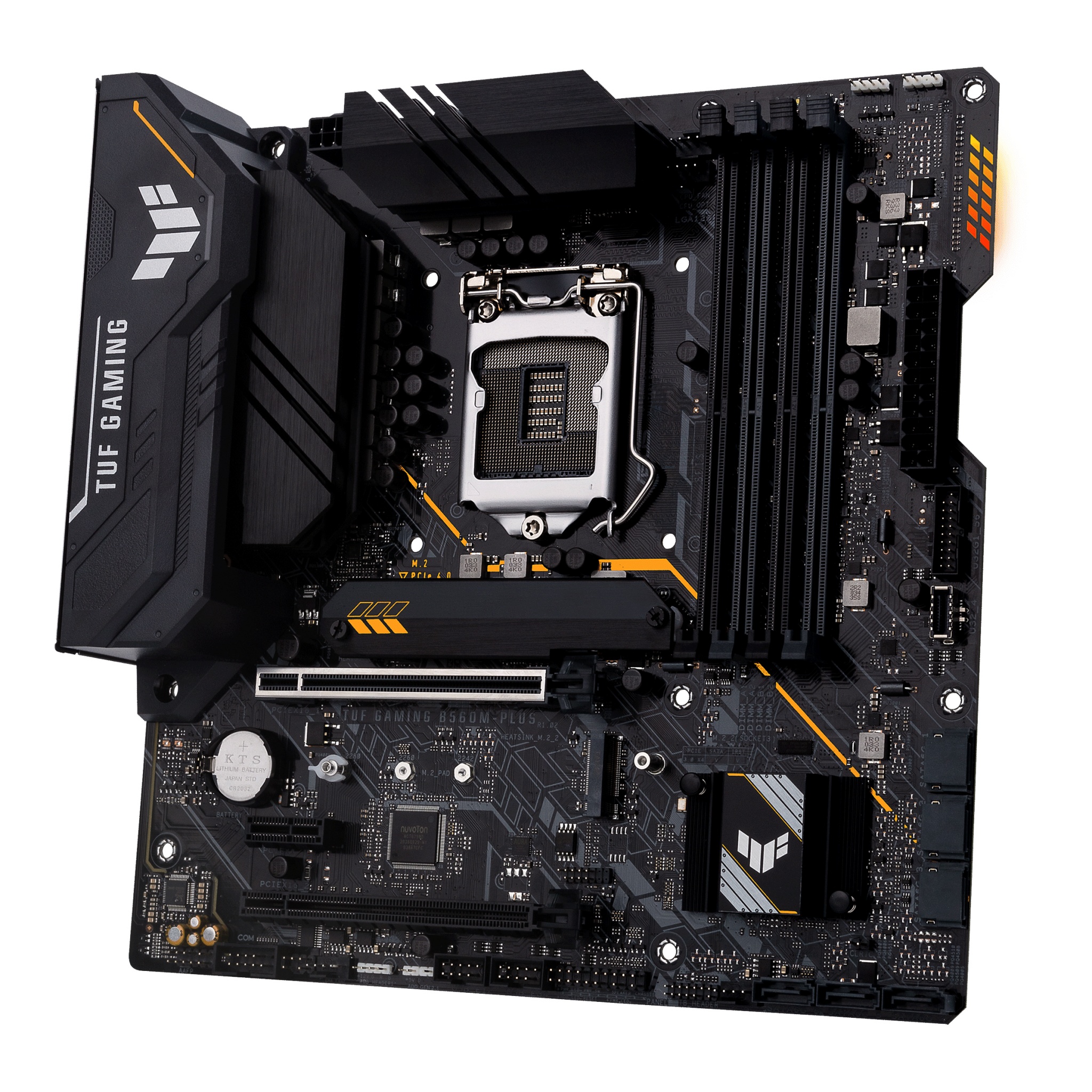

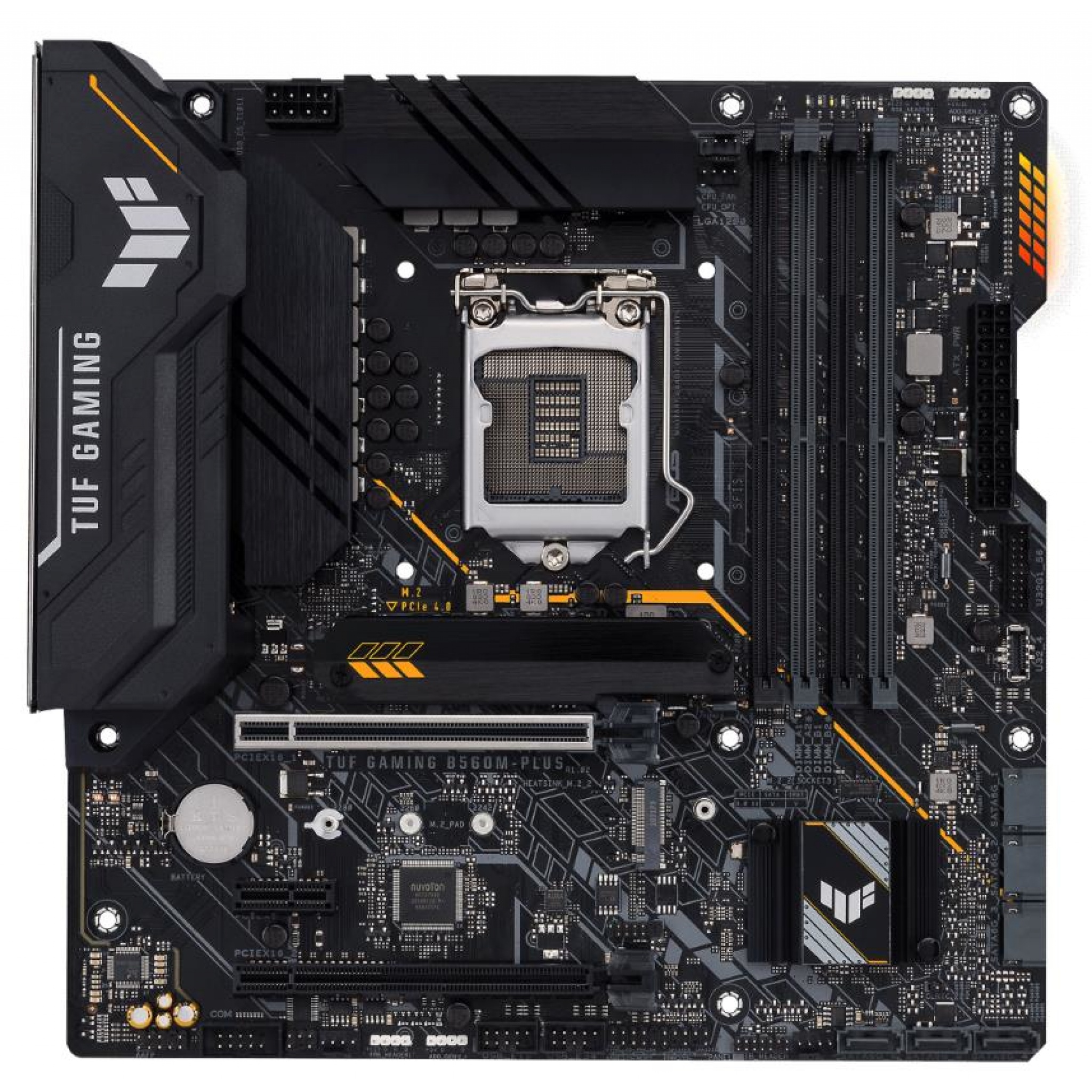

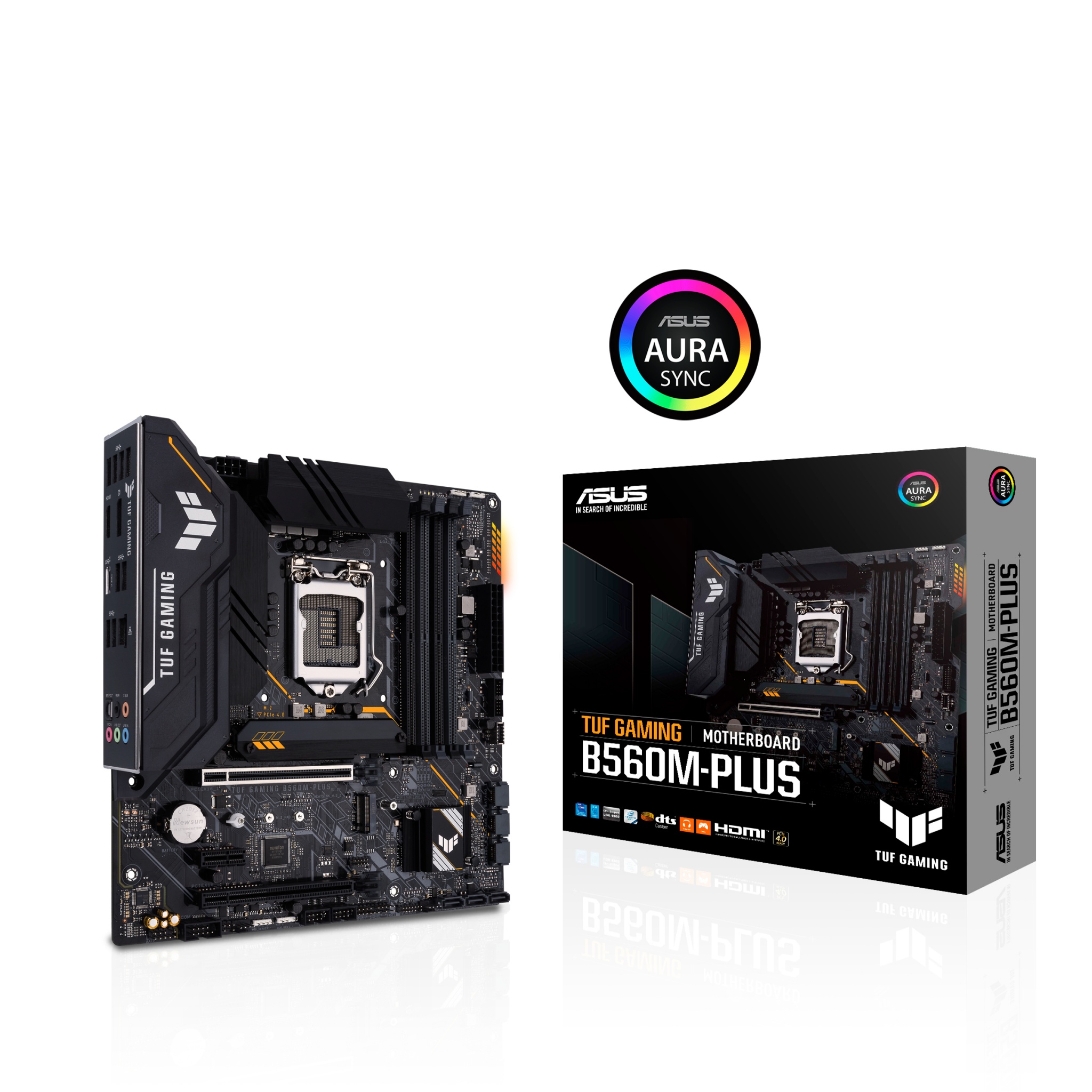

Asus TUF Gaming Intel B560 LGA 1200 Micro ATX DDR4-SDRAM Motherboard
Manufactured by:
Product Information
Part Number: 90MB1780-M0EAY0
Item No: 194-0495
Shipping Weight: 1.4 kgs (3.08 lbs)
Actual Weight: 1.4 kgs (3.08 lbs)
Specifications
FORM FACTOR
Micro ATX
SOCKET TYPE
LGA 1200
COMPATIBLE PROCESSORS
Intel Celeron, Intel Core i5, Intel Core i7, Intel Core i9, Intel Pentium
CHIPSET
Intel B560
MEMORY STANDARD
Supported memory types: DDR4-SDRAM
Supported memory clock speeds: 2133,2400,2666,2800,2933,3200,3466,3600,3733,4000,4266,4400,4600,4800,5000 MHz
Supported memory clock speeds: 2133,2400,2666,2800,2933,3200,3466,3600,3733,4000,4266,4400,4600,4800,5000 MHz
MEMORY SLOTS
4
MEMORY CHANNELS
Dual-channel
MAXIMUM INTERNAL MEMORY
128GB

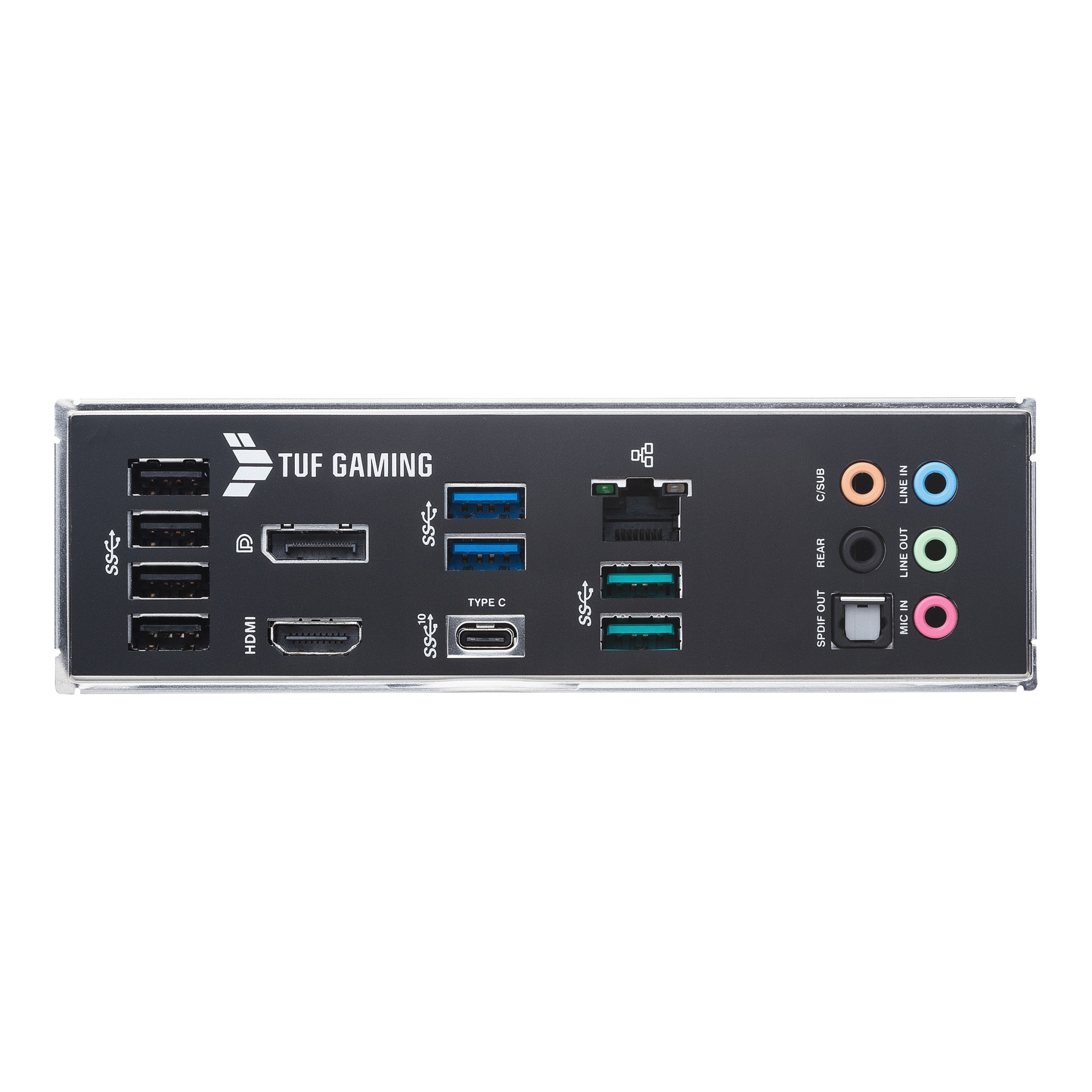

PORTS
2 x USB3.2 Gen 2 (3.1 Gen 2) Type-A
1 x Ethernet LAN (RJ-45)
S/PDIF out port
1 x HDMI
2 x USB3.2 Gen 1 (3.1 Gen 1) Type-A
4 x USB2.0
1 x DisplayPorts quantity: 1
1 x USB3.2 Gen 1 (3.1 Gen 1) Type-C
1 x Ethernet LAN (RJ-45)
S/PDIF out port
1 x HDMI
2 x USB3.2 Gen 1 (3.1 Gen 1) Type-A
4 x USB2.0
1 x DisplayPorts quantity: 1
1 x USB3.2 Gen 1 (3.1 Gen 1) Type-C
ETHERNET
2.5 Gigabit Ethernet LAN
ONBOARD USB 2.0
2
ONBOARD USB 3.1
3 x USB3.2 Gen 1 (3.1 Gen 1)
M.2 SLOTS
Number of M.2 (M) slots: 2
Supported storage drive interfaces: M.2,SATA
Supported storage drive interfaces: M.2,SATA
SATA III CONNECTORS
6
FRONT PANEL AUDIO
Front panel audio connector
MAIN POWER CONNECTOR
ATX Power connector (24-pin)
CPU FAN CONNECTOR
CPU fan connector
CHASSIS FAN CONNECTORS
2
RGB LED HEADER
RGB LED pin header
PCI EXPRESS X1
1 x PCI Express x1 (Gen 3.x)
PCI EXPRESS X16
1 x PCI Express x16 (Gen 4.x)
1 x PCI Express x16 (Gen 3.x)
1 x PCI Express x16 (Gen 3.x)
SUPPORTED OPERATING SYSTEMS
Windows 10 x64
THUNDERBOLT
1
RESOLUTION
Maximum resolution: 4096 x 2304 pixels
CHASSIS INTRUSION CONNECTOR
Chassis intrusion connector
Product Description
Durable. Stable. Reliable.
ASUS TUF GAMING B560M-PLUS takes all the essential elements of the latest Intel processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard offers rock-solid, stable performance for marathon gaming. Aesthetically, TUF GAMING B560M-PLUS sports the new TUF Gaming logo, and incorporates simple geometric design elements to reflect the dependability and stability that defines the TUF Gaming series.
Rock-Solid Performance
With upgraded power delivery and comprehensive cooling options to drive the 11th and 10th Gen Intel Core processors, plus support for faster memory and storage, TUF GAMING B560M-PLUS series motherboards are the perfect foundation for your next high-core-count battle rig.
DrMOS
The onboard VRM of TUF GAMING B560 series motherboards utilize 8+1 DrMOS power stages that combine high-side and low-side MOSFETs and drivers into a single package, delivering the power and efficiency that 11th Gen Intel Core processors demand.
Easy PC DIY
TUF GAMING motherboards are designed to be easy to set up and configure just the way you want -even for first-time builders. The TUF GAMING Alliance ecosystem makes selecting compatible parts easy, while Armoury Crate software offers full control of system settings via a single dashboard. TUF GAMING motherboards give you everything you need to build your dream gaming rig without adding complexity.
Build with Confidence
TUF GAMING Alliance is a collaboration between ASUS and trusted PC-component brands to ensure compatibility with a wide range of parts, such as PC cases, power supplies, CPU coolers, memory kits and more. With more partnerships and components being added regularly, the TUF Gaming Alliance will continue to grow even stronger.
Immersive Gaming
TUF GAMING B560M-PLUS series motherboards provide a complete, high-performance gaming package with a long list of features to improve your experience, including ultrafast networking for smoother online gameplay, pristine audio with positional cues for FPS gaming, and onboard RGB lighting that syncs with attached accessories to help you create a personalized gaming atmosphere.
EXCLUSIVE 2.5 GIGABIT ETHERNET
2.5G on-board Ethernet kicks your LAN connection up a notch with an up to 2.5X bandwidth improvement. Using your existing LAN cable, you can take advantage this networking upgrade to experience smoother, lag-free gaming, immediately stream high-resolution videos and enjoy faster file transfers.
