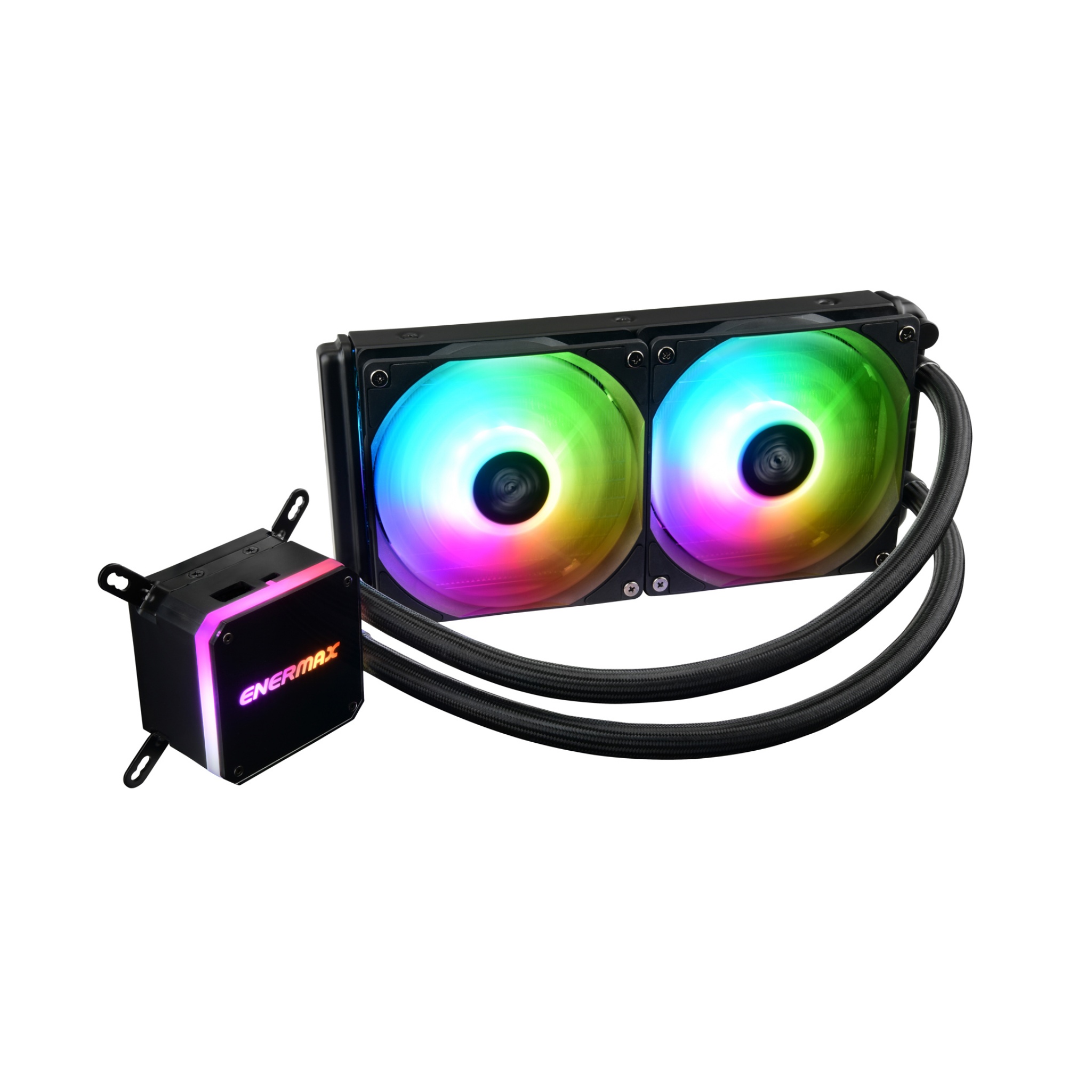

Enermax Liqmax III 240mm ARGB CPU Liquid Cooler

Manufactured by: Enermax

Product Information

Part Number: ELC-LMT240-ARGB
Item No: 406-0009
Shipping Weight: 1.81 kgs (3.99 lbs)
Actual Weight: 1.81 kgs (3.99 lbs)

Specifications

CPU SOCKET COMPATIBILITY
LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1366 (Socket B), LGA 2011-v3 (Socket R), LGA 2066, Socket AM2, Socket AM2+, Socket AM3, Socket AM3+, Socket AM4, Socket FM1, Socket FM2, Socket FM2+
RADIATOR DIMENSIONS
Radiator width: 27.4 cm
Radiator depth: 12 cm
Radiator height: 2.7 cm
RADIATOR MATERIAL
Aluminium
BASE PLATE MATERIAL
Copper

Illumination LED
PUMP BEARING OR TYPE
Ceramic
PUMP MTBF
50000 h
PUMP VOLTAGE
12 V
PIPE LENGTH
400mm
FAN AIR FLOW
Minimum airflow (imperial): 22.5 cfm
Maximum airflow: 72.1 cfm
FAN SPEED
Fan speed (min): 500 RPM
Fan speed (max): 1600 RPM
CONNECTORS
Fan connector: 4-pin
Pump connector: 3-pin
ARGB CABLE CONNECTOR
3 pin ARGB connector (5V/D/G)
NOISE LEVEL
Fan noise level (min): 14 dB
Fan noise level (max): 27 dB
PRODUCT COLOR
Black

Product Description

THE LUMINOUS ADDRESSABLE RGB FAN
AND AURABELT™ WATER BLOCK

Display gorgeous lighting effects with 16.8 million colors, for users to experience RGB lighting wonderland

2 WAYS TO CONTROL RGB LIGHTING EFFECTS

Through Motherboard Software
Users can sync the RGB lighting with motherboards featuring addressable RGB headers (3 pin assignment is 5V/D/G) Note: To use Razer Chroma to control lighting effects, your motherboard needs to be compatible with Razer Chroma

Through ENERMAX RGB Control Box
Users can use the included control box to adjust preferred lighting effects (10 pre-set effects), brightness, and speed

Patented Dual Chamber Design water block
Isolate the pump from the heat to prolong the cooler’s lifetime

Central Coolant Inlet (CCI) design and patented Shunt-Channel Technology (SCT)
Patented Dual Chamber Design water block has a Central Coolant Inlet (CCI) structure, combined with the Shunt-Channel Technology (SCT) on the cold plate, it is able to inject the coolant at the hottest spot to prevent heat surges and shorten the coolant flow path, resulting in faster heat transfer

Exclusive dual-convex blades
Create downforce air pressure
(max. 1.98mmH2O) and high-volume airflow
(max. 72.1CFM) to dissipate the radiator
heat efficiently

400mm Weaved Tubing
Flexible and easy to installation because of perfect tube length for mainstream system builds

Anti-vibration rubber pad on four-side fan frame
Absorb the vibration during the operation and provide a silent surroundings while operating

QUICK AND EASY MOUNTING SYSTEM
Provide all-in-one bracket plate and support the latest AMD & Intel socket. (including LGA1200 socket)
*Not compatible with AMD socket TR4, SP3
