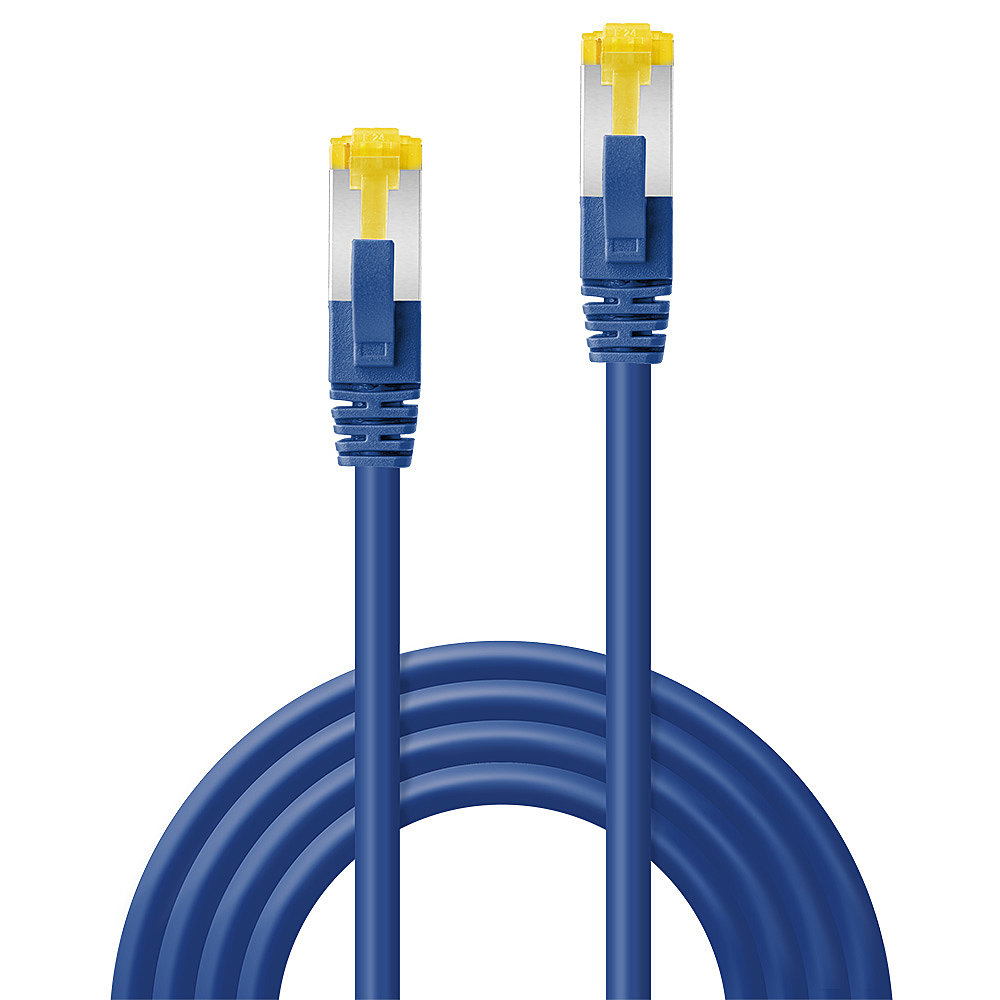

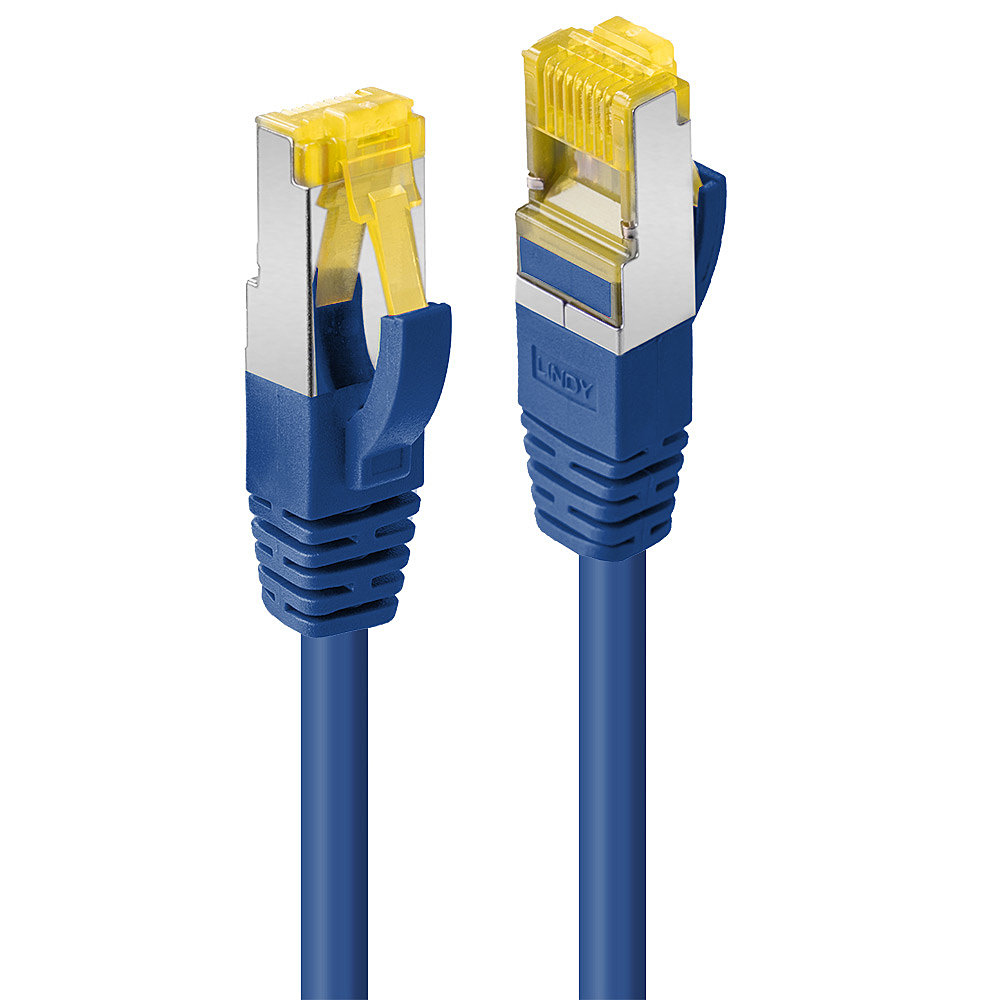

Lindy 15m RJ45 S/FTP LSZH Cable, Blue
Manufactured by:
Product Information
Part Number: 47284
OEM Part No: FD3543556
Shipping Weight: 0.6 kgs (1.31 lbs)
Actual Weight: 0.6 kgs (1.31 lbs)
Specifications
TYPE
Cat7
LENGTH
15 m
LEFT CONNECTOR
RJ-45
RIGHT CONNECTOR
RJ-45
CABLE SHIELDING
S/FTP (S-STP)
Product Description
Connectors
- Connector A: RJ45 Male Cat.6A
- Connector B: RJ45 Male Cat.6A
- Housing Material: Polycarbonate
- Connector Plating: Nickel
- Pin Construction: Copper Alloy
- Pin Plating: Gold plated
- Dimensions (approx.) WxDxH: 11.6x22.8x8.3mm (0.46x0.90x0.33in)
Cable Construction
- Length: 15m (49.21ft)
- Colour: Blue
- Type: Cat.7
- Jacket Diameter: 6.5mm (0.26in)
- Jacket Material: LSZH
- Conductor Material: Copper
- Conductor Gauge: 26AWG
- Shielding: Aluminium Braid
Specifications
- Supported Bandwidth: 600MHz
- Nominal Attenuation: 51.4dB/100m @600MHz
- Minimum Band Radius: 78mm (3.07in)
- Operating Temperature: -10°C - 60°C (14°F - 140°F)
- Storage Temperature: -20°C - 75°C (-4°F - 167°F)
Miscellaneous

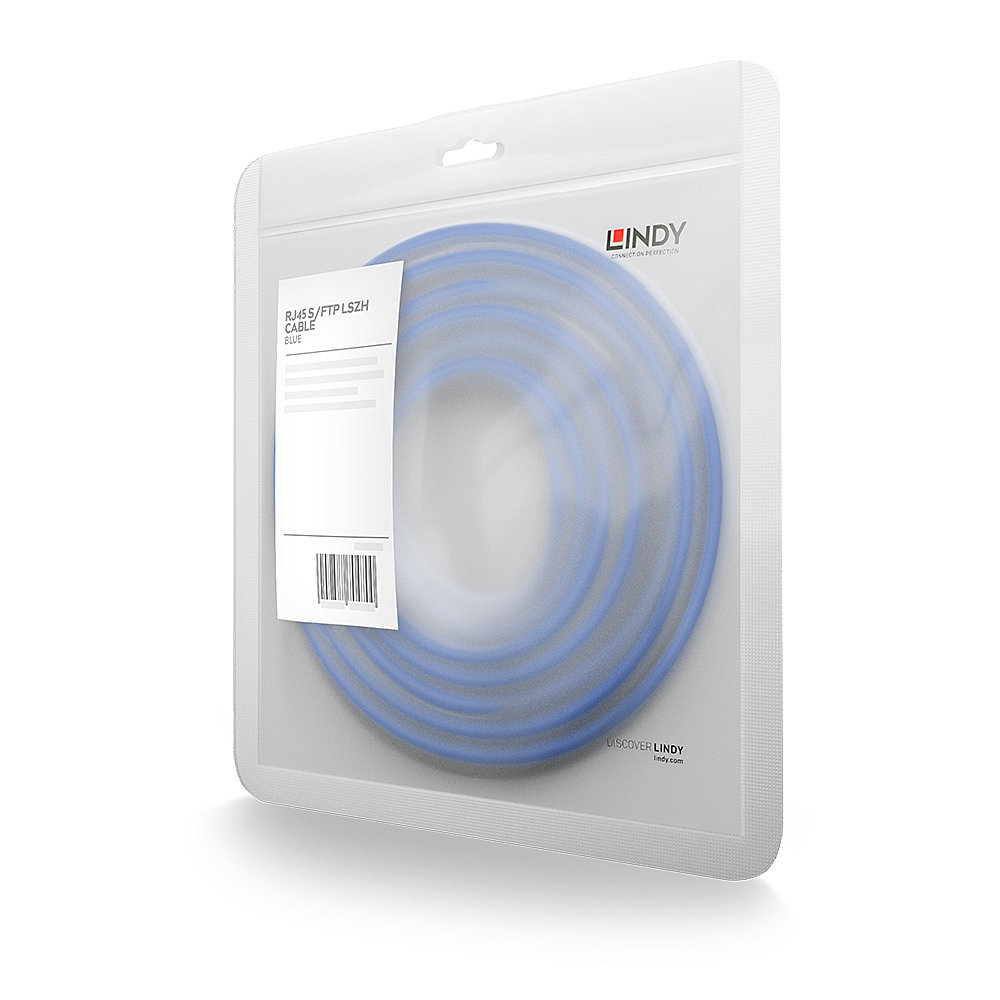

- Packaging Type: Polybag
- Warranty (Years): 10
- Product Compliance: RoHS, REACH, UL, California Proposition 65
Purchasing Information
- No.: 47284
- EAN: 4002888472845
This product is also available in other lengths
- 47275 - 0.3m (0.98ft)
- 47276 - 0.5m (1.64ft)
- 47277 - 1m (3.28ft)
- 47278 - 1.5m (4.92ft)
- 47279- 2m (6.56ft)
- 47280 - 3m (9.84ft)
- 47281 - 5m (16.44ft)
- 47282 - 7.5m (24.61ft)
- 47283 - 10m (32.81ft)
- 47284 - 15m (49.21ft)
- 47285 - 20m (65.62ft)
- 47286- 30m (98.43ft)
