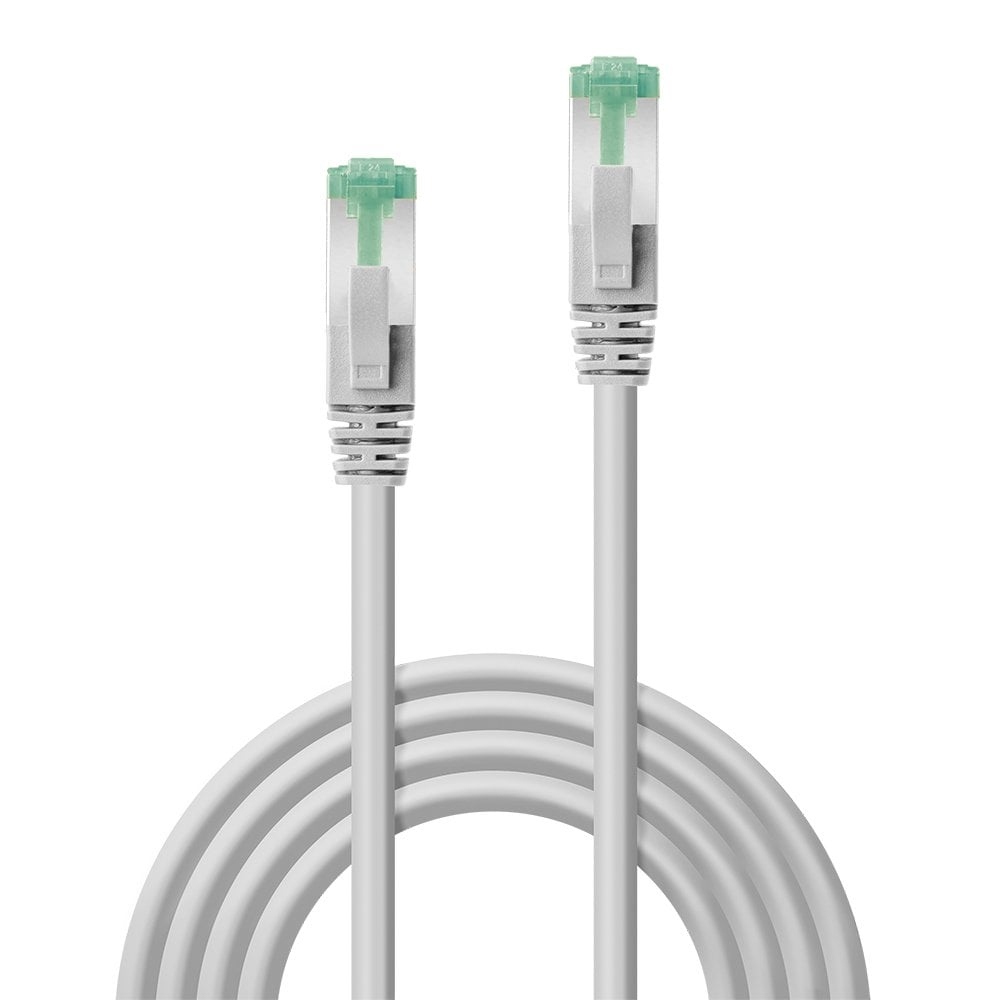

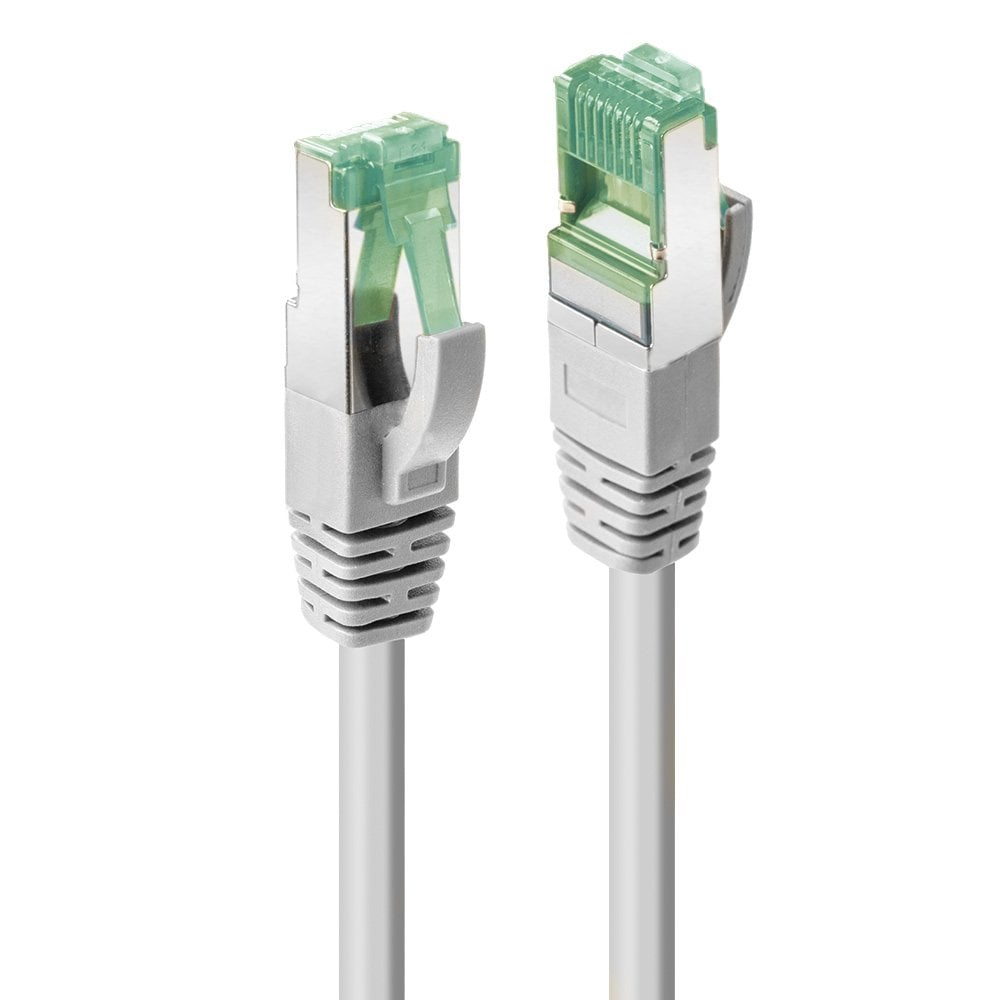

Lindy 1.5m Cat.6A S/FTP GRS TPE Cable, Grey
Manufactured by:
Product Information
Part Number: 47918
Item No: FD3615011
Shipping Weight: 0.2 kgs (0.44 lbs)
Actual Weight: 0.06 kgs (0.13 lbs)
Specifications
TYPE
Cat6a
LENGTH
1.5 m
LEFT CONNECTOR
RJ-45
RIGHT CONNECTOR
RJ-45
CABLE SHIELDING
S/FTP (S-STP)
MATERIAL
Thermoplastic elastomer (TPE)
Product Description
Connectors
- Connector A: RJ45 Male
- Connector B: RJ45 Male
- Housing Material: Polycarbonate
- Connector Plating: Nickel
- Pin Construction: Copper Alloy
- Pin Plating: Gold plated
- Dimensions (approx.) WxDxH: 11.6x22.8x8.3mm (0.46x0.90x0.33in)
Cable Construction
- Length: 1.5m (4.92ft)
- Colour: Grey
- Type: Cat.6A
- Jacket Diameter: 5.8mm (0.22in)
- Jacket Material: TPE
- Conductor Material: Copper
- Conductor Gauge: 27AWG
- Shielding: Aluminium Braid + Aluminium Foil
Specifications
- Supported Bandwidth: 500MHz
- Nominal Attenuation: 49.3dB/100m @500MHz
- Minimum Bend Radius: 74mm (2.91in)
- Operating Temperature: -10°C - 60°C (14°F - 140°F)
- Storage Temperature: -20°C - 75°C (-4°F - 167°F)
Miscellaneous
- Packaging Type: 100% GRS Recycled Polybag
- Warranty (Years): 10
- Product Compliance: RoHS, REACH, UL, California Proposition 65, GRS
Purchasing Information
- No.: 47918
- EAN: 4002888479189
This product is also available in other lengths
- 47915 - 0.3m (0.98ft)
- 47916 - 0.5m (1.64ft)
- 47917 - 1m (3.28ft)
- 47918 - 1.5m (4.92ft)
- 47919- 2m (6.56ft)
- 47920 - 3m (9.84ft)
- 47921 - 5m (16.44ft)
- 47922 - 7.5m (24.61ft)
- 47923 - 10m (32.81ft)
- 47924 - 15m (49.21ft)
- 47925 - 20m (65.62ft)
