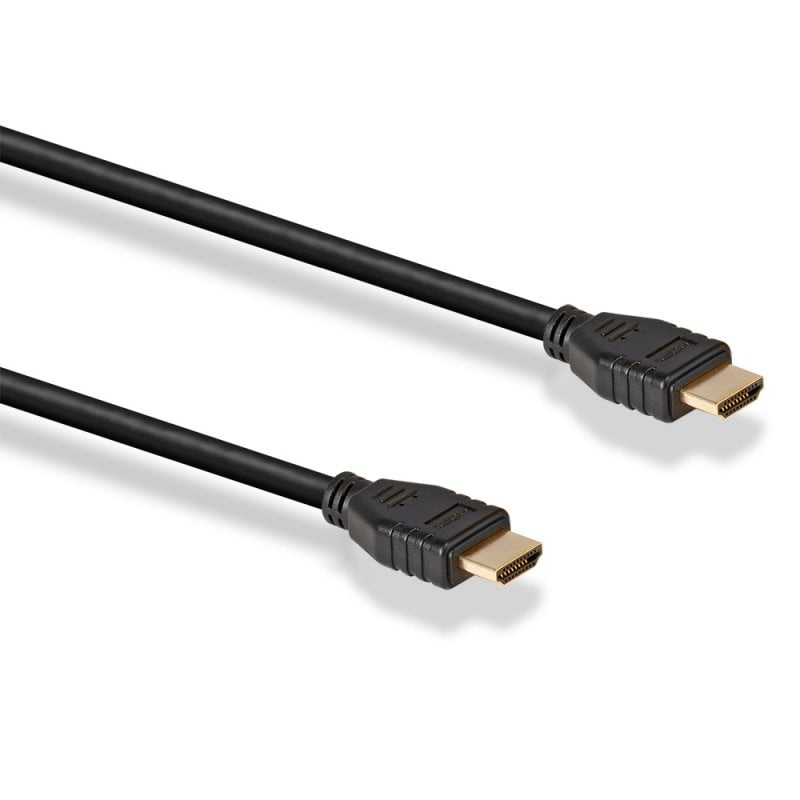

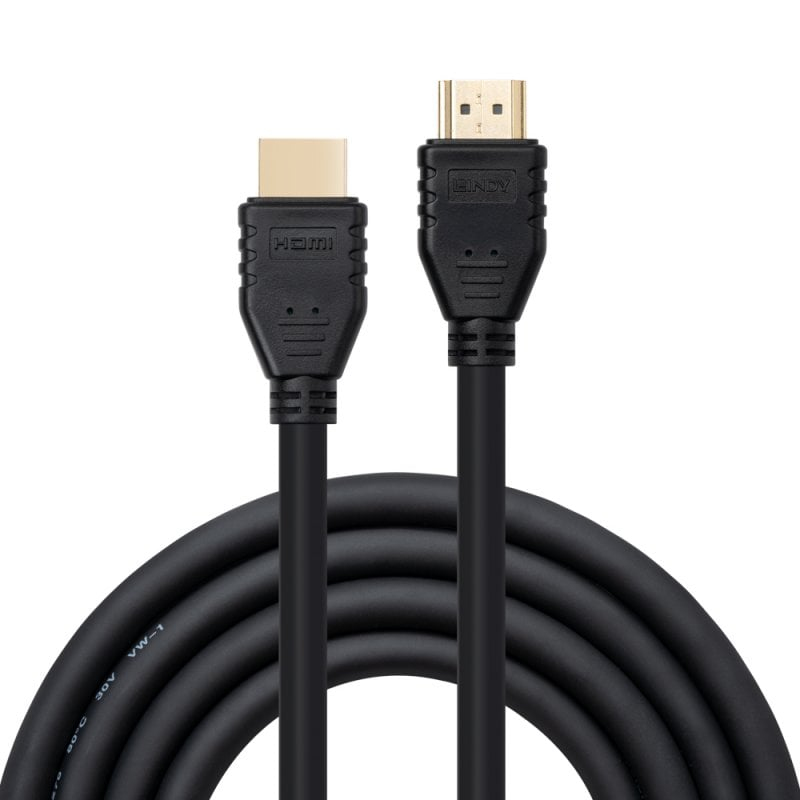

Lindy 1m 4K60Hz HDMI Cable, Flexible

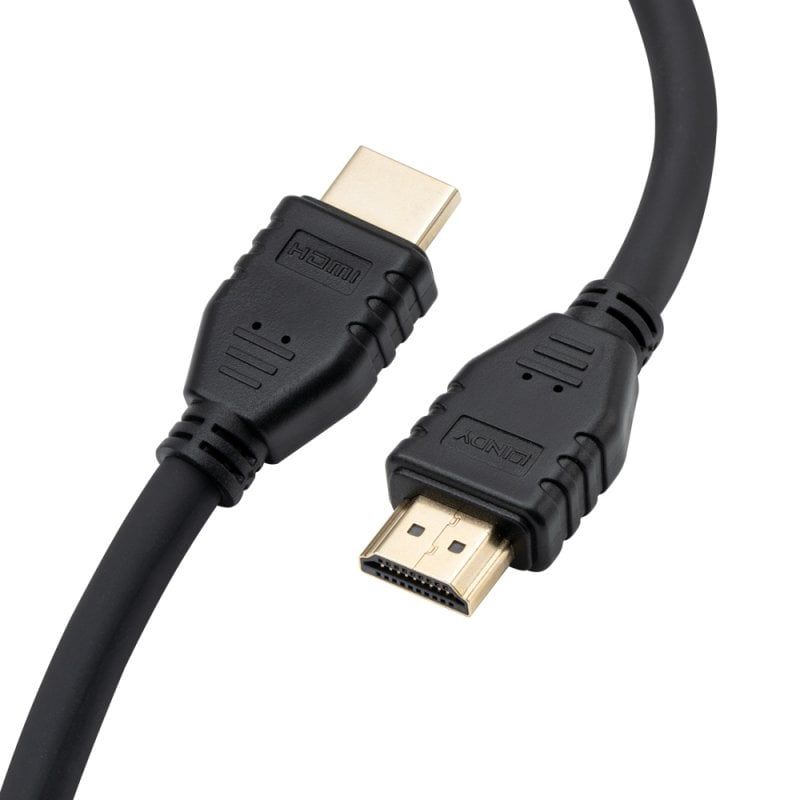

Connectors

• Connector A: HDMI® Type A Male
• Connector B: HDMI® Type A Male
• Housing material: Soft PVC
• Connector plating: Gold Plating
• Pin construction: Copper Alloy
• Pin Plating: Gold Plated
• Dimensions (WxDxH): 20.3 x 35.8 x 10.5mm (0.79 x x 0.41in)

Cable Construction

• Length: 1m (3.28ft)
• Standard: High Speed HDMI®
• Colour: Black
• Type: Round
• Jacket diameter: 7.8mm (0.30in)
• Jacket material: Soft PVC
• Conductor material: Bare Copper
• Conductor gauge: 28AWG
• Shielding: Aluminum Foil
• Braid Shielding: Aluminum-Magnesium

Technical Information

• Supported bandwidth: 18Gbps
• Maximum resolution: 3840x2160@60Hz 4:4:4,8bit
• Nominal attenuation:
  • 300kHz~825MHz<5dB
  • 825MHz~2.475GHz<5dB
  • 2.475GHz~4.125GHz<12dB
  • 4.125GHz~5.1GHz<20dB
• Minimum bend radius: 78mm
• Operating Temperature: -10°C - 80°C (14°F - 176°F)
• Storage Temperature: -20°C - 85°C (-4°F - 185°F)
• ATC Approved: No

Miscellaneous

• Packaging Type: Polybag
• Warranty (Years): 10
• Product Compliance: RoHS & REACH, UL, California Proposition 65

Purchasing Information

• No.: 37316
• EAN: 4002888373166

This product is also available in other lengths

• 37315 - 0.5m (1.64ft)
• 37316 - 1m (3.28ft)
• 37317 - 2m (6.56ft)
• 37318 - 3m (9.84ft)
• 37319 - 5m (16.44ft)
