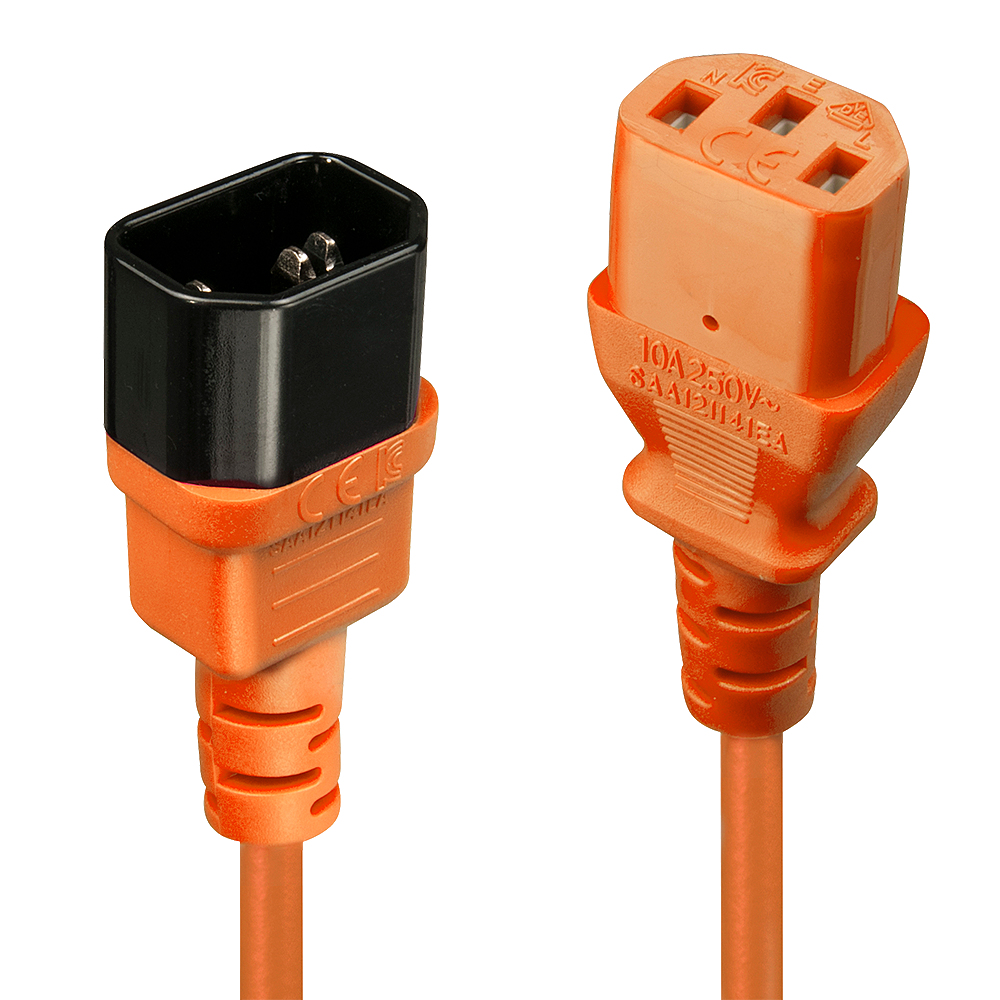

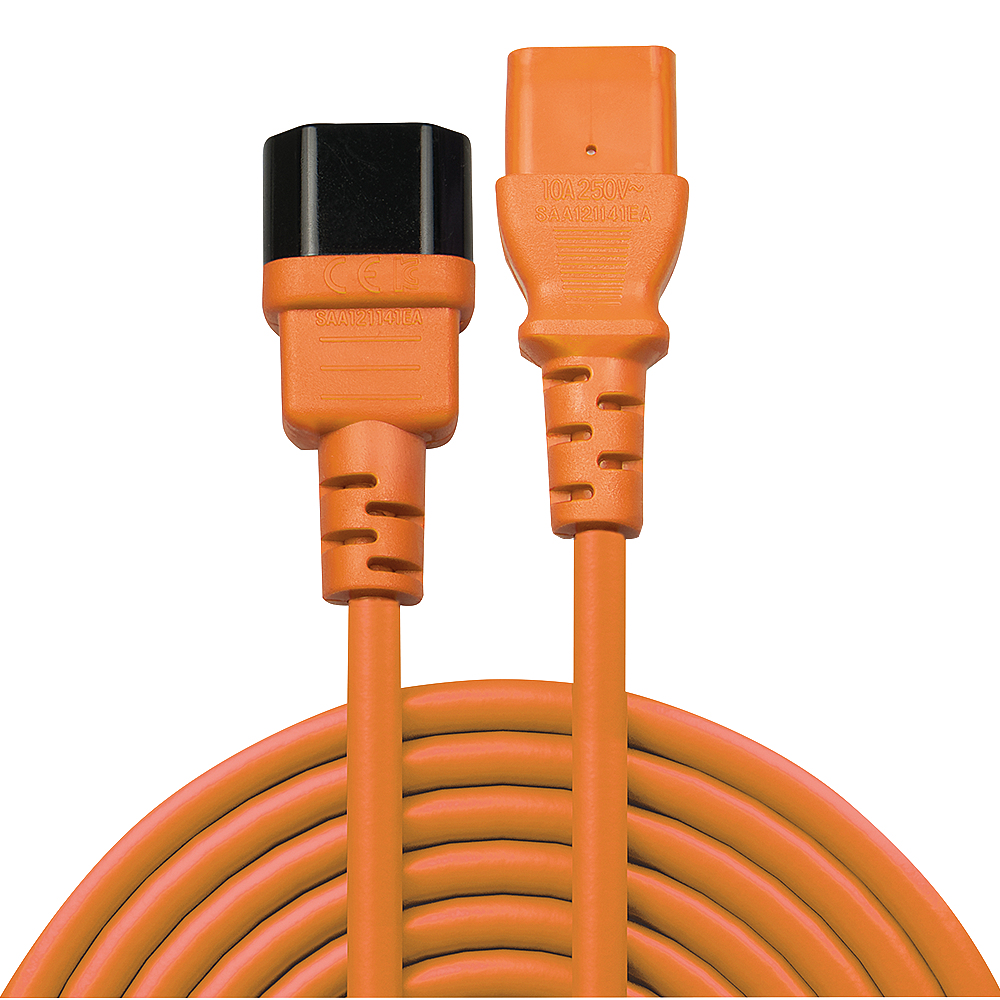

Lindy 1m IEC Extension Cable, Orange

Connectors

• Connector A: IEC C14
• Connector B: IEC C13
• Housing Material:
  • A: PVC & PBT
  • B: PVC
• Pin Construction:
  • A: Brass
  • B: Phosphor Bronze
• Pin Plating: Nickel
• Dimensions (approx.) WxDxH:
  • A: 28x64x21mm (1.1x2.52x0.83in)
  • B: 25.6x65x16.5mm (1.01x2.56x0.65in)

Cable Construction

• Length: 1m (3.28ft)
• Colour: Orange
• Conductor Material: Copper
• Cable Material: H05-VVF 3G 0.75mm²
• Number of Wires: 3
• Wire Gauge: 0.75mm²
• Jacket Diameter: 6.8mm (0.27in)
• Jacket Material: PVC

Specifications

• Rated Voltage and Current: 10A/250V
• Operating Temperature: -10°C - 60°C (14°F - 140°F)
• Storage Temperature: -20°C - 70°C (-4°F - 158°F)

Miscellaneous

• Packaging Type: Polybag
• Warranty (Years): 10
• Product Compliance: CE, RoHS, REACH, California Proposition 65

Purchasing Information

• No.: 30474
• EAN: 4002888304740

This product is also available in other lengths

• 30473 - 0.5m (1.64ft)
• 30474 - 1m (3.28ft)
• 30475 - 2m (6.56ft)
