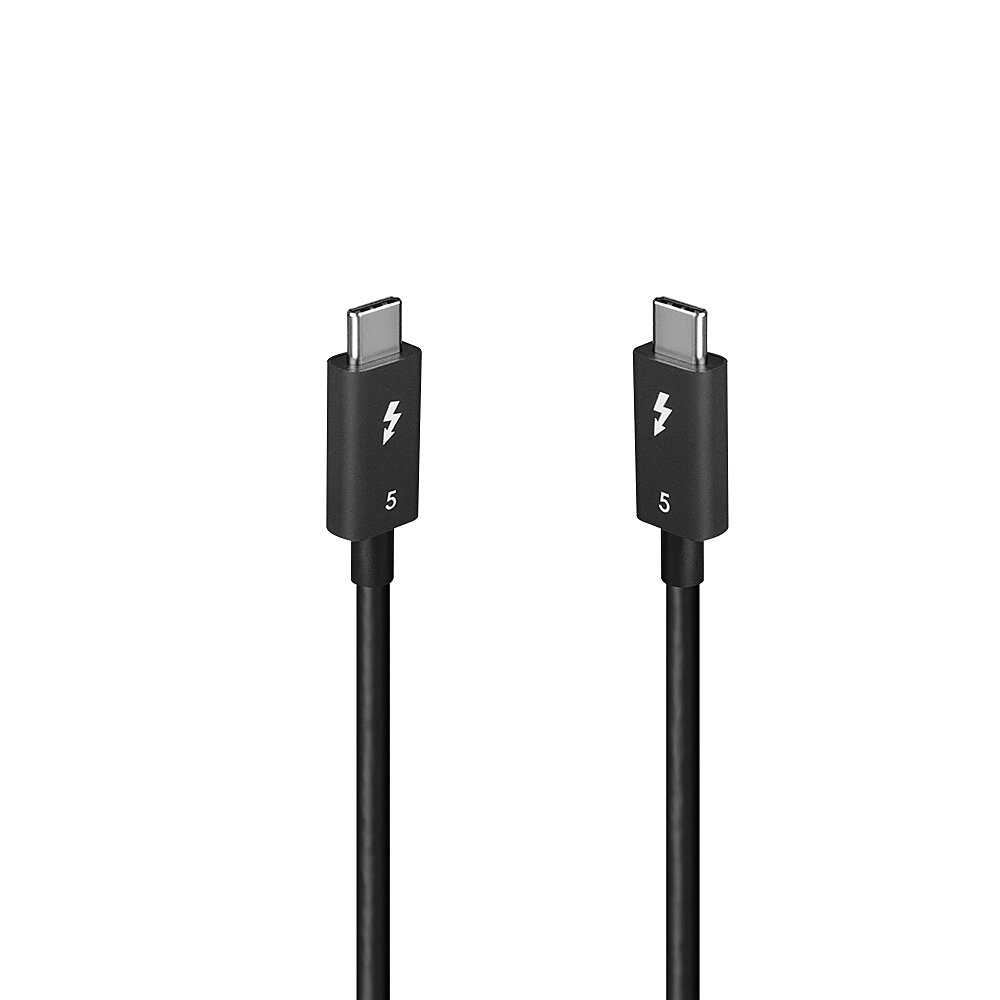

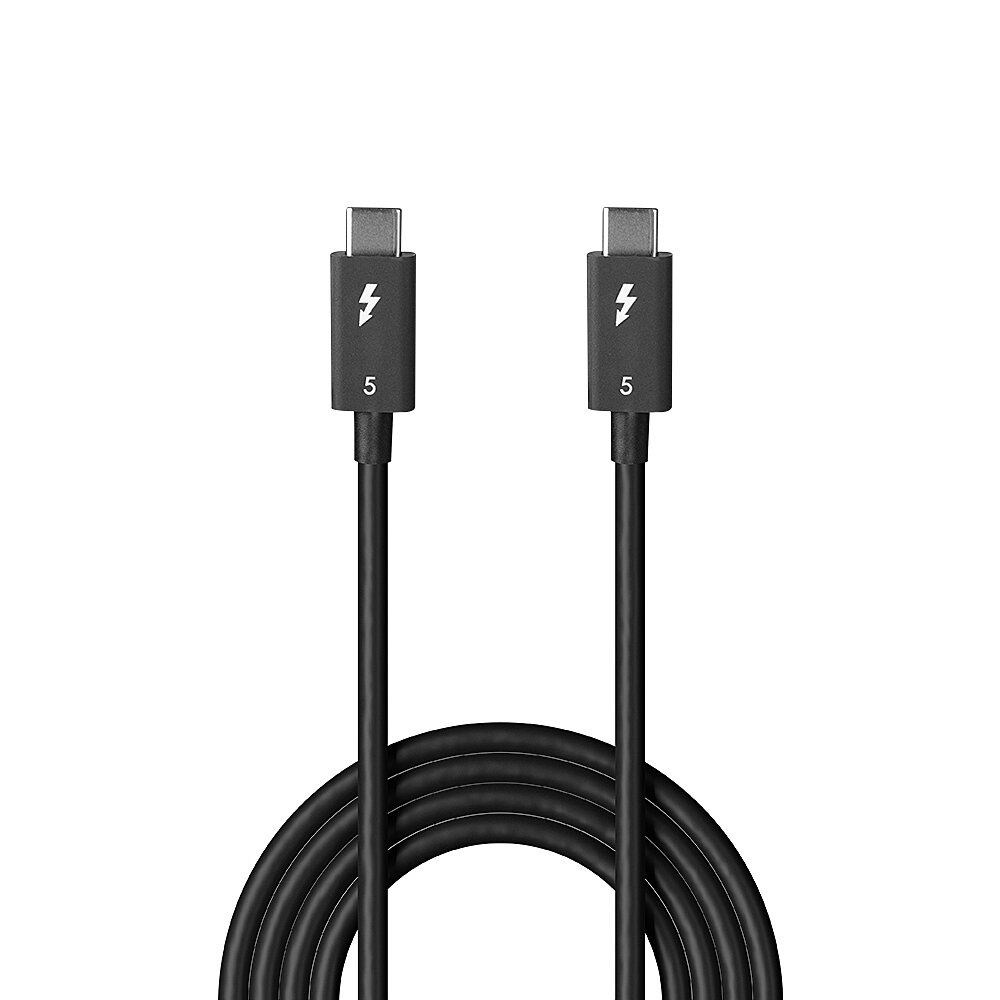

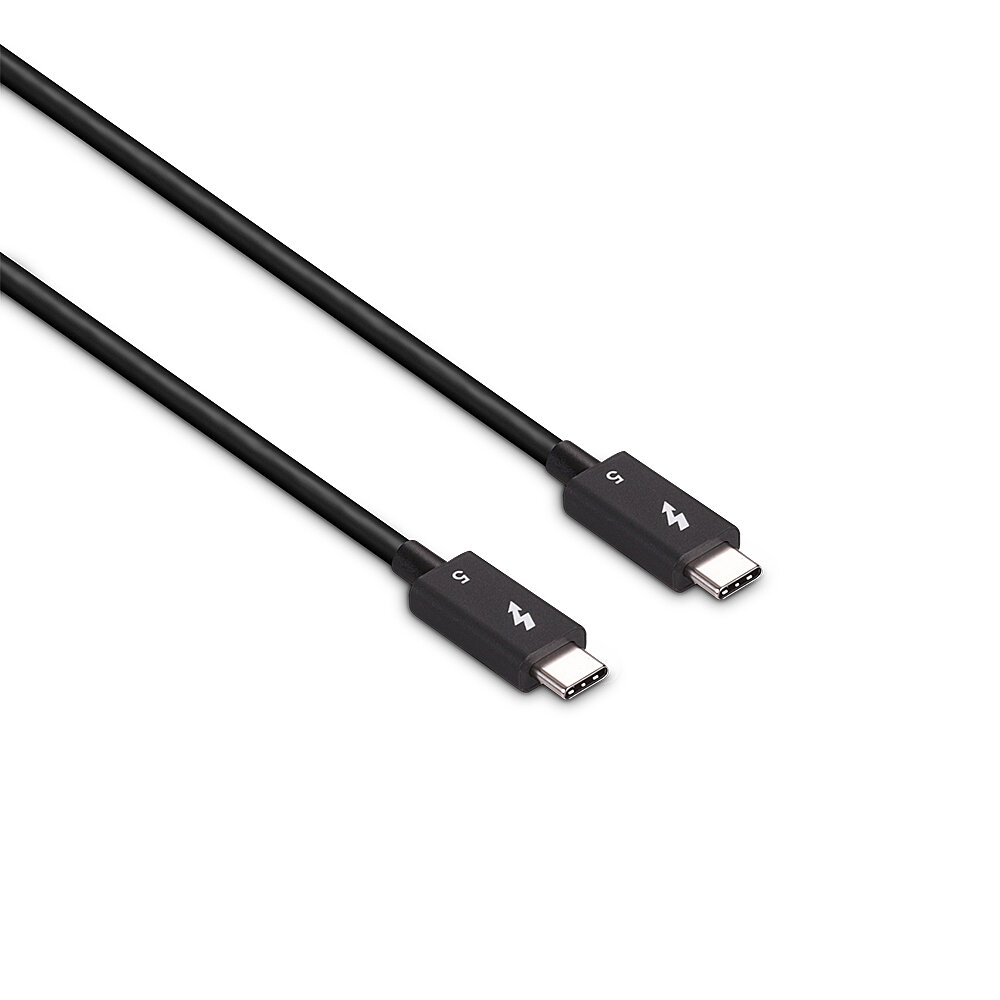

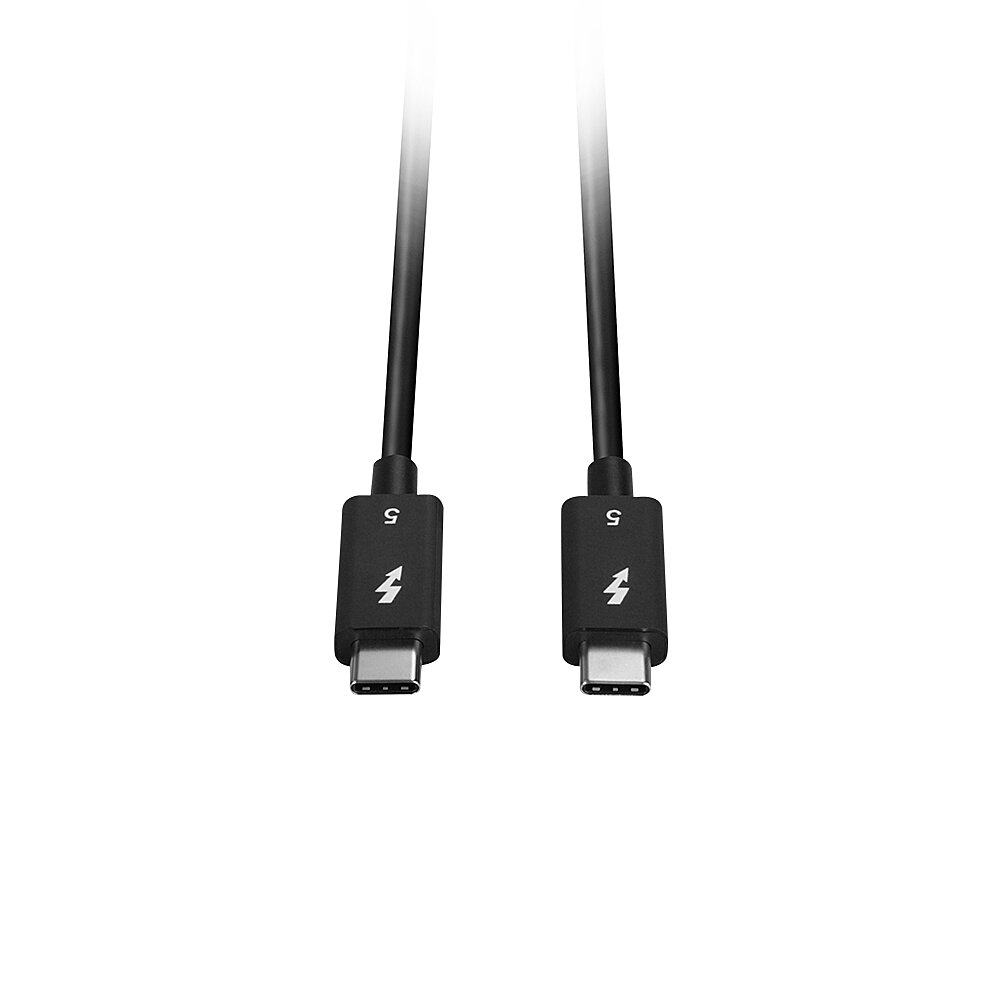

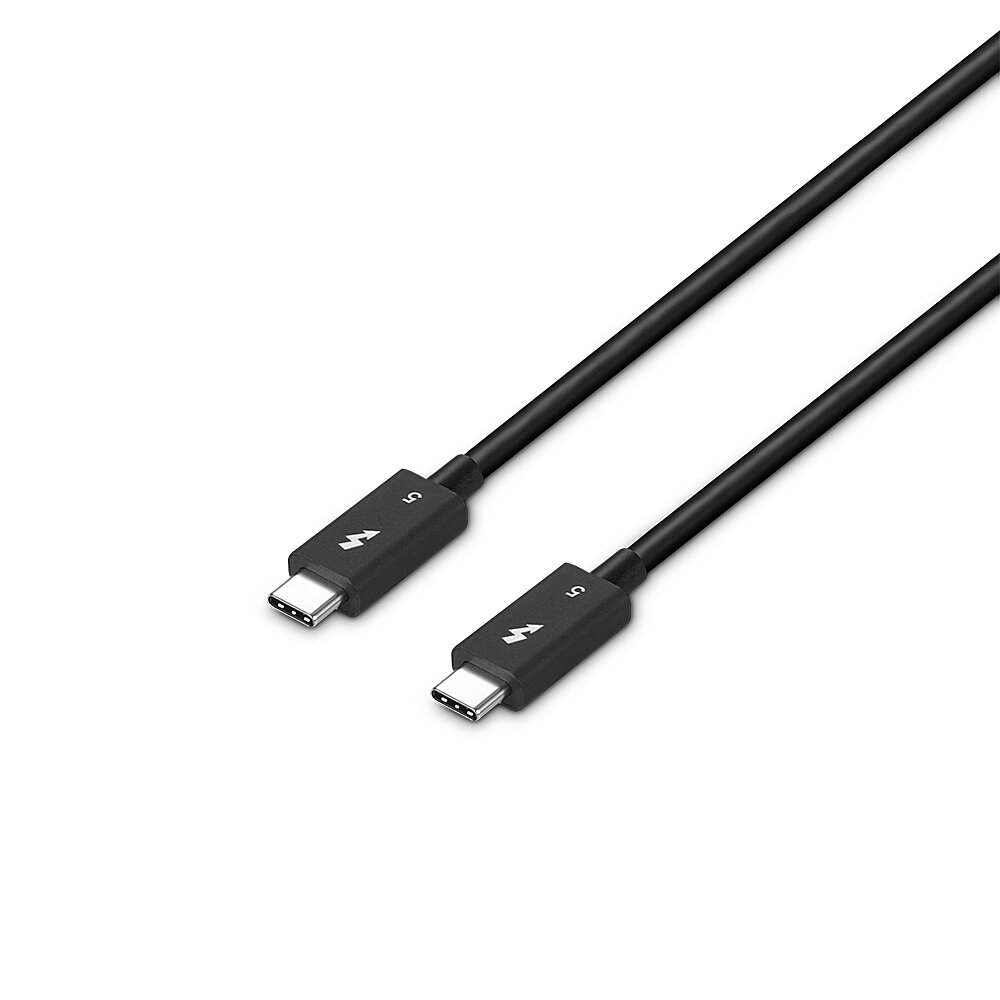

Lindy 1m Thunderbolt 5 Cable, 80Gbps, Passive
Manufactured by:
Product Information
Part Number: 31130
Item No: FD3559555
Shipping Weight: 0.1 kgs (0.22 lbs)
Actual Weight: 0.04 kgs (0.1 lbs)
Specifications
LENGTH
1 m
COLOR
Black
LEFT CONNECTOR
Male
RIGHT CONNECTOR
Male
DATA TRANSFER RATES
80 Gbit/s
THUNDERBOLT VERSION
5
MAX RESOLUTION
7680 x 4320 pixels
Product Description
Connectors
- Connector A: Thunderbolt 5 USB Type C Male with E-Mark
- Connector B: Thunderbolt 5 USB Type C Male
- Housing Material: PC
- Shielding in head shell: Tinplate
- Connector Plating: Nickel
- Pin Construction: Copper
- Pin Plating: Gold
- Dimensions (approx.) WxDxH: 12.35x22.7x6.5mm (0.49x0.89x0.26in)
Cable Construction
- Length: 1m (3.28ft)
- Standard: Thunderbolt 5
- Power Delivery: PD 3.1 up to 240W (48V 5A)
- Colour: Black
- Type: Round
- Jacket Diameter: 4.6mm (0.18in)
- Jacket Material: TPE
- Conductor Material: Copper
- Conductor Gauge Power: 24AWG
- Conductor Gauge Data: 30AWG
- Shielding: Tinned Copper Braid
Specifications
- Supported Bandwidth: 80Gbps
- Maximum Resolution: 2 x 7680x4320@60Hz
- Nominal Attenuation: -
- Minimum Bend Radius: 46mm (1.18in)
- Operating Temperature: 10°C - 40°C (50°F - 104°F)
- Storage Temperature: -10°C - 50°C (14°F - 122°F)
Miscellaneous
- Packaging Type: Polybag
- Warranty (Years): 2
- Product Compliance: RoHS, REACH, California Proposition 65
Purchasing Information
- No.: 31130
- EAN: 4002888311304
