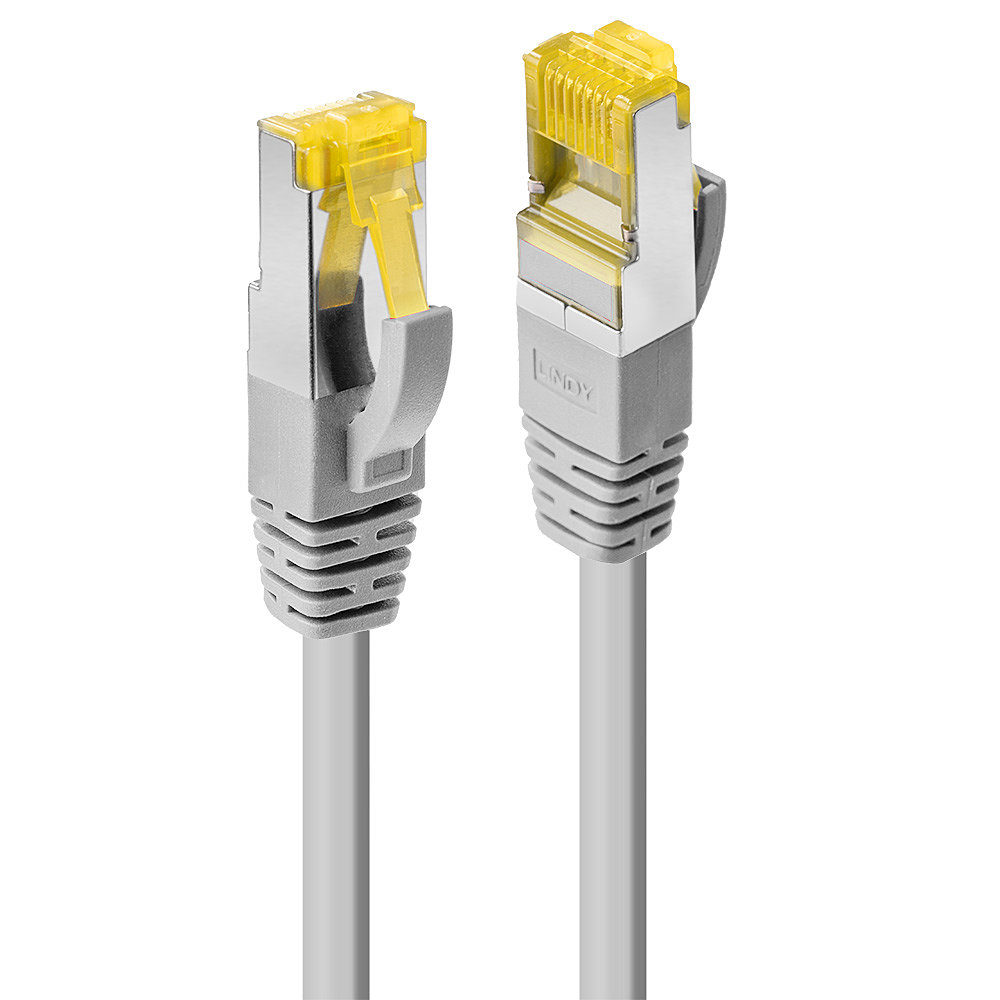

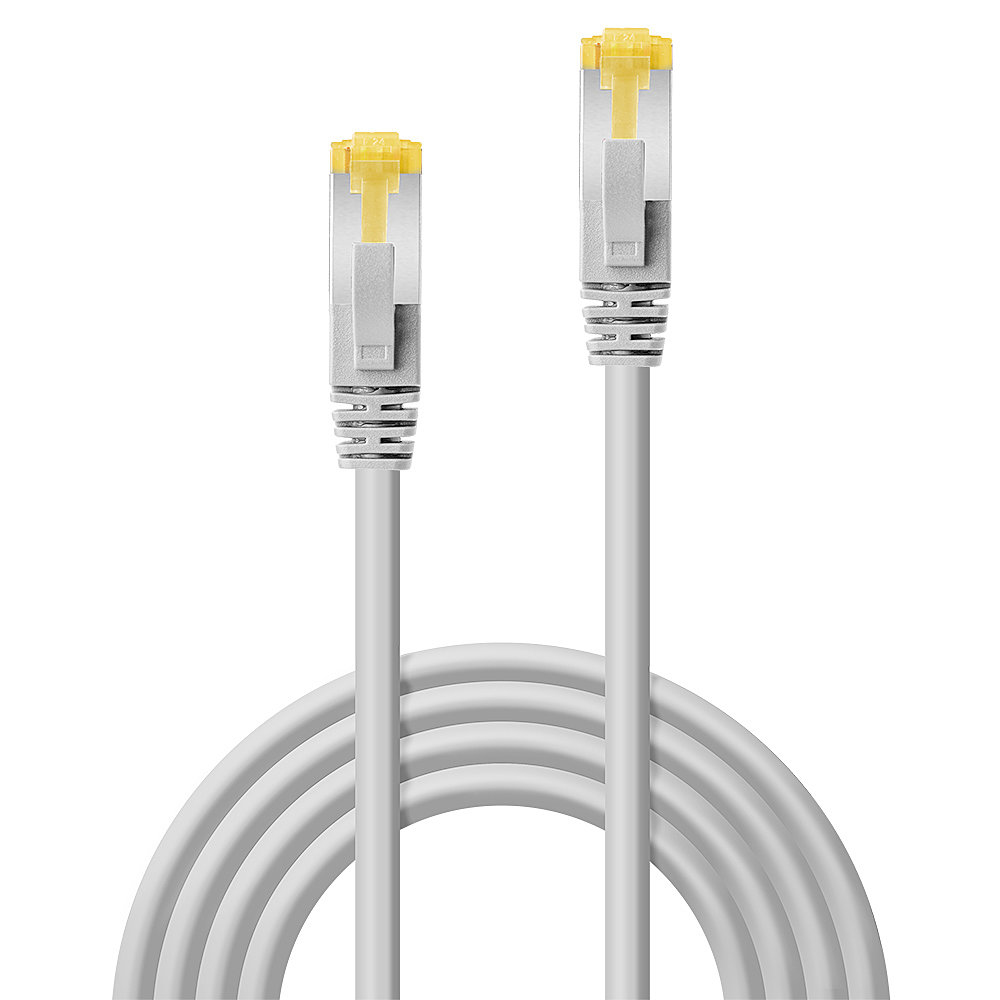

Lindy 20m RJ45 S/FTP LSZH Cable, Grey
Manufactured by:
Product Information
Part Number: 47270
OEM Part No: FD3543545
Shipping Weight: 0.9 kgs (1.98 lbs)
Actual Weight: 0.75 kgs (1.65 lbs)
Specifications
TYPE
Cat7
LENGTH
20 m
LEFT CONNECTOR
RJ-45
RIGHT CONNECTOR
RJ-45
CABLE SHIELDING
SF/UTP (S-FTP)
Product Description
Connectors
- Connector A: RJ45 Male Cat.6A
- Connector B: RJ45 Male Cat.6A
- Housing Material: Polycarbonate
- Connector Plating: Nickel
- Pin Construction: Copper Alloy
- Pin Plating: Gold plated
- Dimensions (approx.) WxDxH: 11.6x22.8x8.3mm (0.46x0.90x0.33in)
Cable Construction
- Length: 20m (65.62ft)
- Colour: Grey
- Type: Cat.7
- Jacket Diameter: 6.5mm (0.26in)
- Jacket Material: LSZH
- Conductor Material: Copper
- Conductor Gauge: 26AWG
- Shielding: Aluminium Braid
Specifications
- Supported Bandwidth: 600MHz
- Nominal Attenuation: 51.4dB/100m @600MHz
- Minimum Band Radius: 78mm (3.07in)
- Operating Temperature: -10°C - 60°C (14°F - 140°F)
- Storage Temperature: -20°C - 75°C (-4°F - 167°F)
Miscellaneous
- Packaging Type: Polybag
- Warranty (Years): 10
- Product Compliance: RoHS, REACH, UL, California Proposition 65
Purchasing Information
- No.: 47270
- EAN: 4002888472708
This product is also available in other lengths
- 47260 - 0.3m (0.98ft)
- 47261 - 0.5m (1.64ft)
- 47262 - 1m (3.28ft)
- 47263 - 1.5m (4.92ft)
- 47264- 2m (6.56ft)
- 47265 - 3m (9.84ft)
- 47266 - 5m (16.44ft)
- 47267 - 7.5m (24.61ft)
- 47268 - 10m (32.81ft)
- 47269 - 15m (49.21ft)
- 47270 - 20m (65.62ft)
- 47271 - 30m (98.43ft)
