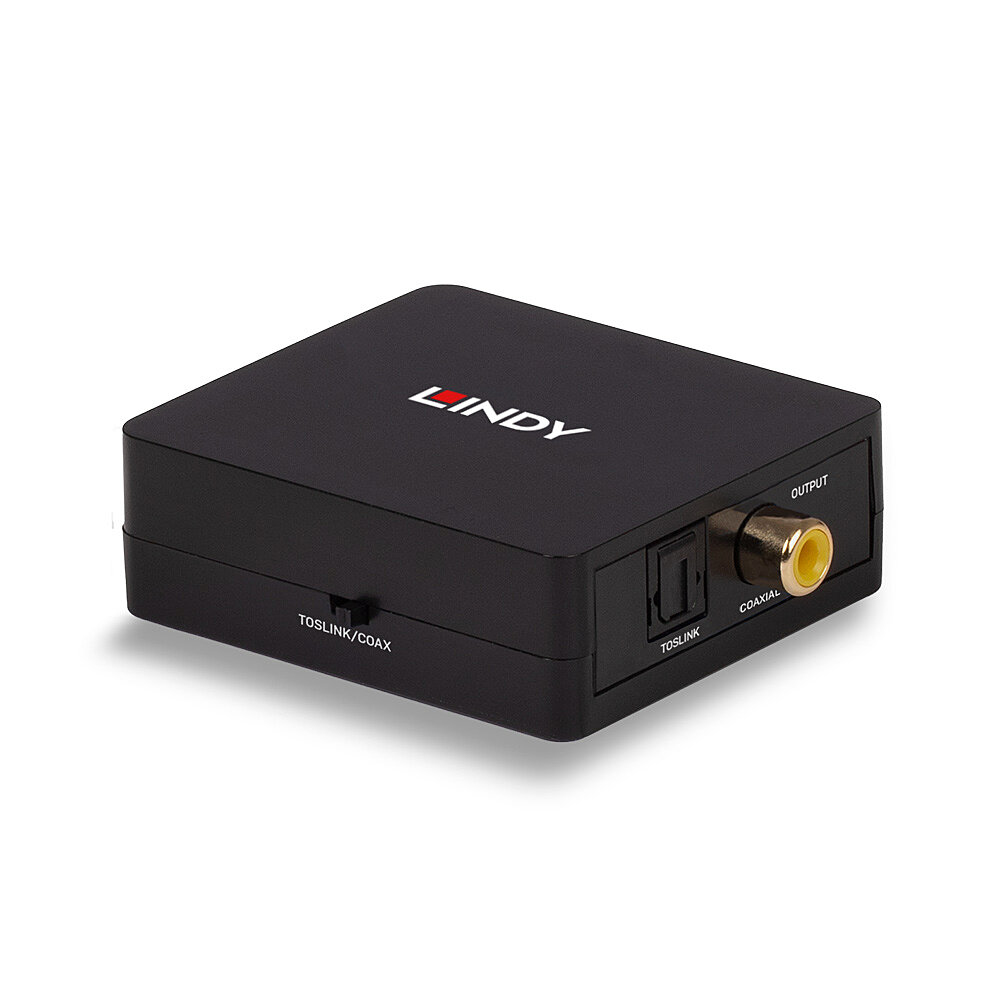

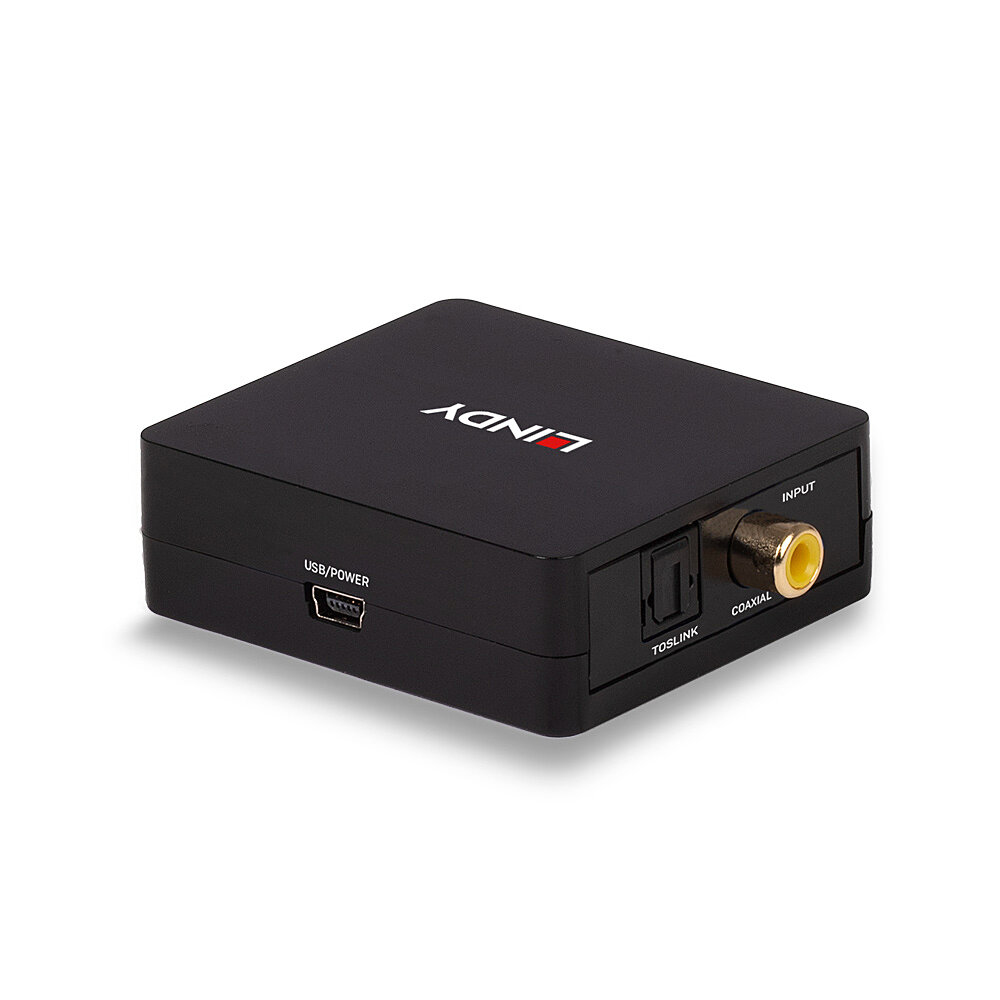

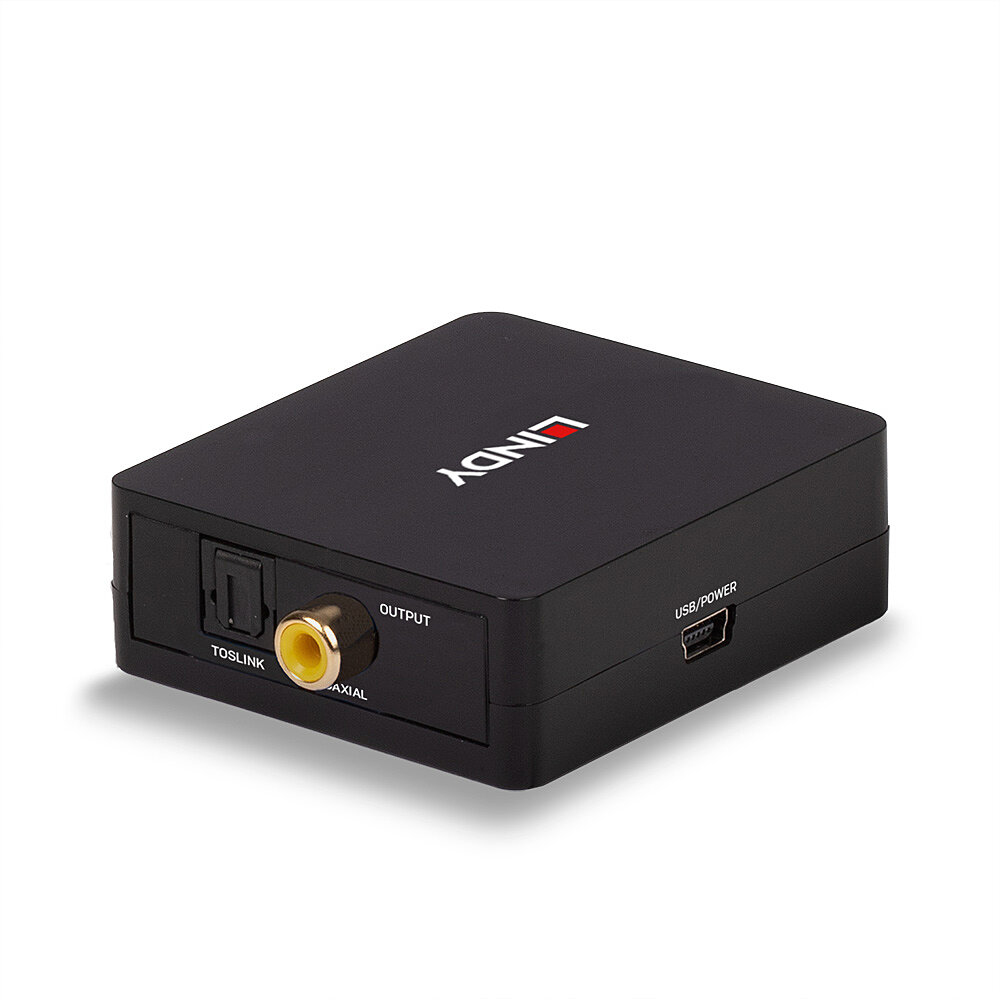

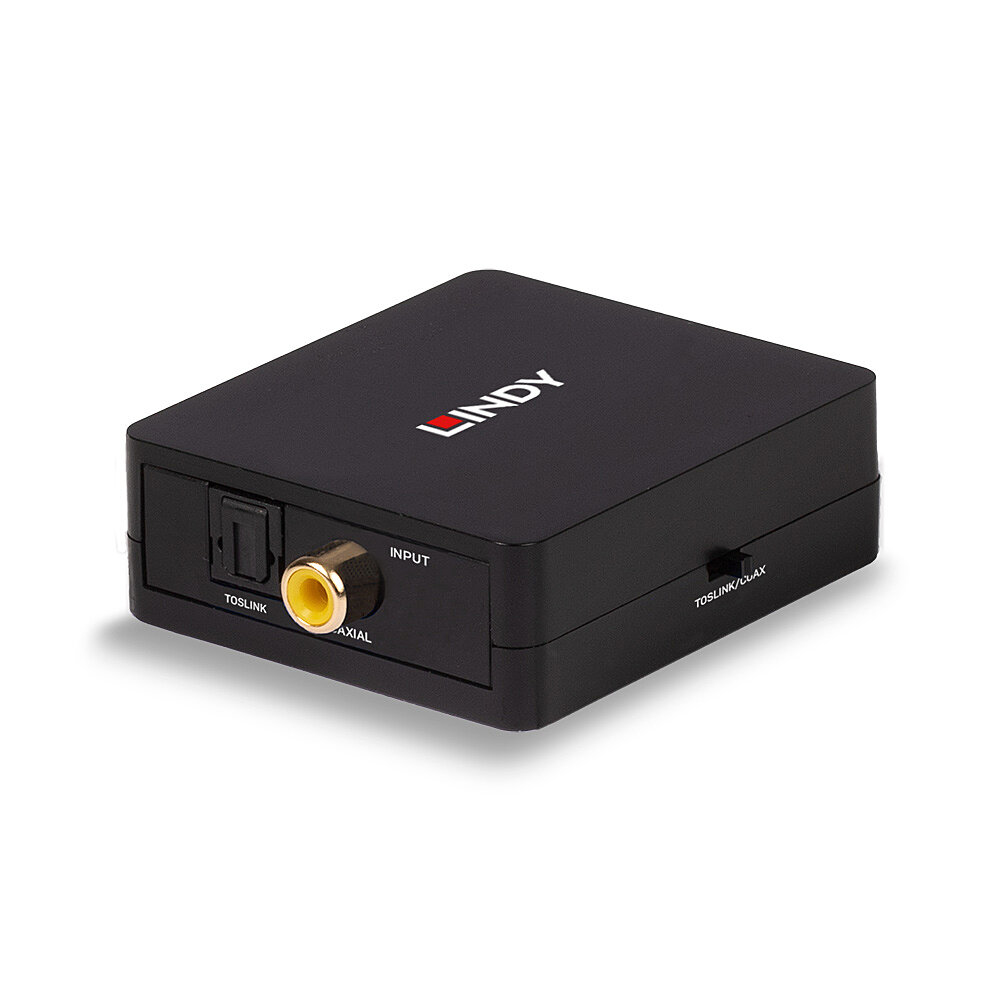

Lindy 2-way Digital SPDIF (Coaxial Toslink) Audio Converter
Manufactured by:
Product Information
Part Number: 70457
OEM Part No: FD3544133
Shipping Weight: 0.1 kgs (0.22 lbs)
Actual Weight: 0.04 kgs (0.09 lbs)
Specifications
No specifications available for this product.
Product Description
Specifications
- Video Interface: -
- Interface Standard: -
- Supported Bandwidth: -
- Maximum Resolution: -
- HDCP Support: -
- Audio Interface: Toslink (Optical), SPDIF
- Chipset: MIC-74HC04
- Supported Audio: LPCM 2.0, DD 2/5.1, DTS 5.1
- Maximum Supported Audio Sample Rate: 192KHz
- Input Impedance: 75 Ohm
- Output Impedance: 75 Ohm
- Output Voltage: 1VRMS
- Frequency Response: ±0.5dB
- Signal to Noise Ratio: 142 db
- Special Features: -
Connectors
- Input: Toslink (Optical) / SPDIF (Coaxial)
- Output: Toslink (Optical) / SPDIF (Coaxial)
- Power: Mini USB
Physical Properties
- Dimensions (approx.) WxDxH: 60.5x54x20.5mm (2.38x2.12x0.80in)
- Housing Material: Plastic
- Net Weight: 0.04kg (0.08lb)
- Operating Temperature: 0°C - 40°C (32°F - 104°F)
- Storage Temperature: -20°C - 60°C (-4°F - 140°F)
- Humidity: 20-90% RH (non-condensing)
- Power Requirements: 5VDC 1A
- Colour: Black
Miscellaneous
- Packaging Type: Carton Box
- Packaging Dimensions: 133x105x24mm (5.23x4.13x0.94in)
- Gross Weight: 0.08kg (0.17lb)
- Warranty (Years): 2
- Product Compliance: CE, FCC, RoHS, REACH & California Proposition 65
Package Contents
- Coaxial/Optical Audio Converter
- USB Power Cable
- LINDY Manual
Purchasing Information
- No.: 70457
- EAN: 4002888754576
