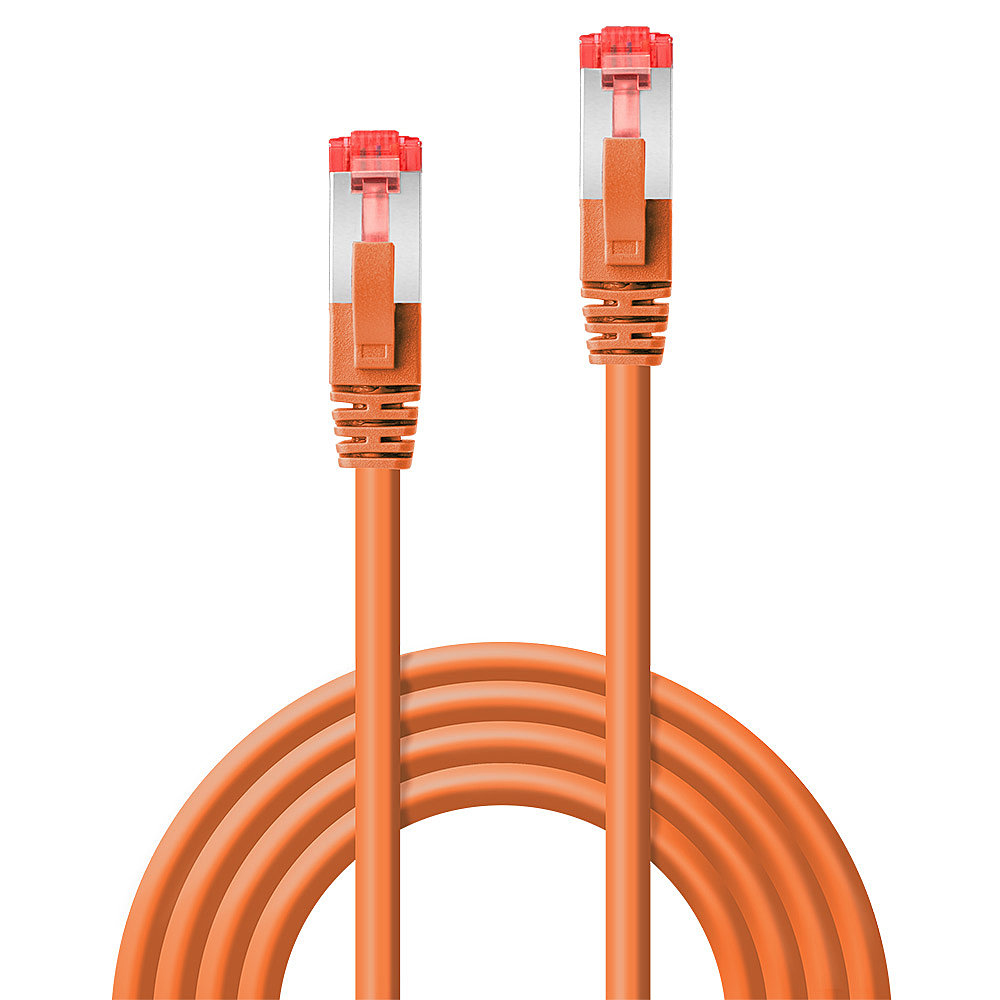

Lindy 2m Cat.6 S/FTP Cable, Orange
Manufactured by:
Product Information
Part Number: 47809
OEM Part No: FD3543860
Shipping Weight: 0.2 kgs (0.44 lbs)
Actual Weight: 0.08 kgs (0.18 lbs)
Specifications
TYPE
Cat6
LENGTH
2 m
LEFT CONNECTOR
RJ-45
RIGHT CONNECTOR
RJ-45
CABLE SHIELDING
S/FTP (S-STP)
Product Description
Connectors
- Connector A: RJ45 Male
- Connector B: RJ45 Male
- Housing Material: Polycarbonate
- Connector Plating: Nickel
- Pin Construction: Copper Alloy
- Pin Plating: Gold plated
- Dimensions (approx.) WxDxH: 11.6x22.8x8.3mm (0.46x0.90x0.33in)
Cable Construction
- Length: 2m (6.56ft)
- Colour: Orange
- Type: Cat.6
- Jacket Diameter: 6.2mm (0.24in)
- Jacket Material: PVC
- Conductor Material: Copper
- Conductor Gauge: 27AWG
- Shielding: Aluminium Braid
Specifications
- Supported Bandwidth: 250MHz
- Nominal Attenuation: 32.8dB/100m @250MHz
- Minimum Bend Radius: 74mm (2.91in)
- Operating Temperature: -10°C - 60°C (14°F - 140°F)
- Storage Temperature: -20°C - 75°C (-4°F - 167°F)
Miscellaneous
- Packaging Type: Polybag
- Warranty (Years): 10
- Product Compliance: RoHS, REACH, UL, California Proposition 65
Purchasing Information
- No.: 47809
- EAN: 4002888478090
This product is also available in other lengths:
- 47805 - 0.3m (0.98ft)
- 47806 - 0.5m (1.64ft)
- 47807 - 1m (3.28ft)
- 47808 - 1.5m (4.92ft)
- 47809 - 2m (6.56ft)
- 47810 - 3m (9.84ft)
- 47811 - 5m (16.44ft)
- 47812 - 7.5m (24.61ft)
- 47813 - 10m (32.81ft)
- 47814 - 15m (49.21ft)
- 47815 - 20m (65.62ft)
- 47816 - 30m (98.43ft)
