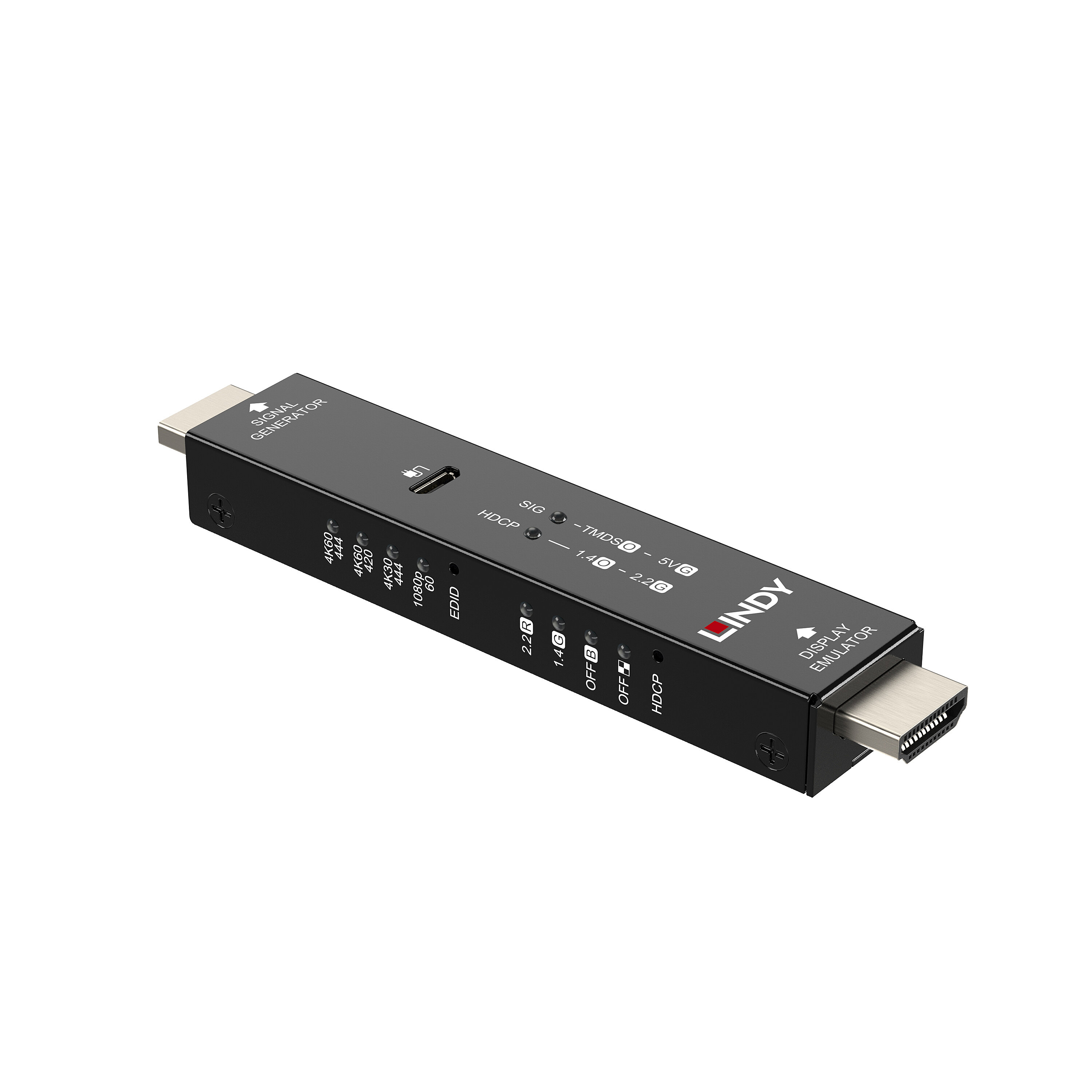

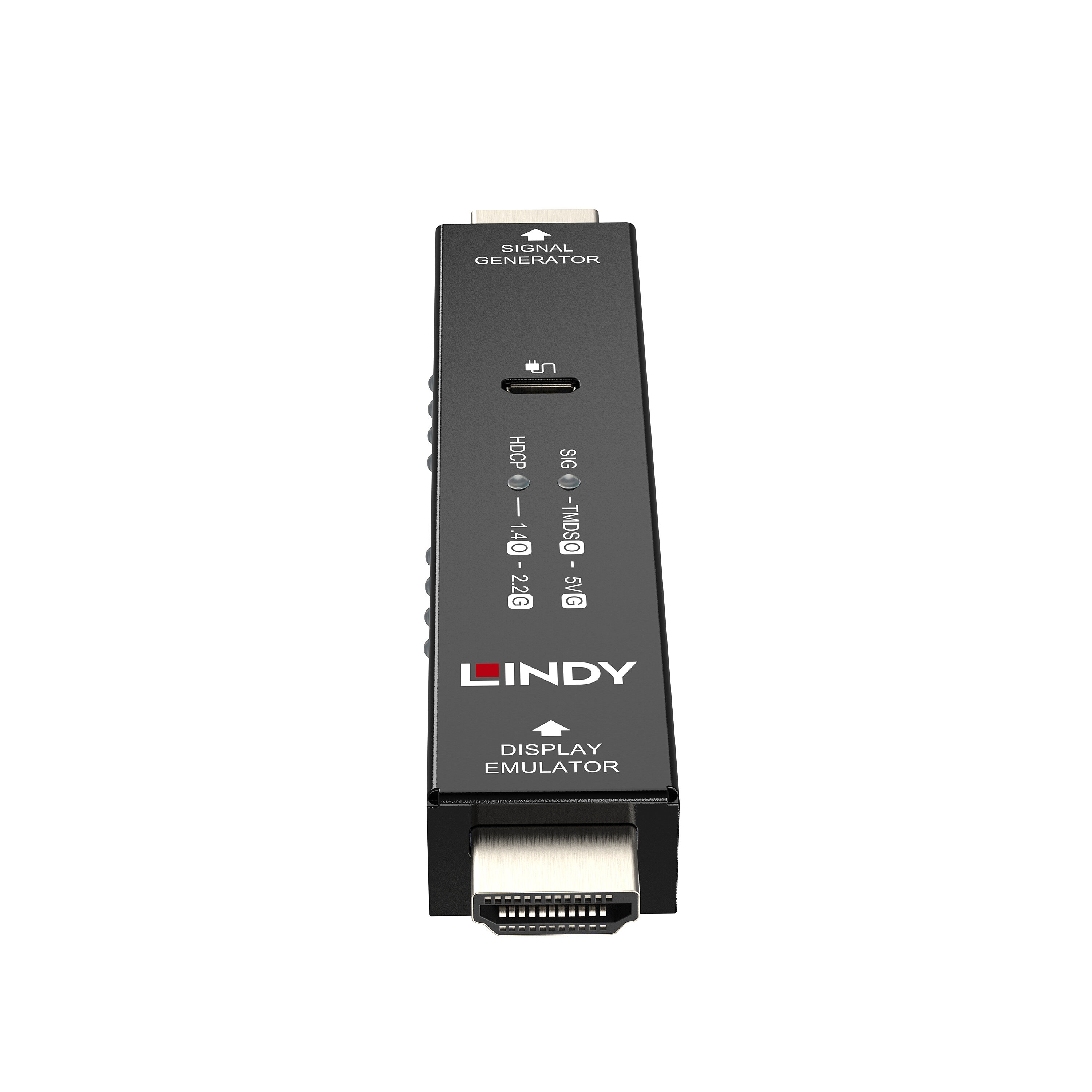

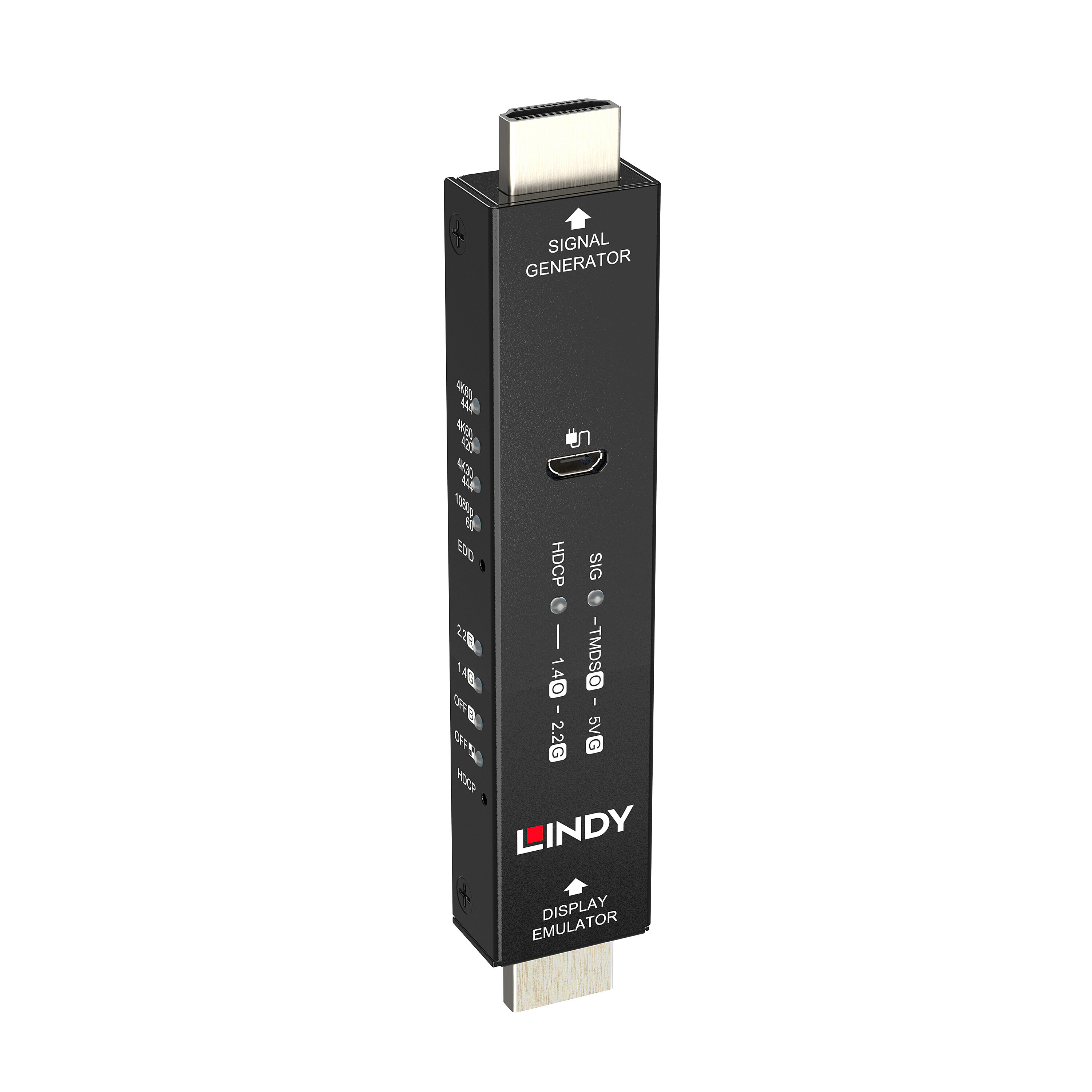

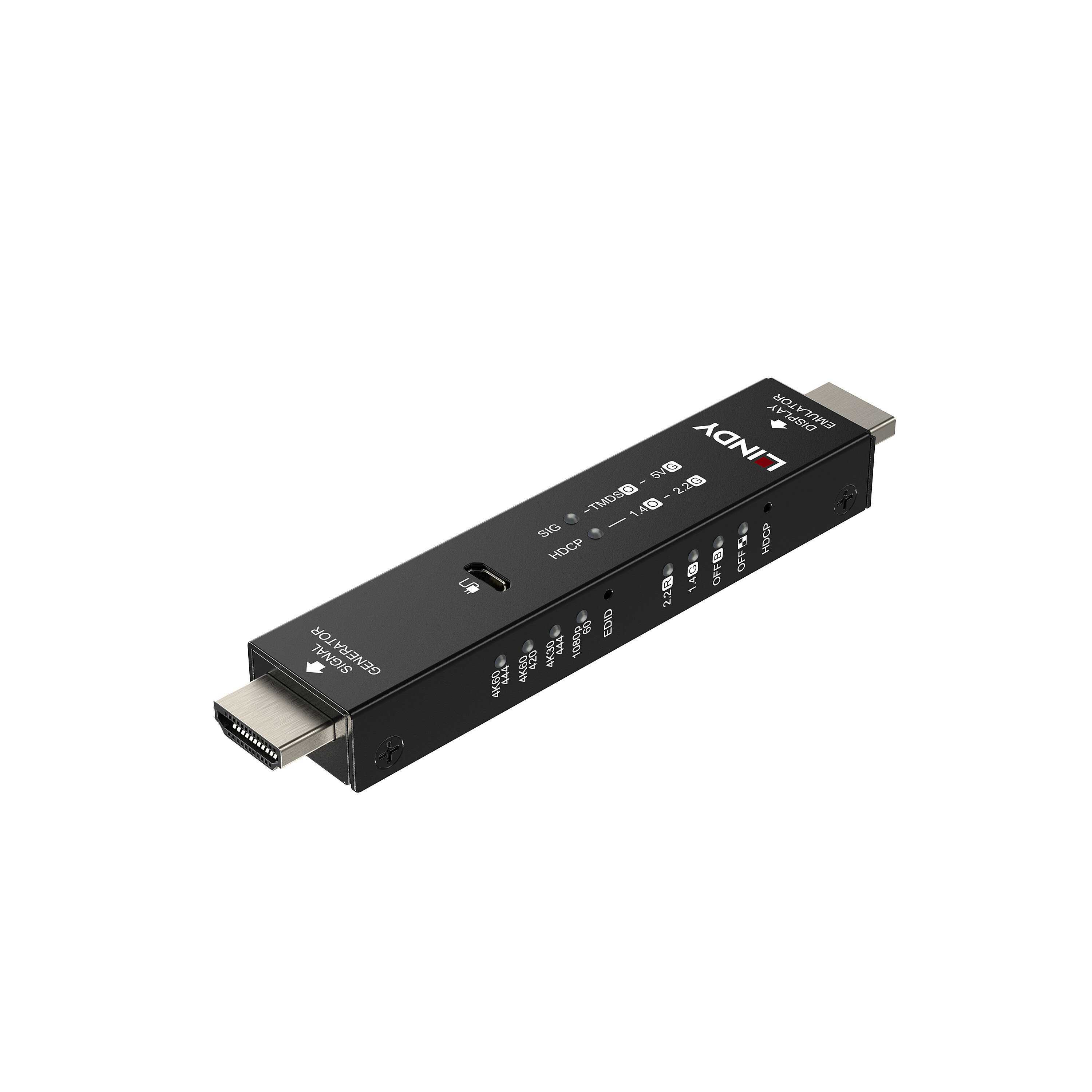

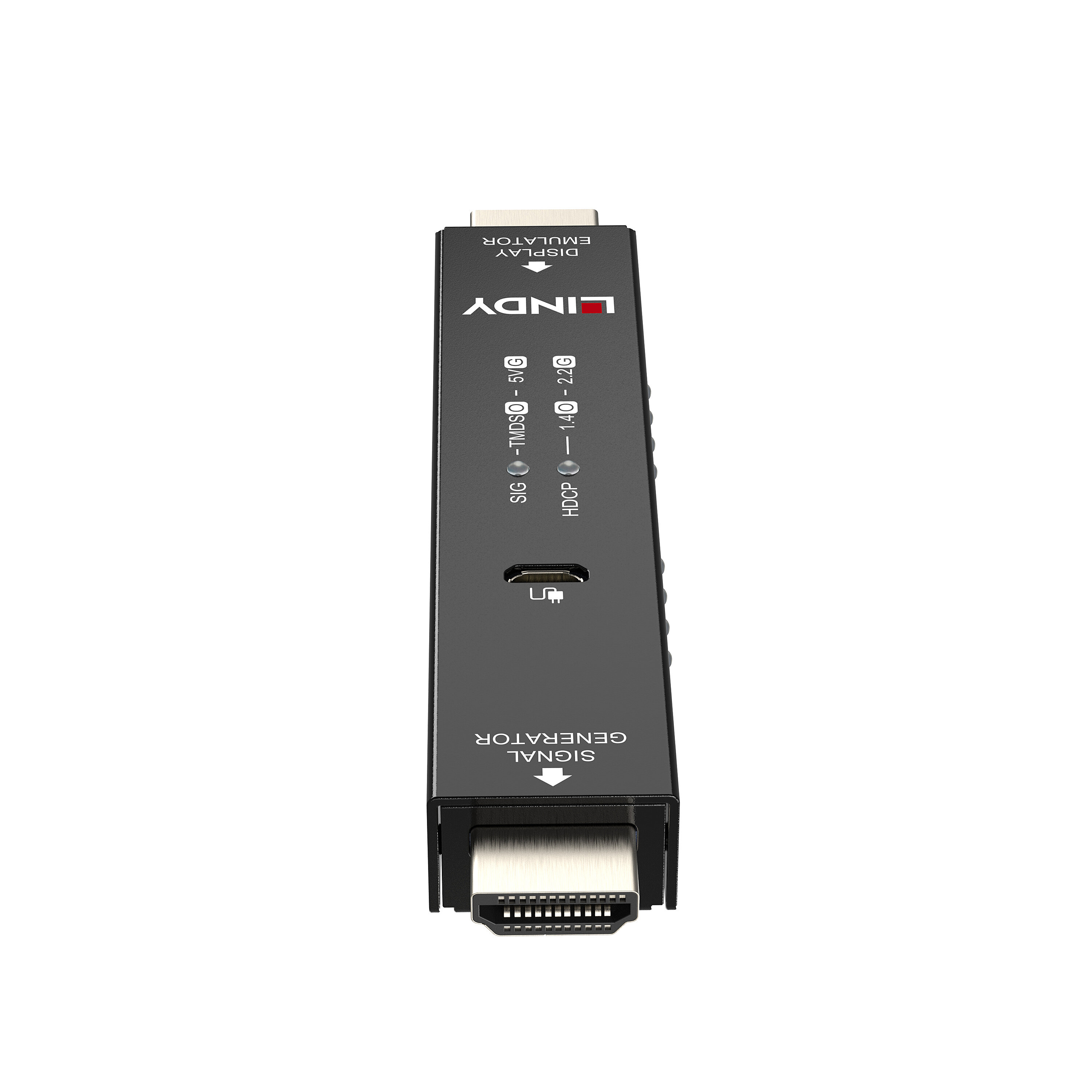

Lindy 32683 EDID emulator
Manufactured by:
Product Information
Part Number: 32683
Item No: FD8080087
Shipping Weight: 0.1 kgs (0.22 lbs)
Actual Weight: 0.04 kgs (0.09 lbs)
Specifications
No specifications available for this product.
Product Description
Specifications
- AV Interface: HDMI®
- Interface Standard: 2.0
- Supported Bandwidth: 18Gbps
- Maximum Resolution: 3840x2160@60Hz 4:4:4 8bit
- HDCP Support: 2.2 and 1.4
- EDID selection: 4K60 444, 4K60 420, 4K30 444, 1080p@60Hz
- Control: micro buttons
- Special Features: signal generator, display emulator, HDCP analyzer
Connectors
- Input: HDMI® Type A (Male)
- Output: HDMI® Type A (Male)
- Other Connections: USB Micro-B (Female)
- Power: USB Micro B (generator)
Physical Properties
- Dimensions (approx.) WxDxH: 100x22x13.6mm (3.94x0.87x0.54in)
- Housing Material: Metal
- Net Weight: 0.04kg (0.09lb)
- Operating Temperature: -5°C - 55°C (23°F - 131°F)
- Storage Temperature: -25°C - 70°C (-13°F - 158°F)
- Humidity: 10~90% RH (non condensing)
- Power Requirements: 1.2W
- Colour: Black
Miscellaneous
- Packaging Type: Carton Box
- Packaging Dimensions WxDxH: 122x60x18mm (4.8x2.36x0.71in)
- Gross Weight: 0.075kg (0.17lb)
- Warranty (Years): 3
- Product Compliance: CE, UKCA, FCC, RoHS, REACH & California Proposition 65
Package Contents
- HDMI® 4K60 Signal Generator & Display Emulator
- USB Type A to Micro B cable
- Stainless pin
- Lindy Manual
Purchasing Information
- No.: 32683
- EAN: 4002888326834
