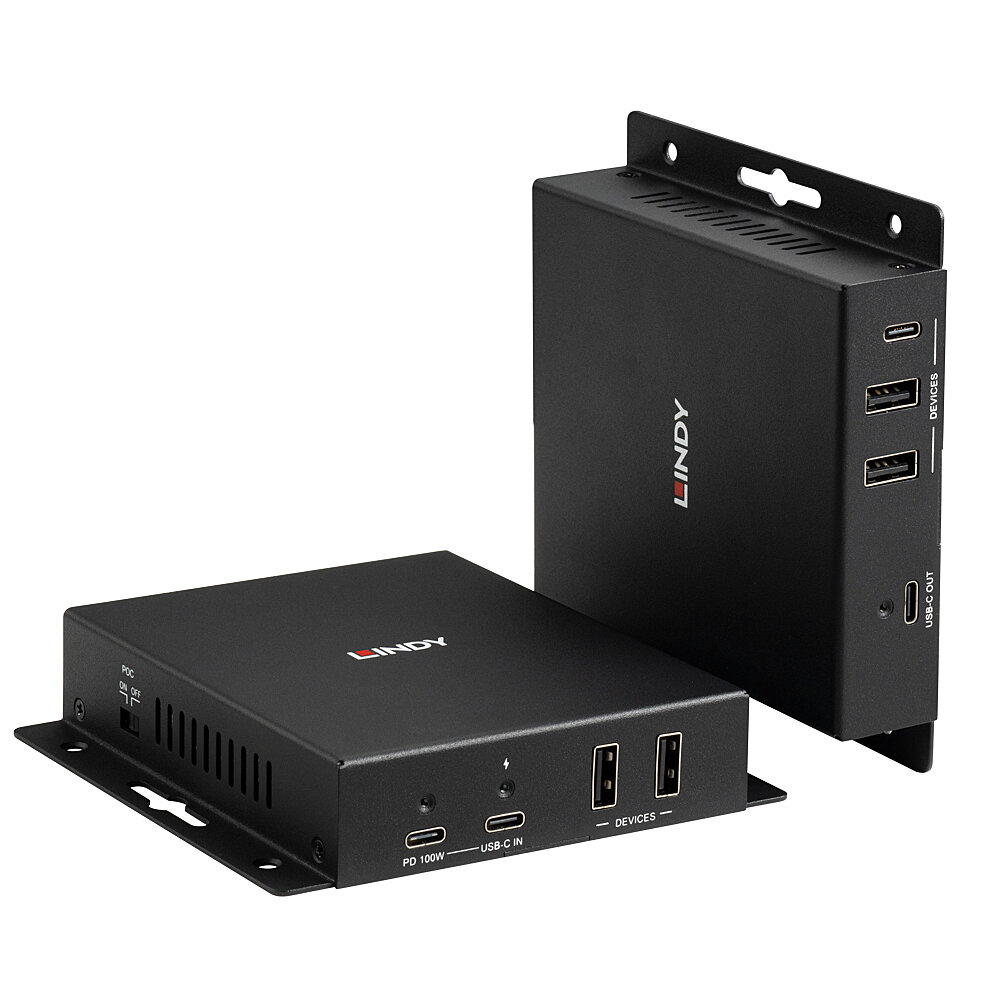

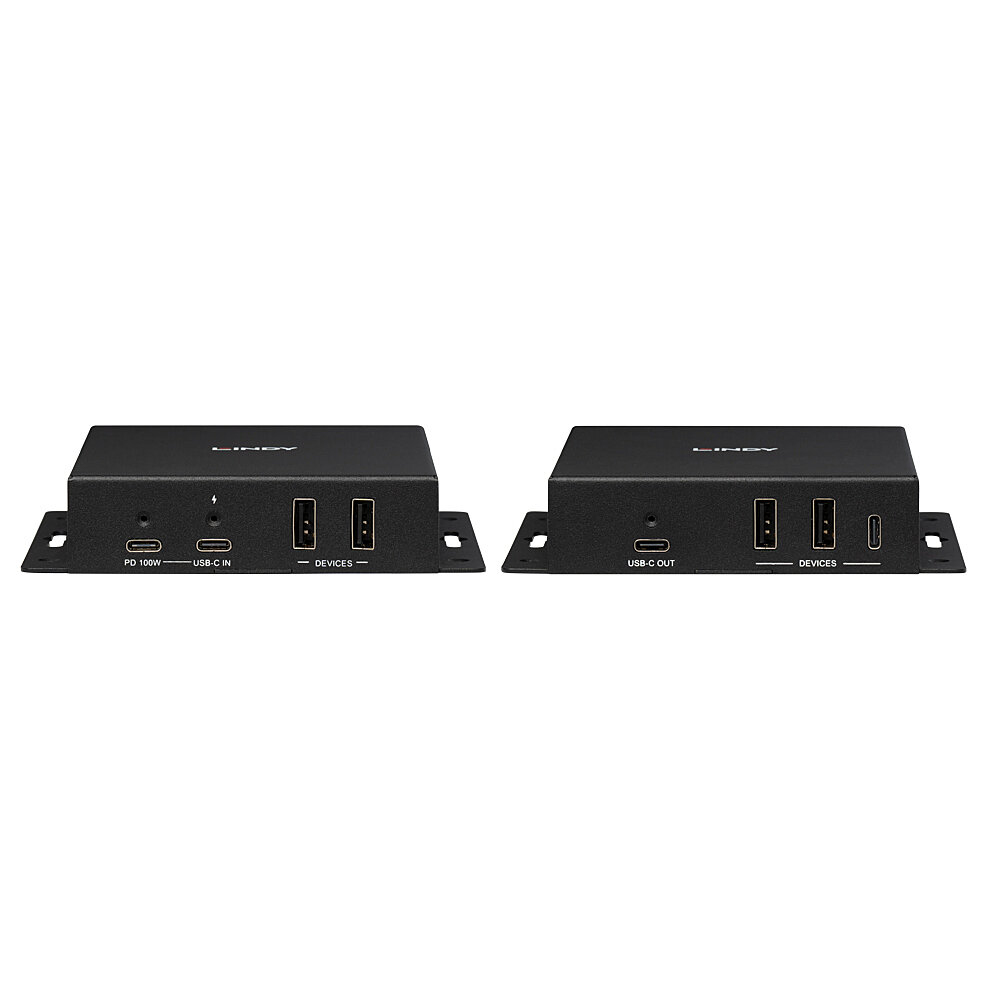

Lindy 39347 AV extender AV transmitter & receiver Black

Specifications

• AV Interface: Type C
• Interface Standard: USB 2.0
• Supported Bandwidth: 18Gbps
• Available USB Bandwidth: 350Mbps
• Maximum Distance: 100m (328.08ft)
• Maximum Resolution:
  - 70m (229.66ft) - 3840x2160@60Hz 4:4:4 8bit
  - 100m (328.08ft) - 3840x2160@30Hz 4:4:4 8bit / 4:2:2 12bit
• HDCP Support: 2.2
• EDID Pass Through: presets, user-defined and copy function
• Supported Audio: Pass Through
• Separate Audio Ports: -
• IR Support: -
• CEC Support: -
• Serial Interface: RS-232 Pass Through
• Transmission Protocol: HDBaseT 3.0
• Transmission Medium: Cat.6A
• Laser Class (only for Fibre): -
• Wavelength (only for Fibre): -
• Chipset: VS3000
• Special Features: DisplayPort Alternate mode, APIs, 100W PD on Type C port, PoC (Power over Cable) with On/Off switch

Connectors

• Transmitter Input: USB Type C Alt Mode (Female), USB Type C PD (Female)
• Transmitter Output: RJ-45 (Female), 2x USB Type A (Female)
• Receiver Input: RJ-45 (Female)
• Receiver Output: USB Type C Alt Mode (Female), 2x USB Type A Device (Female), USB Type C Device (Female)
• Control Ports: USB Type C (Female), RS-232 3-Pin Terminal Block
• Power: 5.5/2.1mm

Physical Properties

• Dimensions (approx.) WxDxH: 120x117x25.5mm (4.72x4.61x1in)

• Housing Material: Metal
• Net Weight: 1.8Kg (3.97lb)
• Operating Temperature: 0°C - 40°C (32°F - 104°F)
• Storage Temperature: -20°C - 60°C (-4°F - 140°F)
• Humidity: 20 - 80% RH (non-condensing)
• Power Requirements: 24VDC 3.75A
• Colour: Black

Miscellaneous

• Packaging Type: Carton Box
• Packaging Dimensions: 320x180x80mm (12.6x7.09x3.15in)
• Gross Weight: 2.06Kg (4.54lb)
• Warranty (Years): 3
• Product Compliance: CE, UKCA, FCC, RoHS, REACH & California Proposition 65

Package Contents

• Transmitter
• Receiver

• IEC Power Supply (UK, EU, US & AUS cables)
• 2x 3-Pin Terminal Block
• Lindy Manual


Purchasing Information

• No.: 39347
• EAN: 4002888393478
