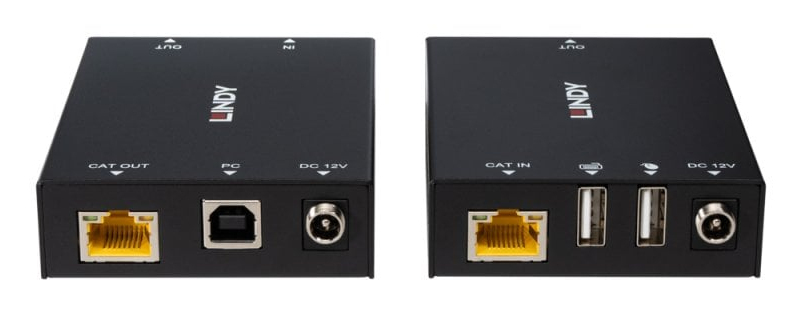

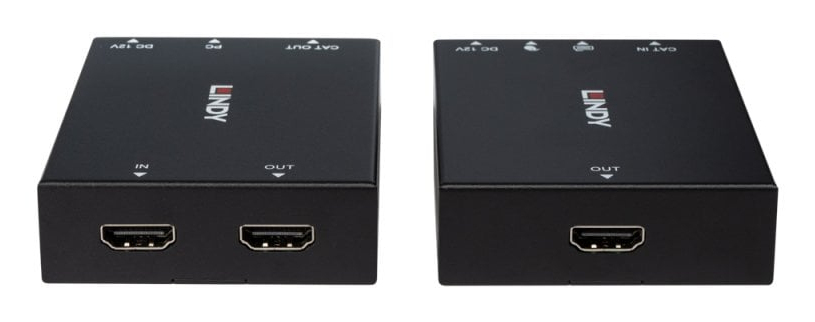

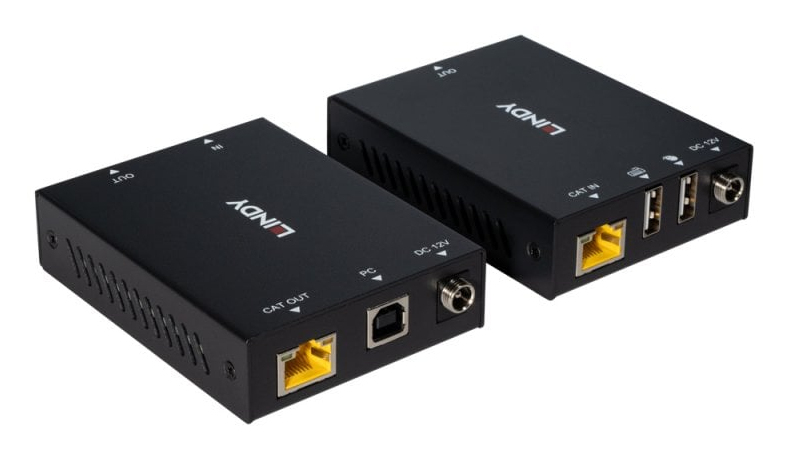

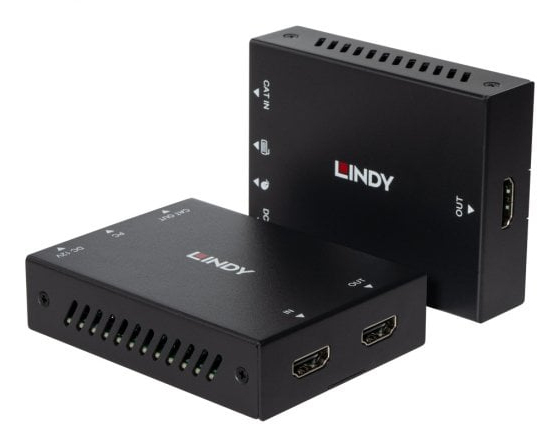

Lindy 39350 KVM extender Transmitter & receiver

Specifications

• AV Interface: HDMI®
• Interface Standard: 1.4, USB 1.1
• Supported Bandwidth: 4.95Gbps
• Maximum Distance: 100m (328.08ft)
• Maximum Resolution: 1920x1080@60Hz
• HDCP Support: 1.4
• EDID Pass Through: Pass-through
• Supported Audio: HDMI® Audio Pass-through
• Separate Audio Ports: -
• IR Support: -
• CEC Support: Pass-through
• Serial Interface: -
• Transmission Protocol: -
• Transmission Medium: 1 x Cat.6
• Laser Class (only for Fibre): -
• Wavelength (only for Fibre): -
• Special Features: HDMI® Loop Out Port, PoC (Power over Cable)

 Connectors

• Transmitter Input: HDMI® Type A (Female), USB Type B (Female)
• Transmitter Output: RJ-45 (Female), HDMI® Type A (Female)
• Receiver Input: RJ-45 (Female)
• Receiver Output: HDMI® Type A (Female), 2 x USB Type A (Female)
• Bi-directional Ports: -
• Power: 5.5/2.1mm

 Physical Properties

• Dimensions (approx.) WxDxH: 90x68x22mm (3.54x2.68x0.87in) per unit
• Housing Material: Metal
• Net Weight: 0.55kg (1.21lb)
• Operating Temperature: 0°C - 40°C (32°F - 104°F)
• Storage Temperature: -20°C - 60°C (-4°F - 140°F)
• Humidity: -20 - 80% RH (non-condensing)
• Power Requirements: 12VDC 1A
• Colour: Black

 Miscellaneous

• Packaging Type: Carton Box
• Packaging Dimensions: 215x135x75mm (8.46x5.31x2.95in)
• Gross Weight: 0.72kg (1.59lb)
• Warranty (Years): 2
• Product Compliance: CE, UKCA, FCC, RoHS, REACH & California Proposition 65

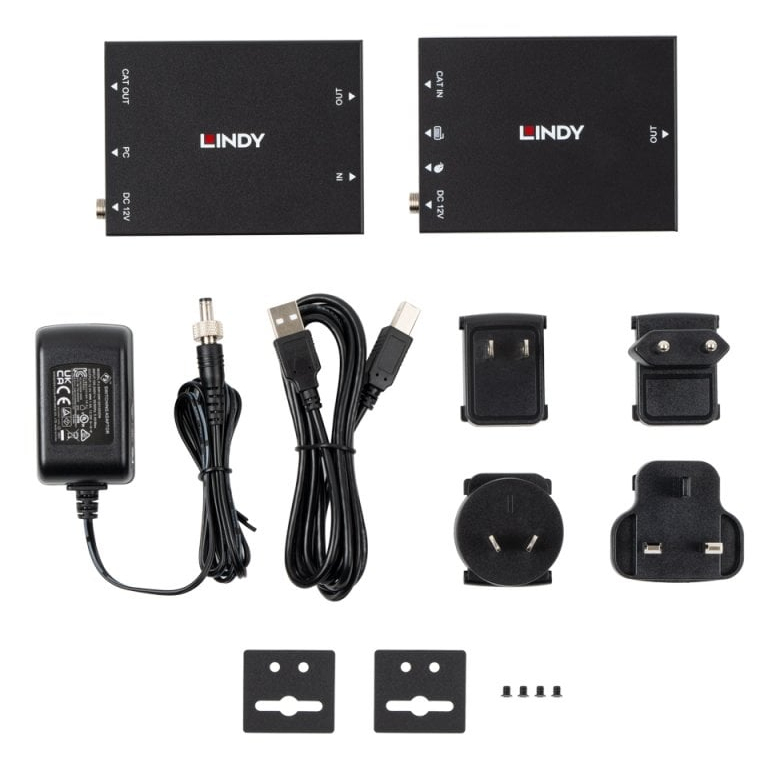

Package Contents

• Transmitter
• Receiver
• USB Type A/B cable, 1.5m

• 4 x Mounting Ears with screws
• Multi-country Power Supply (UK, EU, US & AUS)
• Lindy Manual

 Purchasing Information

• No.: 39350
• EAN: 4002888393508
