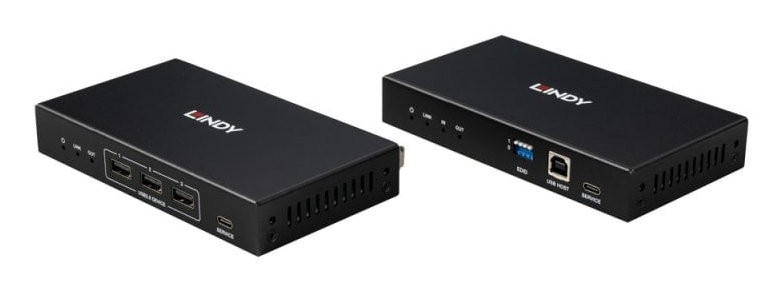

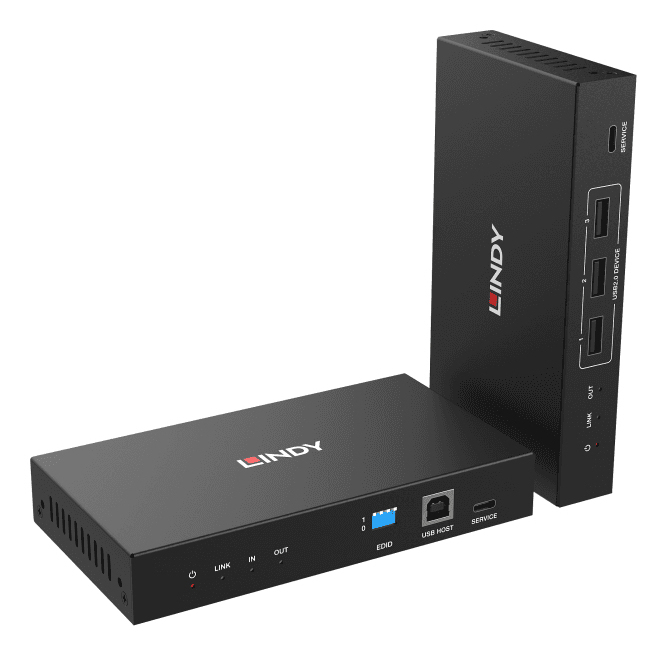

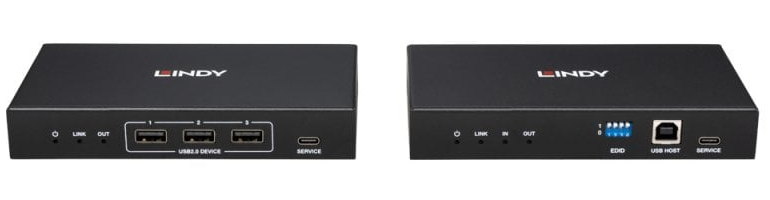

Lindy 39366 KVM extender Transmitter & receiver

Specifications

• AV Interface: HDMI®
• Supported Bandwidth: 18Gbps

• Maximum Distance: 5km (16404.2ft) / 300m (984.24ft)
• Maximum Resolution: 3840x2160@60Hz 4:4:4 8bit

• HDCP Support: 2.2
• EDID: Dip Switch with presets, copy and user-defined functions
• Supported Audio: Pass-through
• Separate Audio Ports: 3-Pin Terminal Block
• Serial Interface: RS-232 Pass-Through
• Transmission Medium: Duplex LC (50/125µm or 9/125µm)
• Laser Class (only for Fibre): 1
• Wavelength (only for Fibre): 1330nm
• Special Features: USB 2.0, HDMI® loop-out, de-embedding Audio, bi-directional IR

Connectors

• Transmitter Input: HDMI® (Female), 3.5mm IR (Female), USB Type B (Female)
• Transmitter Output: Duplex LC, HDMI® (Female), 3.5mm IR (Female)
• Receiver Input: Duplex LC, 3.5mm IR (Female)
• Receiver Output: HDMI® (Female), 3x USB Type A (Female), 3.5mm IR (Female), 3-Pin Terminal Block Audio
• Control ports: USB Type C (Female), 3-Pin Terminal Block
• Power: 5.5/2.1mm

Physical Properties

• Dimensions (approx.) WxDxH: 144x78x23mm (5.67x3.07x0.91in) per unit
• Housing Material: Metal
• Net Weight: 1.2Kg (2.65lb)
• Operating Temperature: 0°C - 40°C (32°F - 104°F)
• Storage Temperature: -20°C - 60°C (-4°F - 140°F)
• Humidity: 10-90% RH (non-condensing)
• Power Requirements: 12VDC 3A
• MTBF: >30000 hours
• Colour: black

Miscellaneous

• Packaging Type: Carton box
• Packaging Dimensions: 245x185x75mm (9.65x7.28x2.95in)
• Gross Weight: 1.47Kg (3.24lb)
• Warranty (Years): 2
• Product Compliance: CE, UKCA, FCC, RoHS, REACH & California Proposition 65

Package Content

• Transmitter unit
• Receiver unit
• USB 2.0 Type A/B Cable, 1.5m
• IR Emitter Cable, 1.5m
• IR Receiver Cable, 1.5m
• 3x 3-Pin Terminal Block
• 4x mounting ears with screws
• 2x Multi-Country Power Supply
• Lindy manual

Purchasing Information

• No.: 39366
• EAN: 4002888393669
