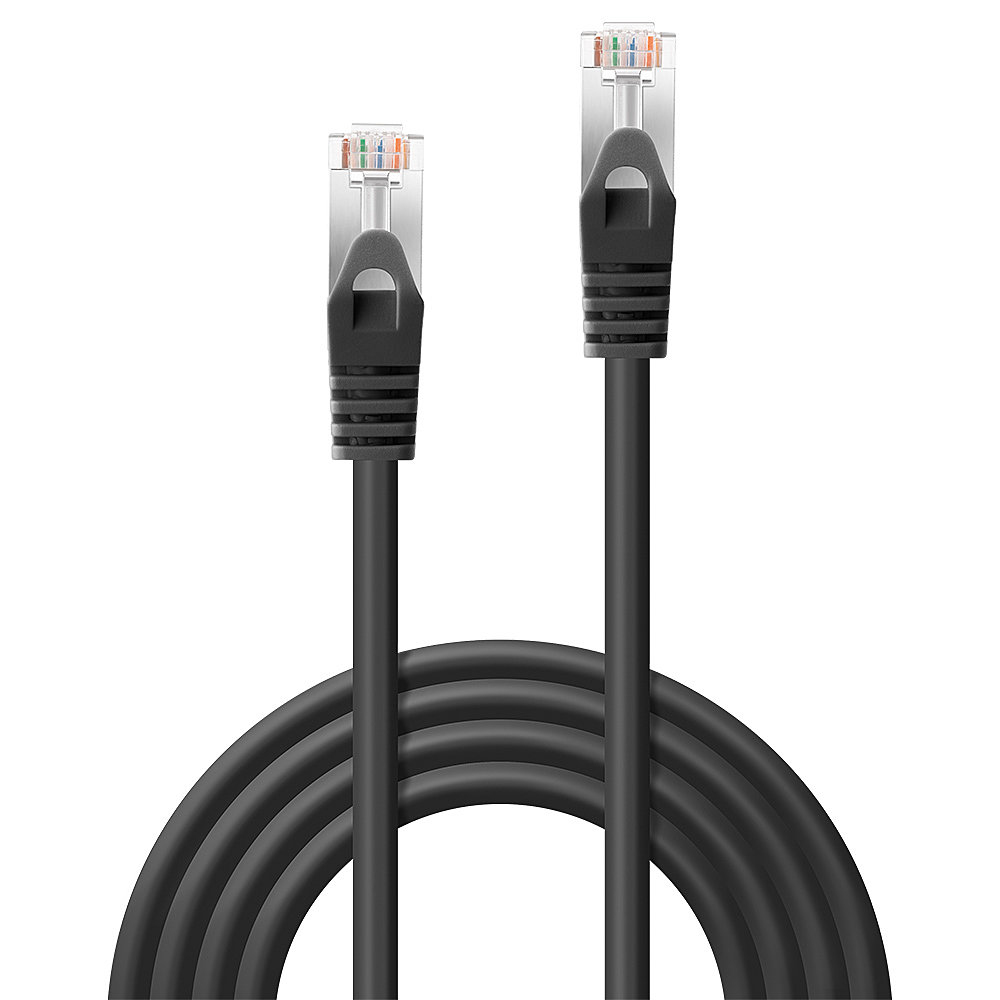

Lindy 48381 networking cable Black 1 m Cat5e F/UTP (FTP)
Manufactured by:
Product Information
Part Number: 48381
Item No: FD3544079
Shipping Weight: 0.2 kgs (0.44 lbs)
Actual Weight: 0.05 kgs (0.11 lbs)
Specifications
TYPE
Cat5e
LENGTH
1 m
LEFT CONNECTOR
RJ-45
RIGHT CONNECTOR
RJ-45
CABLE SHIELDING
F/UTP (FTP)
MATERIAL
Polyvinyl chloride (PVC)
Product Description

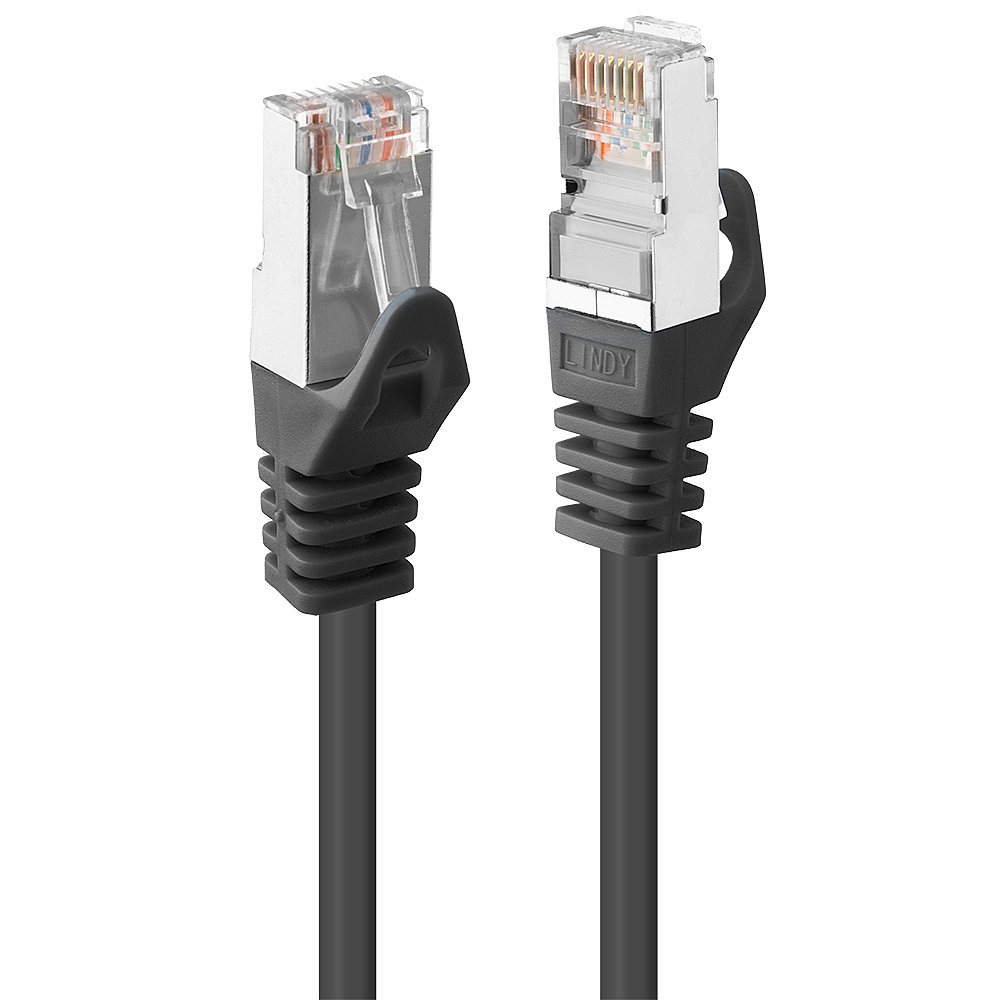

Connectors
- Connector A: RJ45 Male
- Connector B: RJ45 Male
- Housing Material: Polycarbonate
- Connector Plating: Nickel
- Pin Construction: Copper Alloy
- Pin Plating: Gold plated
- Dimensions (approx.) WxDxH: 11.6x22.8x8.3mm (0.46x0.90x0.33in)
Cable Construction
- Length: 1m (3.28ft)
- Colour: Black
- Type: Cat.5e
- Jacket Diameter: 5.0mm (0.20in)
- Jacket Material: PVC
- Conductor Material: Copper
- Conductor Gauge: 26AWG
- Shielding: Aluminium Foil
Specifications
- Supported Bandwidth: 100MHz
- Nominal Attenuation: 24dB/100m @100MHz
- Minimum Band Radius: 60mm (2.36in)
- Operating Temperature: -10°C - 60°C (14°F - 140°F)
- Storage Temperature: -20°C - 75°C (-4°F - 167°F)
Miscellaneous

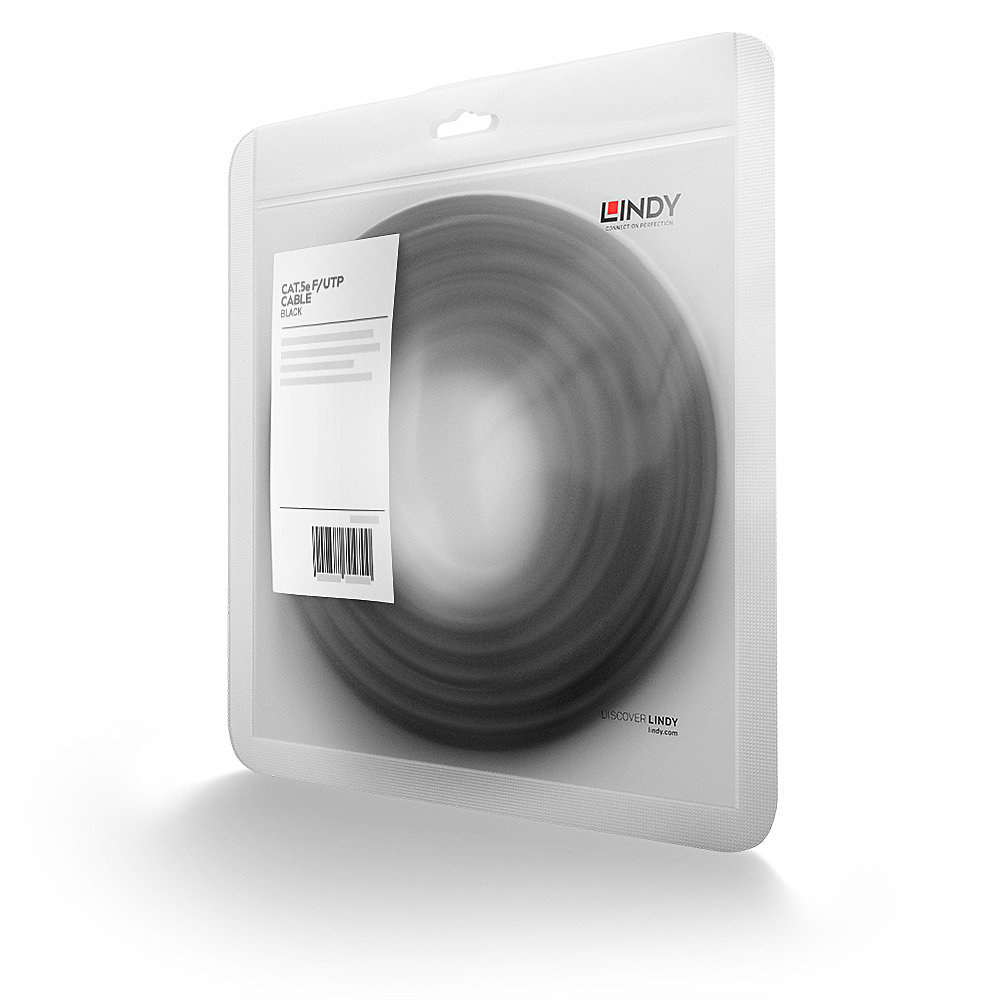

- Packaging Type: Polybag
- Warranty (Years): 10
- Product Compliance: RoHS, REACH, UL, California Proposition 65
Purchasing Information
- No.: 48381
- EAN: 4002888483810
This product is also available in other lengths
- 48380 - 0.5m (1.64ft)
- 48381 - 1m (3.28ft)
- 48382 - 2m (6.56ft)
- 48383 - 3m (9.84ft)
- 48384 - 5m (16.44ft)
- 48385 - 10m (32.81ft)
