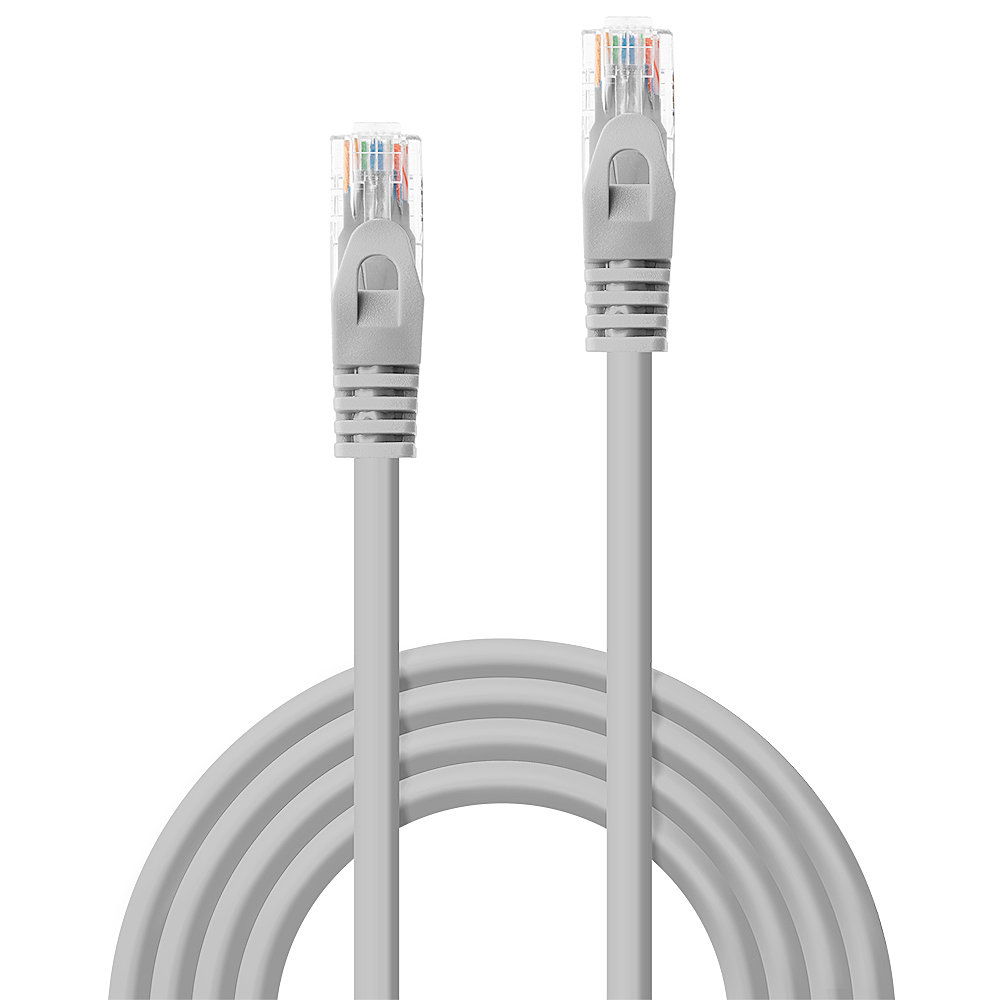

Lindy 50m Cat.5e U/UTP Cable, Grey
Manufactured by:
Product Information
Part Number: 48372
OEM Part No: FD3544075
Shipping Weight: 1.3 kgs (2.86 lbs)
Actual Weight: 1.2 kgs (2.64 lbs)
Specifications
TYPE
Cat5e
LENGTH
50 m
LEFT CONNECTOR
RJ-45
RIGHT CONNECTOR
RJ-45
CABLE SHIELDING
U/UTP (UTP)
Product Description
Connectors
- Connector A: RJ45 Male
- Connector B: RJ45 Male
- Housing Material: Polycarbonate
- Connector Plating: -
- Pin Construction: Copper Alloy
- Pin Plating: Gold plated
- Dimensions (approx.) WxDxH: 11.6x22.8x8.3mm (0.46x0.90x0.33in)
Cable Construction
- Length: 50m (164.04ft)
- Colour: Grey
- Type: Cat.5e
- Jacket Diameter: 4.8mm (0.19in)
- Jacket Material: PVC
- Conductor Material: Copper
- Conductor Gauge: 26AWG
- Shielding: -
Specifications
- Supported Bandwidth: 100MHz
- Nominal Attenuation: 24dB/100m @100MHz
- Minimum Band Radius: 57mm (2.24in)
- Operating Temperature: -10°C - 60°C (14°F - 140°F)
- Storage Temperature: -20°C - 75°C (-4°F - 167°F)
Miscellaneous

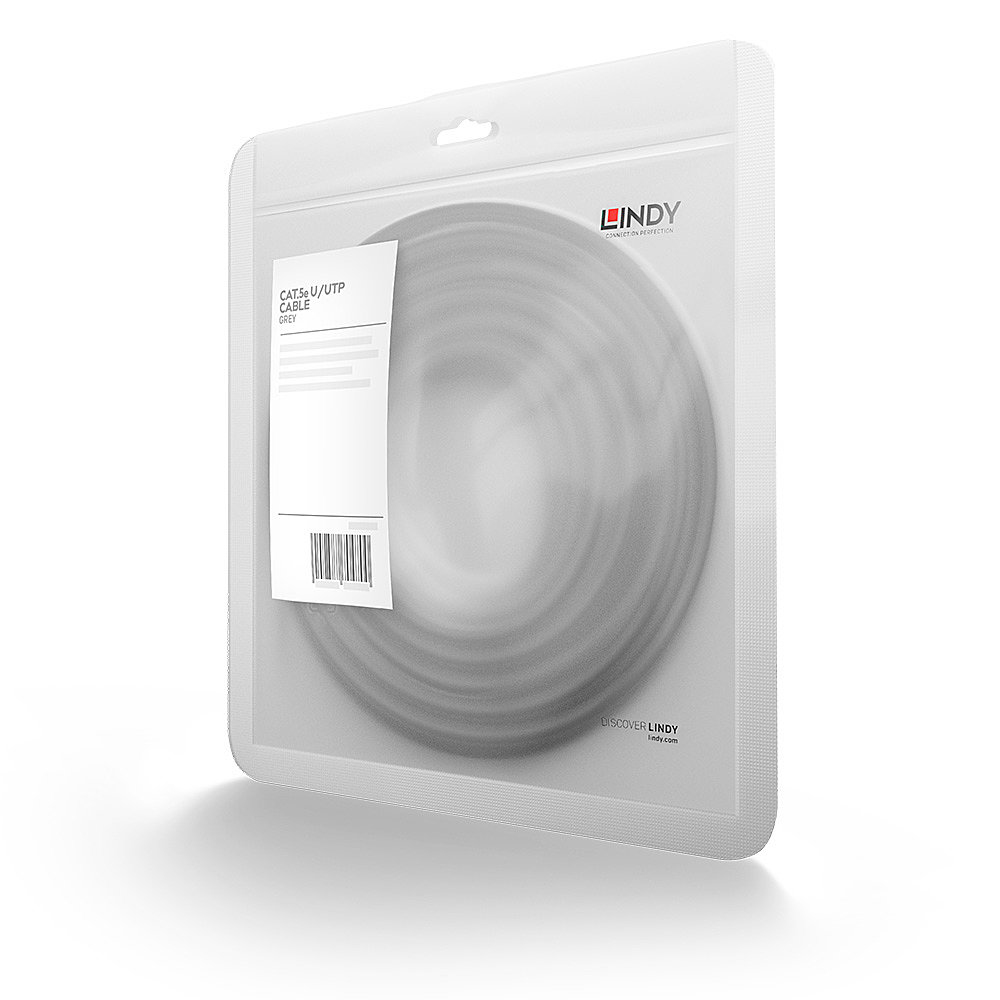

- Packaging Type: Polybag
- Warranty (Years): 10
- Product Compliance: RoHS, REACH, UL, California Proposition 65
Purchasing Information
- No.: 48372
- EAN: 4002888483728
This product is also available in other lengths
- 48360 - 0.3m (0.98ft)
- 48361 - 0.5m (1.64ft)
- 48362 - 1m (3.28ft)
- 48363 - 2m (6.56ft)
- 48364 - 3m (9.84ft)
- 48365 - 5m (16.44ft)
- 48366 - 7.5m (24.61ft)
- 48367 - 10m (32.81ft)
- 48368 - 15m (49.21ft)
- 48369 - 20m (65.62ft)
- 48370 - 30m (98.43ft)
- 48371 - 40m (131.23ft)
- 48372 - 50m (164.04ft)
- 48373 - 60m (196.85ft)
- 48374 - 70m (229.66ft)
- 48375 - 80m (262.67ft)
- 48376 - 90m (295.28ft)
- 48377 - 100m (328.08ft)
