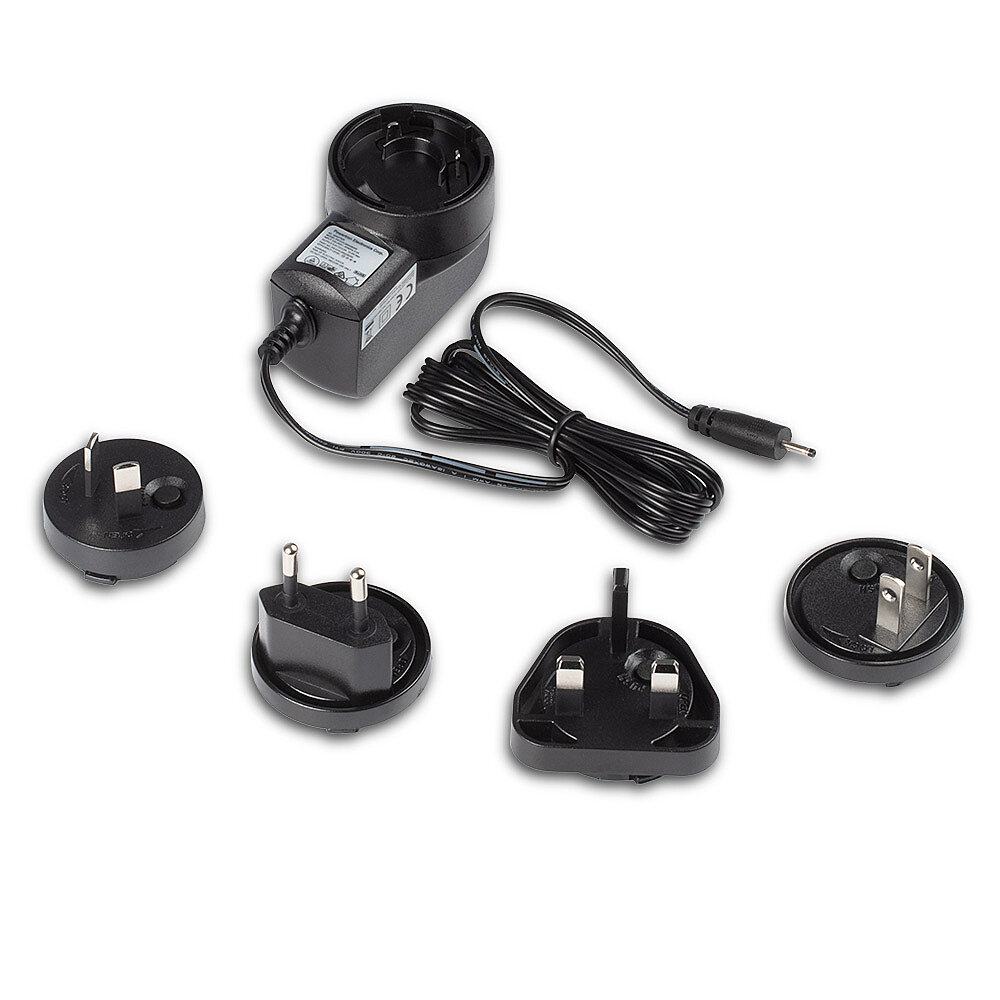

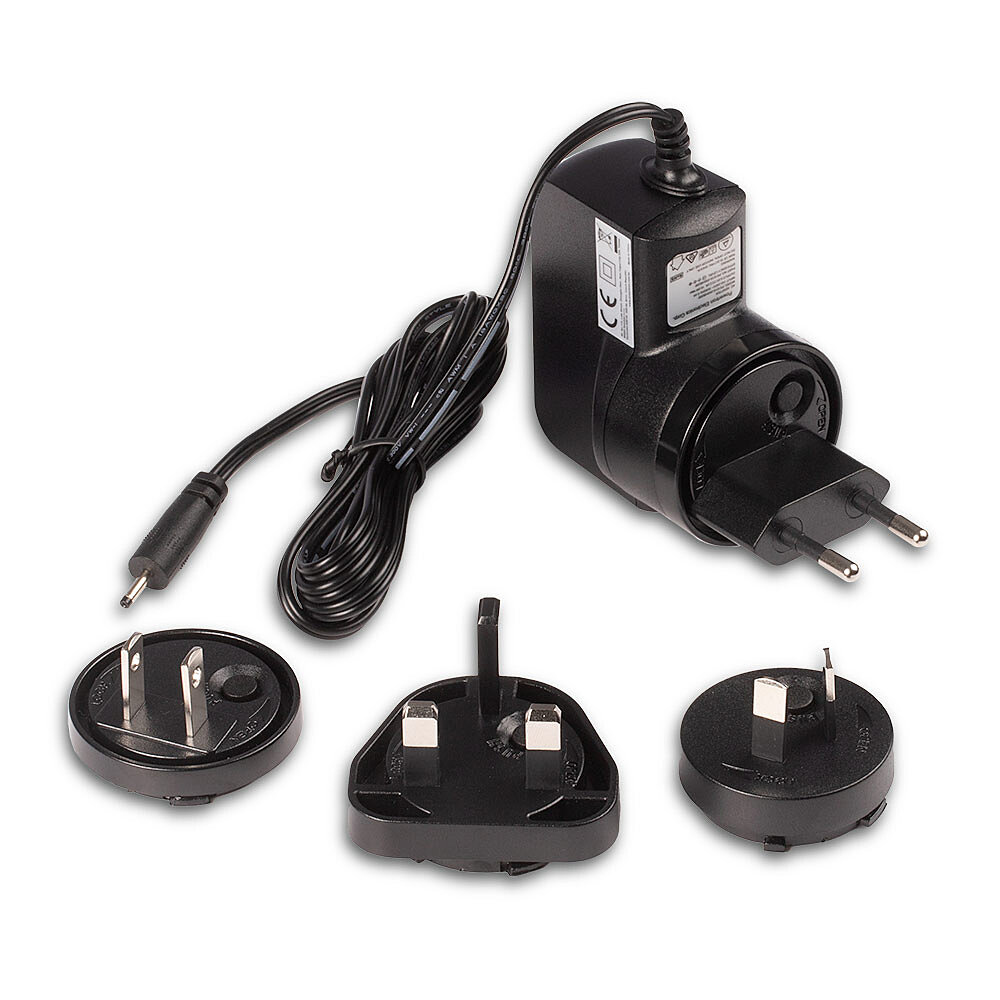

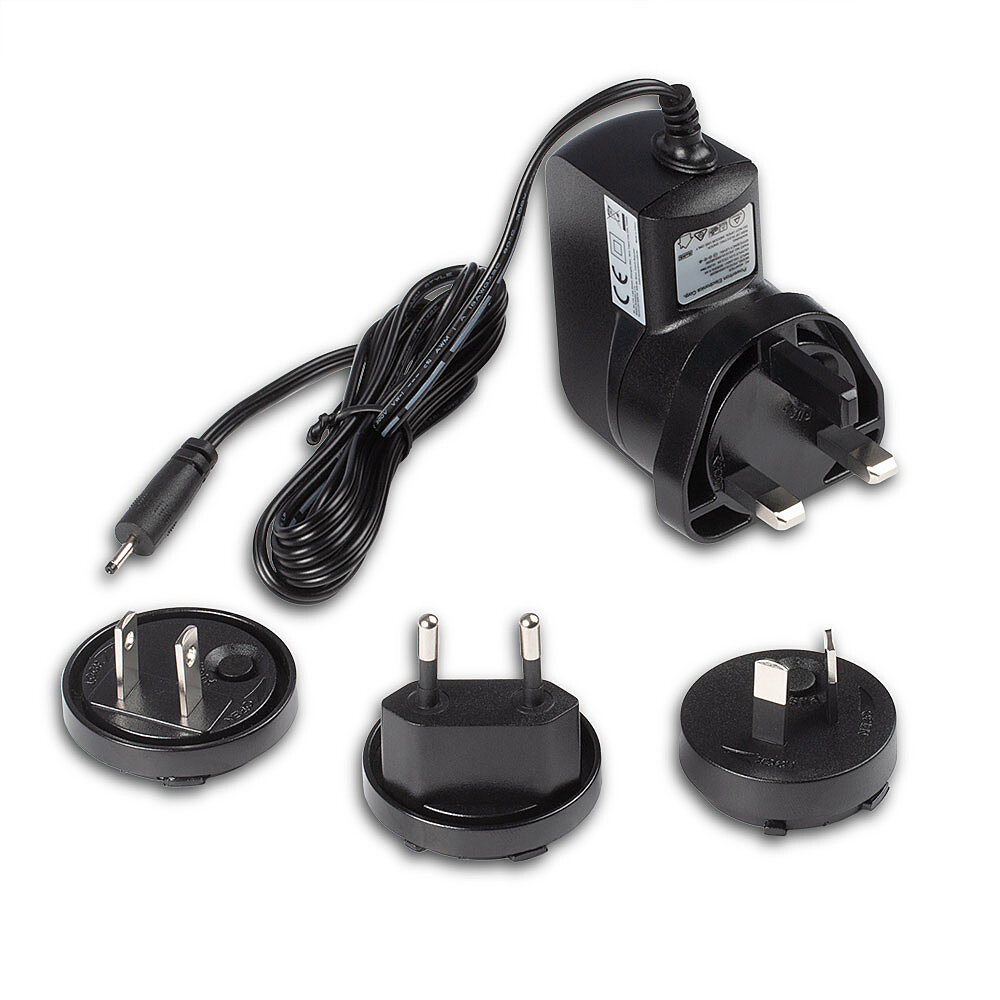

Lindy 5VDC 2A Multi-country Power Supply
Manufactured by:
Product Information
Part Number: 73811
Item No: FD3544172
Shipping Weight: 0.2 kgs (0.44 lbs)
Actual Weight: 0.19 kgs (0.42 lbs)
Specifications
POWER PROVIDED
10 W
INPUT VOLTAGE
100 - 240 V
INPUT FREQUENCY
50 - 60 Hz
DIMENSIONS
42.5 mm
COLOR
Black
ENERGY EFFCIENCY
0.787%
Product Description
Specifications
- Input Voltage: 100…240VAC
- Input AC Frequency: 50…60Hz
- Output Voltage: 5V
- Output Voltage Accuracy: ±5%
- Output Current (max.): 2A
- Output Power: 10W
- Average active efficiency: 0.787
- Efficiency at low load (10%): 0.7849
- No-load Power Consumption: 0.1W Max.
Physical Properties
- Dimensions (approx.) WxDxH: 42.5x67x49.4mm (1.67x2.64x1.94in)
- DC Cable Length: 1.5m (4.92ft)
- DC Connector Size: 2.35/0.7mm
- Housing Material: Plastic
- Net Weight: 0.159kg (0.35lb)
- Operating Temperature: 0°C - 40°C (32°F - 104°F)
- Storage Temperature: -20°C - 70°C (-4°F - 158°F)
- Operating Humidity: 0 - 75% RH (non-condensing)
- Storage Humidity: 0 – 95% RH (non-condensing)
- Colour: Black
Miscellaneous
- Manufacturer Name: Powertron Electronics Corp.
- Commercial Registration No. : 12649262
- Manufacturer Address: JinHe Industry Area, Yufeng GuanLiQu, ZhangMuTou, DongGuan City , 523627 GuangDong China
- Manufacturer Model No.: PS1010-050HIB200
- Packaging Type: Carton Box
- Packaging Dimensions: 100x90x60mm (3.94x3.54x2.36in)
- Gross Weight: 0.184kg (0.41lb)
- Warranty (Years): 2
- Product Compliance: EMC, LVD, ErP, UL, CCC ,RCM, PSE, RoHS, REACH, California Proposition 65
Package Contents
- Multi-country Power Supply
- UK, EU, US & AUS Adapters
- Lindy Manual
Purchasing Information
- No.: 73811
- EAN: 4002888738118
