Specifications
- Sample Rate: 44.1/48/96kHz
- Bit Depth: 24-bit
- Protocol: Dante Ultimo, AES67
- Supported Bandwidth: 100Mbps
- Maximum Distance: 100m (328.08ft)
Connectors

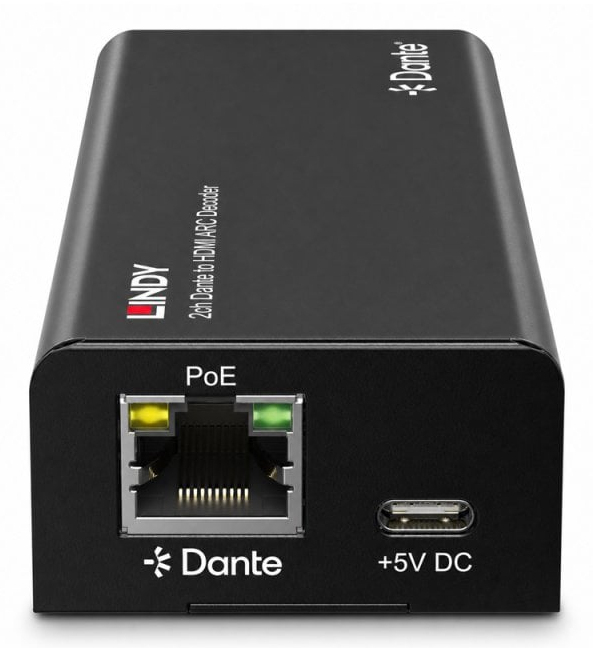

- Input: RJ45 (Female), USB-C power (Female)

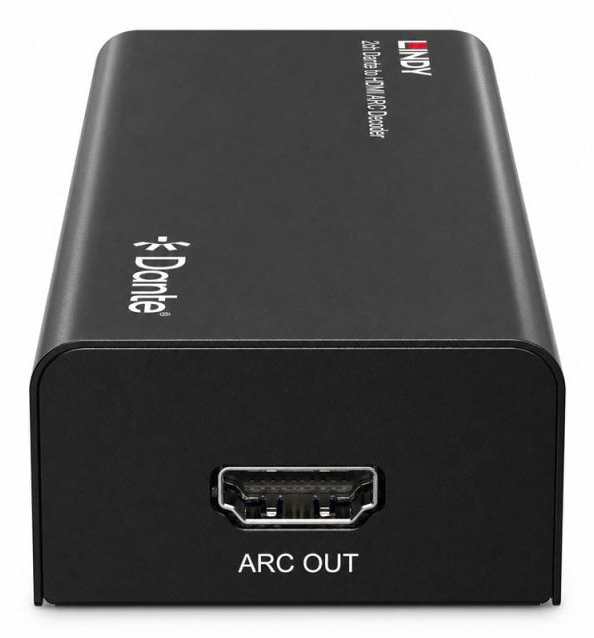

- Output: HDMI® (Female)
Physical Properties
- Dimensions WxDxH: 114x48x26mm (4.48x1.88x1.02in)
- Housing Material: Metal
- Net Weight: 0.18kg (0.40lb)
- Operating Temperature: -5° - 55°C (23°F - 131°F)
- Storage Temperature: -25°C - 70°C (-13°F - 158°F)
- Power Requirements: 5VDC 3A / 802.3af PoE
- Power Consumption: 1W (max)
- Colour: Black
Miscellaneous
- Packaging Type: Carton Box
- Packaging Dimensions:156x85x42mm (6.14x3.35x1.65in)
- Gross Weight: 0.26kg (0.57lb)
- Warranty (Years): 3
- Product Compliance: CE, UKCA, FCC, RoHS & REACH, CP65
Package Contents
- 2ch Dante to HDMI® ARC Decoder
- 2x mounting ears with screws
- User Manual
Purchasing Information
- No.: 70621
- EAN: 4002888706216
