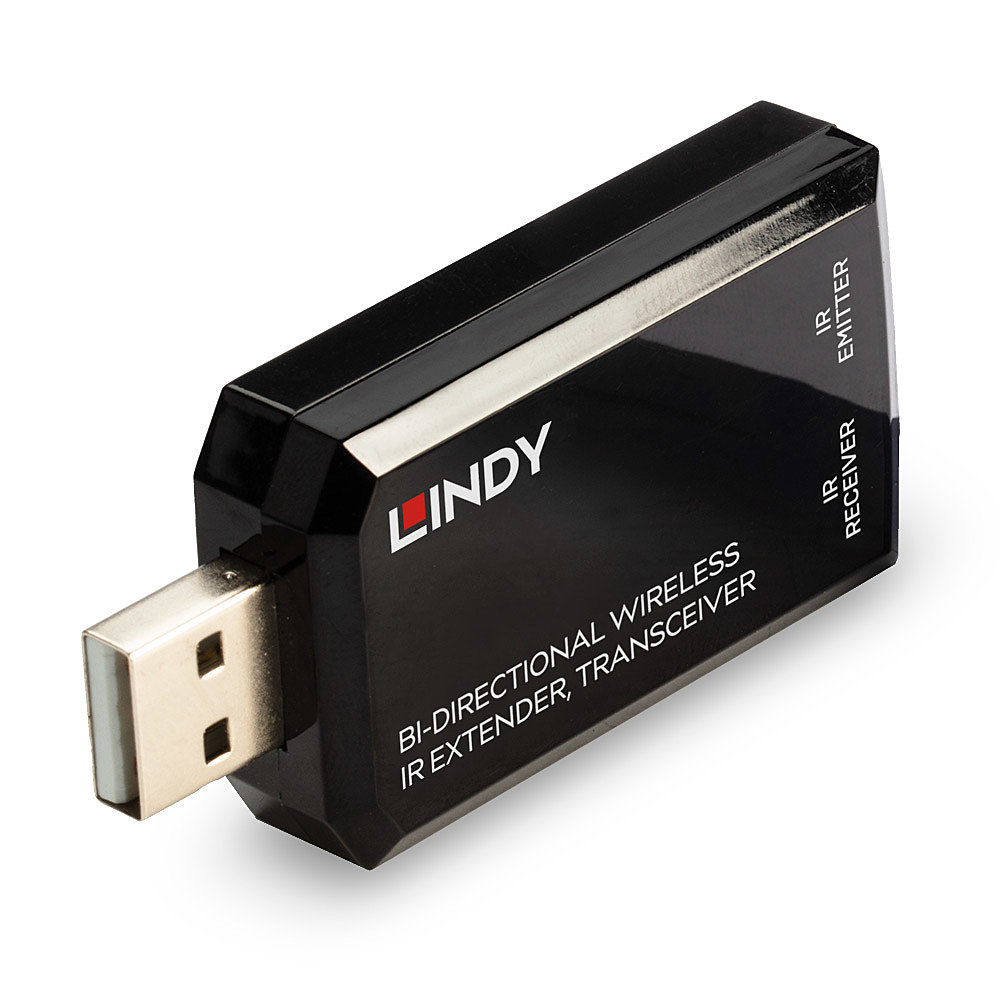

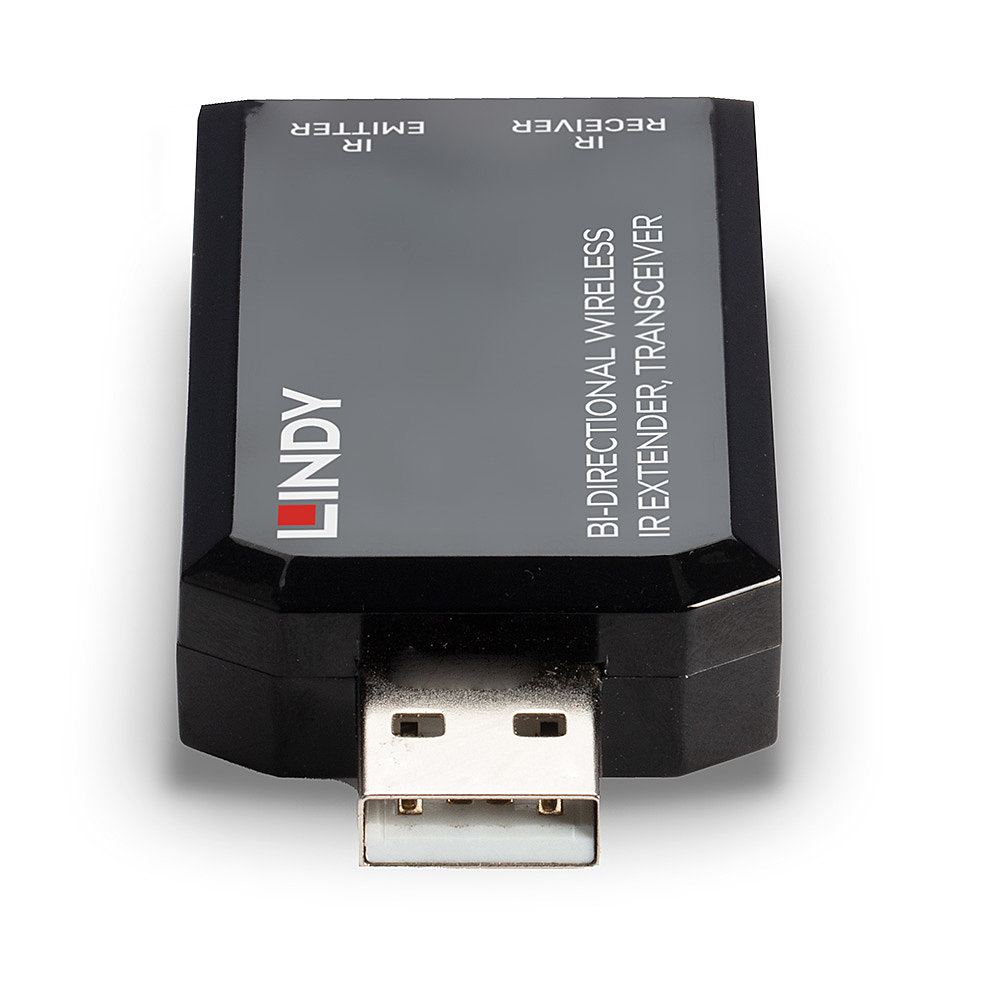

Lindy Bi-directional Wireless IR Extender, Transceiver

Specifications

• AV Interface: IR
• Interface Standard: -
• Supported Bandwidth: -
• Maximum Distance: 150m (492.12ft)
• Maximum Resolution: -
• HDCP Support: -
• EDID Pass Through: -
• Supported Audio: -
• Separate Audio Ports: -
• IR Support: 20~60KHz
• CEC Support: -
• Serial Interface: -
• Transmission Protocol: 866MHz RF
• Transmission Medium: FSK Wireless
• Laser Class (only for Fibre): -
• Wavelength (only for Fibre): -
• Chipset: AMICCOM A7129
• Special Features: Bi-directional 1 - 1 and 1 - Many Extension

Connectors

• Transmitter Input: -
• Transmitter Output: -
• Receiver Input: -
• Receiver Output: -

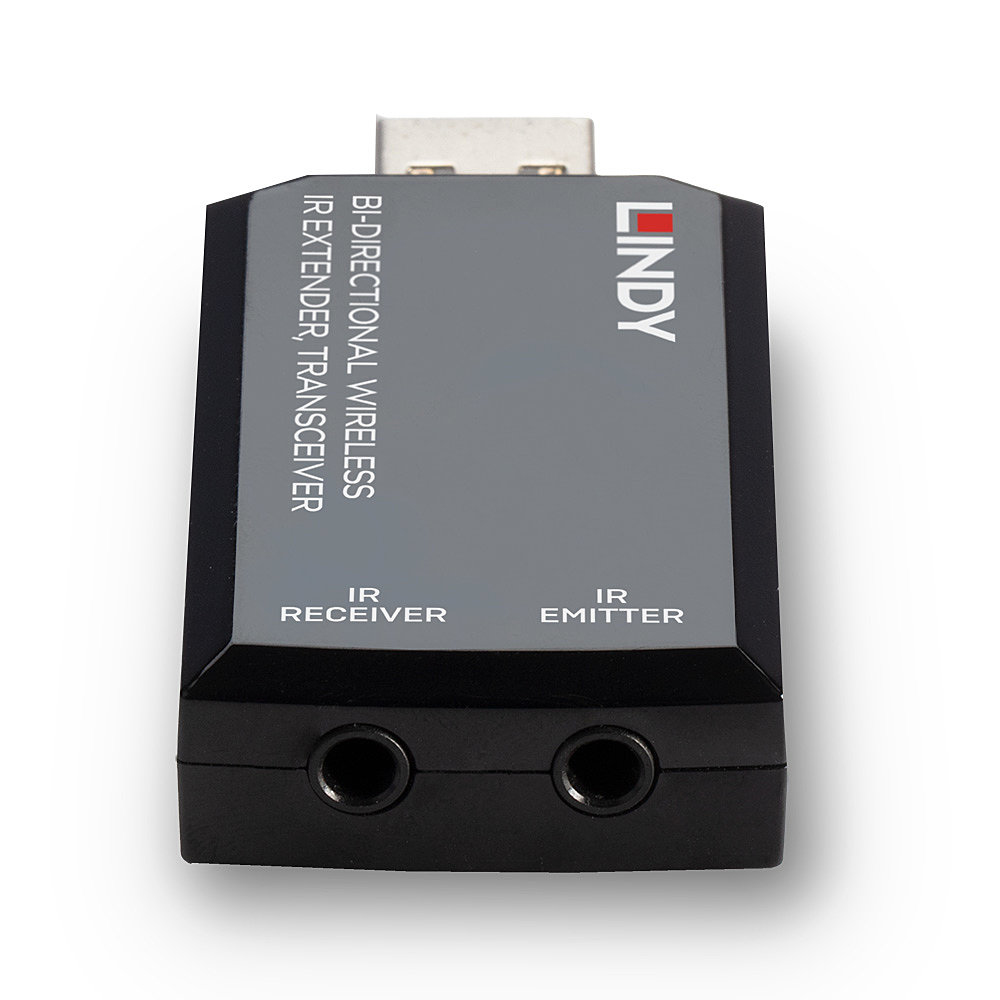

• Bi-directional Ports: 3.5mm IR (Female)
• Power: USB Powered

Physical Properties

• Dimensions (approx.) WxDxH: 30x13x63mm (1.18x0.51x2.48in)
• Housing Material: Plastic
• Net Weight: 0.07kg (0.15lb)
• Operating Temperature: -40°C - 85°C (-40°F - 185°F)
• Storage Temperature: -55°C - 125°C (-67°F - 257°F)
• Humidity: 10-85% RH (non-condensing)
• Power Requirements: 5V 0.5A
• MTBF: 87.600 hours
• Colour: Black

Miscellaneous

• Packaging Type: Carton Box
• Packaging Dimensions: 236x255x10mm (9.29x10.04x0.39in)
• Gross Weight: 0.09kg (0.2lb)
• Warranty (Years): 2
• Product Compliance: CE, FCC, RoHS, REACH, California Proposition 65, TAA

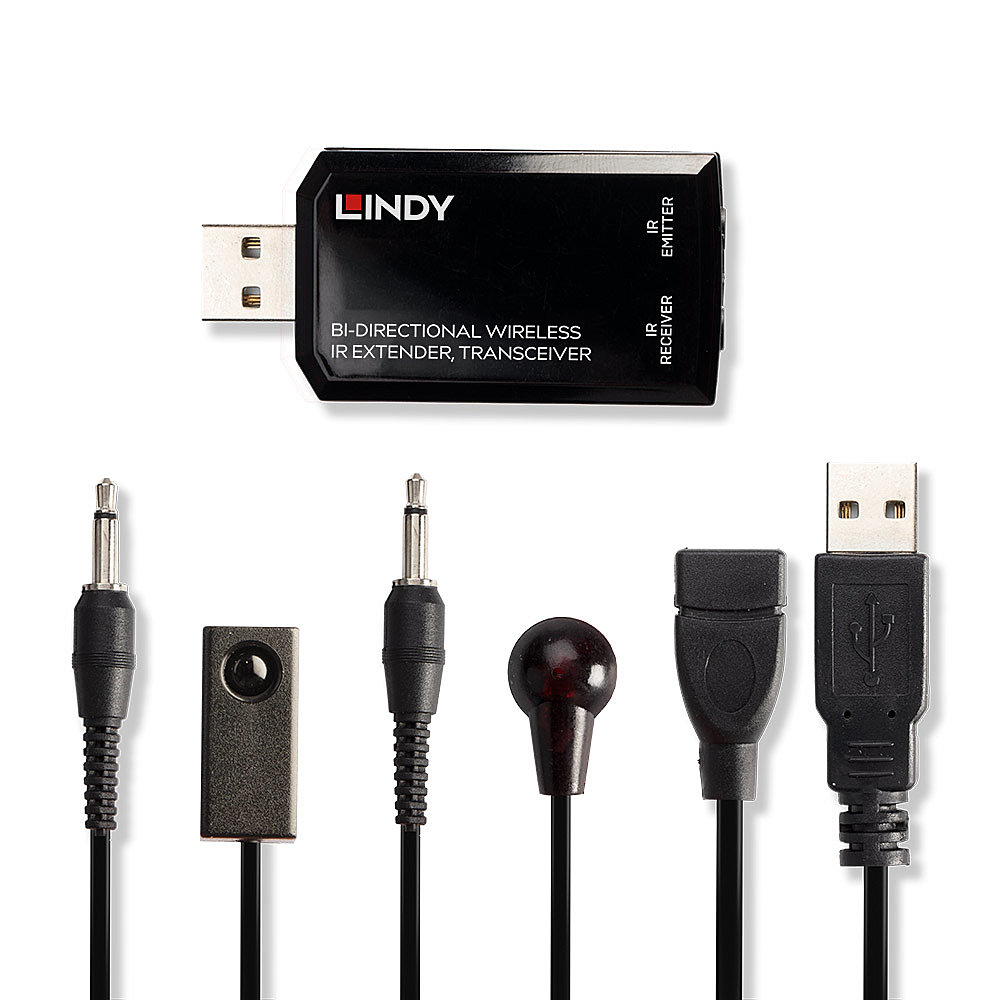

Package Content

• Bi-directional Wireless IR Transceiver
• IR Emitter Cable, 1.5m
• IR Receiver Cable, 1.5m
• USB Type A Male to Female Cable, 0.3m

• Lindy Manual

Purchasing Information

• No.: 38331
• EAN: 4002888383318
