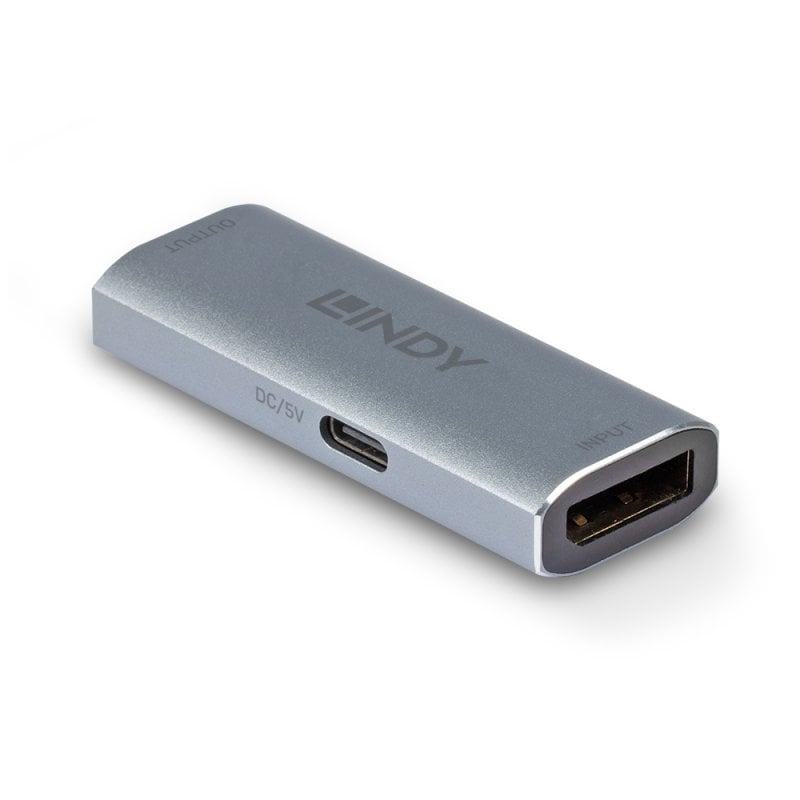

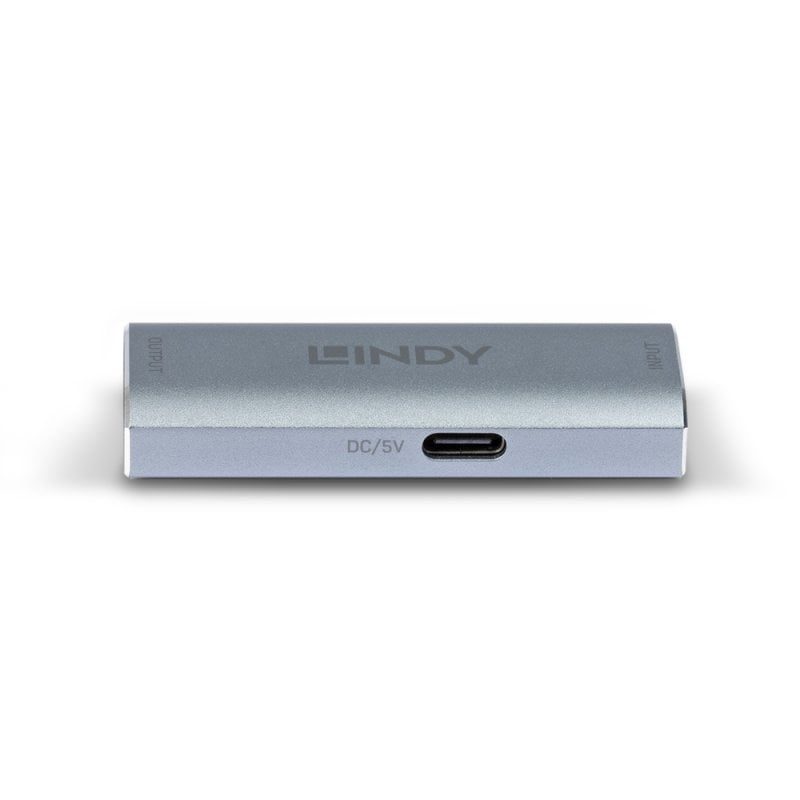

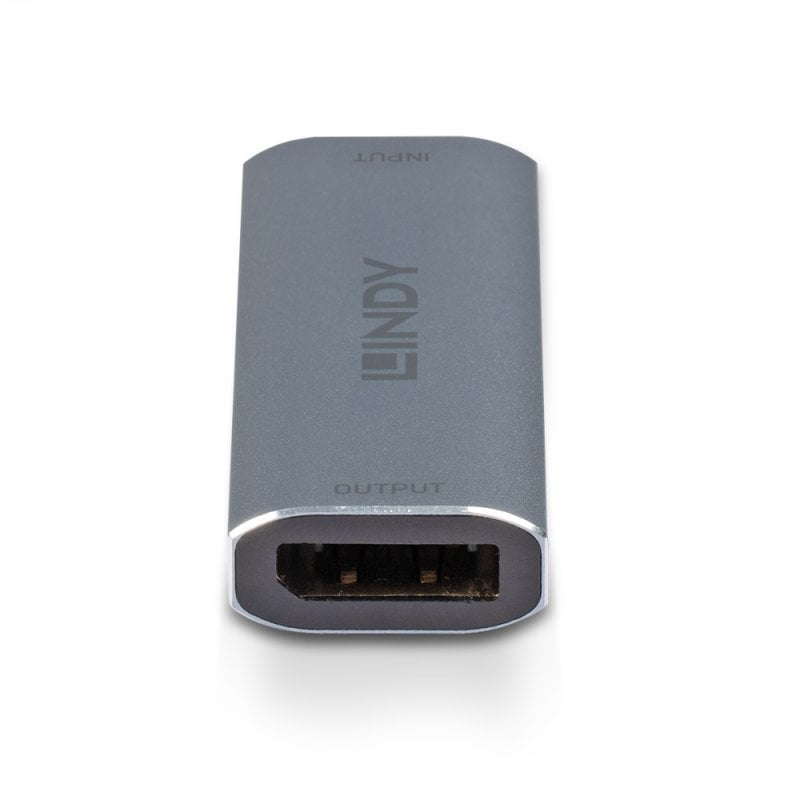

Lindy DisplayPort 1.4 Repeater
Manufactured by:
Product Information
Part Number: 38421
OEM Part No: FD3541940
Shipping Weight: 0.1 kgs (0.22 lbs)
Actual Weight: 0.05 kgs (0.11 lbs)
Specifications
No specifications available for this product.
Product Description
Specifications
- AV Interface: DisplayPort
- Interface Standard: DisplayPort 1.4
- Supported Bandwidth: 32.4 Gbps
- Maximum Distance (With Multiple Units):
- 40m (131.23ft) - 3840x2160@60Hz
- 15m (49.21ft) - 7680x4320@60Hz / 3840x2160@120Hz
- Maximum Input Distance (Single Unit):
- 10m (32.80ft) - 3840x2160@60Hz
- 5m (16.4ft) - 7680x4320@60Hz / 3840x2160@120Hz
- Maximum Output Distance (Single Unit):
- 10m (32.80ft) - 3840x2160@60Hz
- 5m (16.4ft) - 7680x4320@60Hz / 3840x2160@120Hz
- Maximum Resolution: 7680x4320@60Hz 4:4:4 8bit
- Transmission Medium: 2 x DisplayPort Cable
- Special Features: DPCP Compatible, HDR
Connectors
- Input: DisplayPort (Female)
- Output: DisplayPort (Female)
- Power: USB Type C (Female)
Physical Properties
- Dimensions WxHxD: 23x10x60mm (0.90x0.39x2.36in)
- Housing Material: Aluminium
- Net Weight: 0.041kg (0.09lb)
- Operating Temperature: 5°C - 50°C (41°F - 122°F)
- Storage Temperature: -20°C - 60°C (-4°F - 140°F)
- Humidity: 0-80% RH (non-condensing)
- Colour: Silver
Miscellaneous
- Packaging Type: Polybag
- Packaging Dimensions: 133x144mm (5.24x5.67in)
- Gross Weight: 0.05kg (0.11lb)
- Warranty (Years): 2
- Product Compliance: UKCA, CE, FCC, RoHS & REACH
Package Contents
- DisplayPort 1.4 Repeater
- USB Type A to Type C Power Cable, 1m
- Lindy Manual
Purchasing Information
- No. 38421
- EAN: 4002888384216
