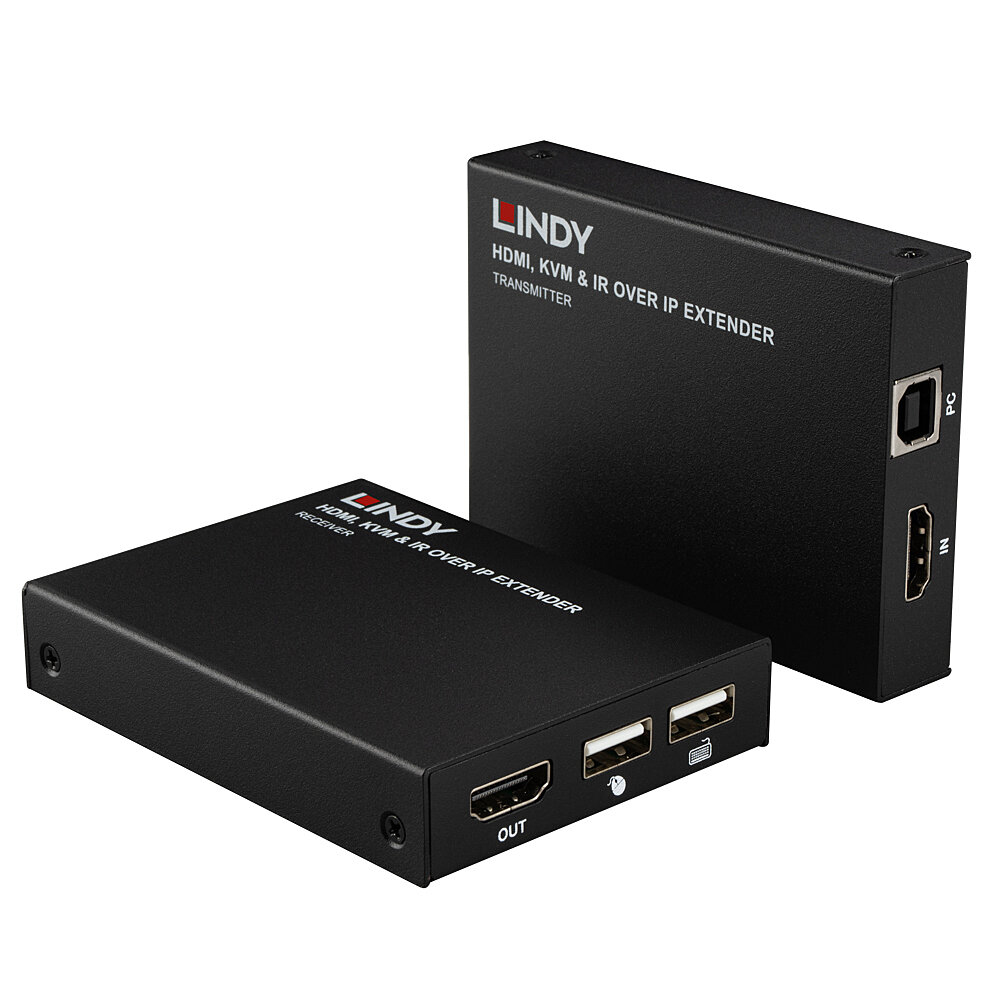

Lindy HDMI, KVM & IR over IP Extender

Specifications

• AV Interface: HDMI®
• Interface Standard: 1.3, USB 1.1
• Supported Bandwidth: 6.75 Gbps
• Maximum Distance: 150m (492.12ft)
• Maximum Resolution: 1920x1080@60Hz 4:4:4 8bit
• HDCP Support: 1.4
• EDID Pass Through: -
• Supported Audio: 2 Channel PCM
• Separate Audio Ports: -
• IR Support: 20-60 kHz
• CEC Support: -
• Serial Interface: -
• Transmission Protocol: IP (H.265 video compression)
• Transmission Medium: 1 x Cat.5e/6
• Laser Class (only for Fibre): -
• Wavelength (only for Fibre): -
• Chipset: SSC337DE - SSD203D
• Special Features: HDMI® Loop Out port

Connectors

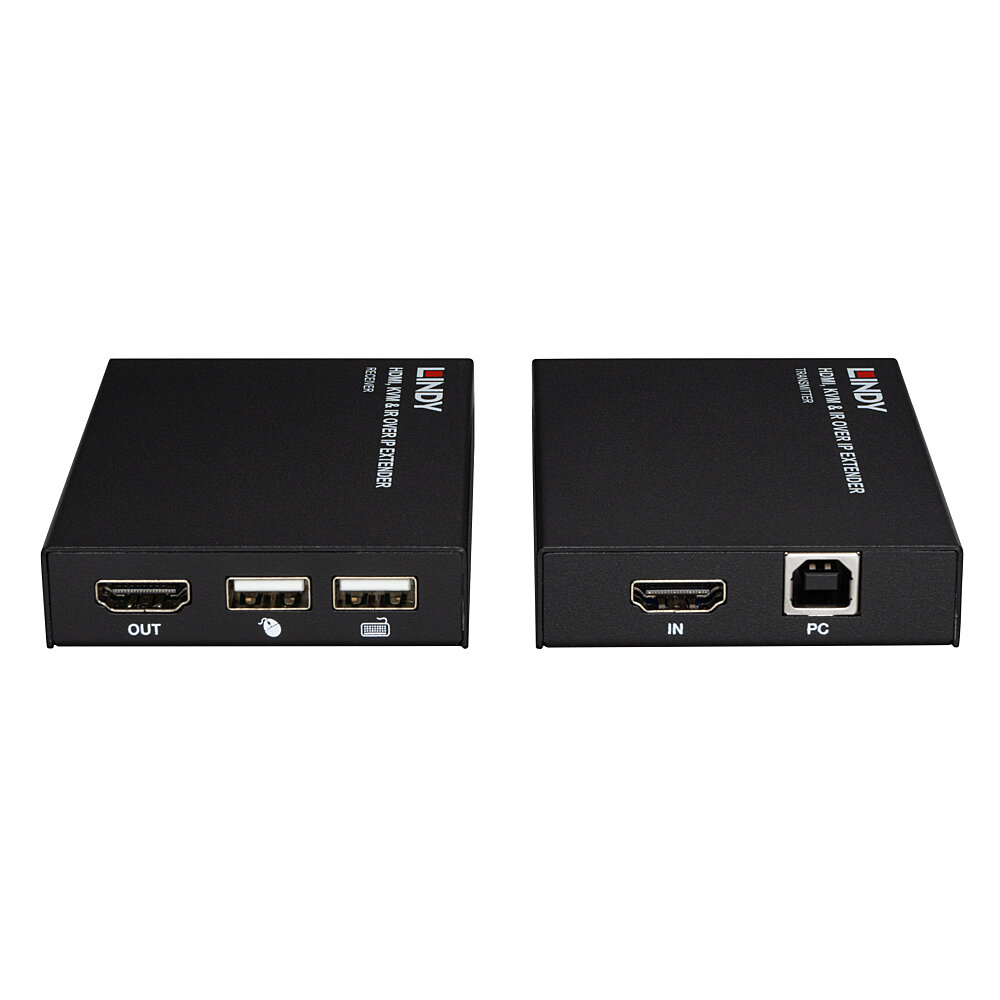

• Transmitter Input: HDMI® (Female), USB Type B (Female)

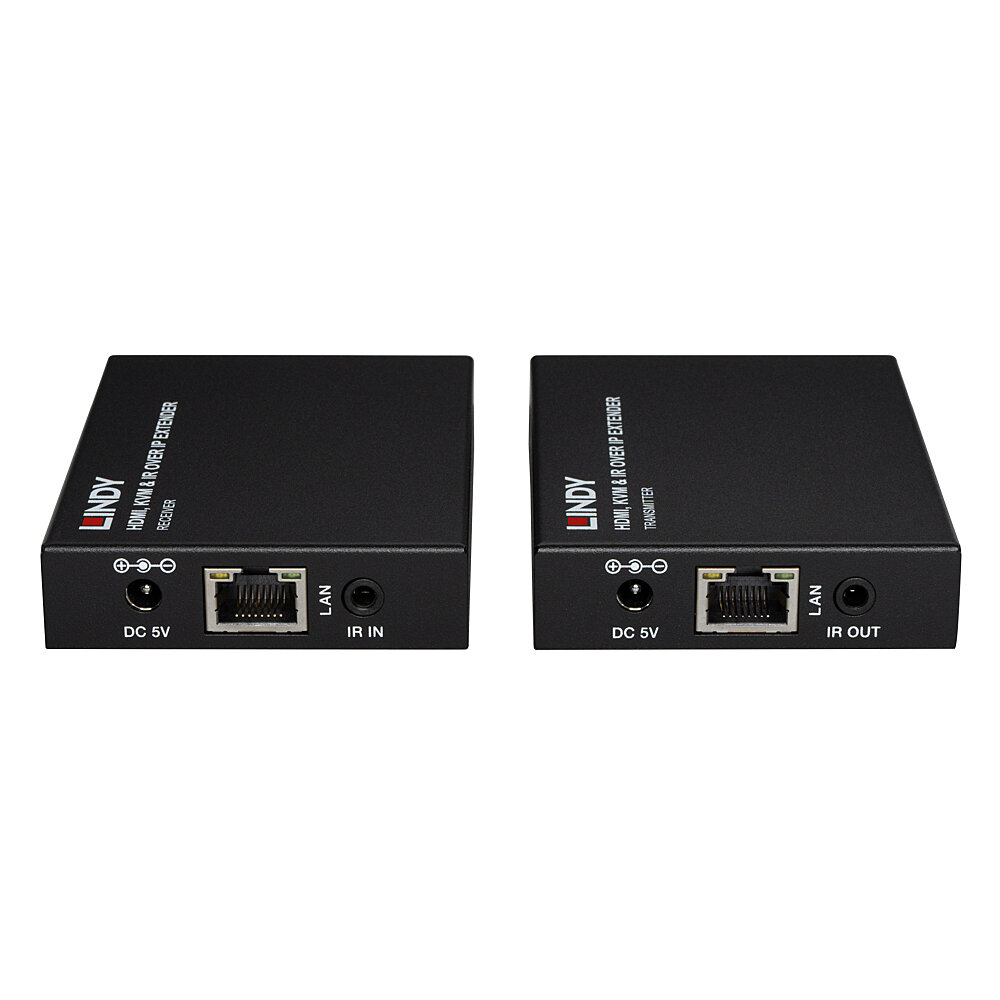

• Transmitter Output: HDMI® (Female), RJ45 (Female), IR (Female)
• Receiver Input: RJ45 (Female), IR (Female)
• Receiver Output: HDMI® (Female), 2 x USB Type A (Female)
• Bidirectional Ports: -
• Power: 5.5/2.1mm DC socket

Physical Properties

• Dimensions WxHxD: 91.6x67x17.5mm (3.61x2.64x0.69in) per unit
• Housing Material: Metal
• Net Weight: 0.40kg (0.88lb)
• Operating Temperature: -10°C - 50°C (14°F - 122°F)
• Storage Temperature: -20°C - 60°C (-4°F - 140°F)
• Humidity: 20 - 90% RH (non-condensing)
• Power Requirements: 5VDC 1A
• Colour: Black

Miscellaneous

• Packaging Type: Carton Box
• Packaging Dimensions: 213x137x79mm (8.39x5.39x3.11in)
• Gross Weight: 0.90kg (1.98lb)
• Warranty (Years): 2
• Product Compliance: CE, UKCA, FCC, RoHS, REACH & California Proposition 65

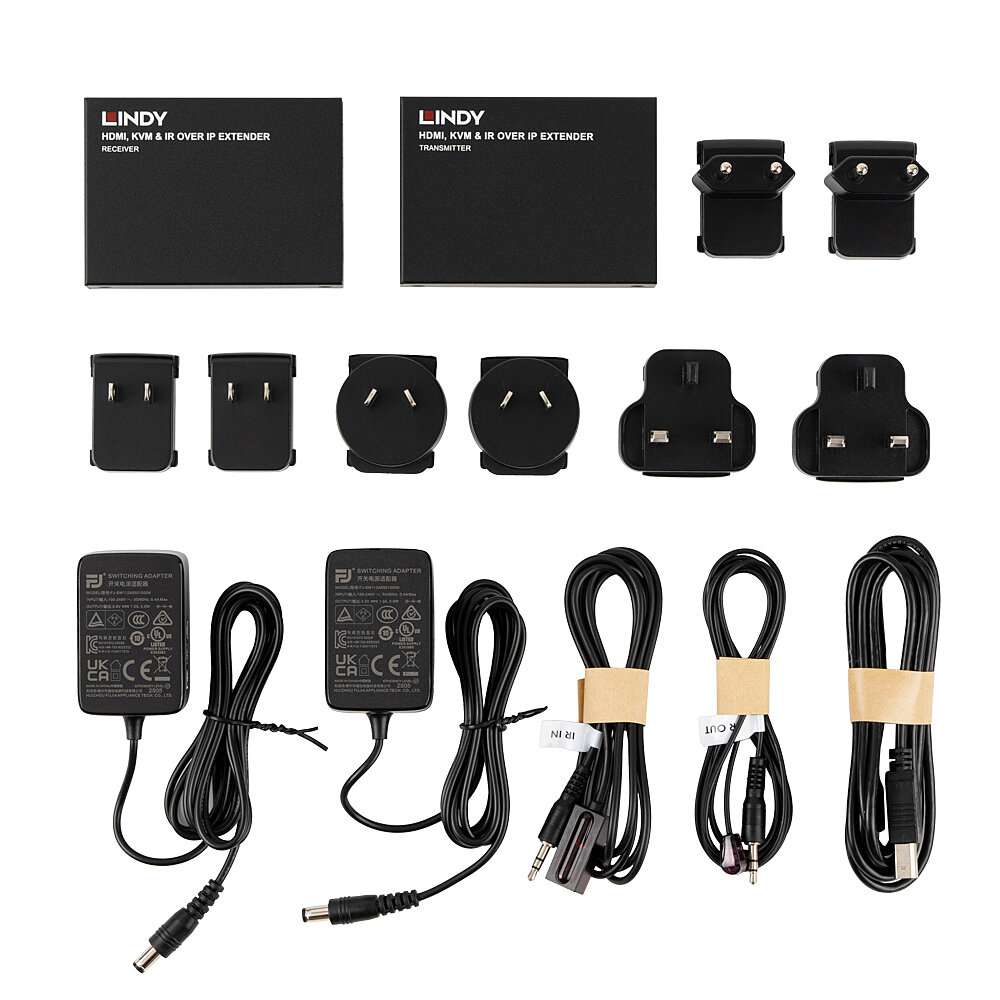

Package Contents

• Transmitter unit
• Receiver unit
• USB Type A / B cable, 1.5m
• IR emitter cable, 1.5m
• IR receiver cable, 1.5m
• 2x Multi-Country Power Supply (EU, UK, US & AUS)
• Lindy manual

Purchasing Information

• No. 39320
• EAN: 4002888393201
