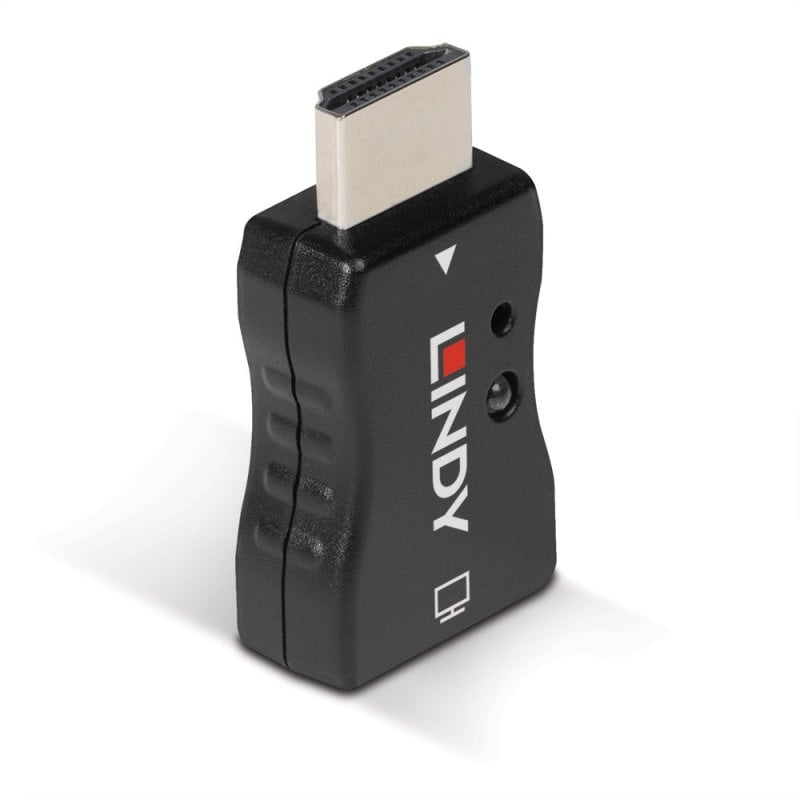

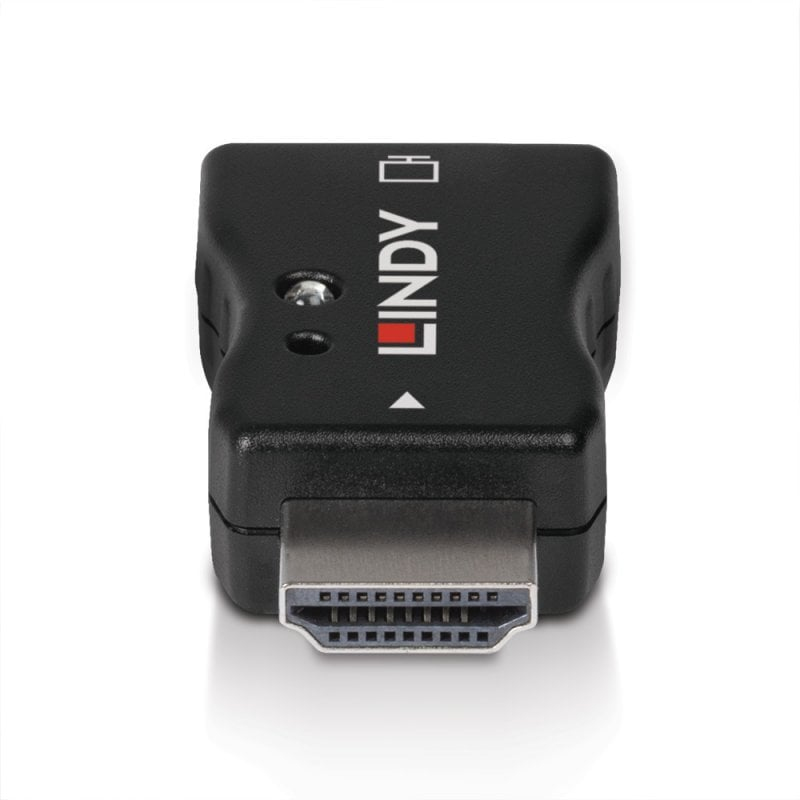

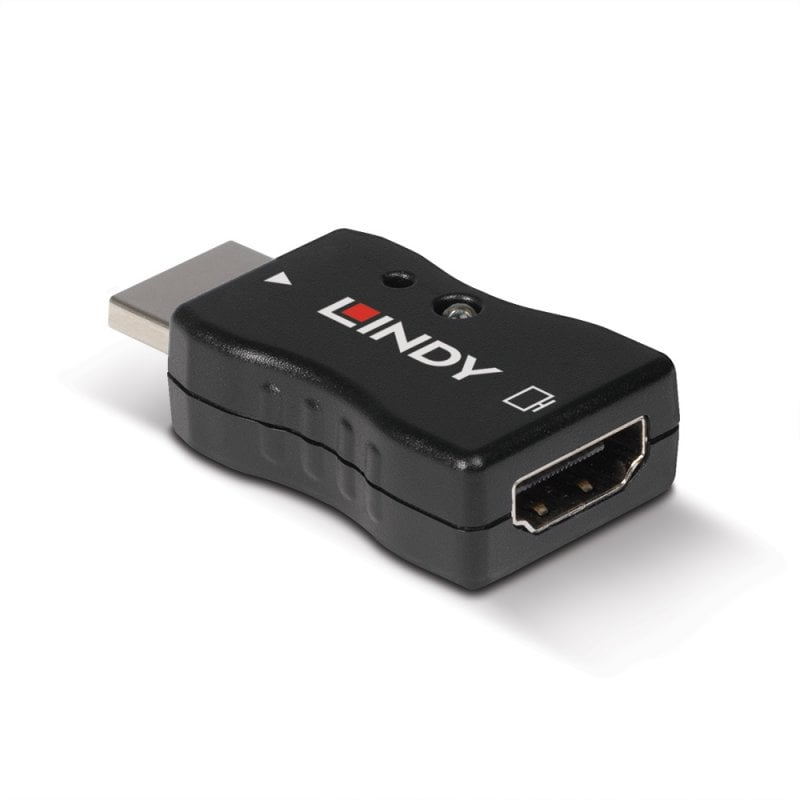

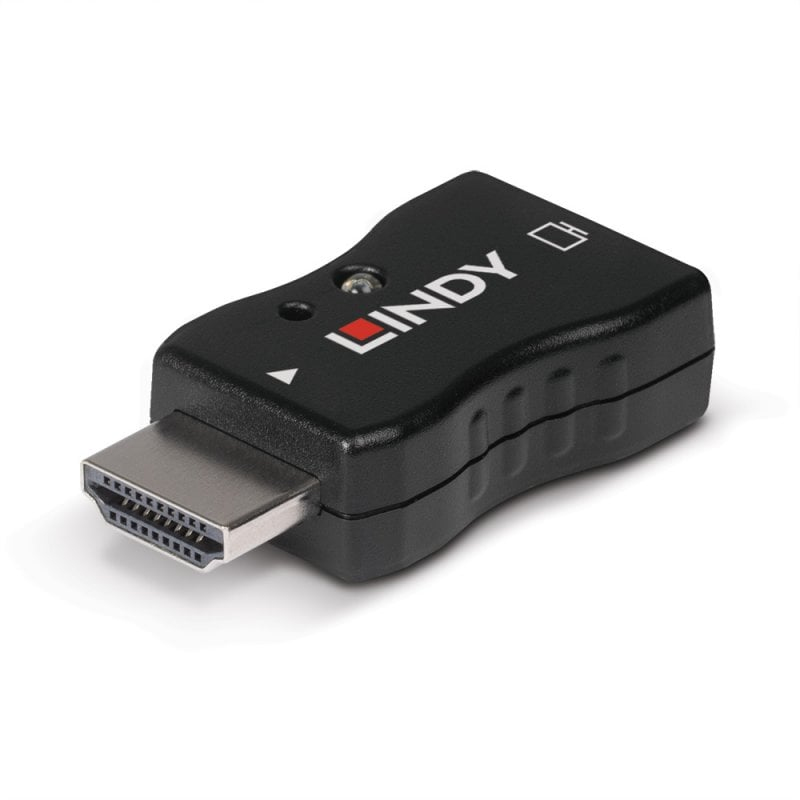

Lindy HDMI 2.1 EDID Emulator

Specification

• AV Interface: HDMI®
• Interface Standard: 2.1
• Supported Bandwidth: 48Gbps
• Maximum Resolution: 7680x4320@60Hz 4:4:4 10Bit
• Video EDID:
  • 640x480 at 60/67/72/75Hz
  • 720x400 at 70Hz
  • 720x480 at 60Hz
  • 720x576 at 50Hz
  • 720x576i at 50Hz
  • 800x600 at 60/72/75Hz
  • 832x624 at 75Hz
  • 1024x768 at 60/70/75Hz
  • 1152x870 at 75Hz
  • 1152x864 at 75Hz
  • 1280x720 at 50/60Hz
  • 1280x800 at 60Hz
  • 1280x1024 at 60/75Hz
  • 1440x900 at 60Hz
  • 1600x900 at 60Hz
  • 1680x1050 at 60Hz
  • 1920x1080i at 50/60Hz
  • 1920x1080 at 24/50/60/120Hz (default Resolution)
  • 2560x1440 at 60Hz
  • 3840x2160Hz at 24/30/50/60/100/120Hz
  • 4096x2160 at 24/30/50/60/100/120Hz
• Audio EDID:  LPCM 2-Channel, 16/20/24 bit depth at 32/44.1/48 kHz
• HDCP Support: HDCP 2.3
• Special Features: Headless connection (No Monitor connection required)

Connectors

• Input: HDMI® Male
• Output: HDMI® Female
• Power: Via HDMI® source Interface

Physical Properties

• Dimensions WxDxH: 24.14x44.18x11.84mm (0.95x1.73x0.46in)
• Housing Material: ABS
• Net Weight: 0.0088kg (0.0194lb)
• Operating Temperature: 0°C - 60°C (°F - °F)
• Storage Temperature: -10°C - 80°C (°F - °F)
• Humidity: 0-80% RH (non-condensing)
• Colour: Black

Miscellaneous

• Packaging Type: Polybag
• Packaging Dimensions: 133x144mm (5.23x5.66in)
• Gross Weight: 0.022kg (0.048lb)
• Warranty (Years): 2
• Product Compliance: CE, FCC, RoHS & REACH

Package Contents

• EDID Emulator
• Lindy Manual

Purchasing Information

• No.:  32119
• EAN: 4002888321198
