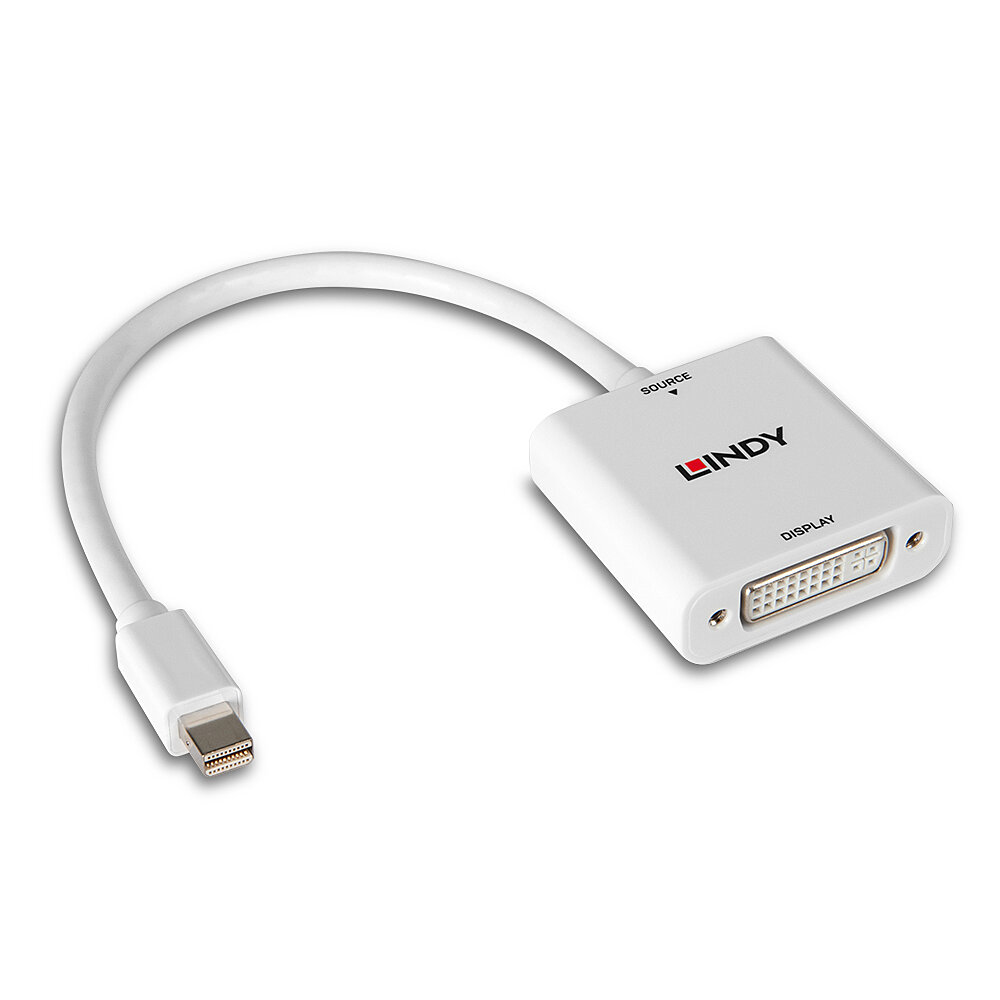

Lindy Mini DisplayPort to DVI Converter
Manufactured by:
Product Information
Part Number: 38318
Item No: FD3541609
Shipping Weight: 0.2 kgs (0.44 lbs)
Actual Weight: 0.05 kgs (0.1 lbs)
Specifications
CONNECTOR A
Mini DisplayPort
CONNECTOR B
DVI-I
GENDER
Male
MAXIMUM RESOLUTION
1920 x 1200 pixels
Product Description
Specifications
- AV Interface: Mini DisplayPort to DVI
- Interface Standard: DisplayPort 1.1
- Supported Bandwidth: 4.45Gbps
- Maximum Input Resolution: 1920x1200@60Hz
- Maximum Output Resolution: 1920x1200@60Hz
- Chipset: NXP PTN3361
- HDCP Support: HDCP 1.4, HDCP 2.2
- Supported Audio: -
- Separate Audio Ports: -
- Special Features: Passive converter
Connectors
- Input: Mini DisplayPort (Male)
- Output: DVI-I (Female)
Physical Properties
- Dimensions (approx.) WxDxH:
- 18.9x11x9.3mm (0.71x0.43x0.37in)
- 44.5x44.5x15mm (1.75x1.75x0.59in)
- Cable Length: 180mm (7.09in)
- Housing Material: ABS
- Jacket Material: PVC
- Jacket Diameter: 5.5mm (0.22in)
- Minimum Bend Radius: 33mm (1.3in)
- Net Weight: 0.035kg (0.08lb)
- Operating Temperature: -20° to 40° (-4°F - 104°F)
- Storage Temperature: -40° to +80° (-40°F - 176°F)
- Humidity: 20 - 90% RH (non-condensing)
- Colour: White
Miscellaneous
- Packaging Type: Polybag
- Packaging Dimensions: 176x194x20mm (6.93x7.64x0.79in)
- Gross Weight: 0.045kg (0.1lb)
- Warranty (Years): 2
- Product Compliance: CE, UKCA, FCC, RoHS, REACH, Calif. Prop. 65
Package Contents
- Mini DisplayPort to DVI Converter
Purchasing Information
- No.: 38318
- EAN: 4002888383189
