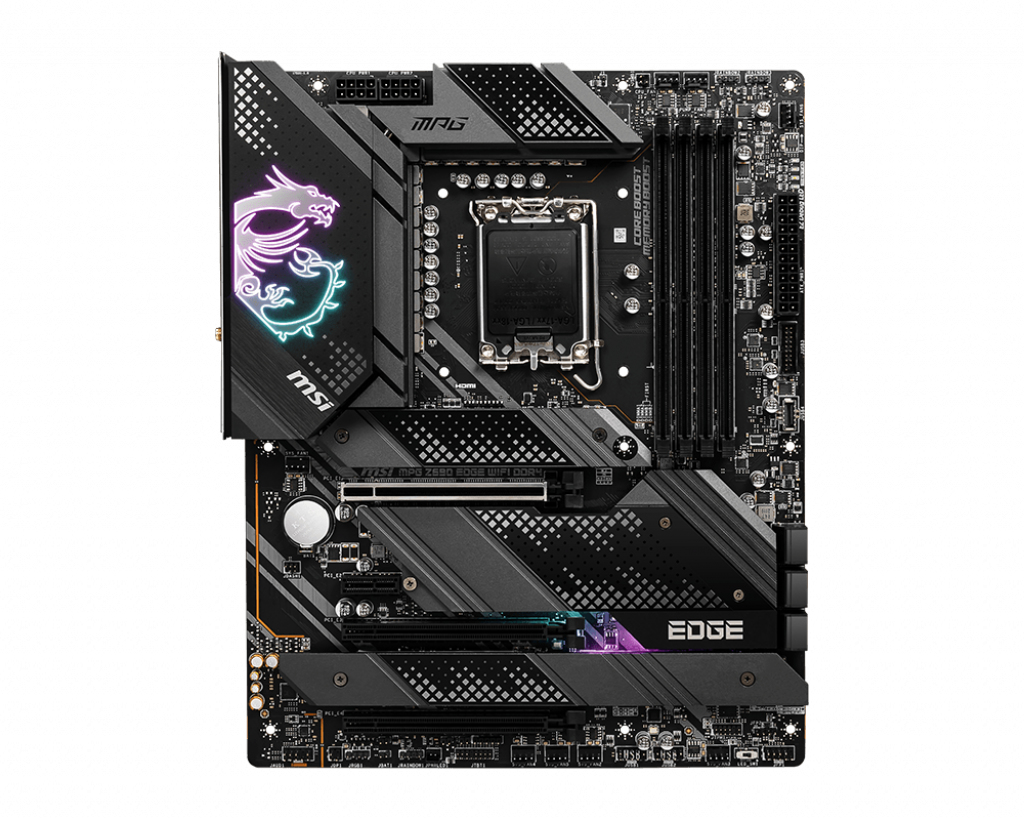

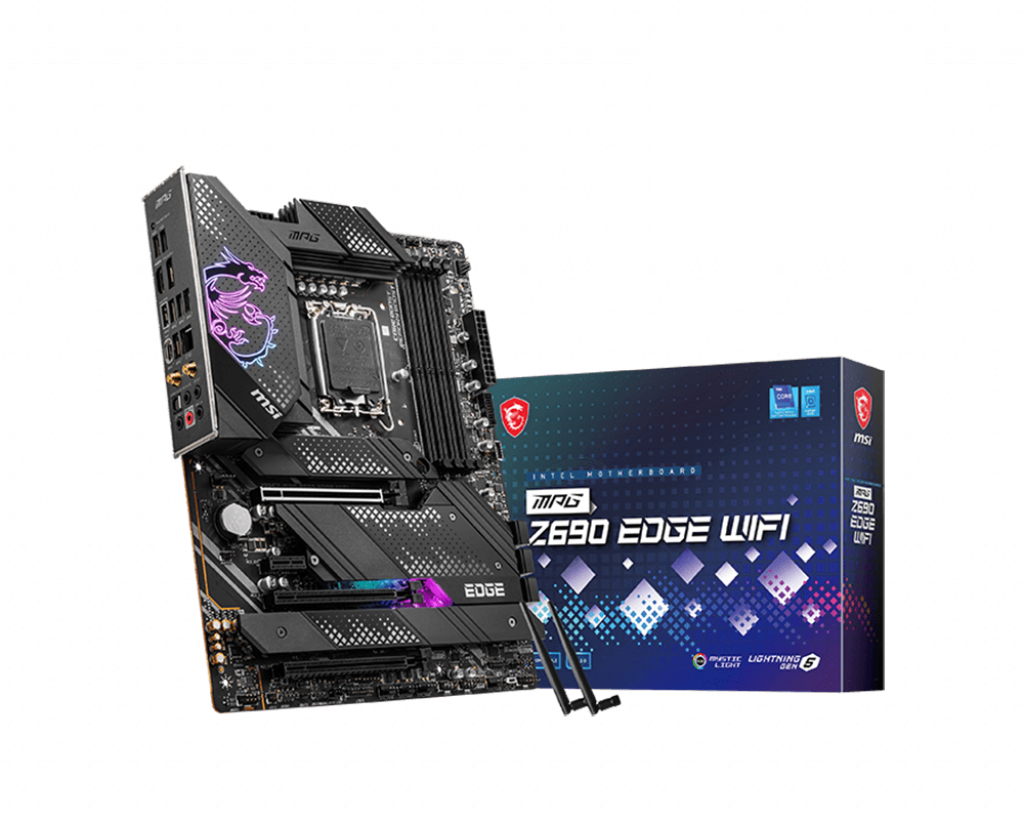

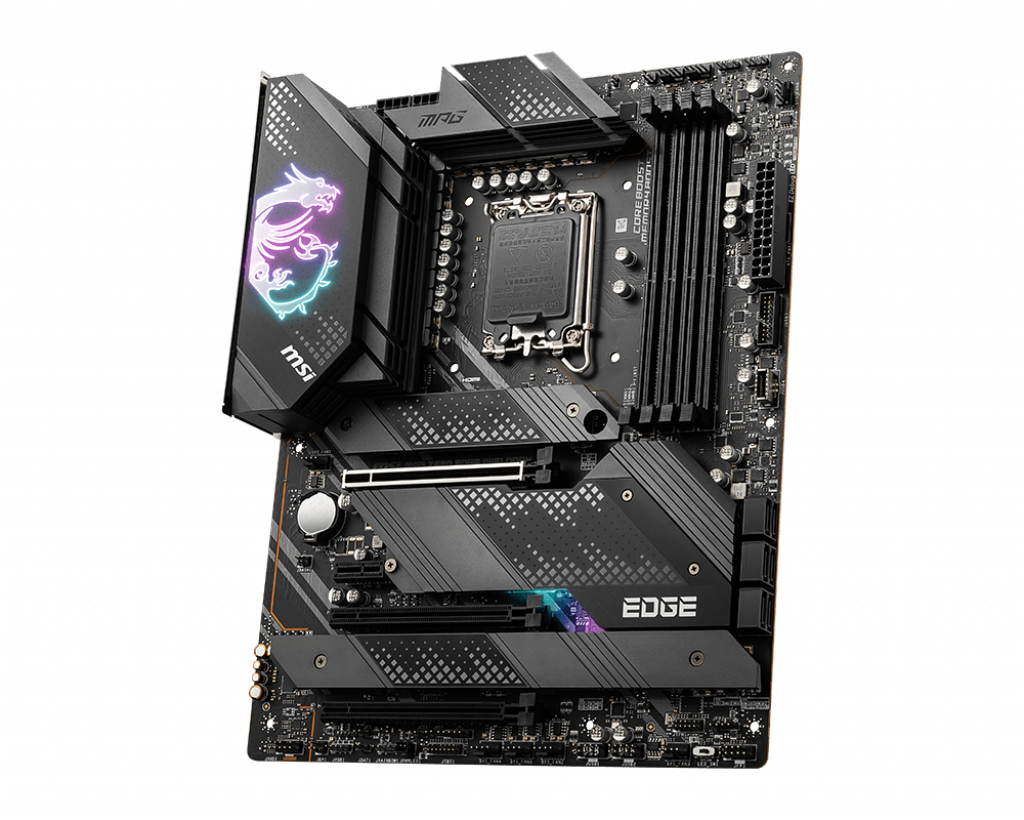

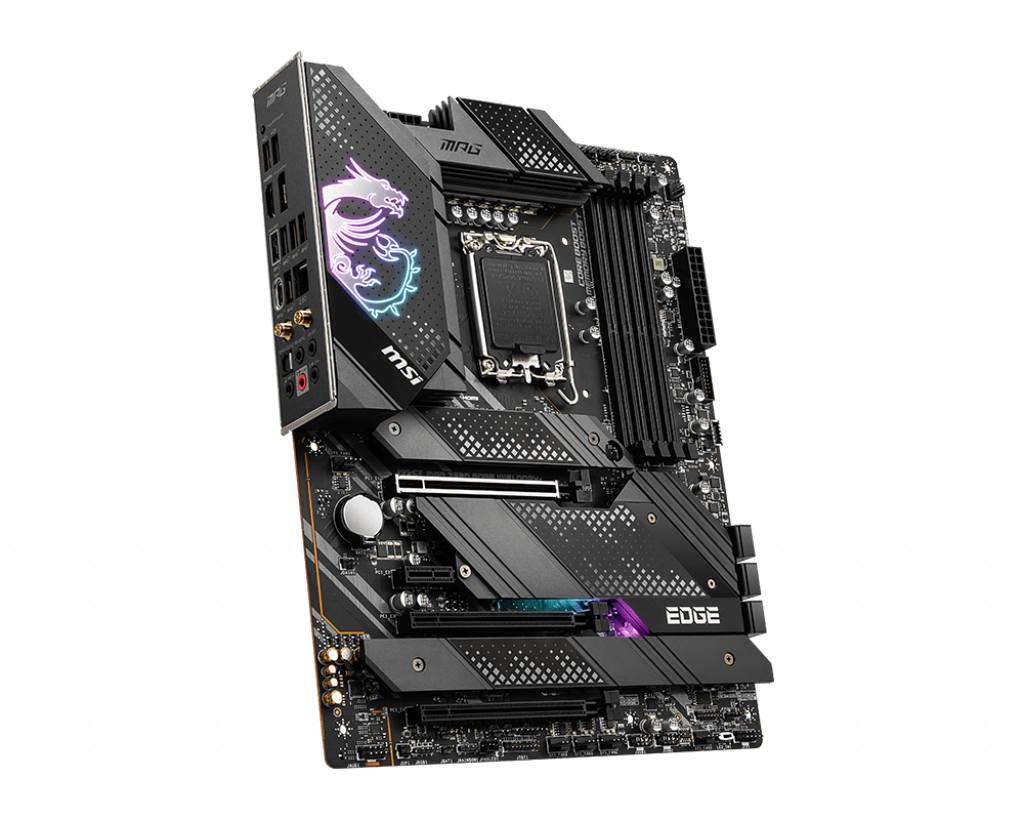

MSI MPG Z690 EDGE WIFI Intel DDR5 Motherboard
Manufactured by:
Product Information
Part Number: 7D31-001R
Item No: 278-0515
Shipping Weight: 2.24 kgs (4.92 lbs)
Actual Weight: 2.24 kgs (4.92 lbs)
Specifications
FORM FACTOR
ATX
SOCKET TYPE
LGA 1700
COMPATIBLE PROCESSORS
Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9
CHIPSET
Intel Z690
MEMORY STANDARD
DDR5-SDRAM
MEMORY SLOTS
4
MEMORY CHANNELS
Dual-channel
MAXIMUM INTERNAL MEMORY
128GB

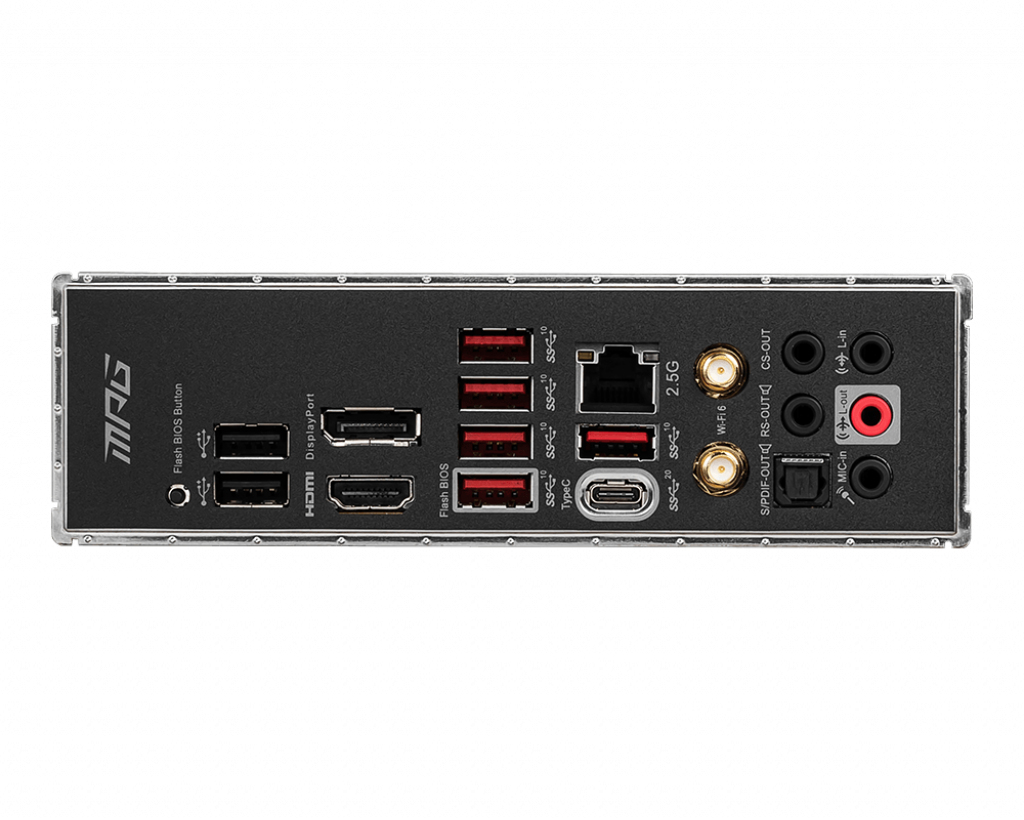

PORTS
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 2
Ethernet LAN (RJ-45) ports: 1
HDMI ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
USB 2.0 ports quantity: 4
DisplayPorts quantity: 1
Ethernet LAN (RJ-45) ports: 1
HDMI ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
USB 2.0 ports quantity: 4
DisplayPorts quantity: 1
ETHERNET
2.5 Gigabit Ethernet
ONBOARD USB 2.0
4
ONBOARD USB 3.1
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 4
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 2
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 2
M.2 SLOTS
4
SATA III CONNECTORS
6
TPM
Yes
AUDIO CHANNELS
5.1 channels
PCI EXPRESS X1
1
PCI EXPRESS X16
3
CROSSFIRE
Yes
SUPPORTED OPERATING SYSTEMS
Windows 10, Windows 11
WIFI
Yes
Product Description
EXTREME STABILITY & COMPATIBILITY TESTING
MSI conducts thorough memory testing with the most popular memory brands under extreme conditions to ensure your system runs stable no matter what. Our memory partners include brands like Corsair, Crucial, Kingston, G.Skill and many more to optimize memory modules, configurations and even improve overclocking.
HIGH-BANDWIDTH AND LOW-LATENCY NETWORK
2.5Gbps LAN provides incredible data transfer speed faster than general Gigabit LAN. This is a premium solution for demanding users.
