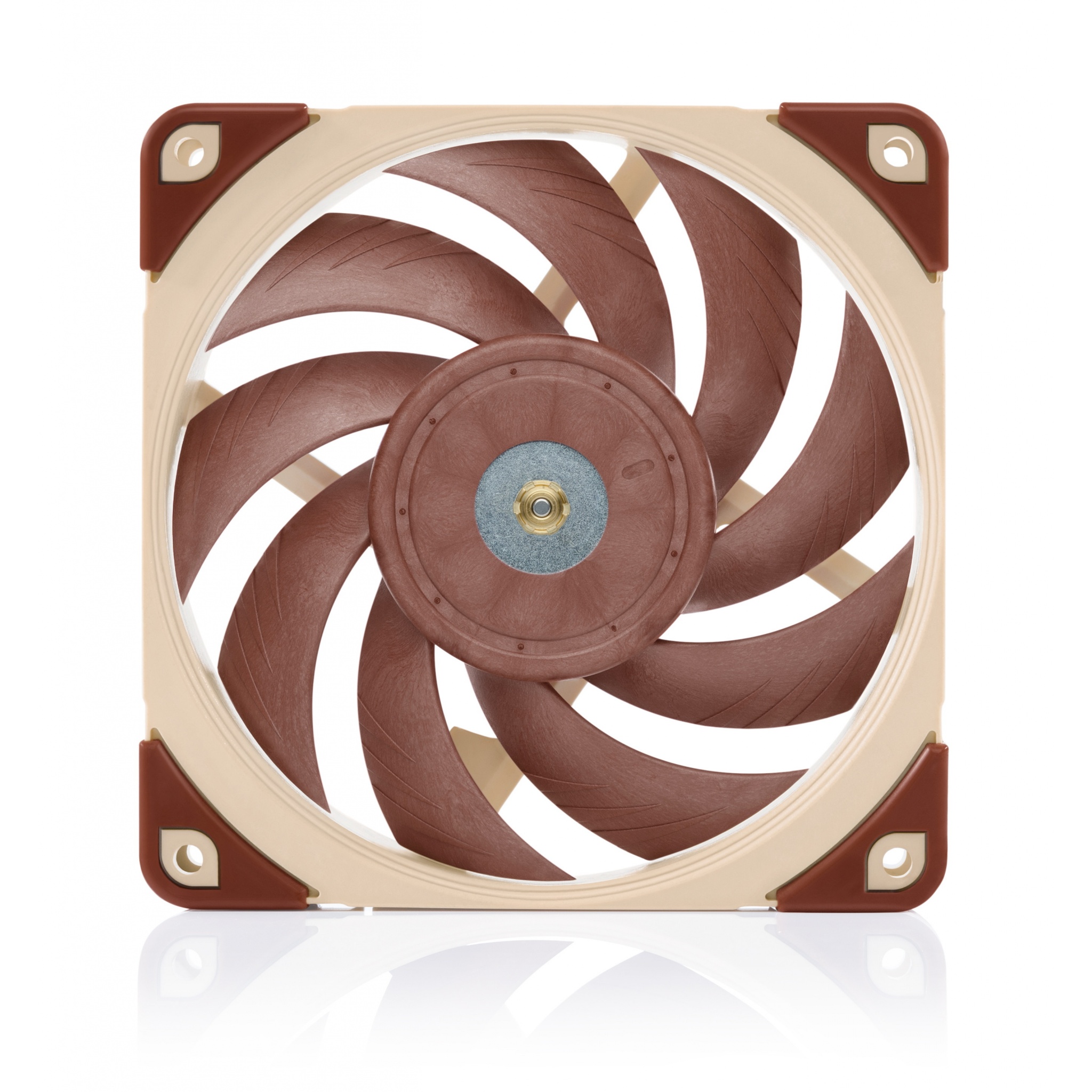

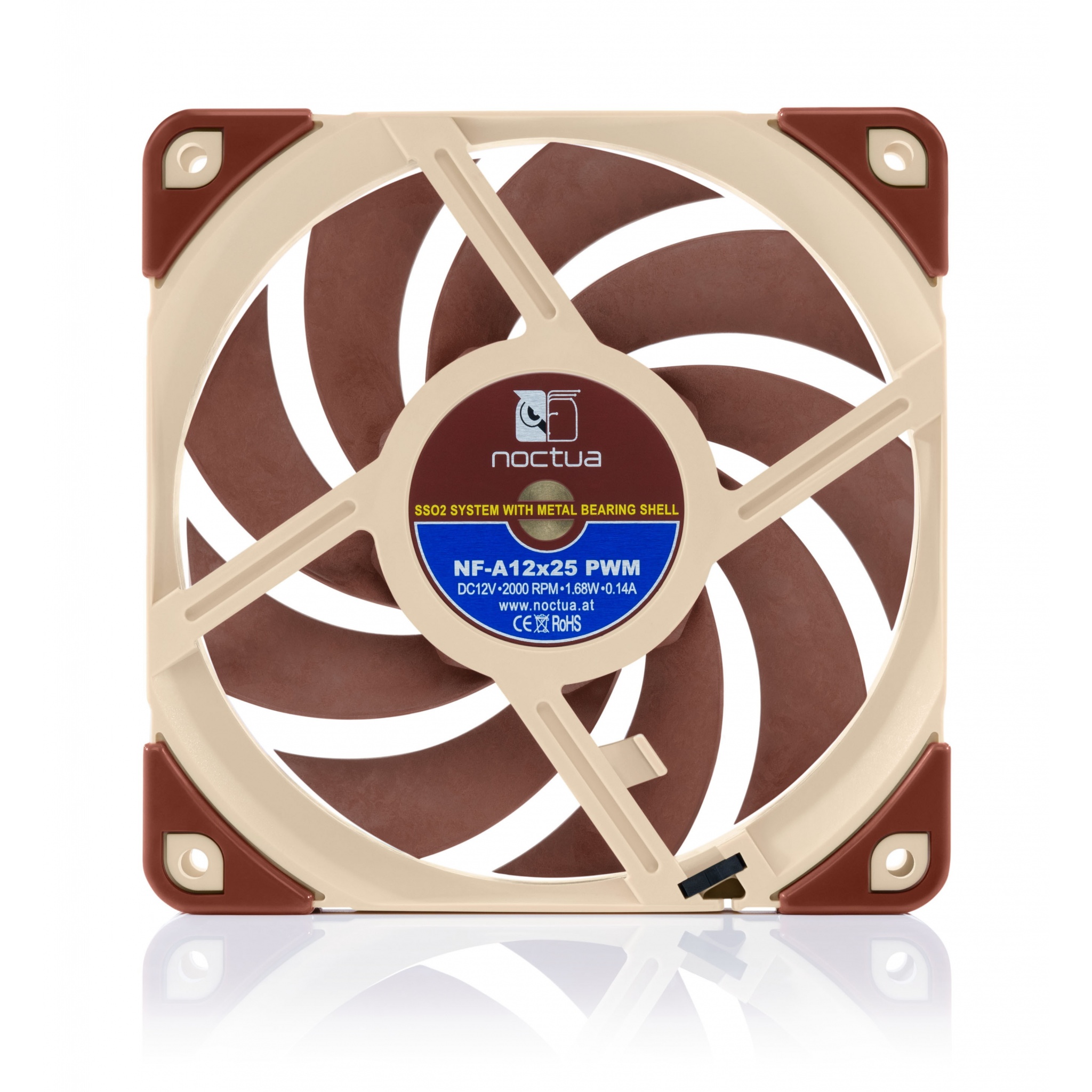

Noctua 120mm 2000RPM PWM Computer Case Fan

Manufactured by: Noctua

Product Information

Part Number: NF-A12x25 PWM
Item No: 279-0068
Shipping Weight: 0.36 kgs (0.79 lbs)
Actual Weight: 0.36 kgs (0.79 lbs)

Specifications

FAN DIAMETER
120 mm
ROTATION SPEED
450-2000 RPM
QUANTITY
Single
NOISE LEVEL
22.6 dBA
AIRFLOW
102.1 m³/h
CONNECTOR
4-pin PWM
COLOR
Brown
VOLTAGE
12 V
POWER CONSUMPTION
1.68 W
DIMENSIONS
120 mm x 120 mm x 25 mm

Product Description

The NF-A12x25 is a highly optimised next-generation 120mm fan that integrates Noctua’s latest innovations in aerodynamic engineering in order to achieve an unprecedented level of quiet cooling performance. It takes state-of-the-art technologies such as the AAO (Advanced Acoustic Optimisation) frame or Flow Acceleration Channels and combines them with a record tight tip clearance of only 0.5mm, which is made possible by using the novel Sterrox liquid-crystal polymer (LCP) compound as well as a metal-reinforced motor hub and axis for ultimate precision.

Following the approach of Noctua’s A-series, the NF-A12x25 is a true all-rounder that yields superb results in all types of usage, regardless of whether it’s in low-impedance, airflow-oriented applications such as case cooling, or high-impedance, pressure-demanding scenarios such as on heatsinks and watercooling radiators. The 4-pin PWM version of this Noctua fan supports fully automatic speed control via PWM fan headers and comes with a Low-Noise Adaptor to reduce the maximum speed from 2000rpm to 1700rpm.

Topped off with exceptional running smoothness, Noctua’s reference-class SSO2 bearing, a rich bundle of accessories and 6-year manufacturer’s warranty, the NF-A12x25 is a premium-quality product through and through. Its superior efficiency, cutting-edge construction and pioneering materials make it an elite choice for the most discerning demands.
