Thermaltake Versa H17 Micro-ATX Tower Black

Manufactured by: Thermaltake

Product Information

Part Number: CA-1J1-00S1NN-00
OEM Part No: 270-0262
Shipping Weight: 11.9 kgs (26.18 lbs)
Actual Weight: 5.6 kgs (12.32 lbs)

Specifications

FORM FACTOR
Micro ATXC
MOTHERBOARD COMPATIBILITY
Micro ATX
POWER SUPPLY
ATX
POWER SUPPLY INCLUDED
No
POWER SUPPLY MOUNTED
Bottom
MAX PSU LENGTH
220mm
RADIATOR COMPATIBILITY
Front radiator sizes supported: 240,280
Rear radiator sizes supported: 120
COLOR
Black
SIDE PANEL WINDOW
No
LED
No
MAX GPU LENGTH
350mm
MAX CPU COOLER HEIGHT
155mm
INTERNAL 3.5
2
INTERNAL 2.5
2
EXPANSION SLOTS
4
PORTS
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 0
FRONT FANS SUPPORTED
Number of front fans supported (max): 3
Front fans diameters supported: 120,140
TOP FAN DIAMETERS
120,140 mm
TOP FANS SUPPORTED
1

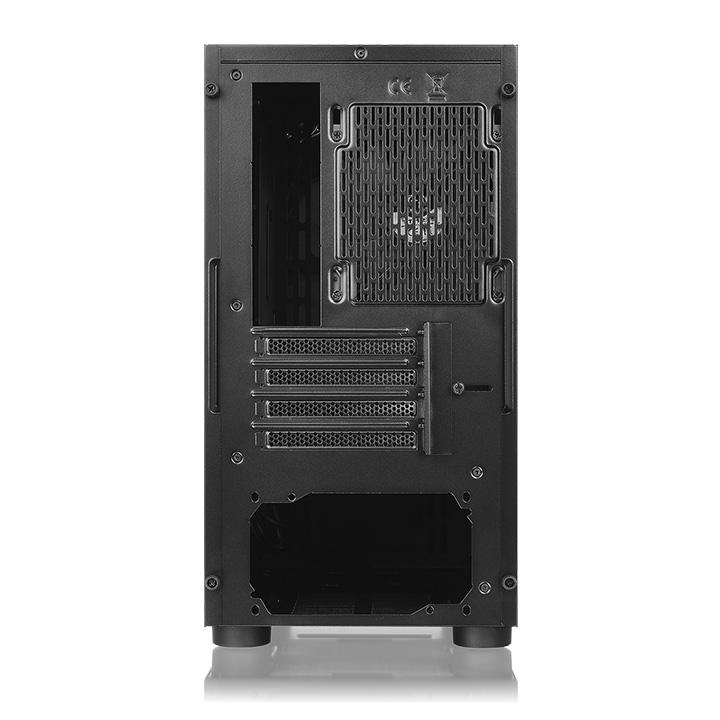

REAR FAN SUPPORTED
Rear fans diameters supported: 120
Rear fans installed: 1x 120
MATERIAL
SPCC
DIMENSIONS
Width: 205
Depth: 380
Height: 390
WEIGHT
4.5 kg
WARRANTY
1 years manufacturers warranty

Product Description

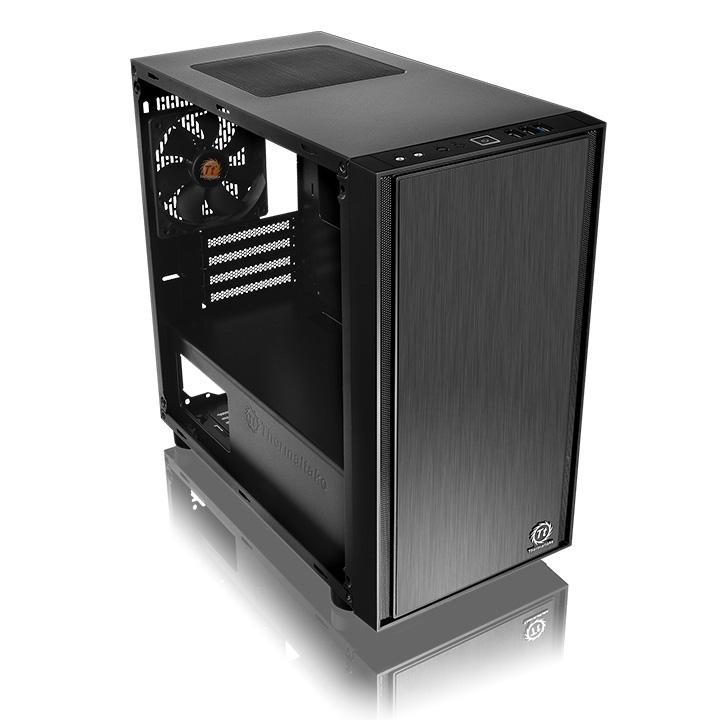

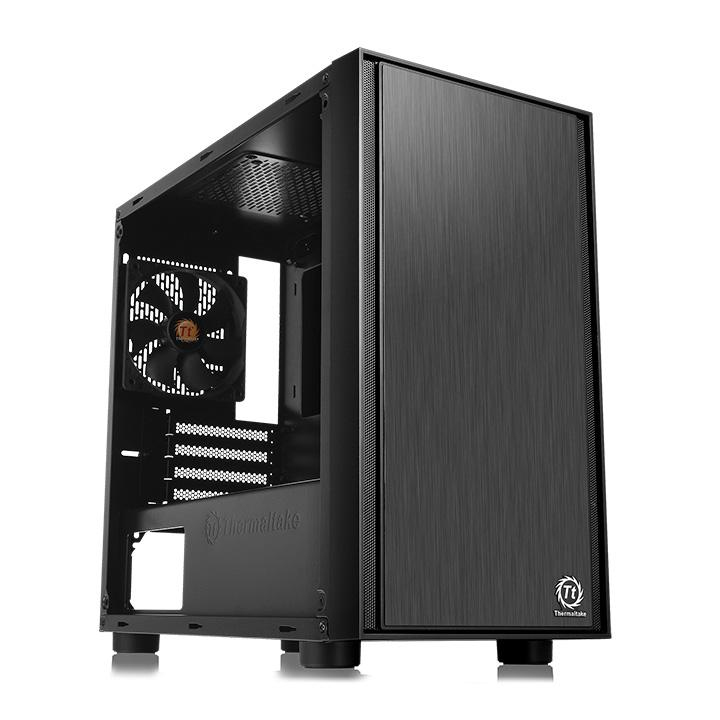

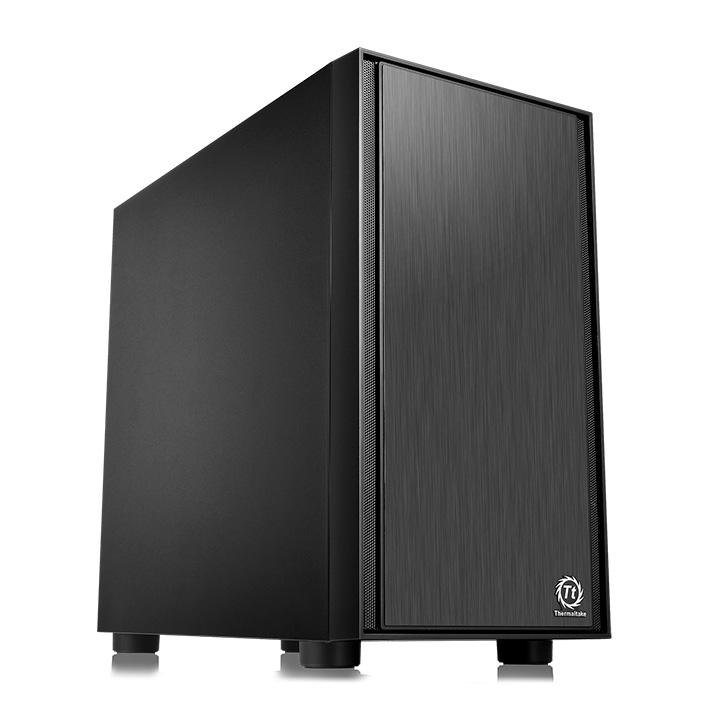

Thermaltake Versa H17 Micro Case
Designed for entry-level PC builders and gamers, Thermaltake Versa H17 Micro Case features the simplicity appearance with easy cable management design, AIO liquid cooling compatible, and ample ventilation options. Supporting the latest PC hardware and all high-end GPU solutions, the Versa H17 is a good choice for those who opt for stylish PC case with manageable frame size and advanced features.

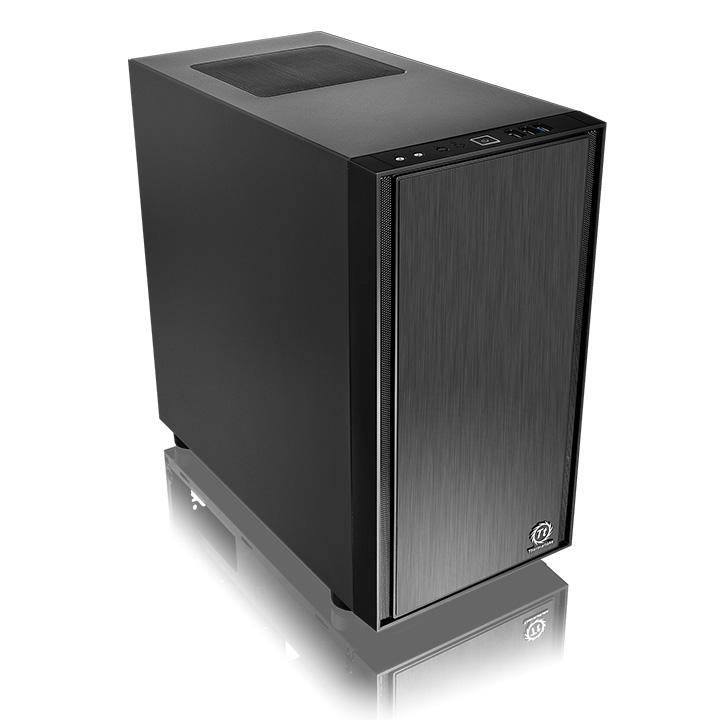

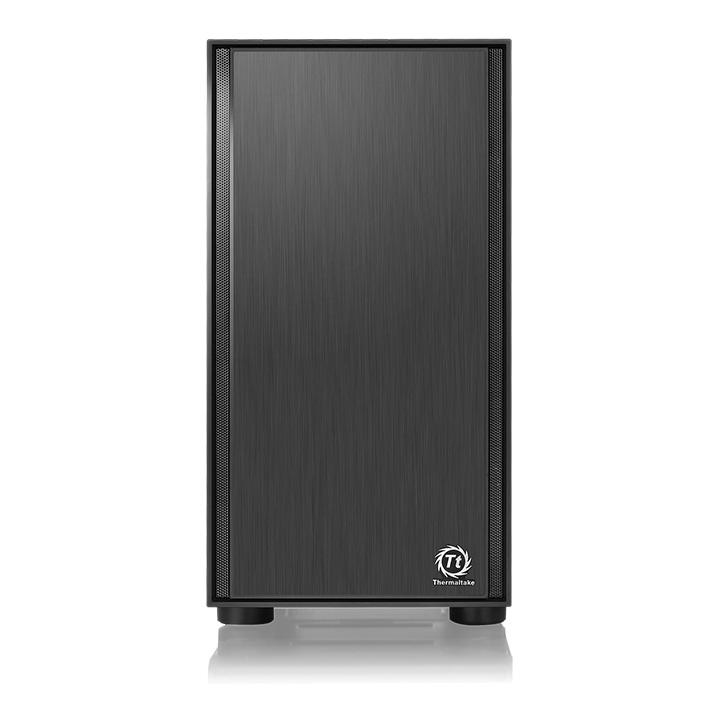

Elegant Front Panel Design
Featuring aluminum brushed like front panel to mask the extrusive drive devices, not only unify the appearance, but also provide a simple yet elegant aesthetic.

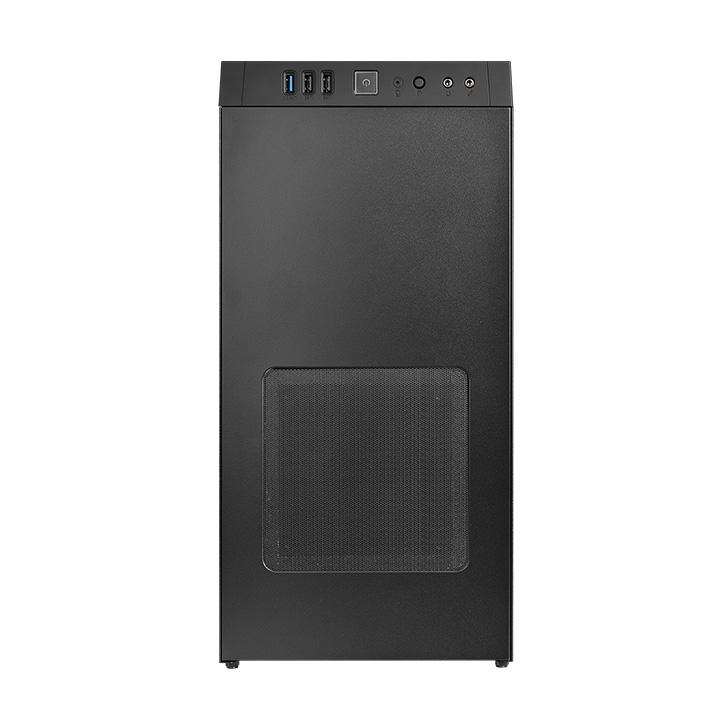

Handy I/O Ports
The top-front panel is designed a USB 3.0 data transfer port along with two standard USB 2.0 ports and a HD microphone and headset jacks, to grand direct access when needed.

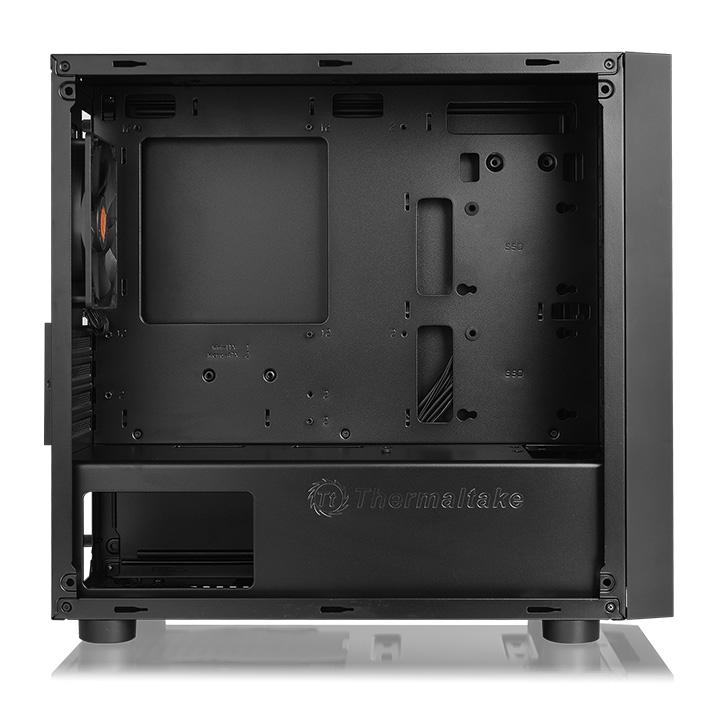

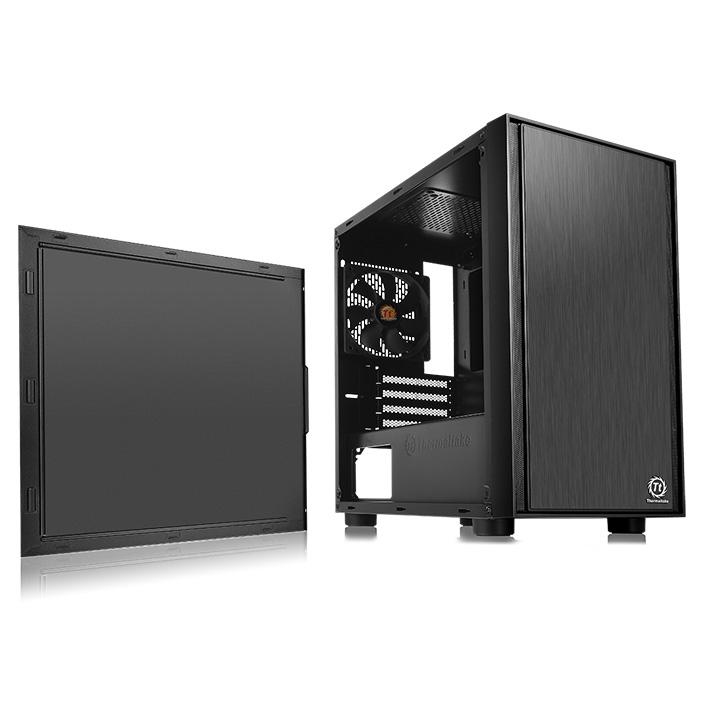

Easy Cable Management
Wiring tangled problem no longer exists with the cable routing gap, hiding cables behind motherboard tray to ensure smoothness for building the system as well as better airflow. Plus, the pre-mounted PSU cover allows the entire bottom area of the case to be used to reorganize unused cables.

Superior Hardware Support
The Versa H17 supports motherboards up to Micro ATX, a tower CPU cooler with maximum height 155mm, and a dual expansion slot VGA of up to 350mm in length without front fan. The hidden drive bays can house up to two 2.5” and two 3.5” storage devices at same time.

AIO Liquid Cooling Compatible
Supporting all types of AIO liquid cooling solutions, the Versa H17 has the capability to accommodate up to one 280mm radiator at the front and one 120mm radiator at the rear.

Optimized Ventilation
Standard equipped with one 120mm rear fan along with optional three 120mm or two 140mm intake fans as well as one 120mm/140mm exhaust fans provides efficient airflow for the system.
