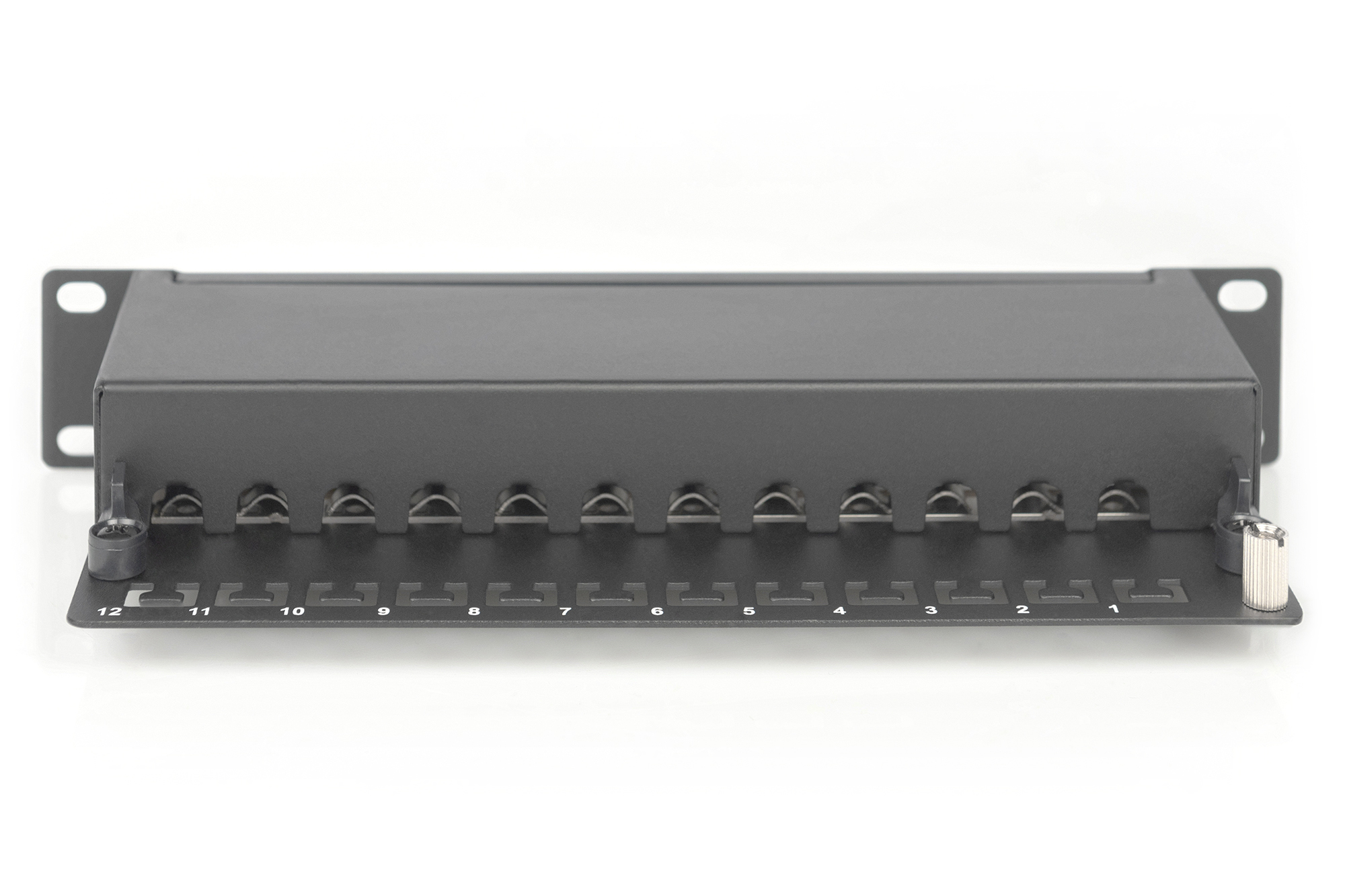

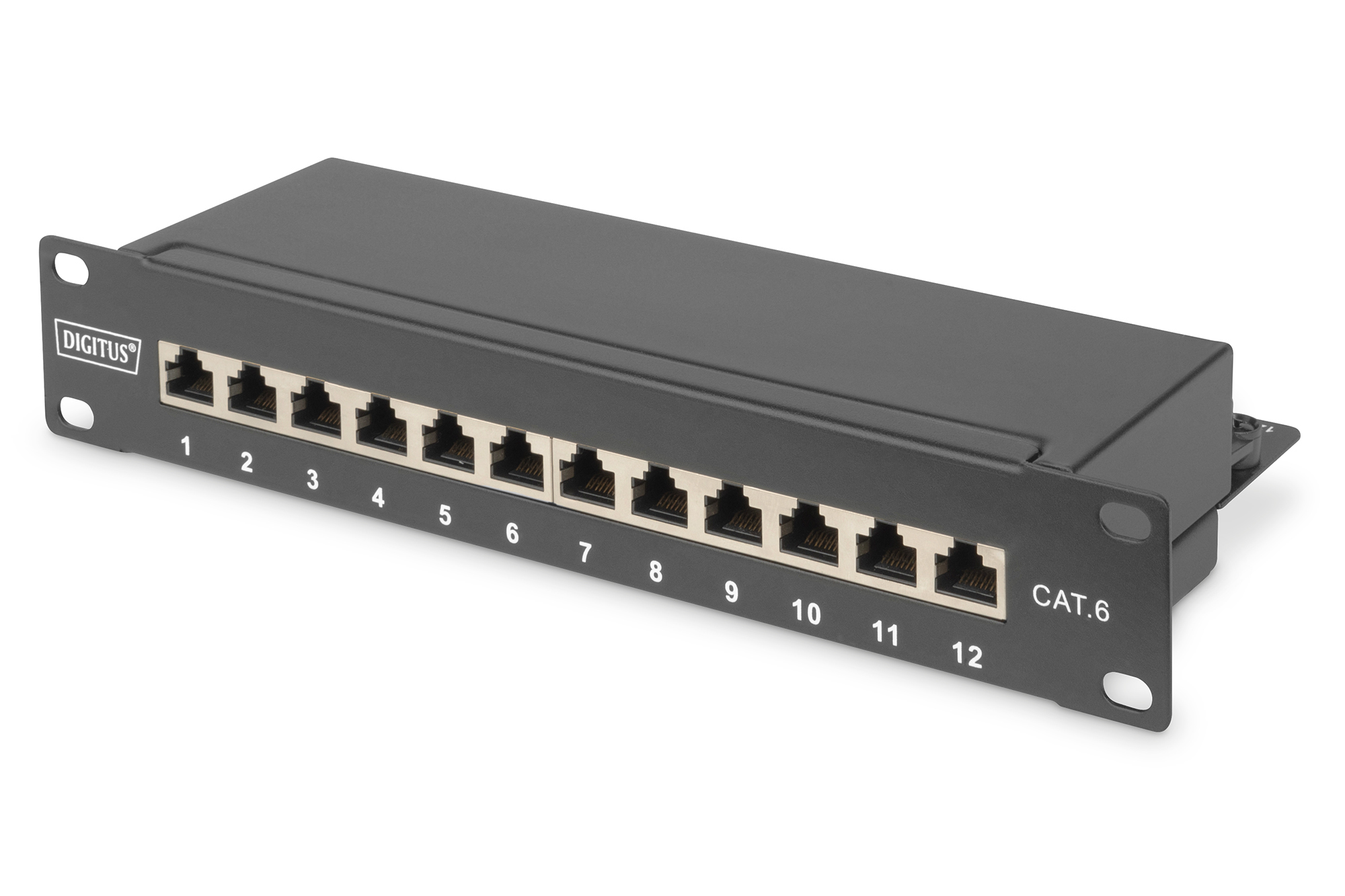

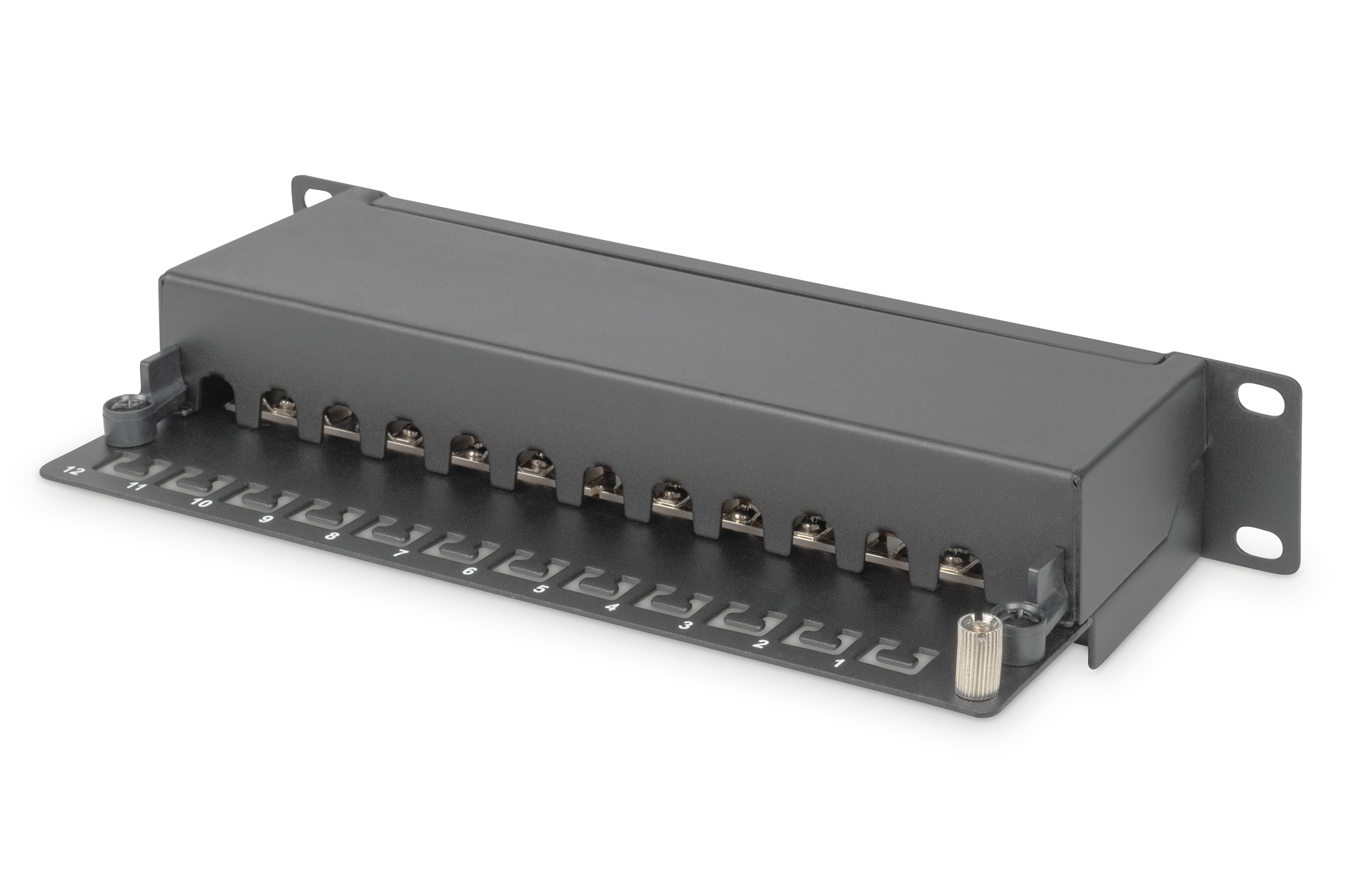

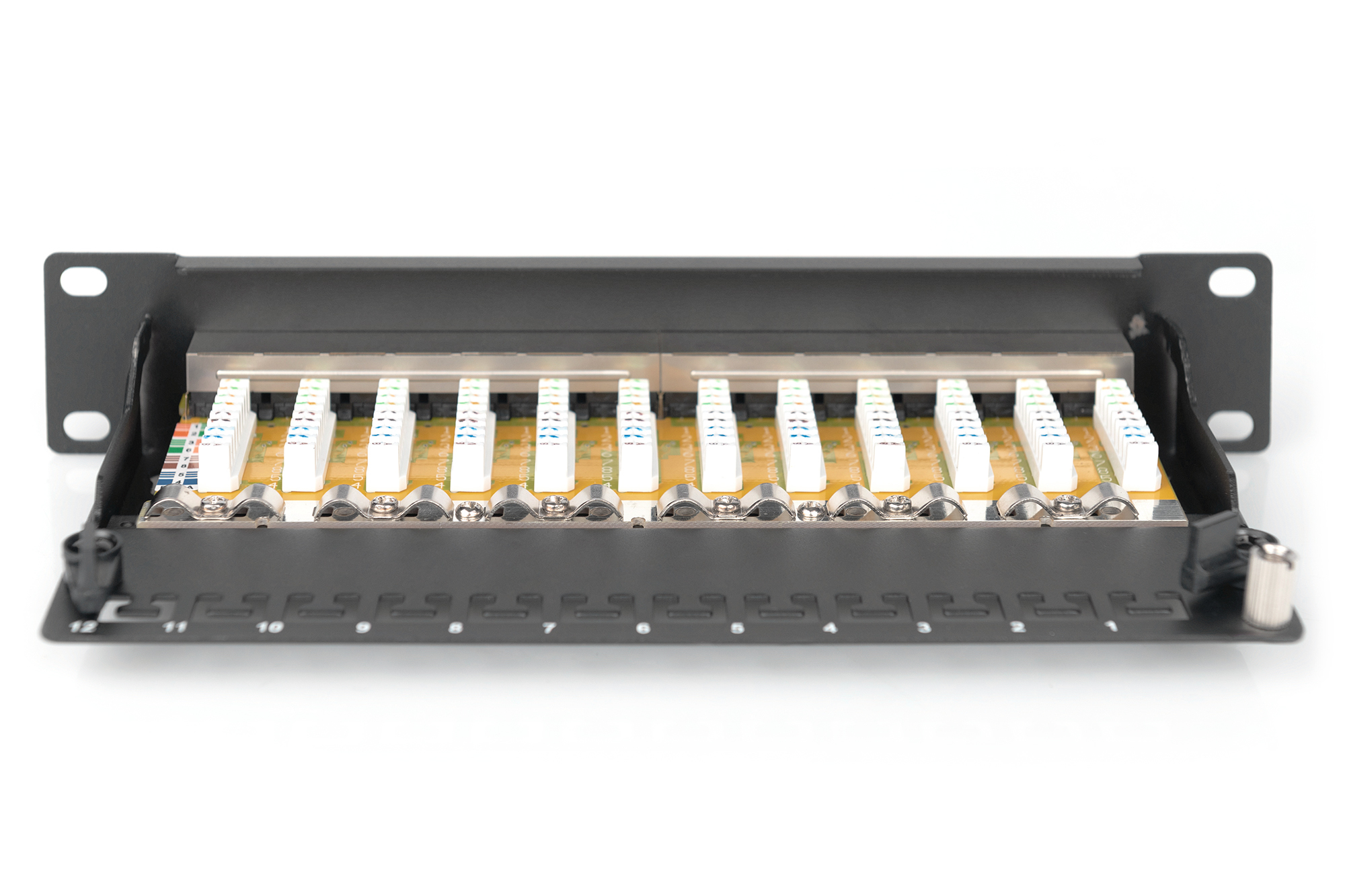

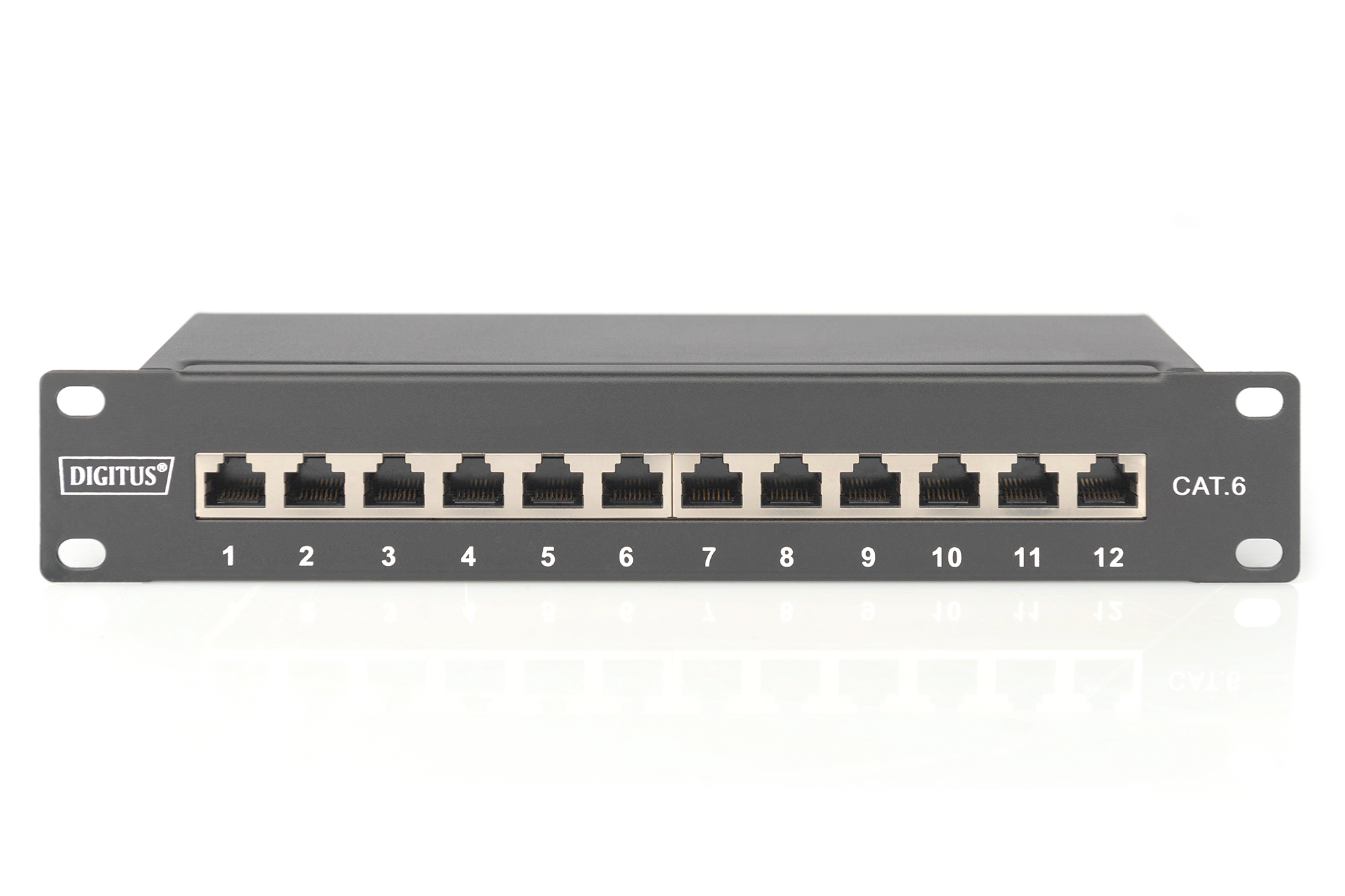

Digitus CAT 6, Class E Patch Panel, shielded, black
Product Information
Part Number: DN-91612S
Item No: FD2822750
Shipping Weight: 0.81 kgs (1.77 lbs)
Actual Weight: 0.81 kgs (1.77 lbs)
Specifications
NUMBER OF PORTS
12
CONNECTOR TYPE(S)
RJ-45
RACK CAPACITY
1U
COLOR
Black
Product Description
Future-oriented standards and high-end quality for your network.

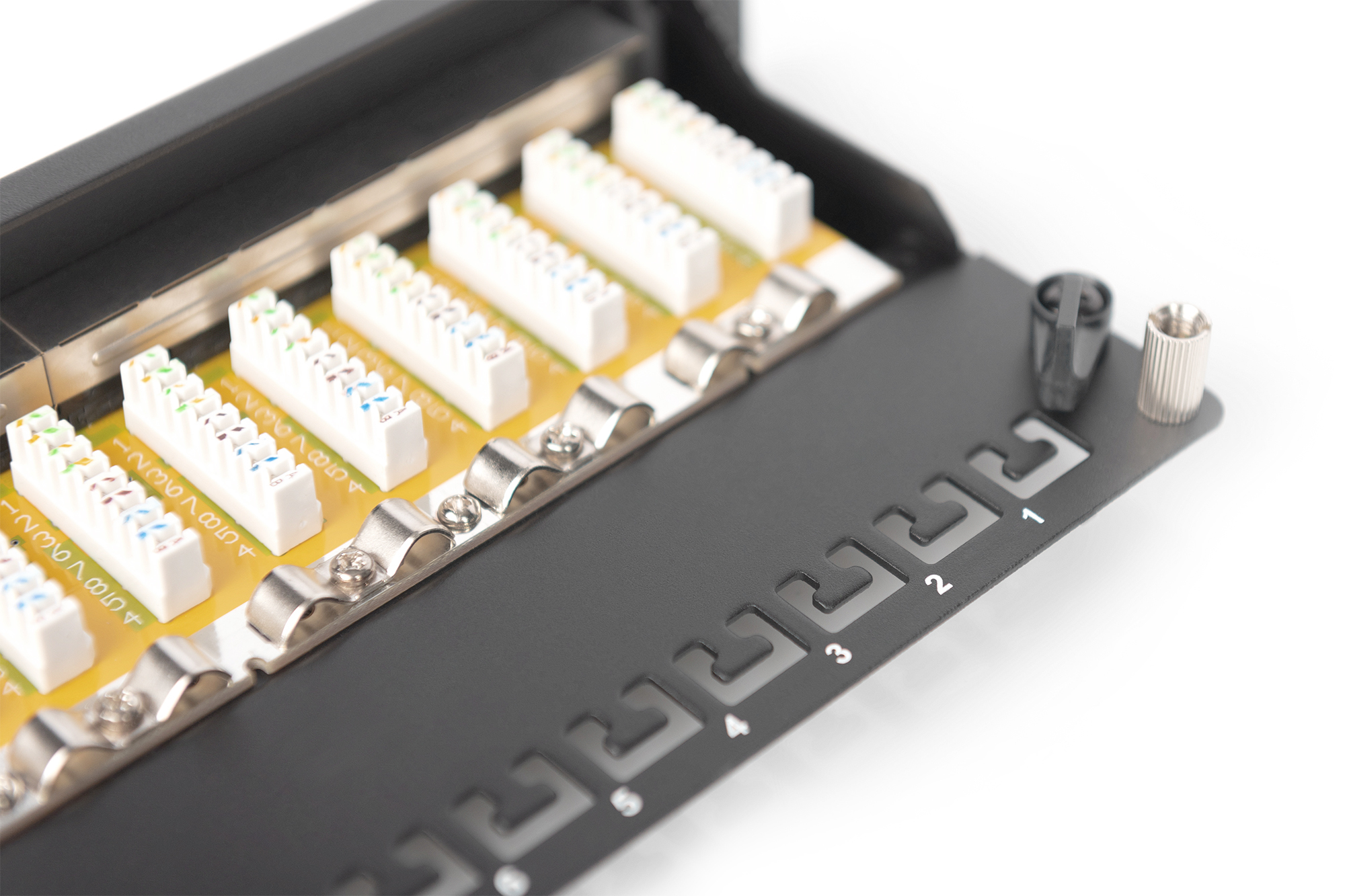

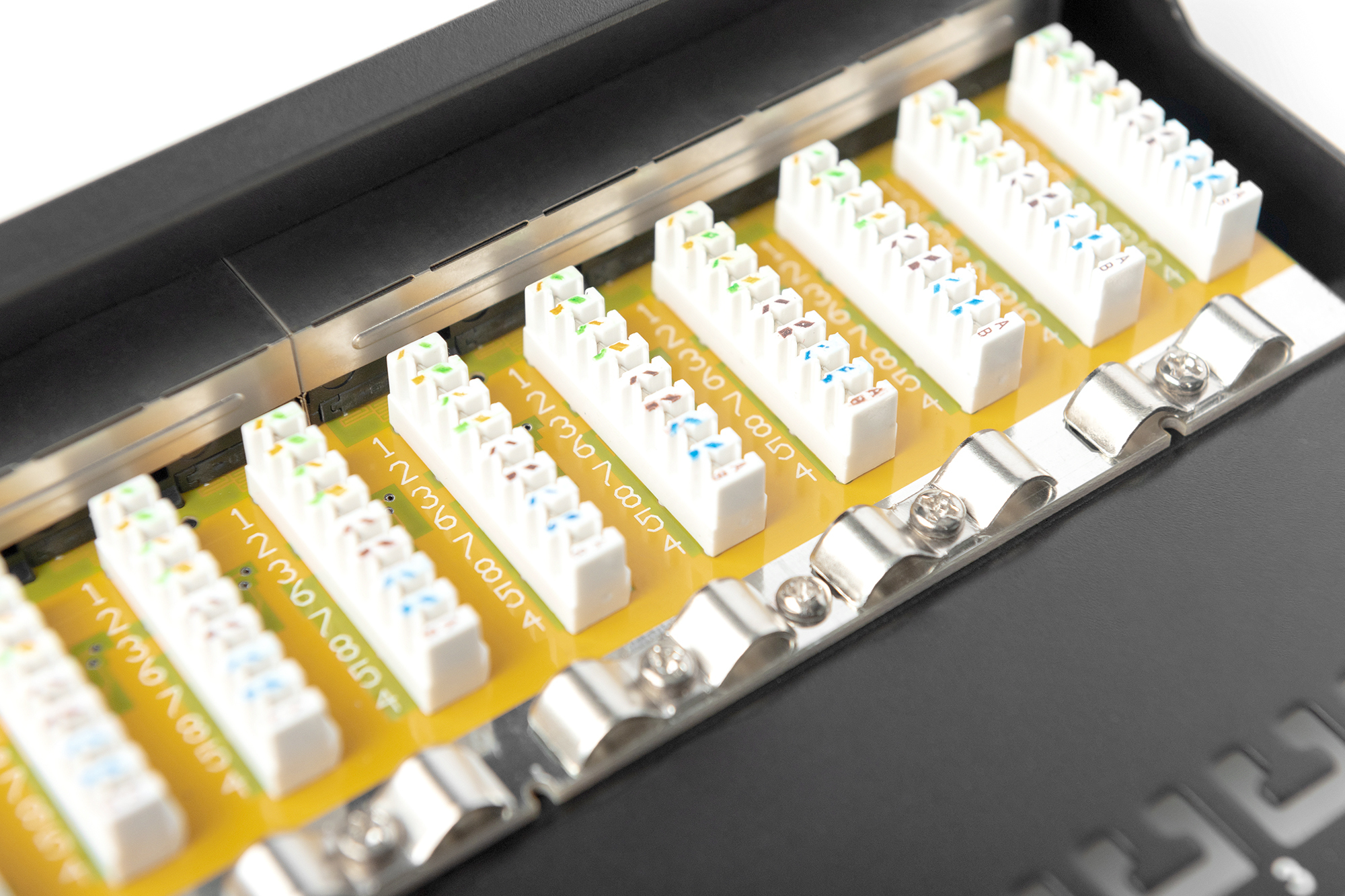

- Easy wire installation possible due to color coded LSA strips
- Shielding provides optimized performances
- Compact 10" design with 8x RJ45 ports
The CAT 6 Patch Panels for 254 mm (10") rack mount from DIGITUS® are manufactured with Link Performance Class E, for up to 250 MHz, ISO/IEC 11801 and EN 50173. Cable installation takes place via LSA strips which are color coded acc. EIA/TIA 568B. The housing consists of galvanized, cold-rolled steel, acc. EN1.4301, UNS S30400, AISI 304 and LMSAD110.
- Easy wire installation possible due to color coded LSA strips
- Shielding provides optimized performances
- Compact 10" design with 8x RJ45 ports
The CAT 6 Patch Panels for 254 mm (10") rack mount from DIGITUS® are manufactured with Link Performance Class E, for up to 250 MHz, ISO/IEC 11801 and EN 50173. Cable installation takes place via LSA strips which are color coded acc. EIA/TIA 568B. The housing consists of galvanized, cold-rolled steel, acc. EN1.4301, UNS S30400, AISI 304 and LMSAD110.
